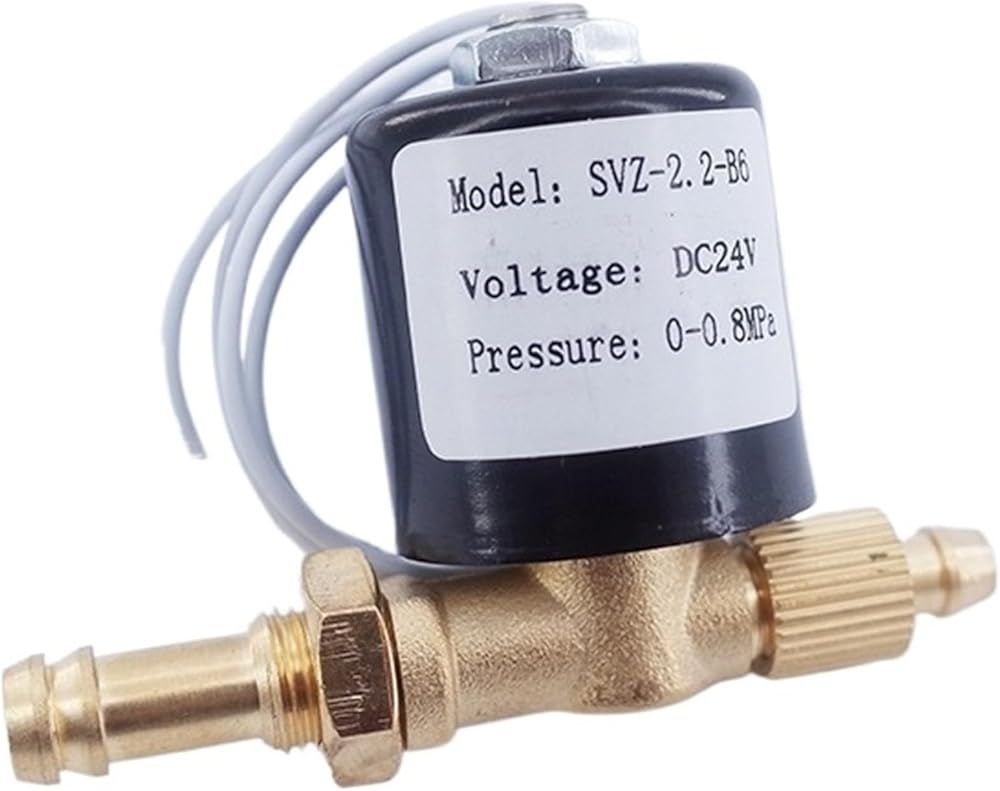

Valve
1.Specification
Model: VZ
Working Medium: Air ,Water ,Oil
Type: Normal Closed
Pipe Size: 8mm, 6mm
Orifice: 1.5mm, 2.2mm, 2.5mm, 3.5mm, 5mm
Working Pressure Air ,Water ,Oil: 0~8bar
Material: Copper
Power: 5W
Resistance: AC36V/23 ,AC220V/3.5k ,DC24V/125
Wire Lenght: 30cm
Size: 63*30*50mm
==========
Structure : control
Port Size : 8mm/6mm
Media : Water
Material : Brass
Temperature of Media : Medium Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : VZ-1.5,VZ-2.2,VZ-2.5,VZ-3.5,VZ-5
Origin : Mainland China
Certification : CE
Orifice : 1.5mm/2.2mm/2.5mm/3.5mm/5mm
For : Air ,gas ,oil ,water
Operating Temperature : -5~80°C
type : normally colse
Working pressure : 0-8bar
Voltage : AC36V AC220V 24VDC 12VDC
Sealing materials : NBR
