Fitment:
For 1963-1968 Chevy Impala 3.8L-7.0L, l6 V8
For 1963-1968 Chevy Bel Air 3.8L-7.0L, l6 V8
For 1964-1965 Chevy Chevelle 3.2L 3.6L l6, 4.3L 5.3L 6.5L V8
For 1967-1968 Chevy Caprice 4.1L l6, 4.6L-7.0L V8
For 1963,1965-1968 Chevy Biscayne 3.8L 4.1L l6, 5.0L-7.0L V8
For 1959-1960,1964-1965 Chevy El Camino 3.2L 3.8L l6, 4.6L 5.3L 5.7L V8
For 1959-1961 Chevy Kingswood 3.8L l6, 4.6L 5.7L 6.7L V8
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.
Radiator Size:
Row: 3 Row Core
Material: Full Aluminum
Radiator Cap: Included
Core and Tank: All Aluminum
Radiator Flow: Down Flow
Core Dimensions: 16" H x 25-1/4" W x 2-1/2" T
Overall Dimensions: 22-1/4" H x 27-3/4" W x 4" T
Upper Inlet: 1-1/2" located on the Driver side
Transmission Oil Cooler: φ22*305*G1/4(Z)
Mount Type: Bracket
12'' Fans Details：
Volt: 12v
Maximum Fan CFM: 1730 cfm
Fan Diameter: 12.050''
Thickness: 2.500''
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

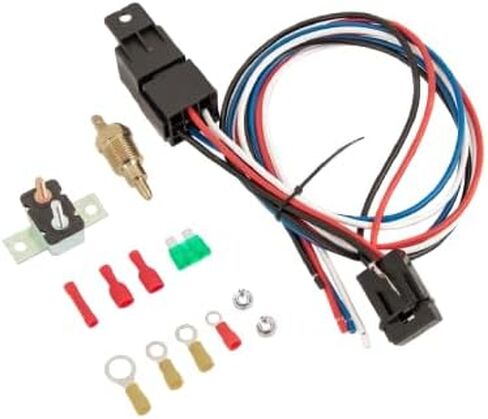

Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe

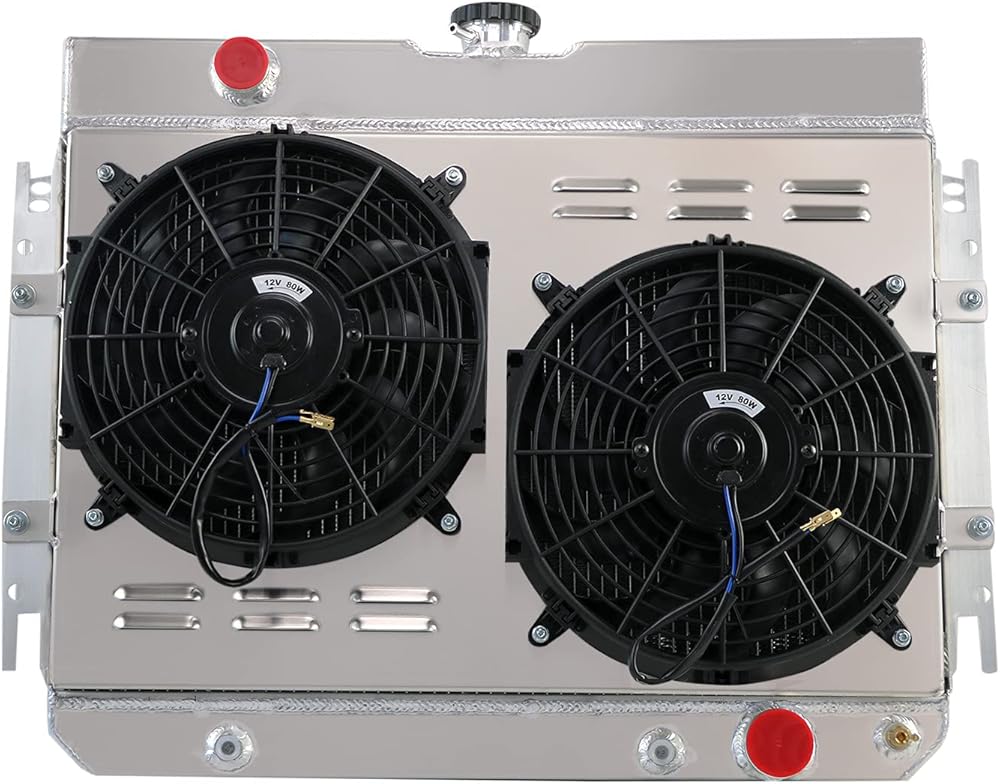

Package Include:

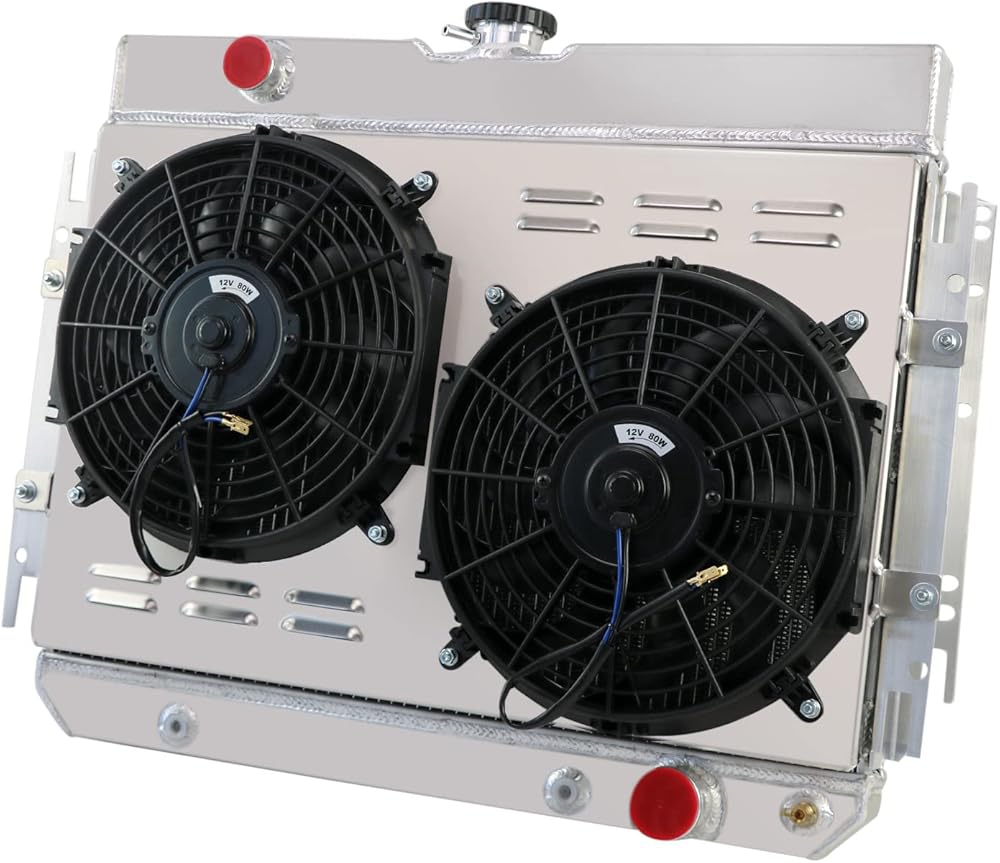

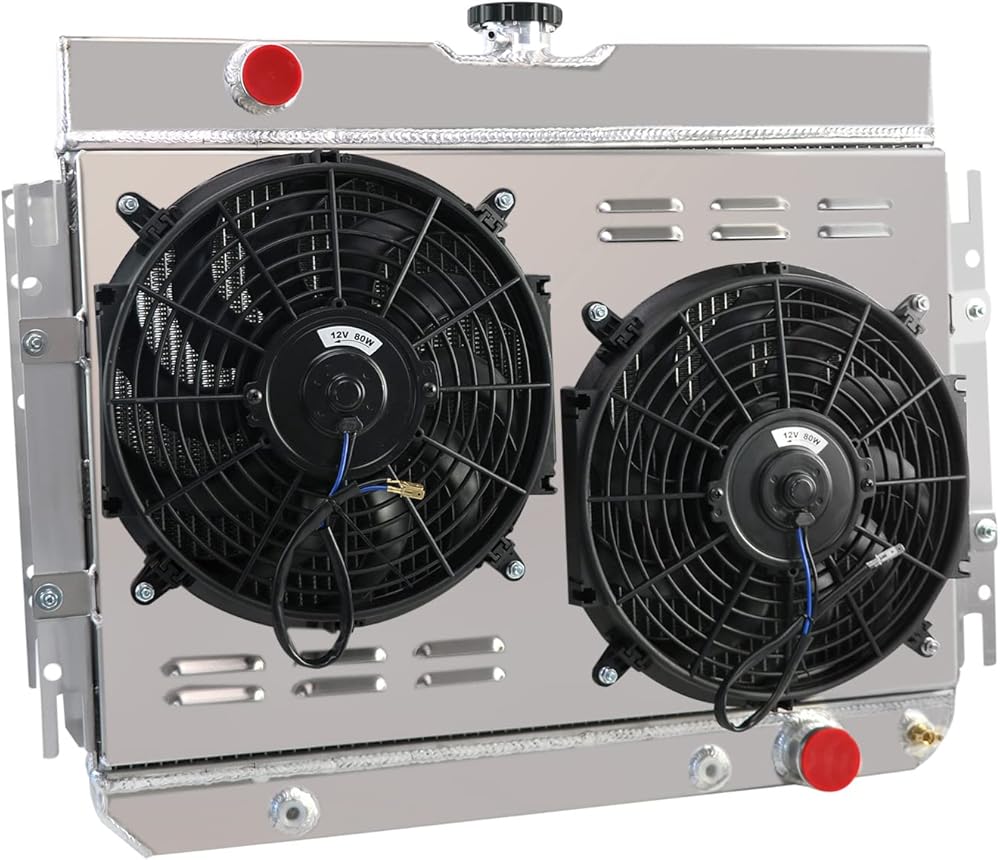

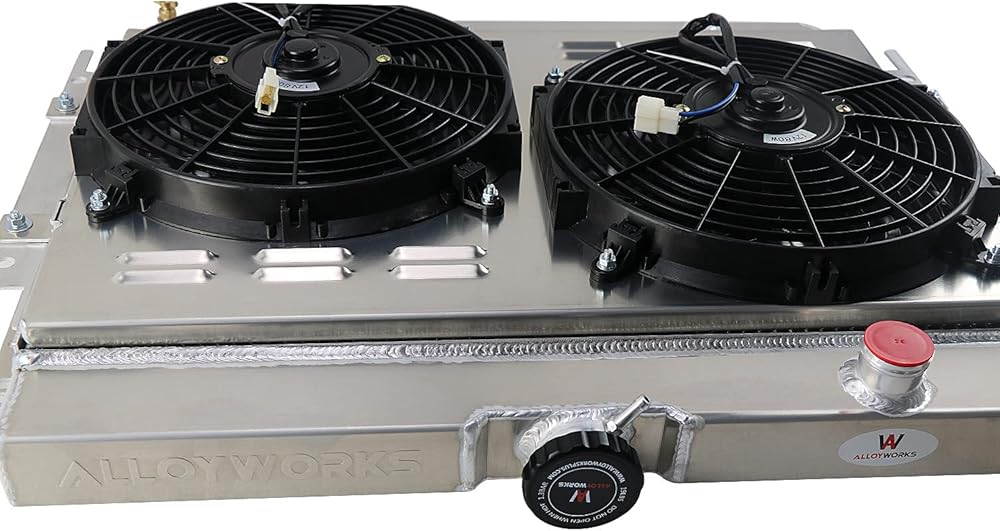

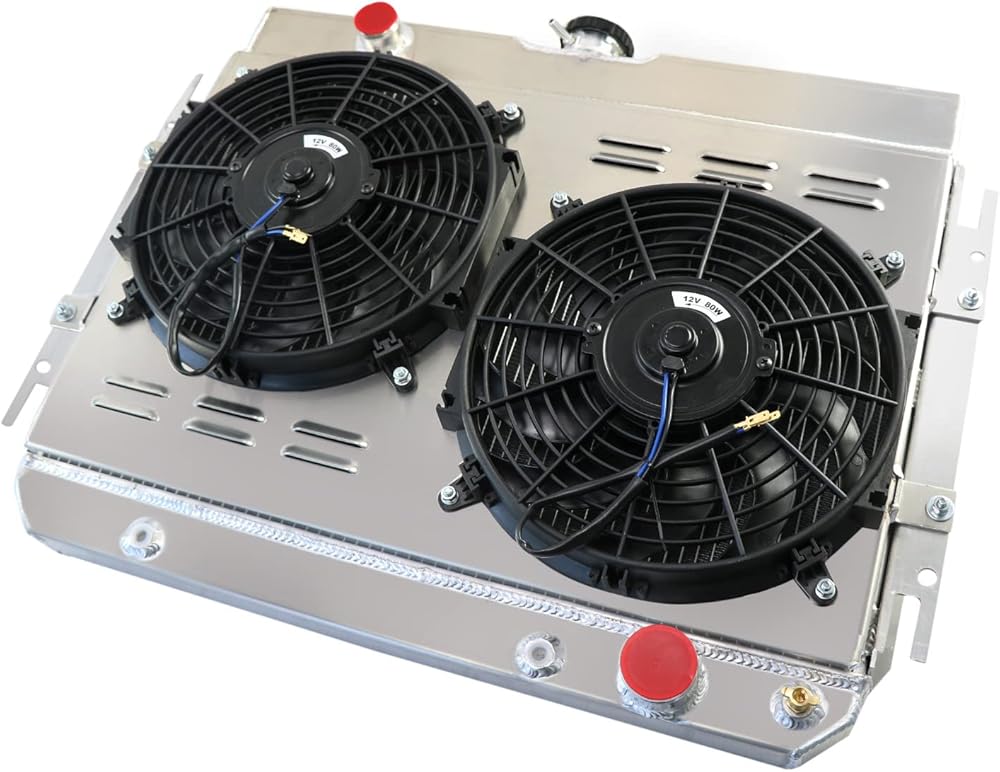

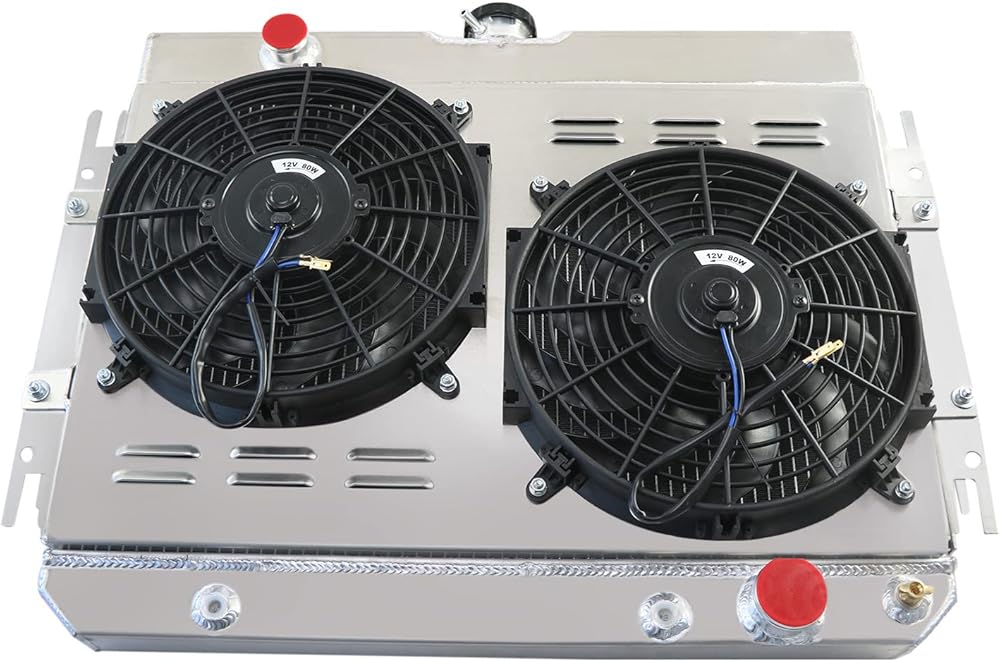

1 x 3-Row AA5052 Aluminum Radiator

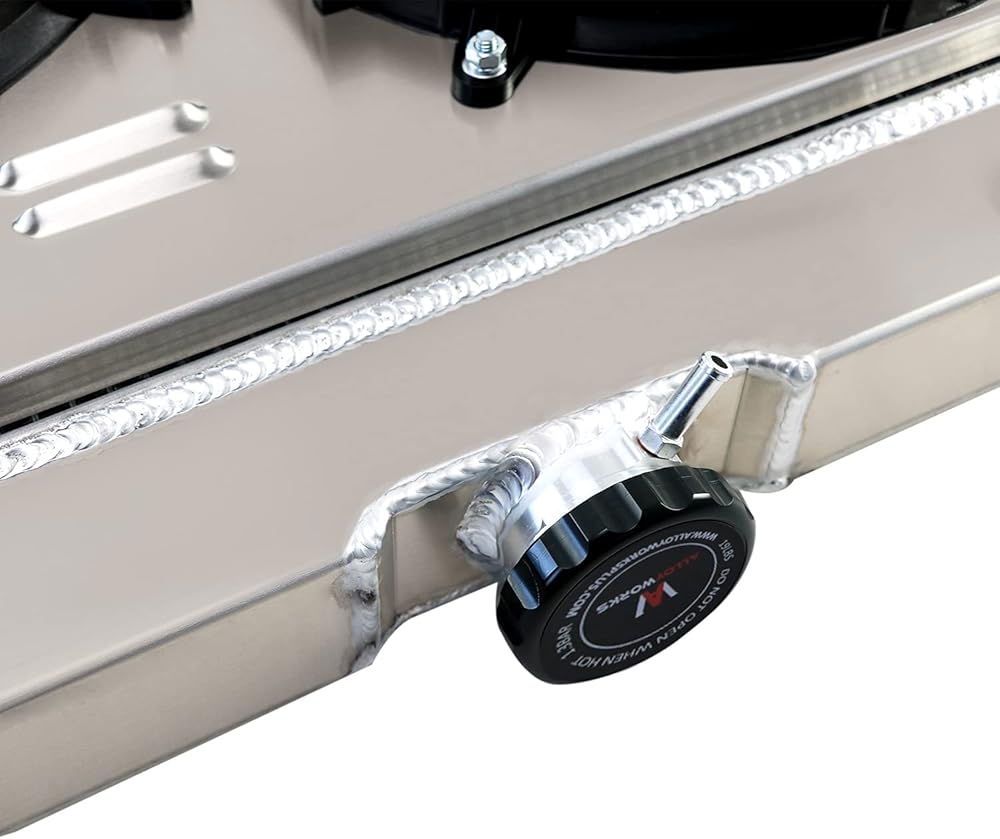

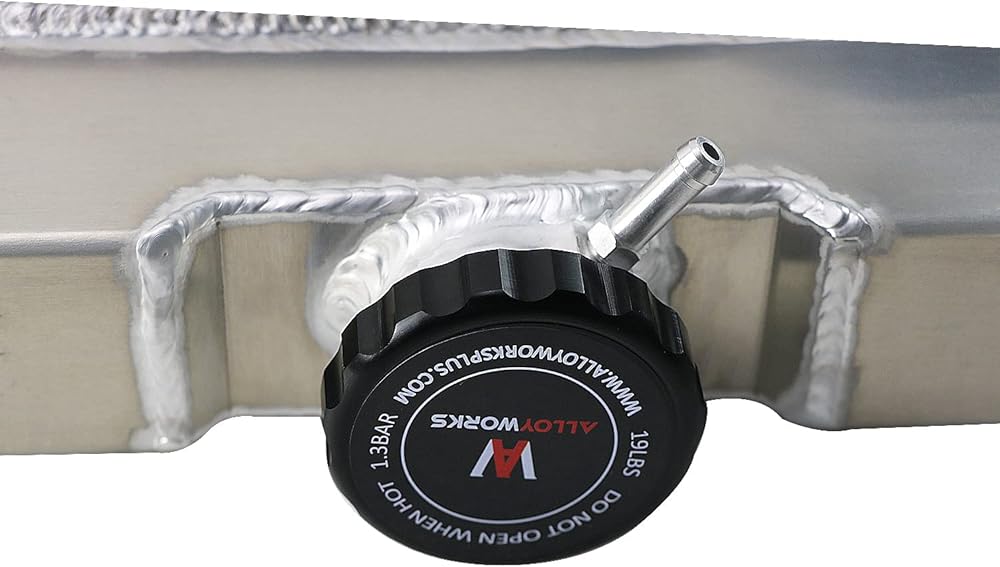

1 x CNC Machined Radiator Cap
1 x AA5052 Aluminum Shroud
2 x 12" Fans (Includes mounting kits)
1 x Thermostat Relay Kit
