Valves

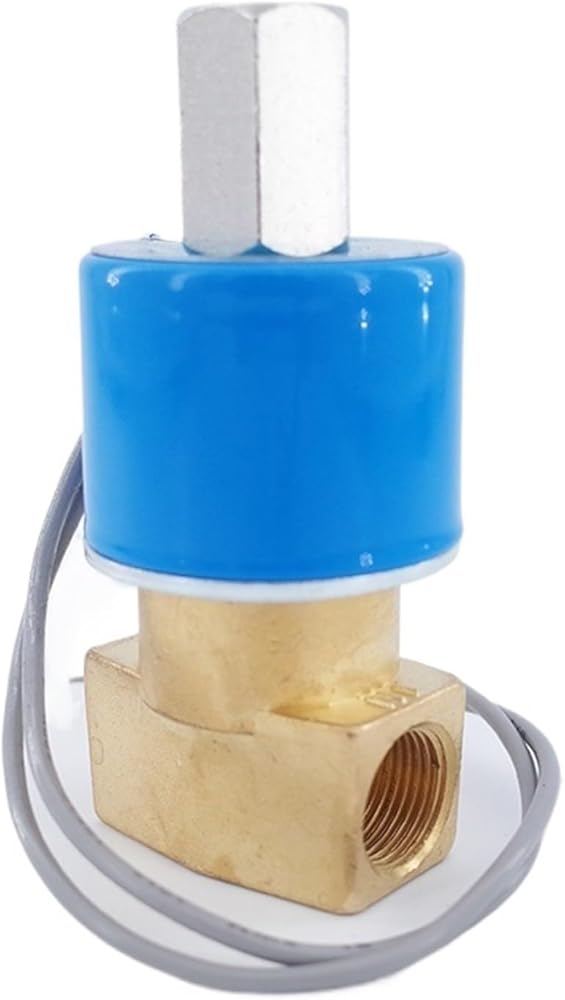

2 way copper coil water solenoid valveWire lead type
Model:FB2E-V-08Orifice 4mm,1/4 BSP ;
FB2E-V-10Orifice 5mm,3/8 BSP ;
3 way 2 position brass valve
Model: DC231Y-08Orifice 1.6mm,1/4 BSP ;
DC231Y-10Orifice 2mm,3/8 BSP ;

Voltage: 110V AC ,220V AC,12V DC ,24V DC.
2W Series Water Slenoid valve
1.Specification
Pipe Size: 1/4" BSP,3/8"BSP;
Max Pressure:0.9Mpa
Working Temperature: -5~80

High-concerned chemical : None
Structure : control
Port Size : G1/4",G3/8"
Media : Water
Material : Brass
Temperature of Media : Medium Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : FB2E-V-08/10,DC231Y-08/10
Form : Wire lead type
Operating Temperature : -5~80°C
type : normally colse
Action mode : direct acting
Working pressure : 0-8bar
Voltage : AC110V AC220V 24V DC 12V DC
Sealing materials : NBR
Packing : one piece valve + a carton
