Vehicle Fitment:
For 1963-1964 AMC ENGINE SIDE BRACKET MOUNTING
For 1971-1974 MATADOR ENGINE SIDE BRACKET MOUNTING
For 1968-1974 JAVELIN ENGINE SIDE BRACKET MOUNTING
For 1974 AMBASSADOR ENGINE SIDE BRACKET MOUNTING
For 1968-1974 AMX ENGINE SIDE BRACKET MOUNTING
For 1960-1962 RAMBLER ENGINE SIDE BRACKET MOUNTING
For 1965-1966 MARLIN ENGINE SIDE BRACKET MOUNTING
For 1958-1970 REBEL ENGINE SIDE BRACKET MOUNTING
For 1968-1971 SST ENGINE SIDE BRACKET MOUNTING
For 1968-1974 AMC WAGON ENGINE SIDE BRACKET MOUNTING

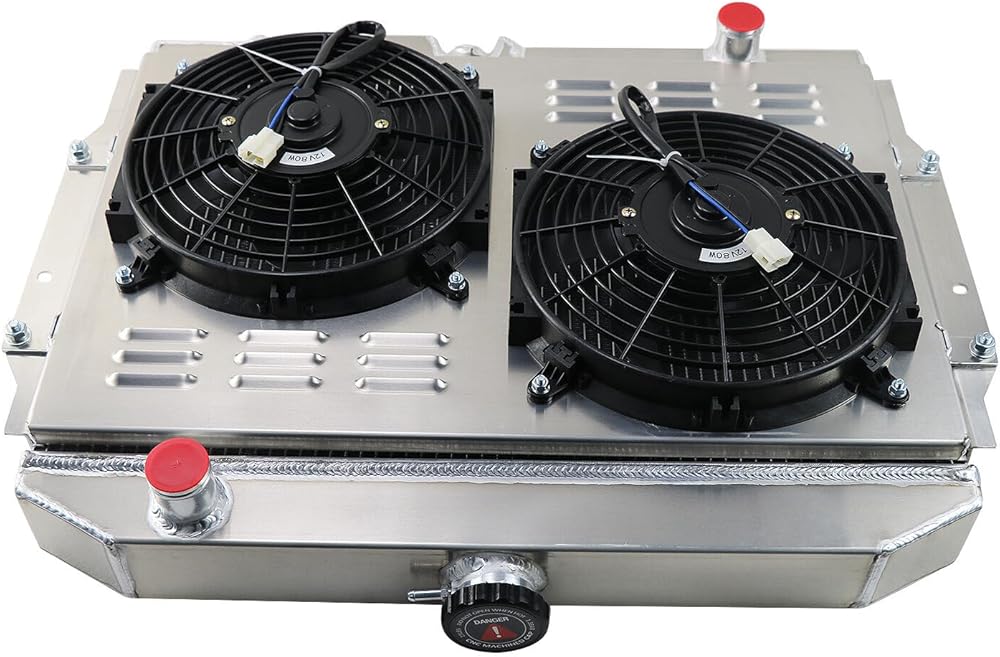

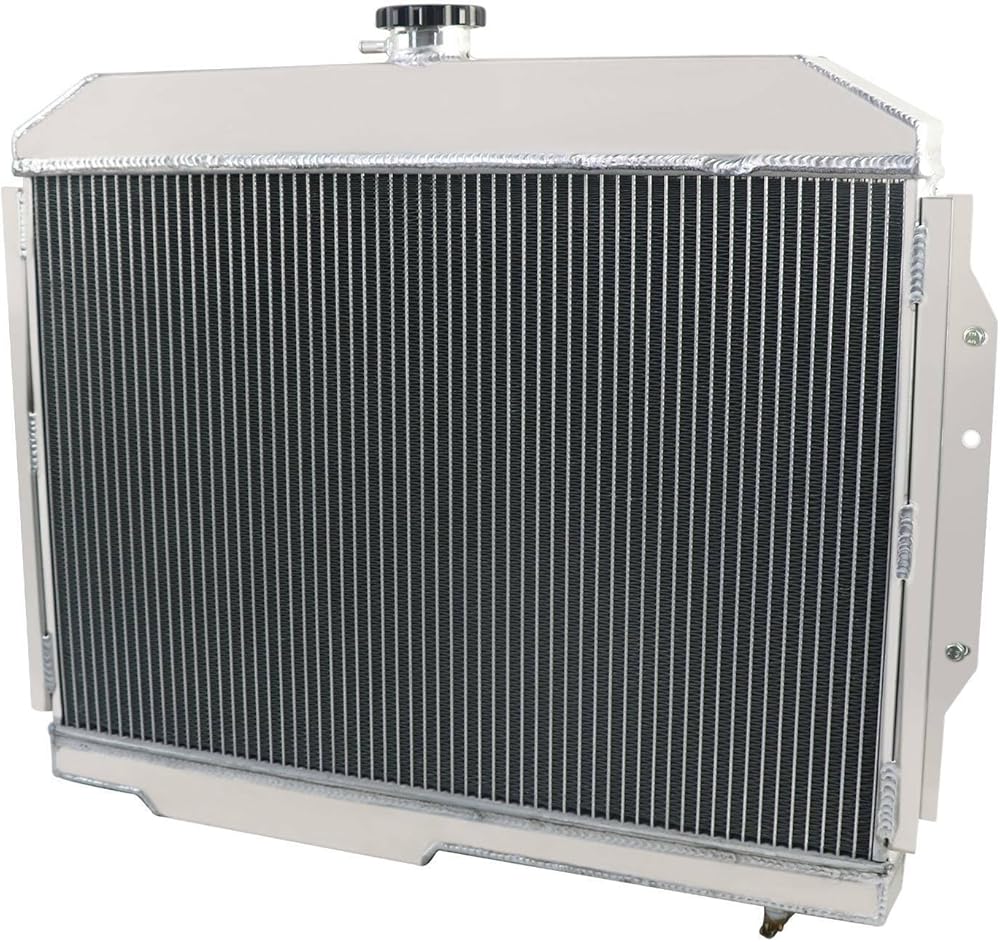

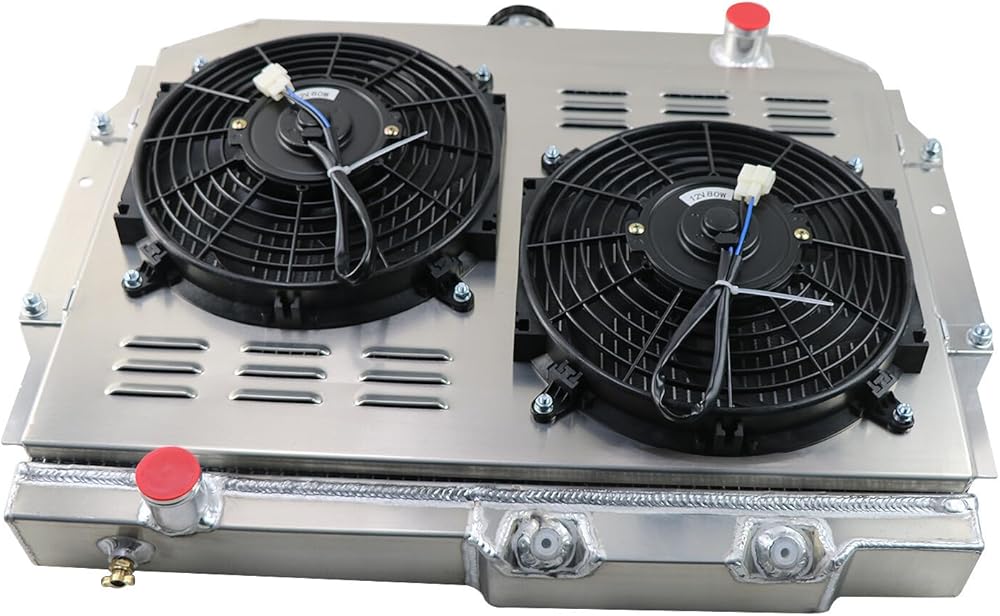

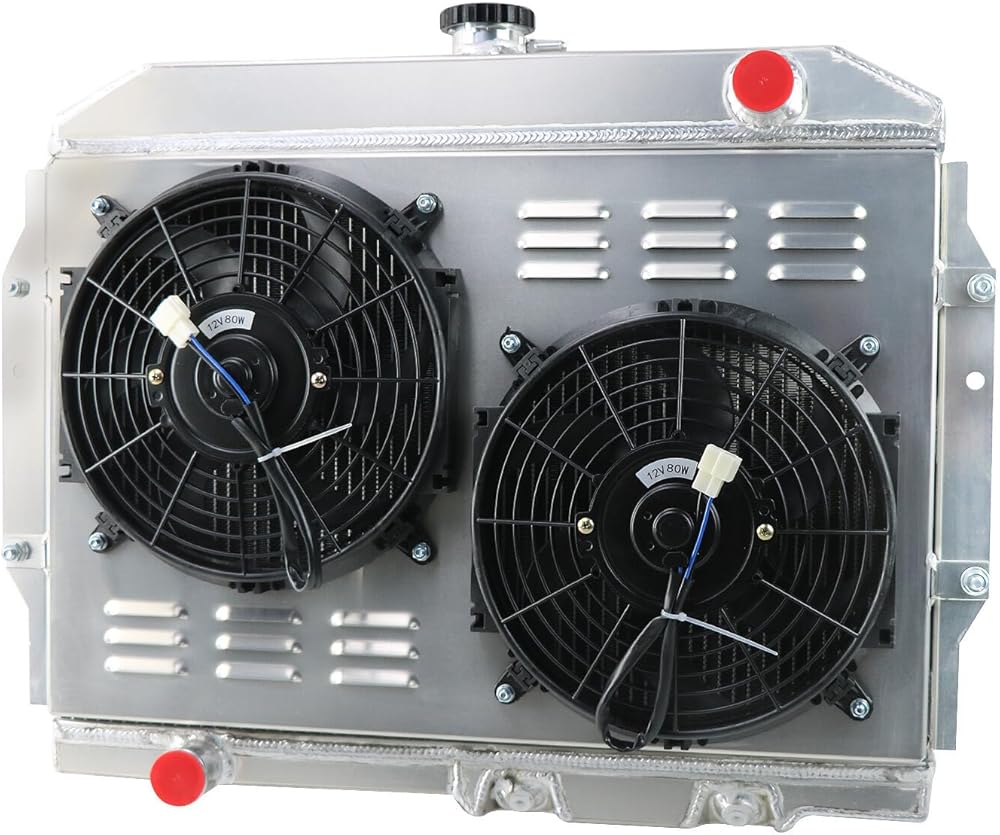

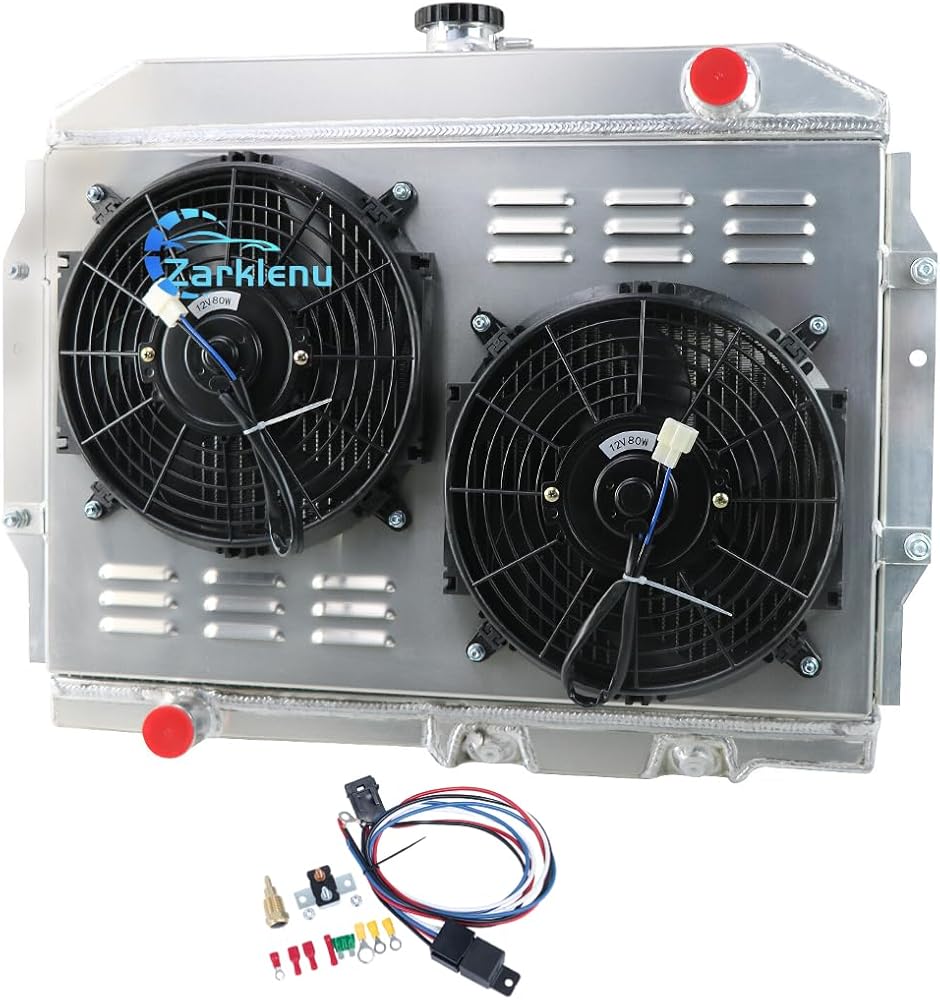

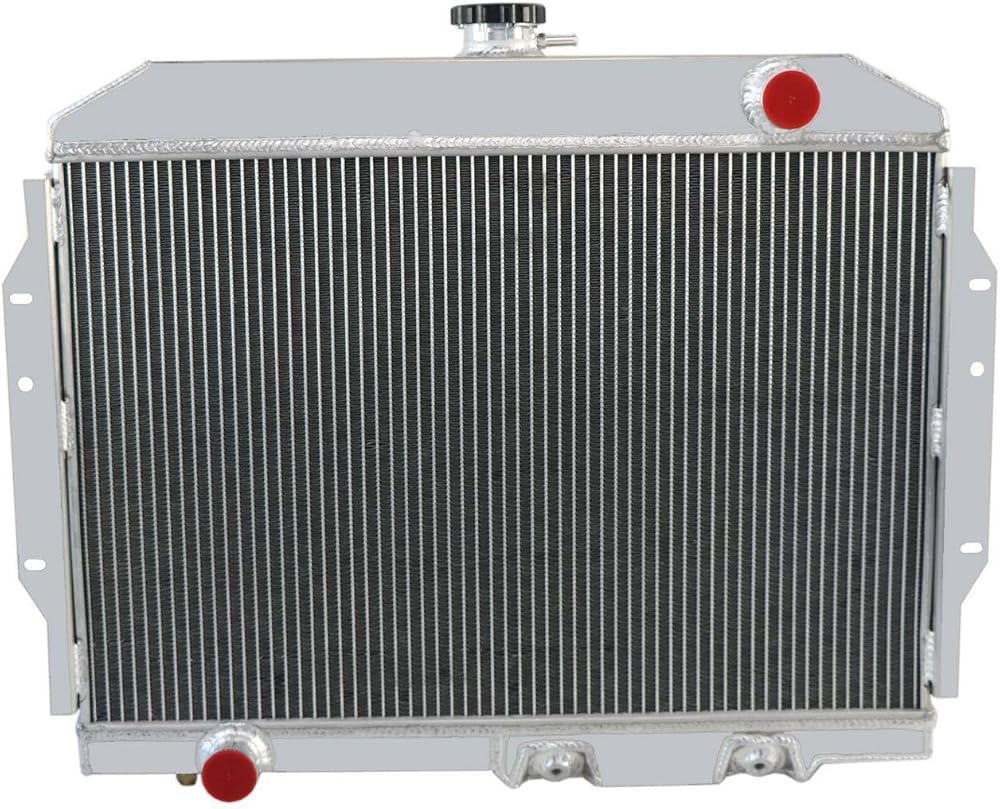

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Core Size: 15 7/8"(H) X 24 1/8"(W)
Overall Size : 23 1/4" Height X 27 1/4" Width
Inlet Diameter: 1 1/2" On Passenger Side
Outlet Diameter: 1 1/2"On Driver Side
Transmission Oil Cooler: Yes

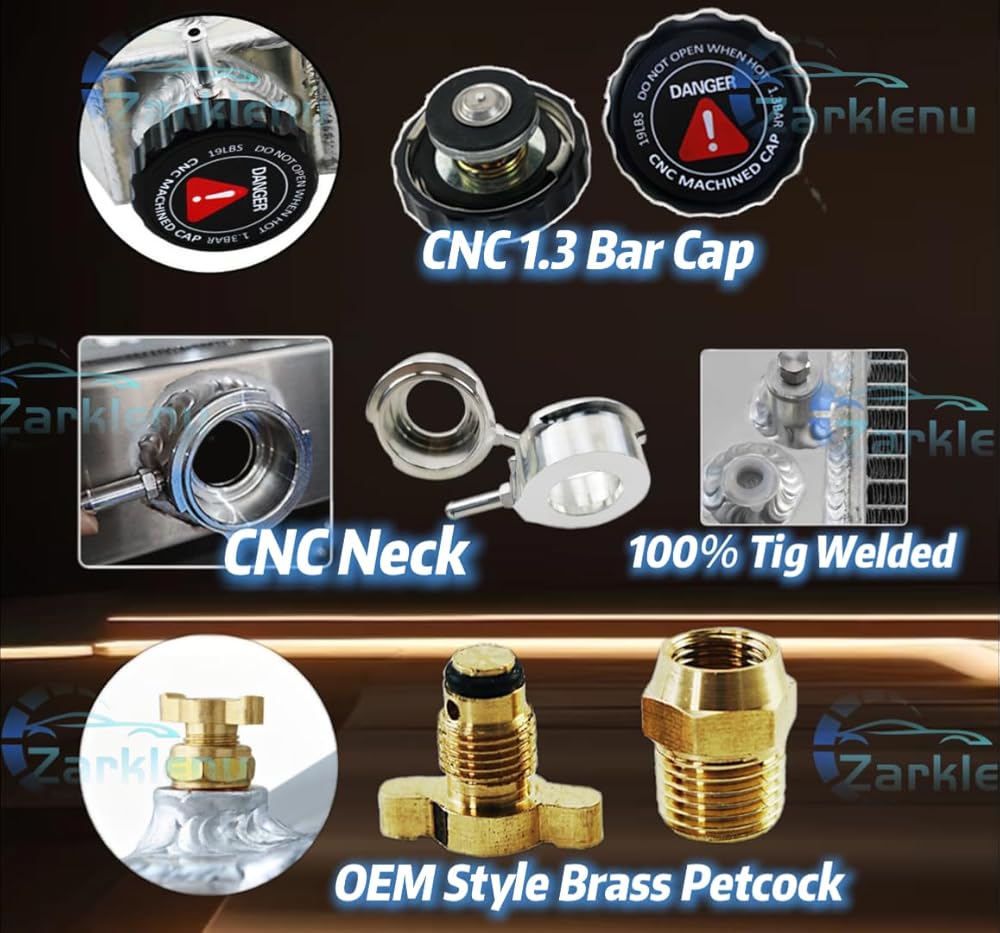

Radiator Cap: CNC Precision Machined Radiator Cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

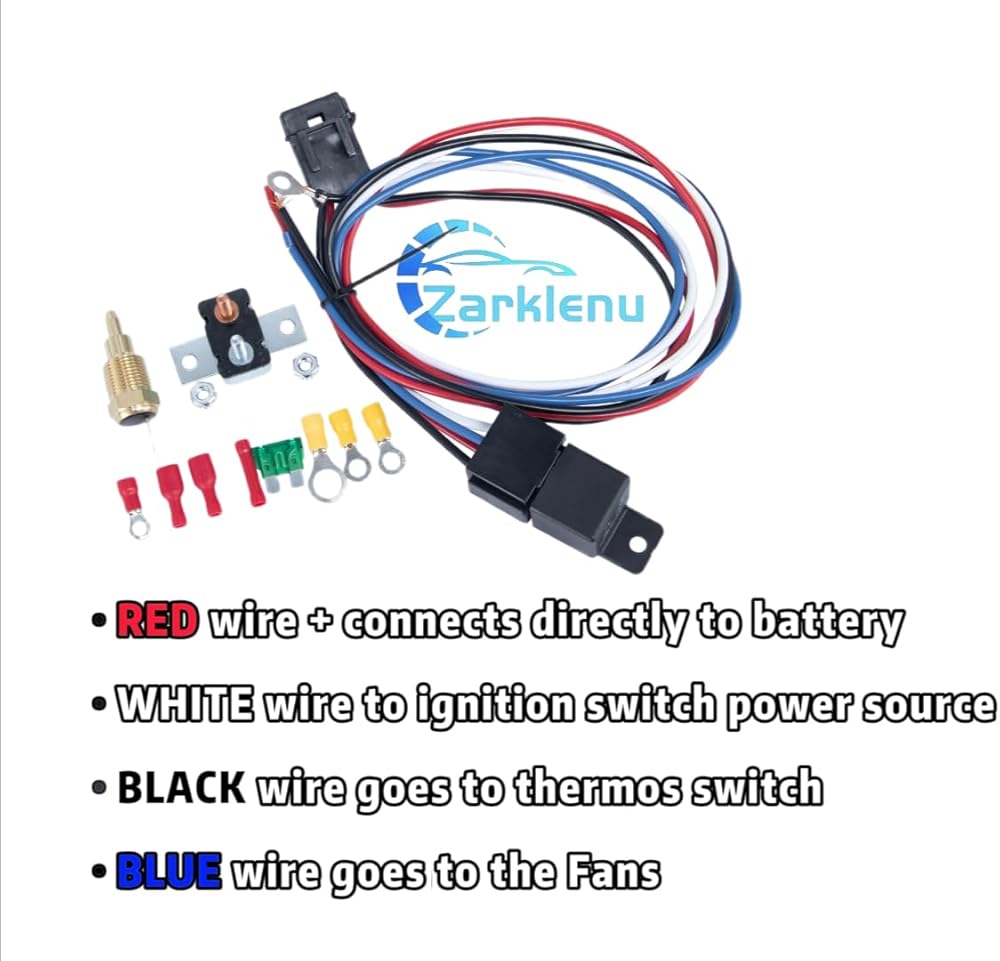

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
