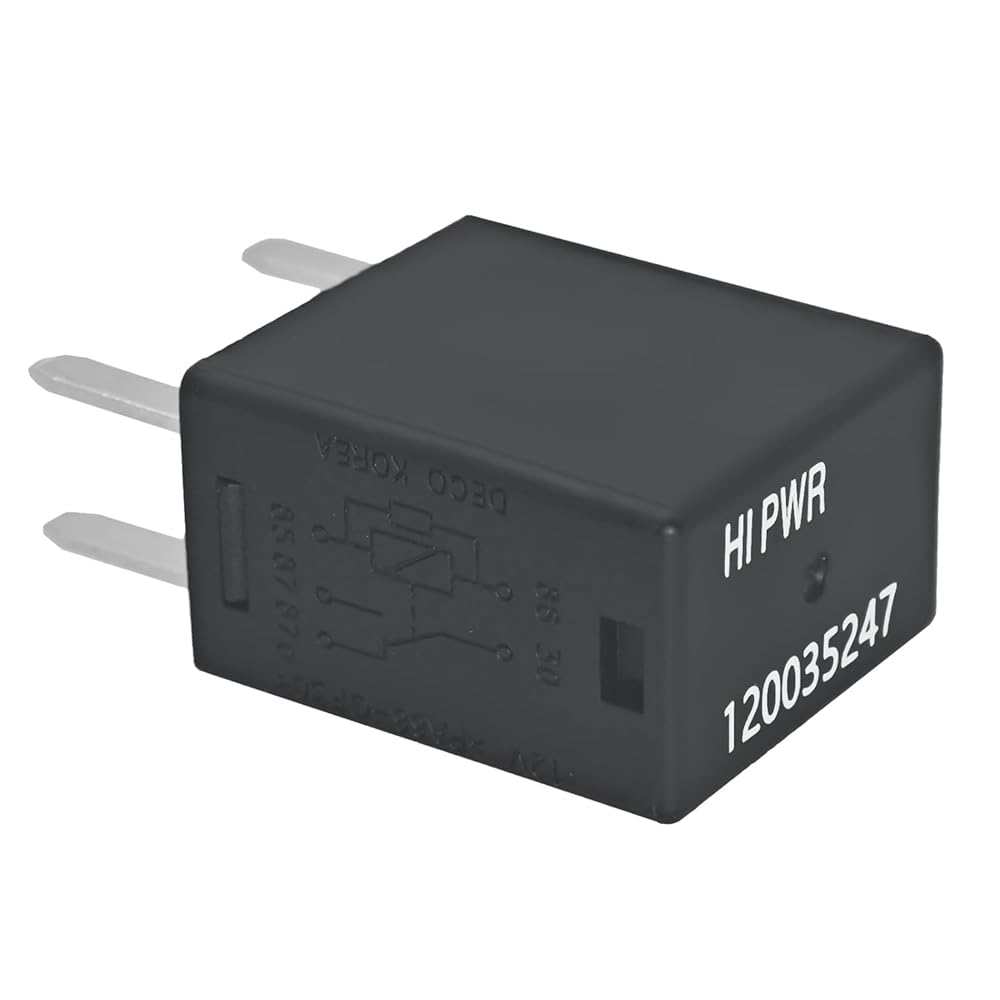

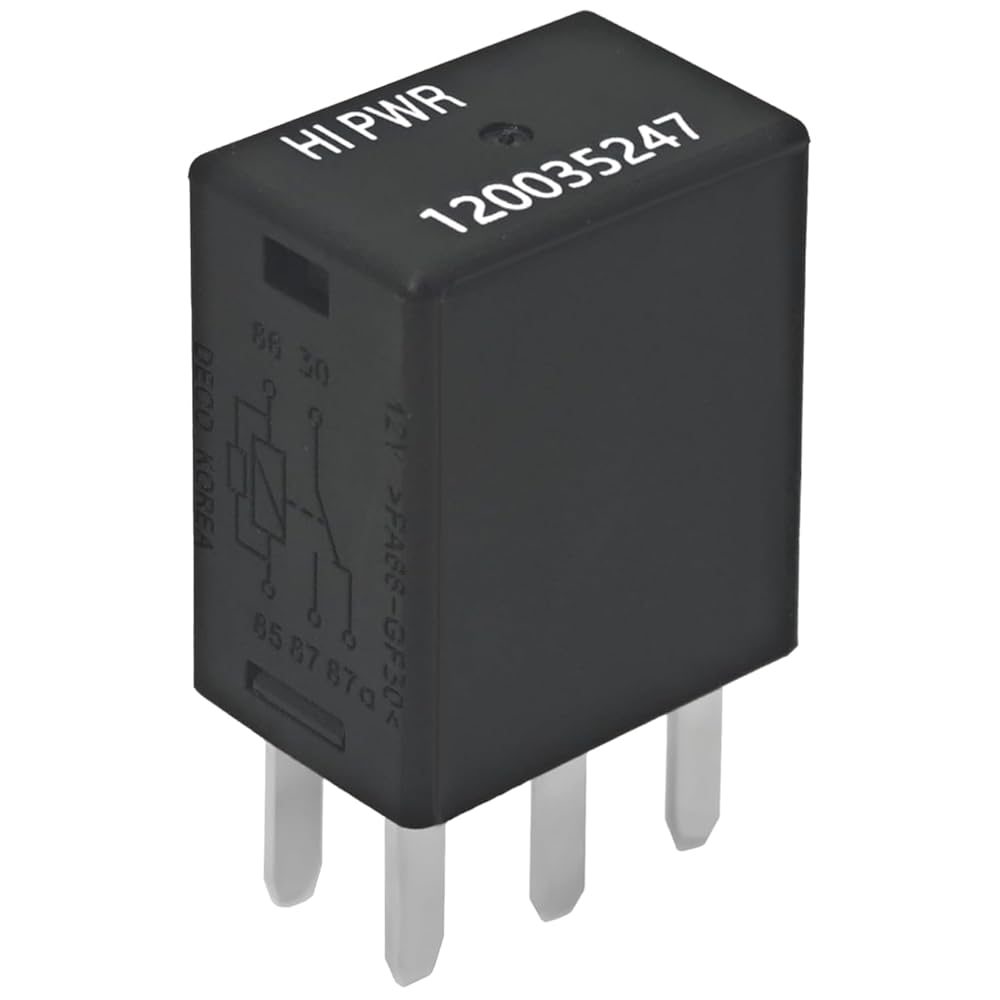

Match by OE and pin layout. This relay replaces BRP main harness relays used across many watercraft platforms.
Key SpecificationsOperating Voltage: 12V DC
Contact Rating: 30A

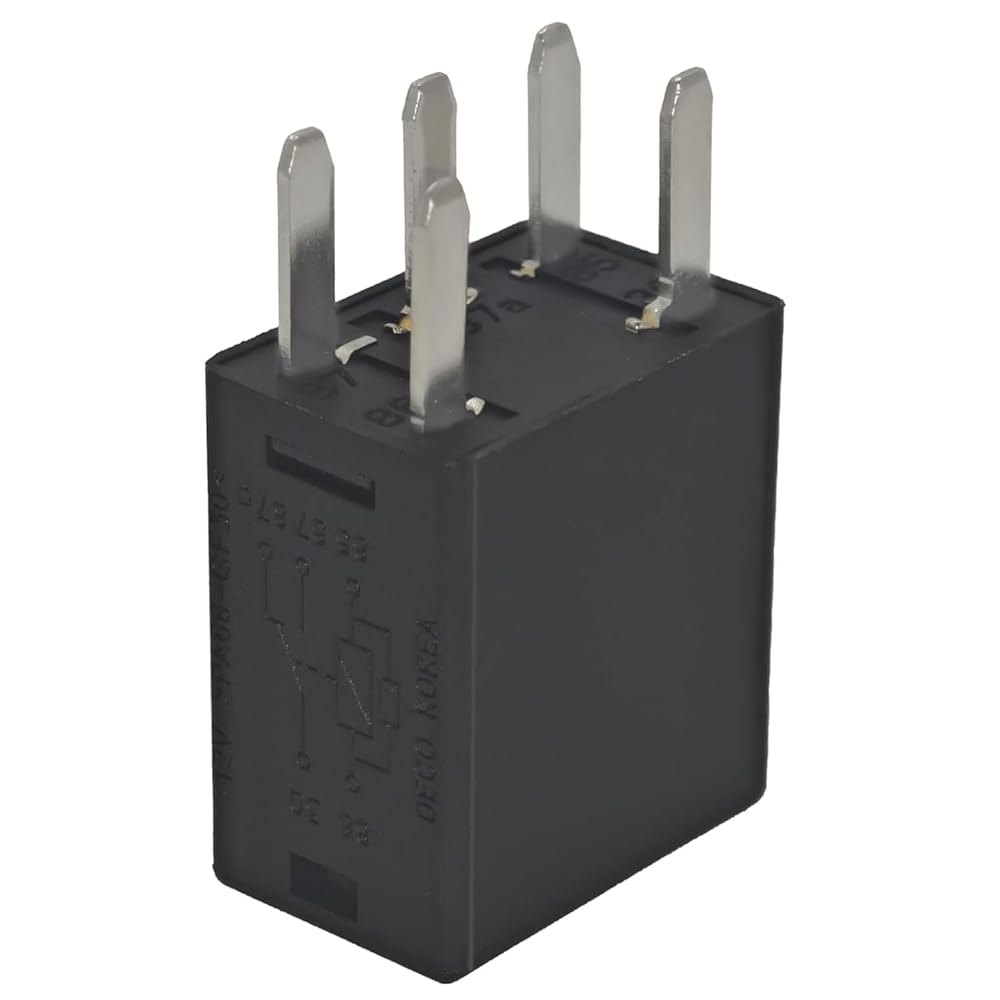

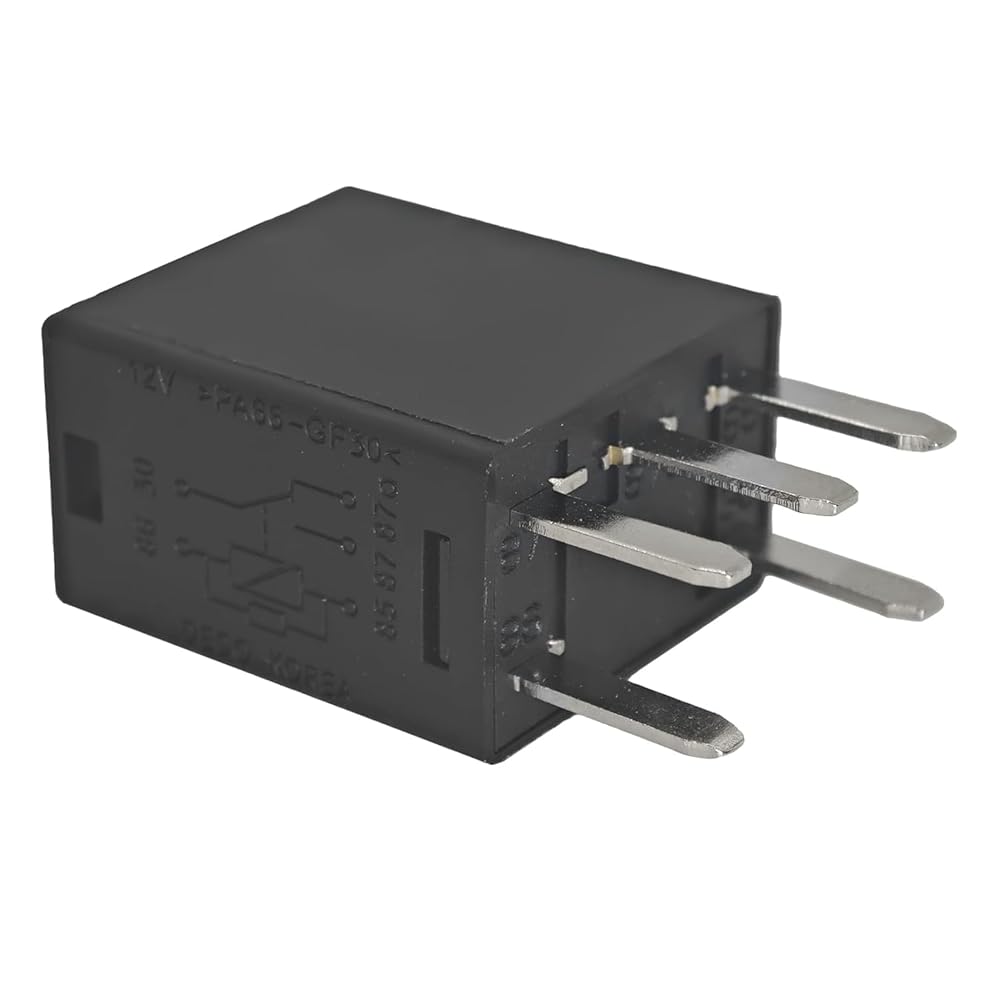

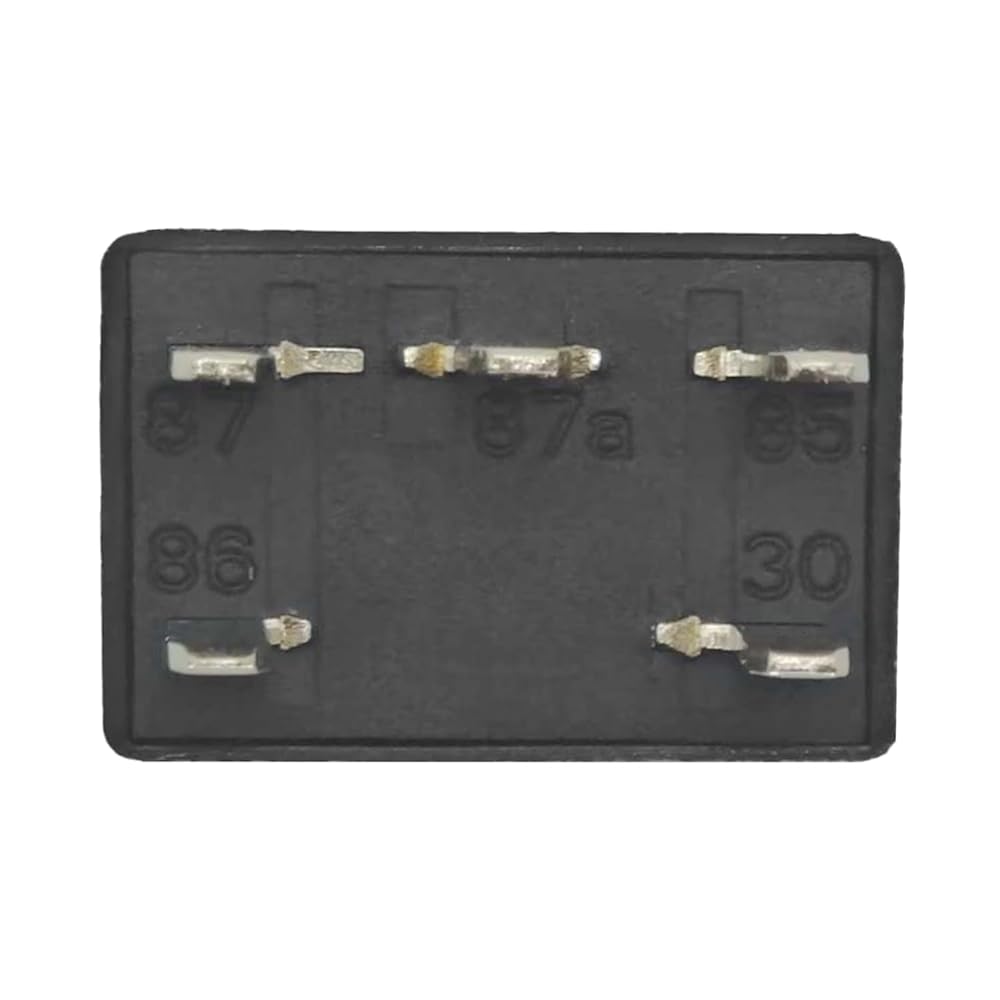

Configuration: 5-Pin SPDT (mini-ISO footprint)
Primary Functions: ECM / fuel pump / starter control (model-dependent)
Cross-References: 120035247; Replaces BRP 278003828 (supersedes 278002822, 278002168); also referenced as G8V-RH-1C7T-R-DC12
Installation & PositionInstalls in the vehicle's fuse/relay box on the main harness (exact location varies by model).
Typical symptoms of a failed main relay include: no crank/no start, no fuel-pump prime, intermittent power.
Swap procedure: disconnect battery, pull the old 5-pin relay from the socket, seat the new relay fully, reconnect battery, and test start.
Fitment (by OE match)Compatible with Sea-Doo models/years below. Verify by OE number and 5-pin layout before ordering.
GTI FamilyGTI: 2013, 2014, 2015
GTI 130: 2012, 2013, 2014, 2015
GTI SE 130: 2012, 2013; GTI SE 155: 2012, 2013
GTI 155 SE: 2014
GTI LTD / GTI Limited 155: 2012, 2013, 2014, 2015
GTR / GTS / Spark / WakeGTR 215: 2012, 2013, 2014, 2015
GTS: 2015; GTS 130: 2012, 2013, 2014; GTS 1503 DT STDR: 2014; GTS Rental: 2012, 2013
Spark 900 ACE / 900 HO ACE: 2014, 2015; Spark 903 DT / 903 NA: 2014
Wake 155: 2012, 2013, 2014, 2015; Wake Pro 215: 2012, 2013, 2014, 2015
GTX / RXP-X / RXTGTX 155: 2012, 2013, 2014, 2015; GTX 215: 2012, 2013, 2014
GTX Limited iS 260 / Limited IS 260: 2012, 2013, 2015
RXP-X 260 / 260 X / 260 XRS: 2012, 2013, 2014, 2015
RXT 260 / 260 STD / 260 RS / RXT-X 260 / RXT-X aS 260 (incl. RS/X/XRS variants): 2012, 2013, 2014, 2015
Newer ModelsGTI: 2022, 2023
GTR: 2022, 2023
GTX: 2021, 2022, 2023
RXP: 2022, 2023
RXT: 2022, 2023
Spark: 2022, 2023
Wake: 2022, 2023
Fish Pro: 2022, 2023
Explorer: 2023
Related/Complementary BRP Relay OE NumbersFor bundling/associated traffic on BRP platforms: 515176774 (30A), 710000739, 710001334 — verify amperage & socket location before purchase.

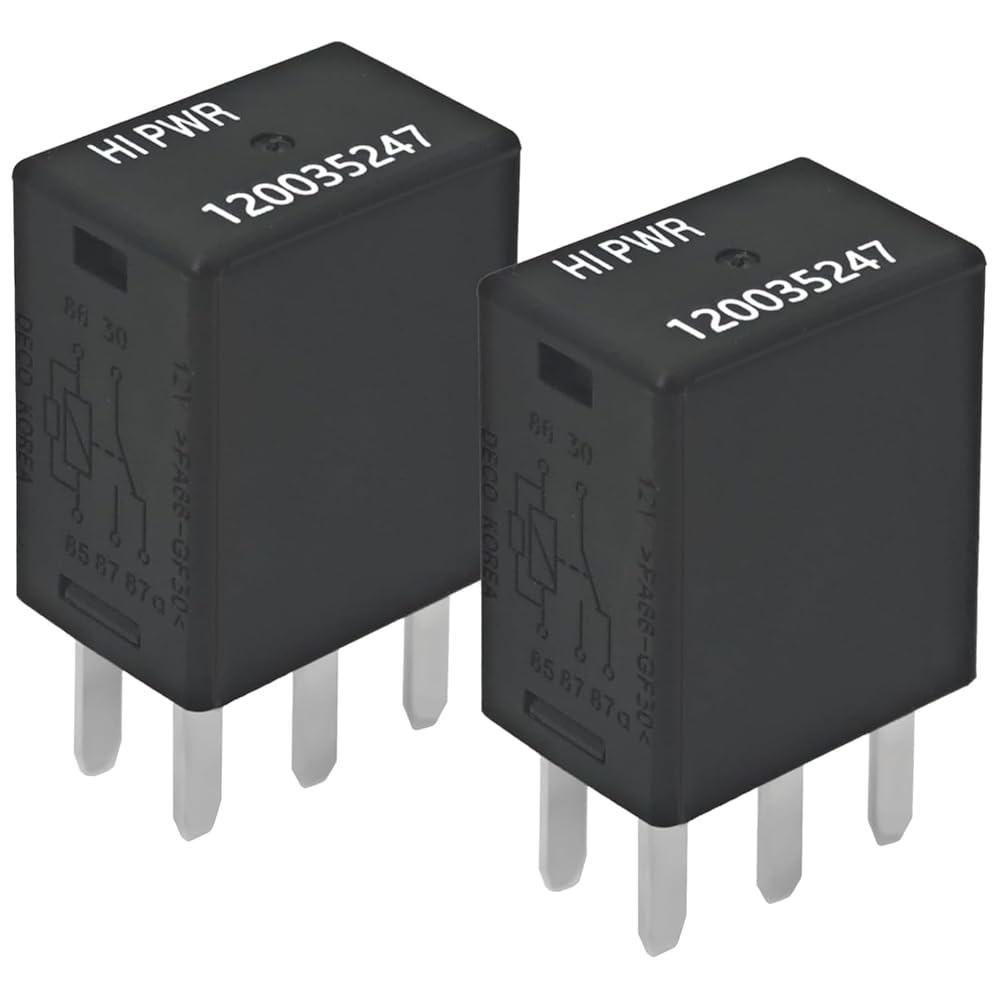

What's in the Box1 × 120035247 relay (12V 30A, 5-pin)
Note: Always confirm by OE number and 5-pin mini-ISO layout. Model lists are provided for search guidance and may vary by sub-trim or production date.
