مميزات خاصة

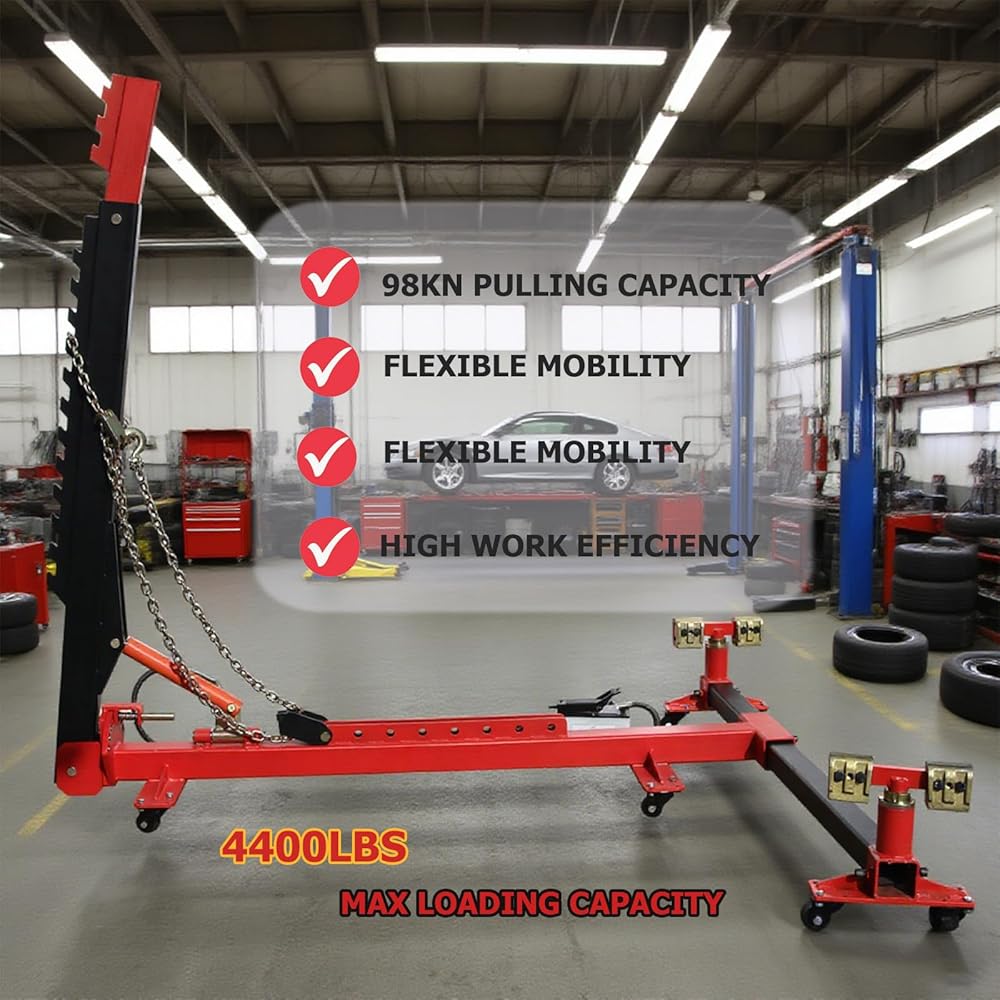

Exceptional Correction Capability: The tower frame provides a powerful pulling force of up to 98 kN, with a maximum load capacity of 4,400 lbs. Equipped with an efficient hydraulic system (5,000 PSI), it can easily repair severe frame damage, bending, and denting issues on various vehicles, making it an essential tool for automotive body repair

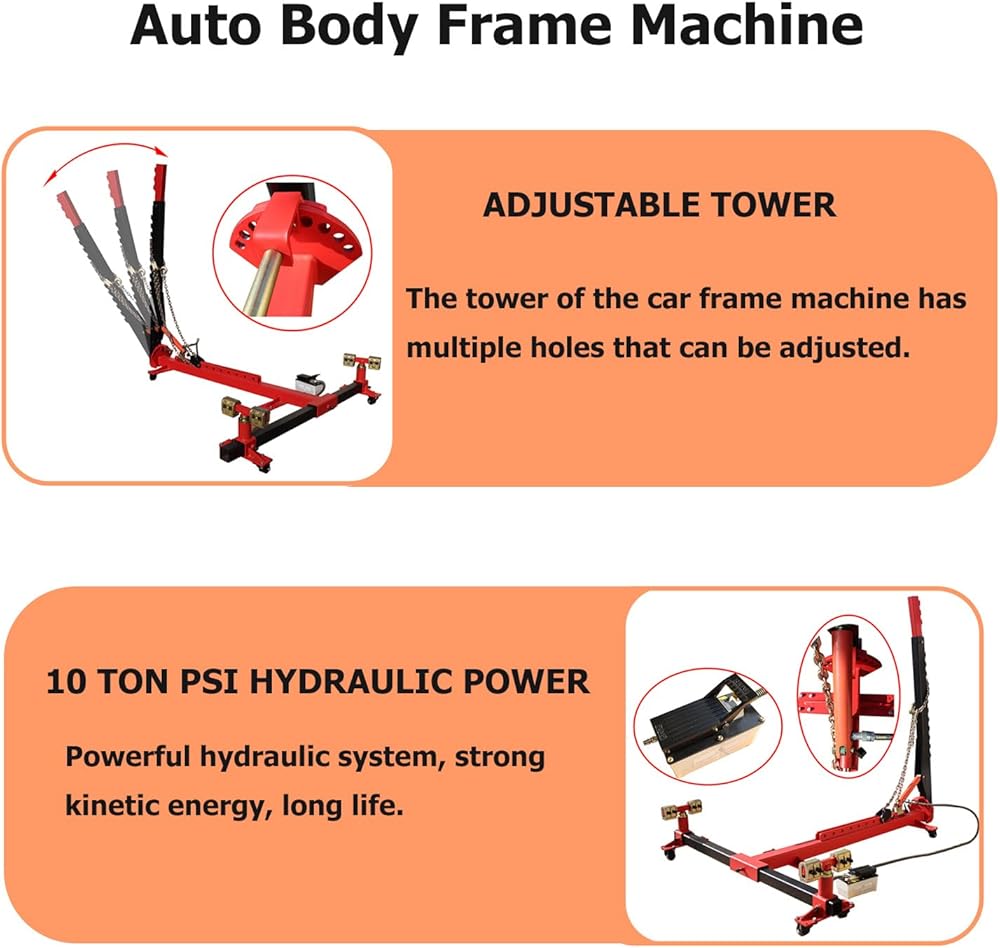

Multi-Angle Repair: The tower frame can rotate 180° in all directions and is fitted with multiple adjustable mounting points, allowing damage to be addressed from multiple points and directions. This provides flexible operation and precise repairs

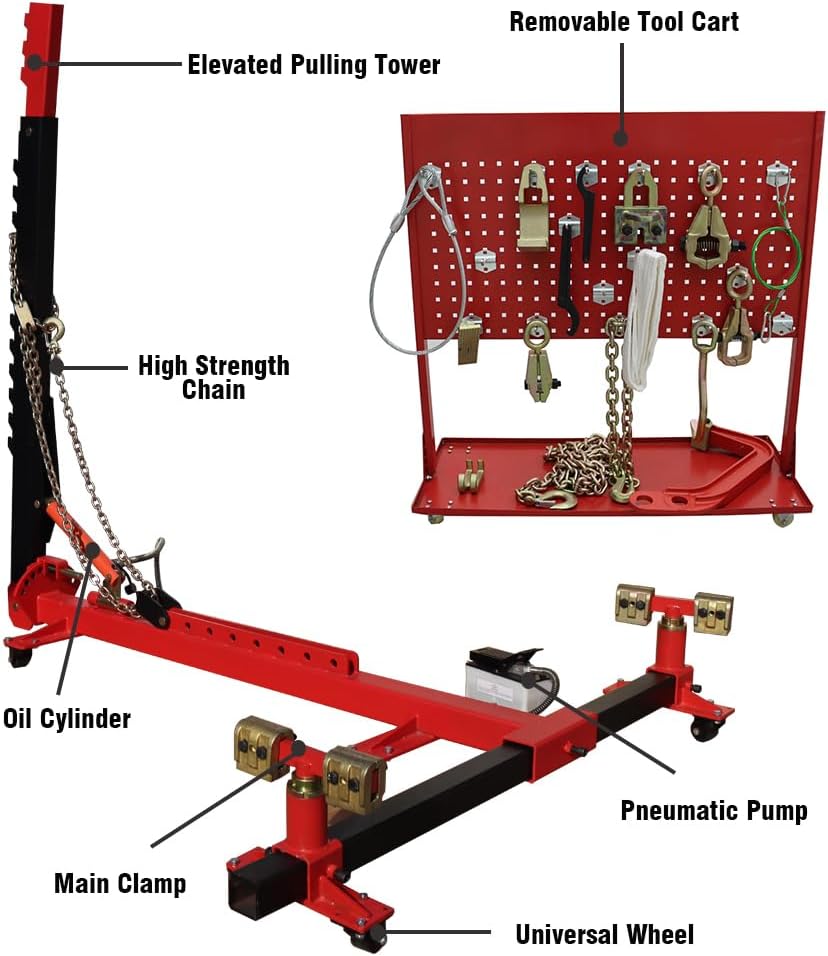

Human-Centric Design: The integrated movable workbench and removable tool cart offer exceptional mobility. It comes with maintenance tool hooks, allowing repair tools to be placed on them for easy access. This significantly enhances your space utilisation efficiency

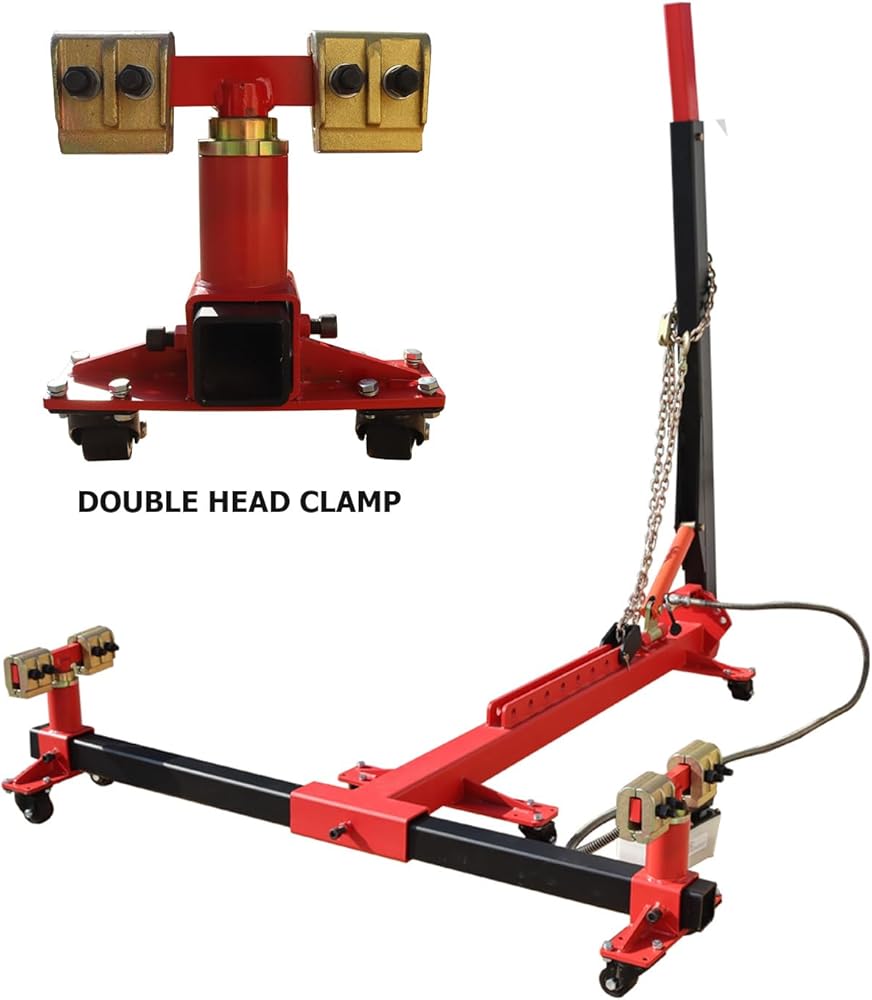

Safe Clamping: The main clamp features a single-screw design for quick and secure vehicle body fixation. The system combines high-strength forged metal tools with wear-resistant, anti-slip chains to ensure grip strength and reliability, guaranteeing stable and safe operation during high-strength stretching procedures
Complete Ready-to-Use Configuration: Includes a foot pump,and a full set of accessories. The automotive body frame straightener measures 99 inches in length, 71 inches in width, and 89 inches in height, suitable for a variety of vehicle sizes

وصف

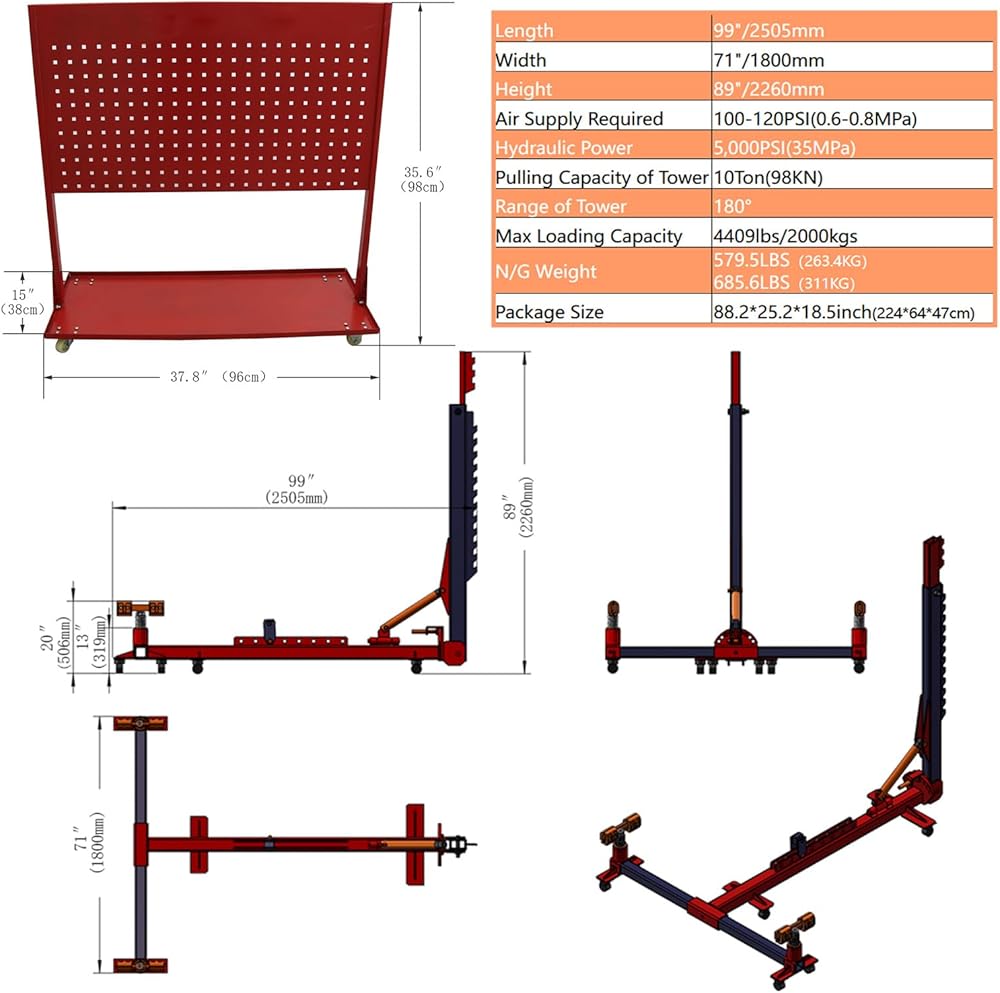

Parameters:
Length: 99"/2505mm
Width: 71"/1800mm
Height: 89"/2260mm
Air Supply Required: 100-120PSI(0.6-0.8MPa)
Hydraulic Power: 5000PSI(35MPa)
Pulling Capacity of Tower: 10Ton(98KN)
Range of Tower: 180°
Max Loading Capacity: 4409lbs/2000kgs
Net Weight: 579.5LBS(263.4KG)
Gross Weight: 685.6LBS(311KG)
Package Size: 88.2*25.2*18.5inch(224*64*47cm)
Features:
1.Movable working bench,small working place needed.
2.Long service life foot pump is equipped.
3.It can be moved to anywhere you need.
4.Patent design of main clamp jaw, one screw,and fixes the car body and the main clamp together.
5.Scientific design, fixed firmly, quick operation,and greatly improve the work efficiency.

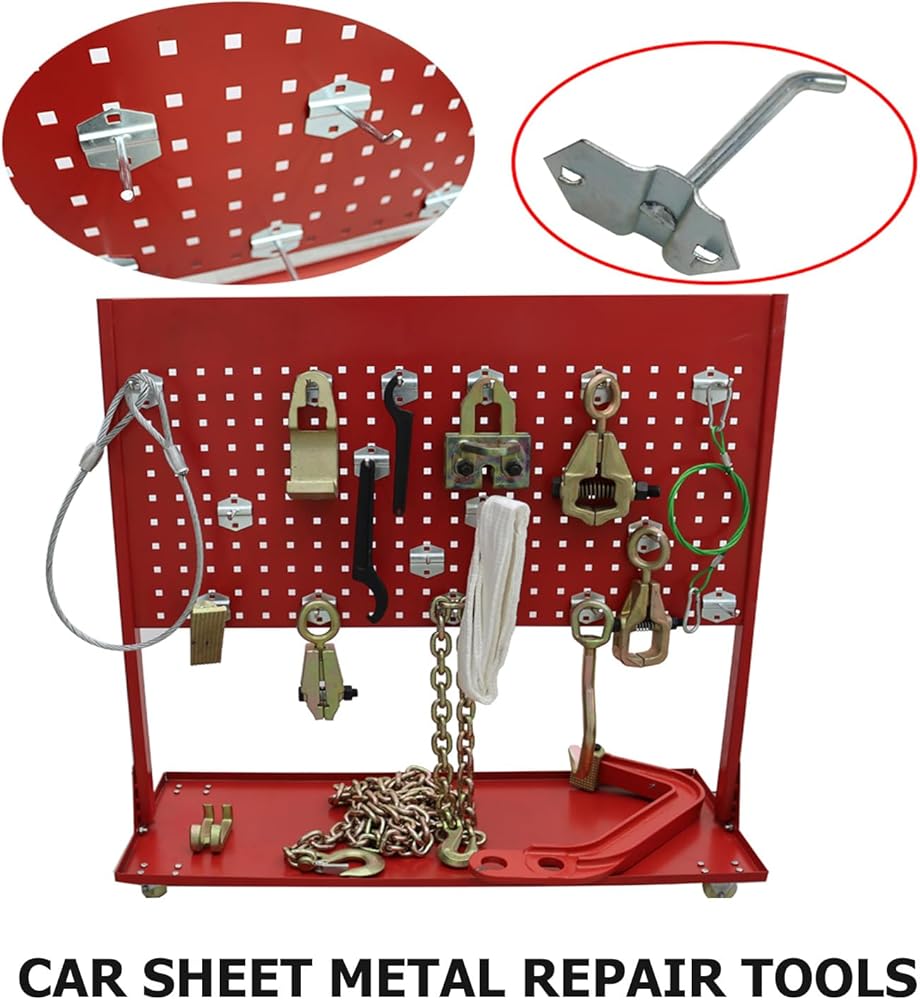

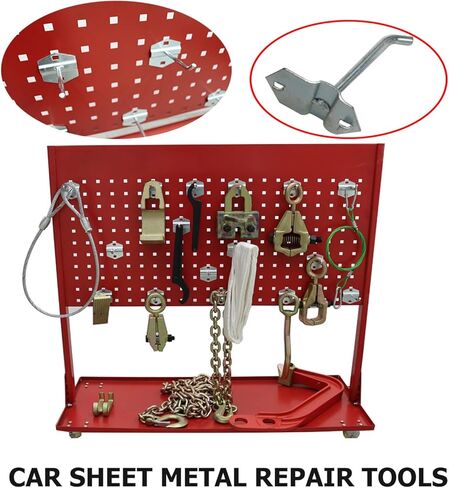

6.High quality chain and forged sheet metal tools are easy and convenient to operate with long service life.
Package contents: SAY148042
1 x Auto Body Frame Machine
