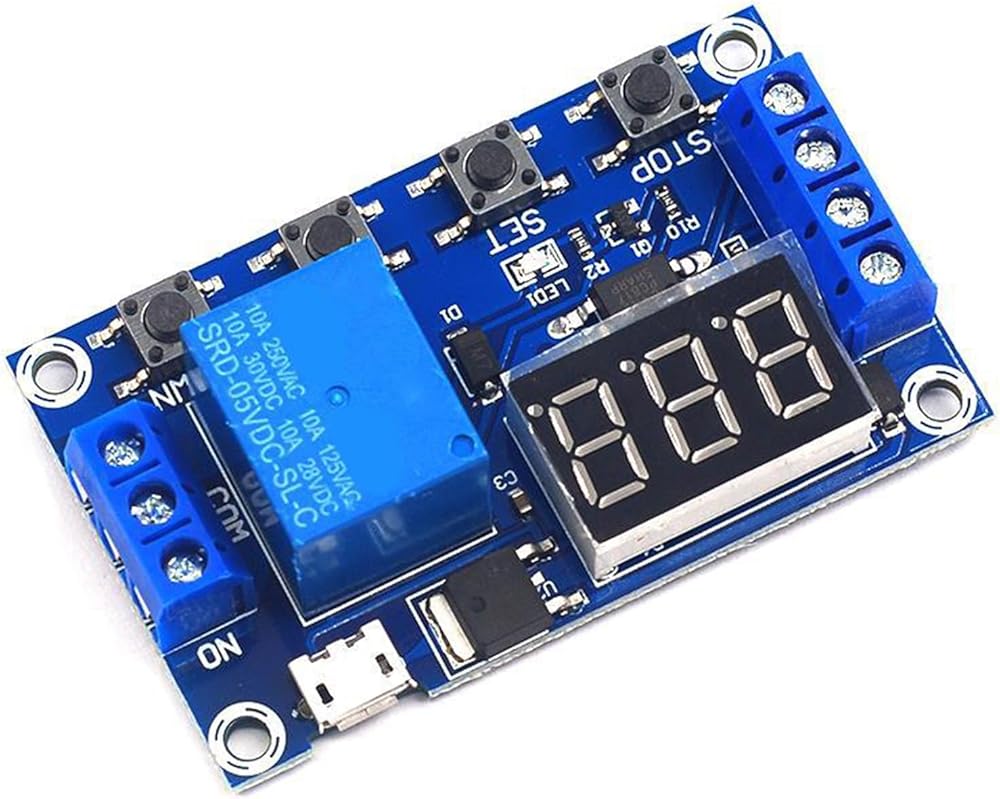

Compactly Timer Circuit With Adjustable Timing Ranges Durability DC6-30V Timer Relayed Module USB 5v Power

Features:
Wide voltages power supply (6~30V) supports USB 5V power supply, which is very to use;
The interfaces is clear and simple, powerful, easy to understand, and almost meets all your needs;
There is Emergencies stop function (STOP with reverse connection protections, reverse connection do not burn;
Different OP, CLLOP parameters can be set, these parameters is independents of each other and saved separately;
All parameters is automatically saved after power-off.

Specifications:
Component:ABS
Size:Approx.62x38mm/2.44x1.5inch
Option Type:USB Port,Type C Port;
Working Voltages:6-30v USB 5v Power Supply
Triggering Signals Source:High-Levels Triggering(3 v-24v) Signals Ground and the Systems Ground is Not in the Same Ground to Improve the AntiInterference Ability of the Systems (Also Can Be Short-Circuited to the Ground)
Output Capacity:Can Control Equipment Within DC30V 5A or AC220V5A
Quiescents Current:20mA
Working Current: 50mA
Service Life:More Than 100,000Times;
Working Temperature: -40—85°c
With Optocoupler Isolation, Enhances AntiInterference Ability, Industrial Circuit Board, Set Parameters Forever After Power Failure
Memory.
Special Attention: The Relayed Output Is Passive Uncharged Output, And Controls the On-Off Function of Line.

Package Includes:
1pc Timer Relayed Module

Note:
Please allow 1mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual item color.
