Spec:
Item Type: Relay Switch
Output Current: 7A, maximum 10A.
Working Power Consumption: 43mA
Power Supply Voltage: AC 110-220V
Maximum Standby Power Consumption: 12mA
Control Channels: 1 Channel Output
Working Temperature: -25℃~85℃
Working Humidity: 5%~95%RH

Package List:
1 xRelay Switch

How To Use:

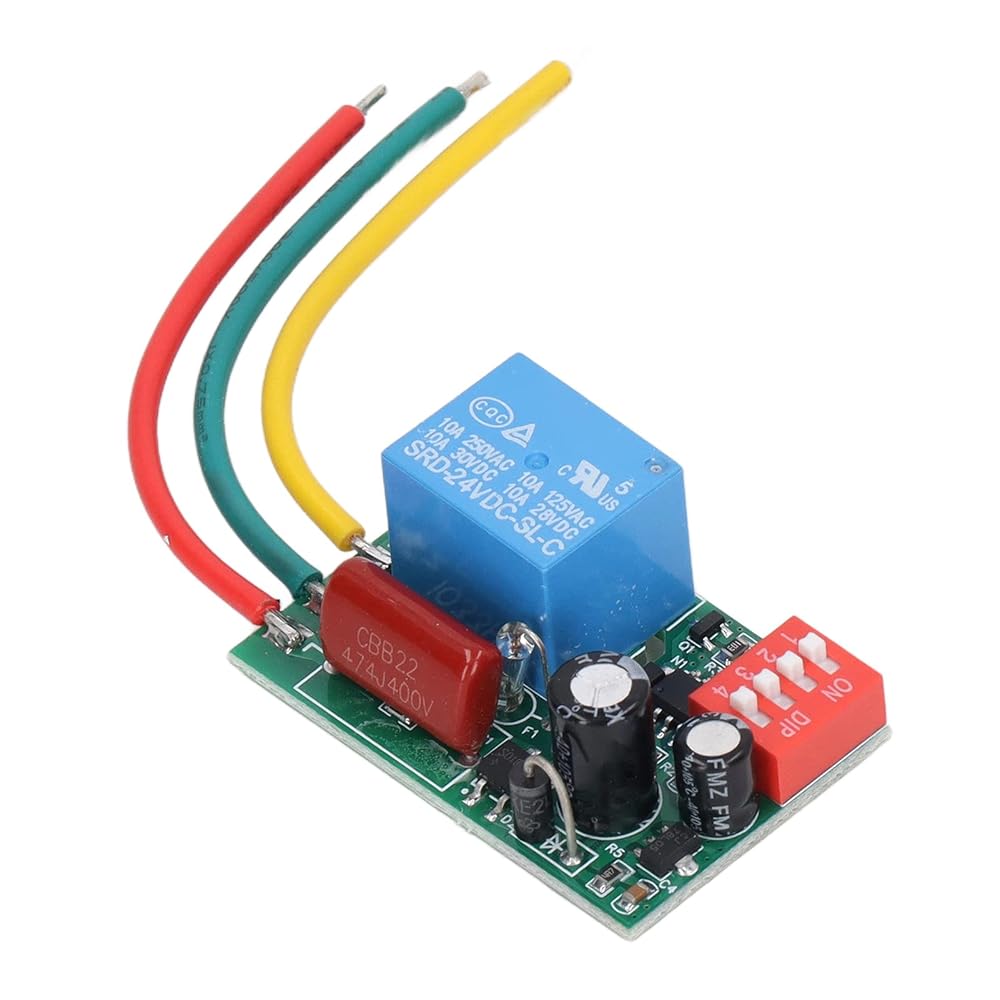

A. Module Function: The module is a power off delay module. When the set delay time has expired, the power supply is cut off.
B. Working Status: The indicator light PWR will stay on after the power is turned on, which will continue to flash after the delay is over.
C. How to Use:
1. Set the time you need to delay, and field setting is not allowed.
2. After checking the wiring is correct, power on the module. After power on, the module starts to work, and the indicator light is always on. After the time is up, the module stops power supply, and the indicator light flashes.
3. If you need to shut down in advance during use, directly disconnect the main power supply of the module.
4. Start the Second Delay Time: Re energize the power.
D. Delay Time Selection:
1. Refer to the delay mode table to select the time of delay.
2. Toggle the red DIP switch according to the delay mode table.
3. After setting, check the wiring, and then power on.

Note:
When a new delay mode needs to be set, it must be set in the power off state to ensure person safety and prohibit operation with power.
