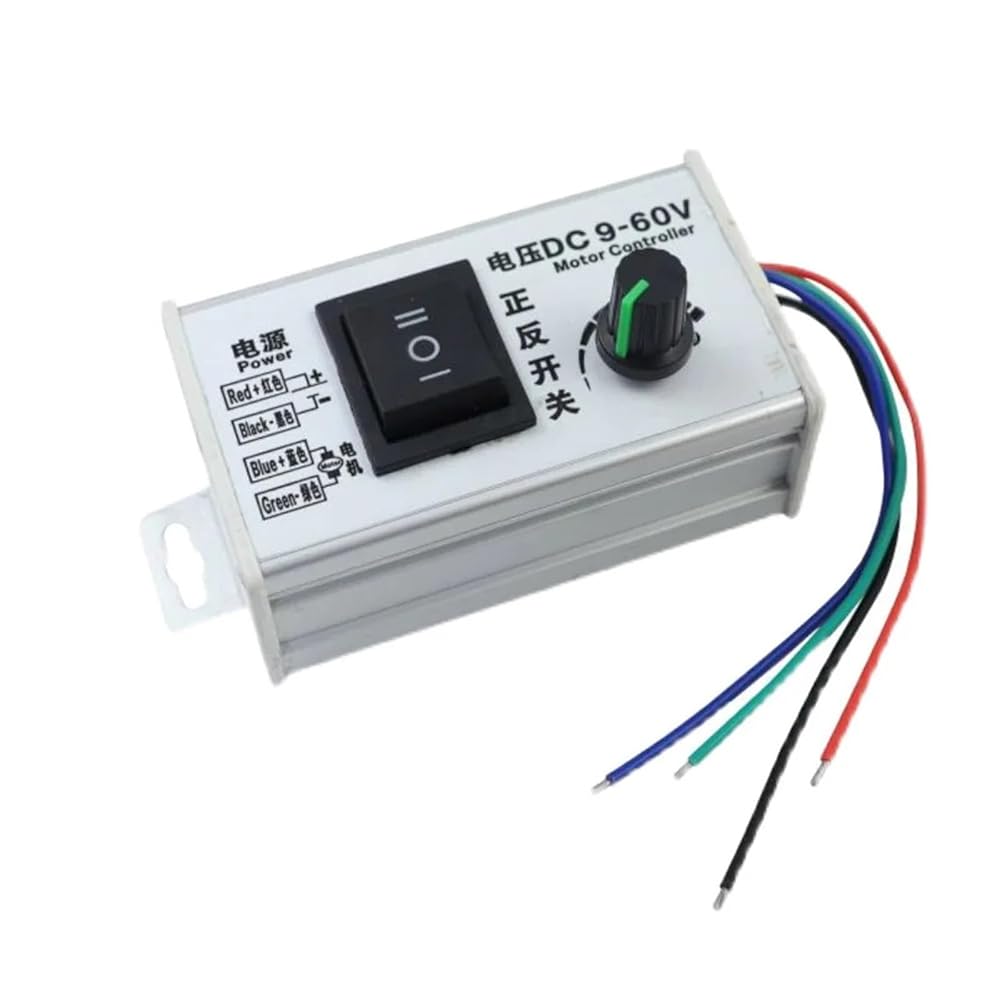

9-60V Motor Speed Controller 20A 25KHZ PWM Motor Forward and Reverse Control Switch 1-100% Adjustable Motor Speed Governor
وصف
Speed Control
9-60V Motor Speed Controller 20A 25KHZ PWM Motor Forward and Reverse Control Switch 1-100% Adjustable Motor Speed Governor
Specifications:
Color: silver
Material: Metal
Operating voltage: DC9V-60V
Output voltage: linearity under load
Output current: 0-20A
Speed range: 0-100%
Speed potentiometer
Speed regulation mode: potentiometer (linear)
Control frequency: 25KHZ

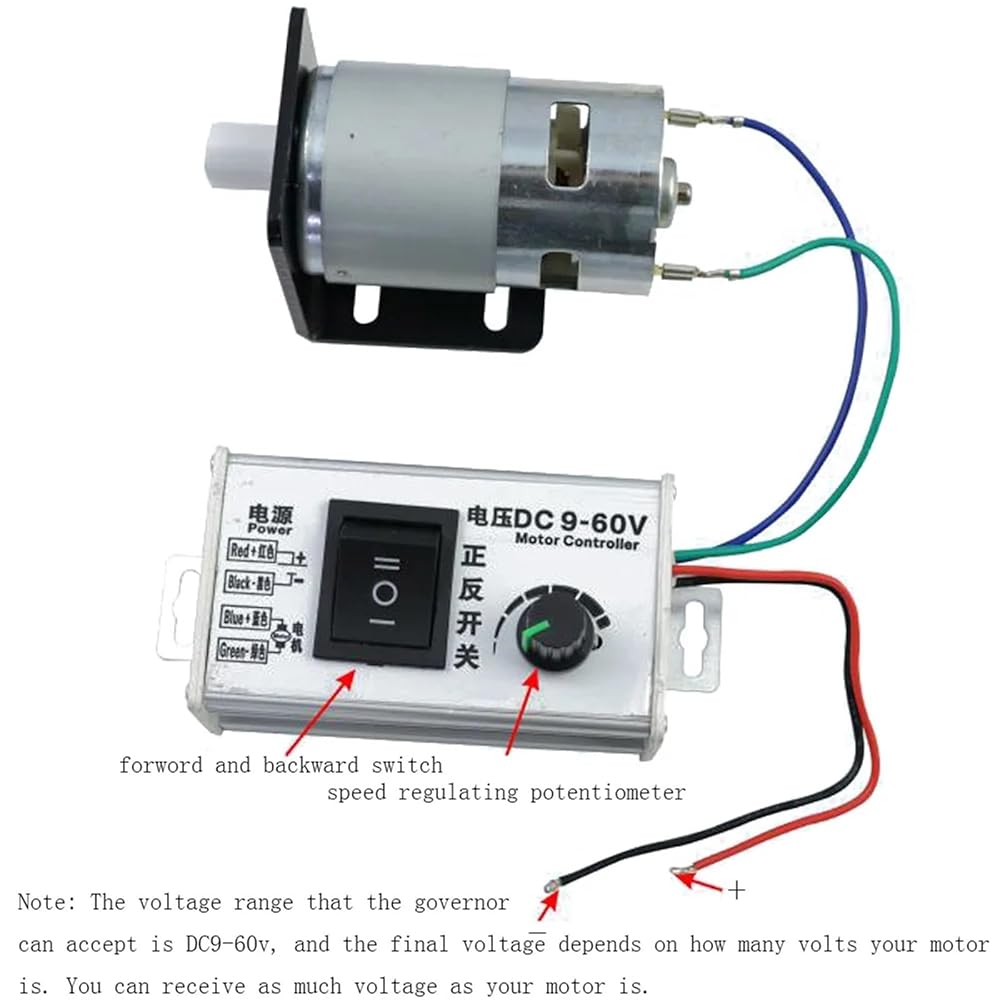

Support forward and reverse

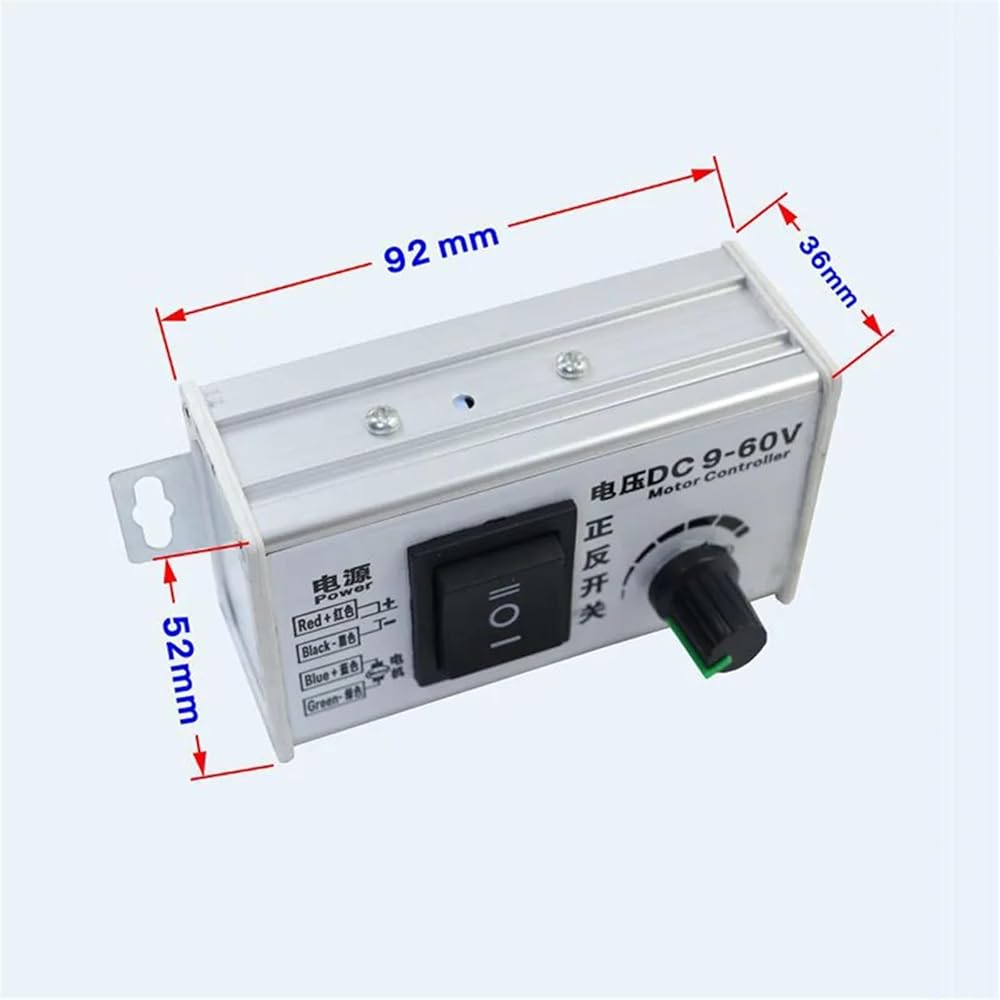

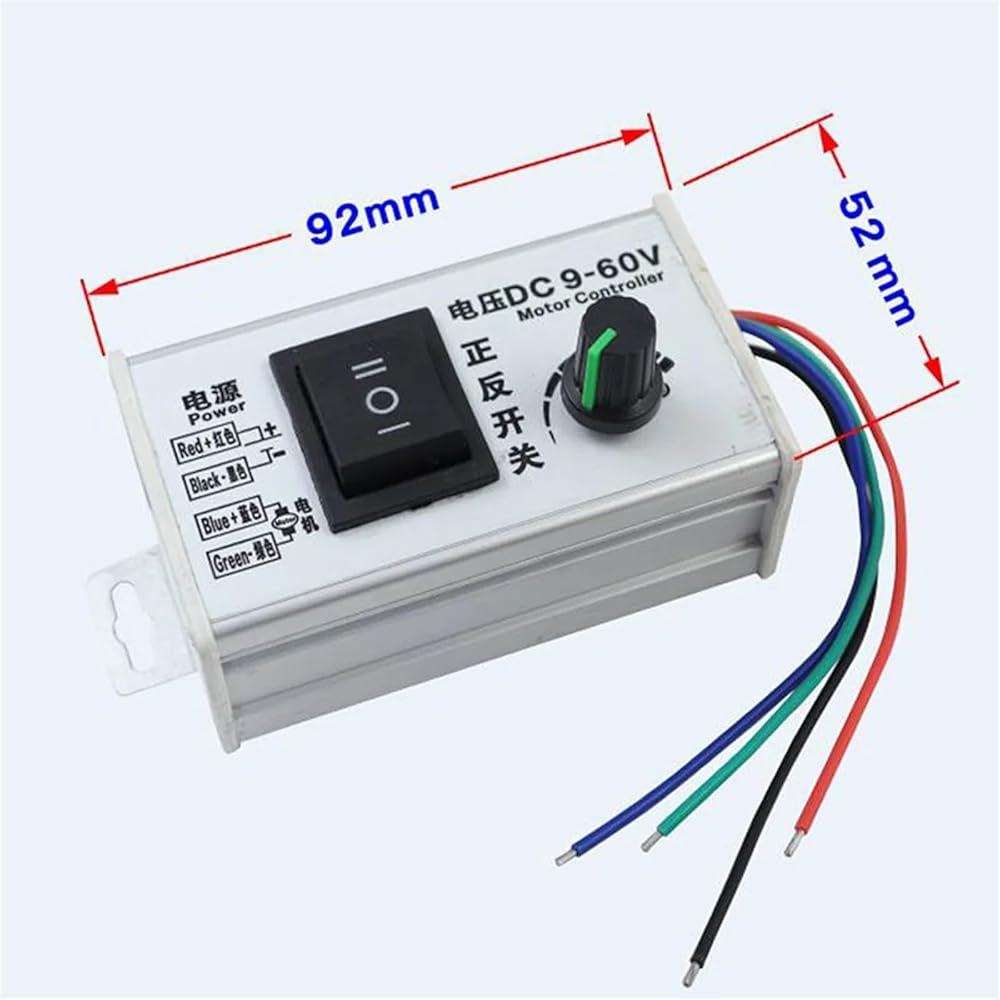

Module size: 92MM*52MM*36MM
Mounting hole of potentiometer: 7MM
According to the installation size: the center distance of the back fixing hole is 105 mm.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Package Included:
1x Motor Speed Controller
==========
