#Specification:
Manufacturer: Jdm
Scale: 1/14
Item Condition: New, Painted And Assembled
Material: Metal, Plastic (Most Of The Parts Are Made Of Metal, With The Exception Of The Cabin Glass And Some Decorative Parts Made Of Plastic)
Size: 504.4*213*221Mm/19.9*8.4*8.7Inches
Net Weight: About 8.3Kg
Id: Jdm-208U-R920-Hexcavator-7Ch-Rtr-Buw

#The Package Includes:

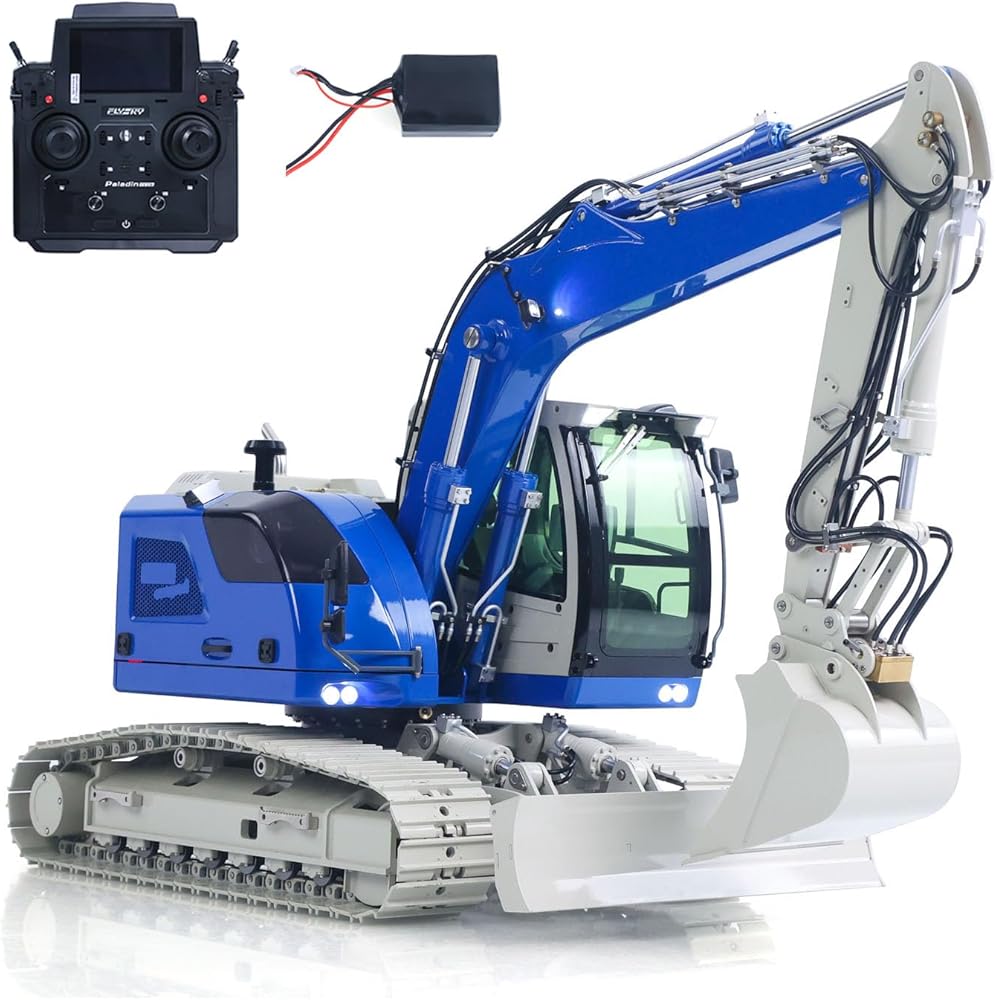

1/14 Rc Hydraulic Excavator Model
Esc
Motor
Servo
Light System
Sound System
Hydraulic Quick Release Coupler
Hydraulic System With 7-Ways Reversing Valve

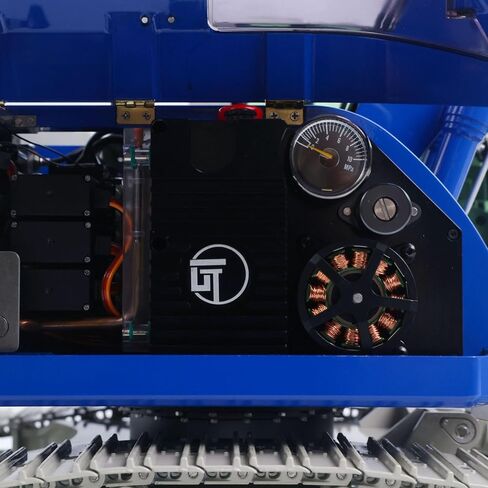

Integrated Pump And Oil Tank
Flysky Pl18 Ev Lite Remote Controller And Receiver
Vehicle Battery
Cooling Fan
Hydraulic Blade

#The Package Does Not Include:
Charger
Hydraulic Oil

#Static Parameters
- Body Width (Mm): 194
- Ground Clearance At Upper Edge Of Tracks (Mm): 69.3
- Ground Clearance At Top Of Body (Excluding Exhaust Pipe) (Mm): 184.6
- Ground Clearance At Top Of Cab (Excluding Protective Net) (Mm): 221.3
- Ground Clearance Of Counterweight (Mm): 80.9
- Wheelbase (Mm): 239.1
- Standard Track Width (Mm): 50
- Distance Between Tracks (Mm): 163
- Maximum Width Of The Chassis (Mm): 213

#Dynamic Parameters
- Rotation Angle (°): 360 (Infinite Rotation)
- Torque Of Worktable Rotation Motor (Kg): 25
- Rotation Speed Of The Worktable (R/Min): 9.5
- Single Cylinder Thrust (Kg): 15
- Maximum Speed Of Drive Wheels (R/Min): 30
- Drive Wheel Reduction Ratio: 1/256
- Maximum Pressure Of Hydraulic System (Mpa): 4
- Rated Pressure Of Hydraulic System (Mpa): 2.5
