مميزات خاصة

【DETAILED DESIGN】- The slide rail is equipped with a scale handle to accurately control horizontal and longitudinal stable translation; Adjustable Screw, There are 6 adjustable screws on the base of the worktable. 3 pieces on the X-axis and 3 on the Y-axis. Slightly tighten the lock nut to remove any looseness in the cross-slide.
【EASY TO ASSEMBLE】- The kit includes a 26cm or 16cm rail length, a rigging arm length of about 25cm, and a drill arm with three levels of adjustment.The movable arm can bear a load of about 150 grams when fully extended and up to 200-300 grams when not fully extended.The drill arms are not pre-assembled,Simply follow the steps in the manual to create your own drill step by step.
【STOP MOTION ARMATURE KIT】- Choose between 16cm or 26cm arm heights for suspending clay figures, dolls, or props mid-air to combat attraction? during frame capture.for complex and realistic action with figures, sponges,paper, leaves, dolls.
【ADJUSTABLE SLIDE TABLE】- Our compound slide table features convenient adjustable screws on the X-axis and Y-axis.The Cross/Vertical slide table's 200mm X-axis and 50mm Y-axis travel enable pixel movements for animations.
【6 CONNECTORS】- Adapt to any project with 6 interchangeable joints. (Clamp/Flat/M3 threaded head/Square tube/Single needle/Double needle).offer compatibility w/various figures&models, providing endless creative possibilities.

وصف

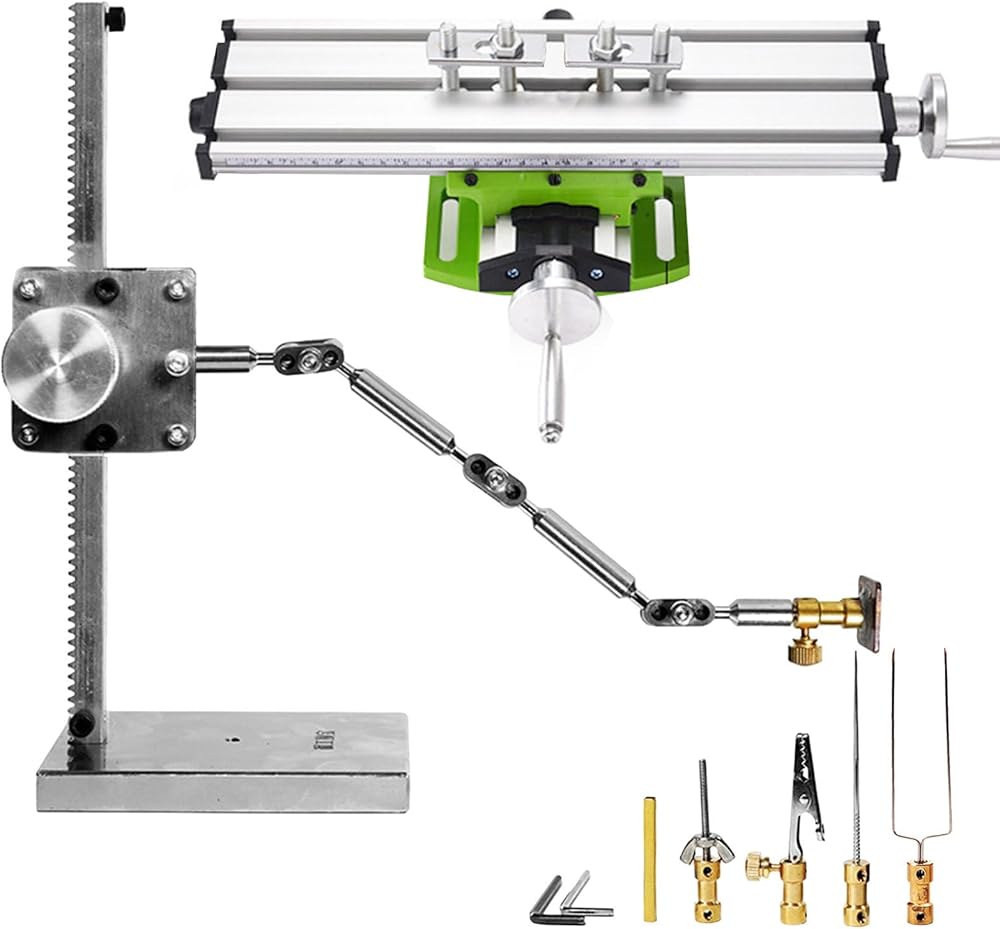

Elevate your stop motion projects with this Studio Stop Motion Rig Arm and cross slide table kit.
Designed for animators, the XY-Axis Animation Slider(X: 200mm, Y: 50mm) allows seamless horizontal and vertical adjustments, while the stainless steel arm locks props securely in place. Whether animating clay characters, miniature dioramas, or product demos, the engraved rail markings ensure consistent frame alignment for smooth playback.

- Specification -
Animation Rig Arm
Material: stainless steel, copper, aluminum
Arm length: 25cm/9.8 inch
Bracket Height: 26cm/10.2 inch or 16cm/6.3inch
Base length: 10cm/3.9 inch
Base Width: 7cm/2.75 inch
Base Thickness: 1cm/0.4 inch

Slide rail
Table size: 31×9×8cm
X-axis travel: 200mm
Y-axis travel: 50mm
Maximum processing length: 240mm

- Products Include -
1 * Stop Motion Armature Kit
1 * XY-Axis Animation Slider
6 * connectors
