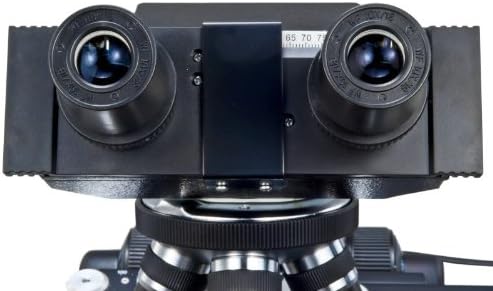

Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment
Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, PLAN 10X, 20X, 40X, 100X objectives, each can be centered individually
Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
5-year warranty against manufacturing defects
وصف

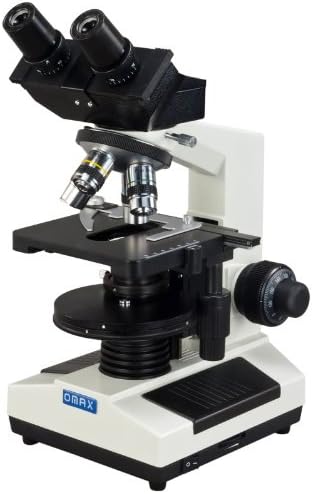

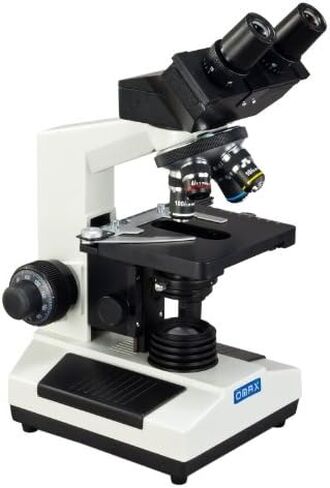

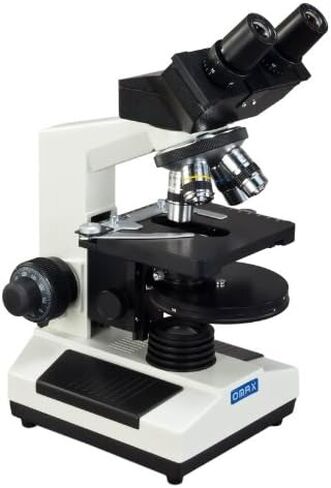

The phase contrast compound microscope provides two systems (phase contrast microscope system and brightfield microscope system) for viewing live cells depending on your applications. The compound microscope comes with a 45 degree inclined 360 degree sliding binocular head, body frame, revolving quadruple nosepiece, a pair of widefield eyepieces WF10X/18, four DIN achromatic objectives, large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm, a halogen illumination system and a complete set of phase contrast kit. It offers four levels of brightfield magnification from 40X to 1000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: plan PH10X, plan PH20X, plan PH40X (spring), plan PH100X(spring, oil). It also offers four levels of magnification power: 100X-200X-400X-1000X. This phase contrast compound microscopy is good for advanced applications in clinical offices and research purpose.
