Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control

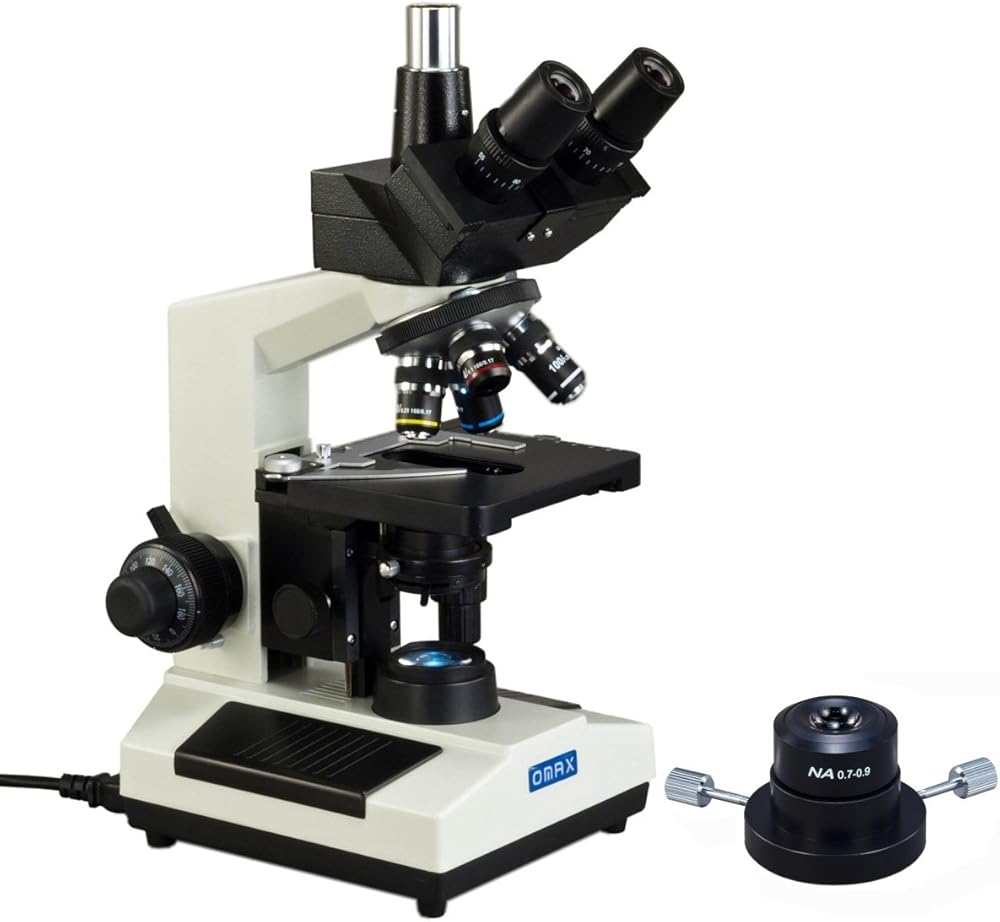

Focusing knob can be locked for observation and transportation; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9; Black palm rest on the base
Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
5-year warranty against manufacturing defects
وصف

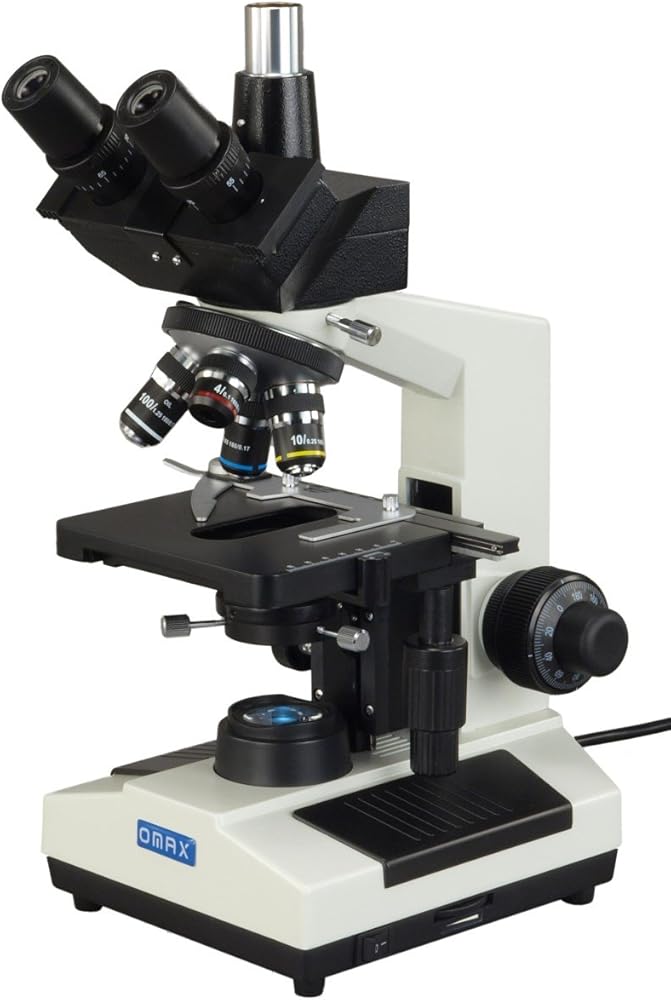

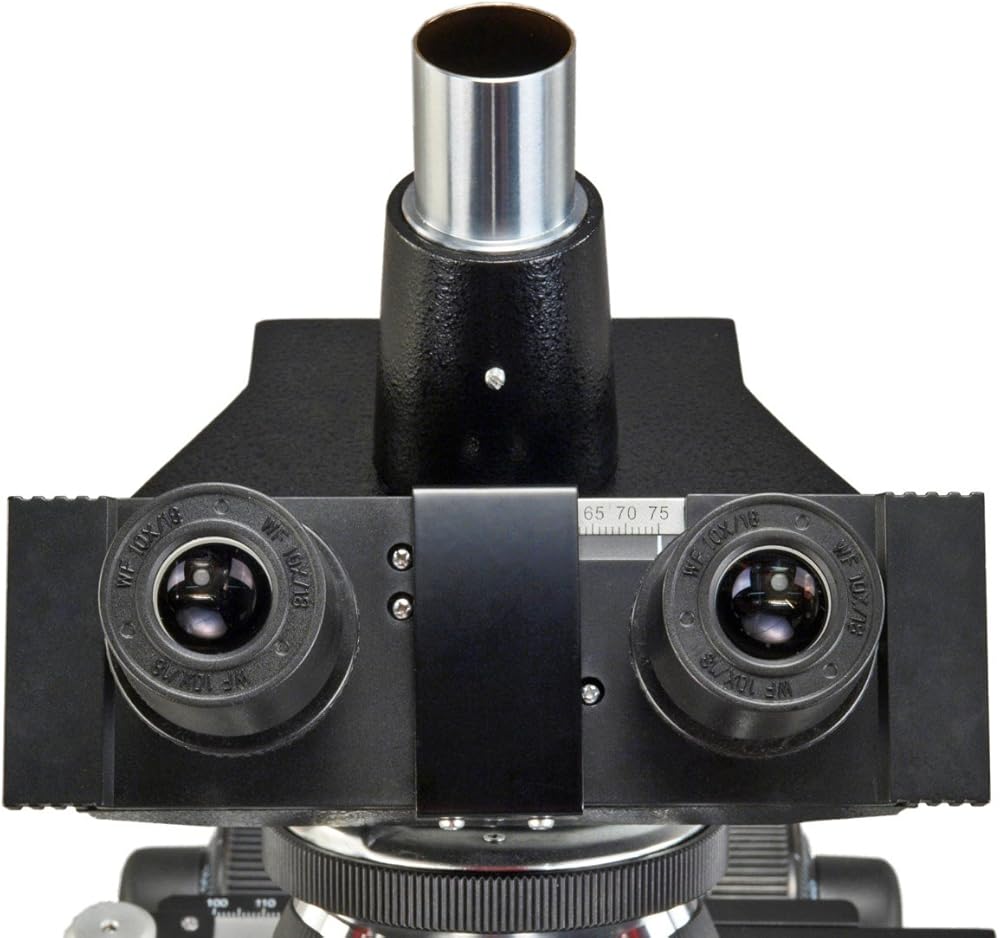

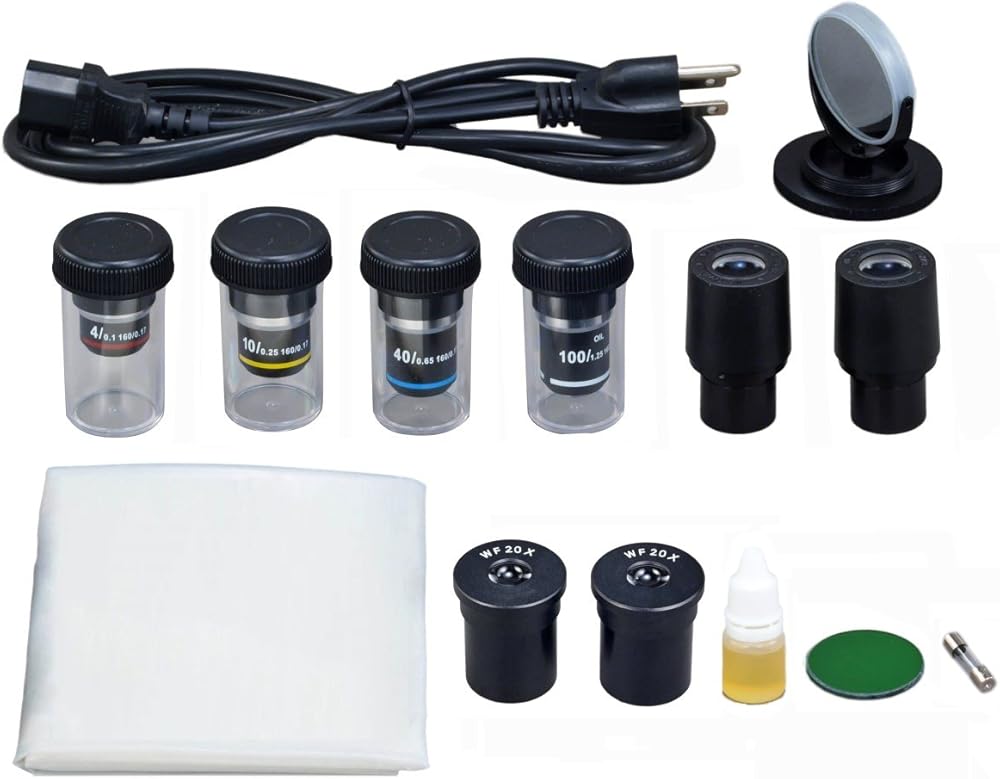

The trinocular compound LED microscope provides both brightfield and darkfield microscope system. It offers eight level magnifications from 40X to 2000X. The darkfield biological microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The laboratory microscopy comes with trinocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanicalstage, LED illumination system and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers. The LED lamp can be replaced by yourself. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. The trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
