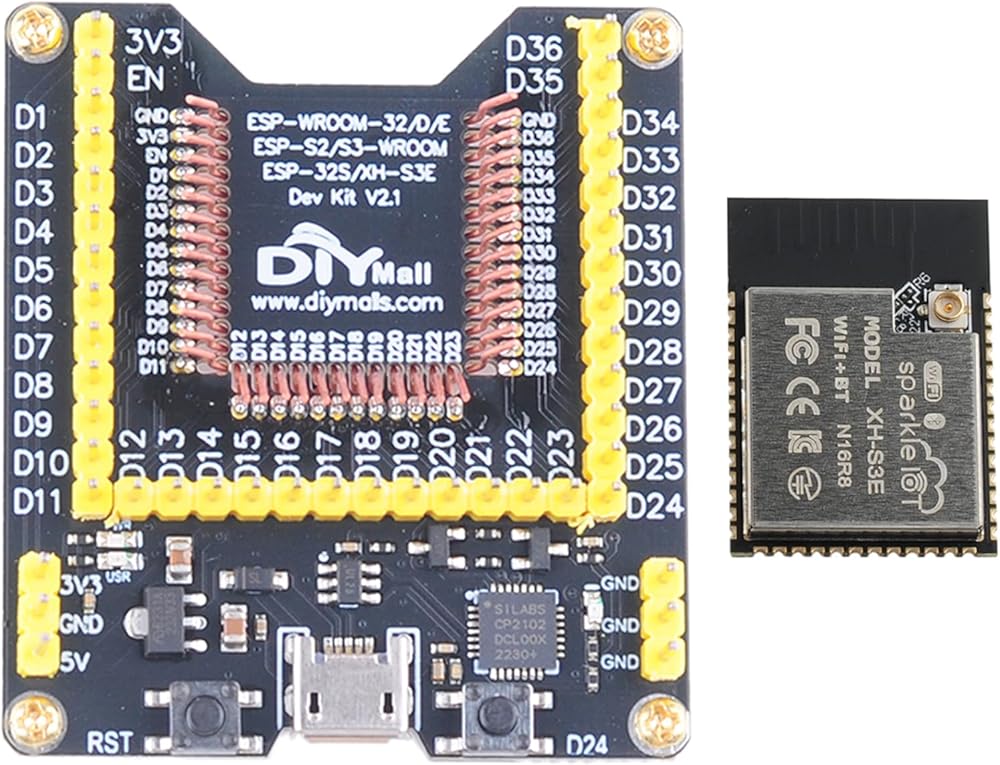

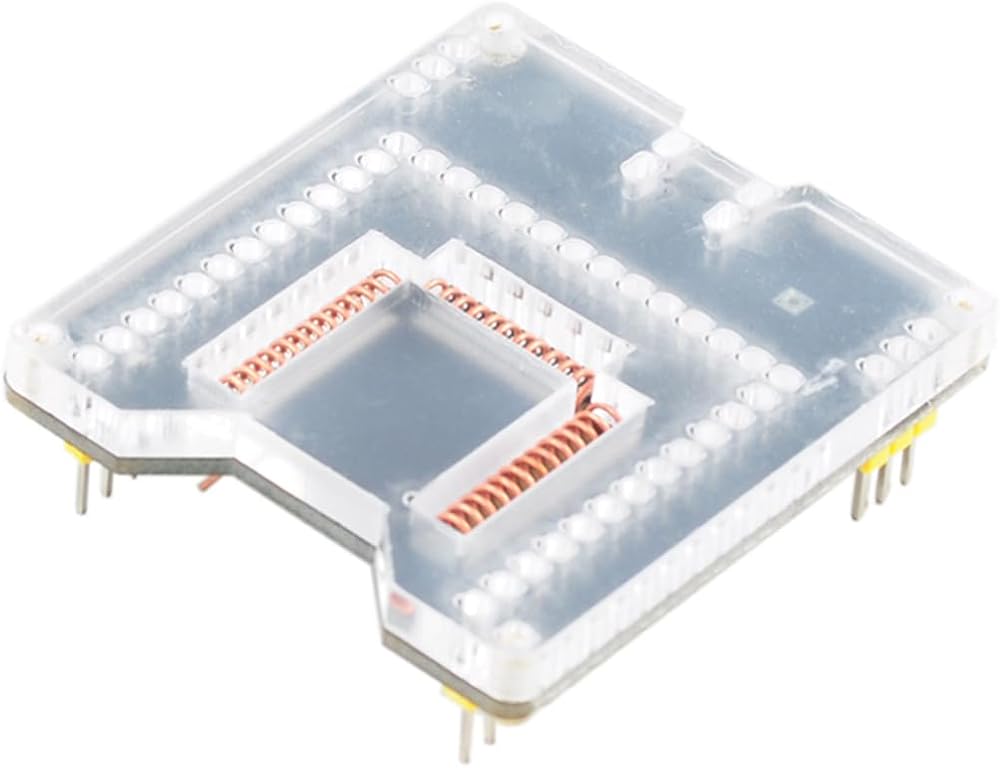

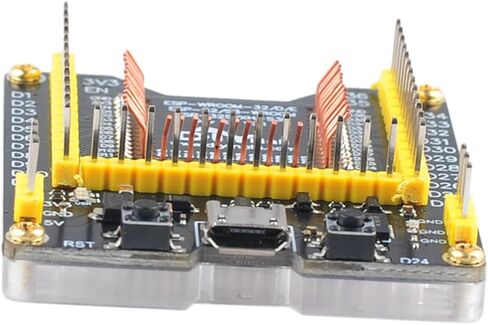

ESP32 Programming Module Test Board Burning Fixture System Development Board

Used for burning:
ESP32-WROOM-32D
ESP32-WROOM-32E
ESP-S2-WROOM
ESP-S3-WROOM
ESP-32S

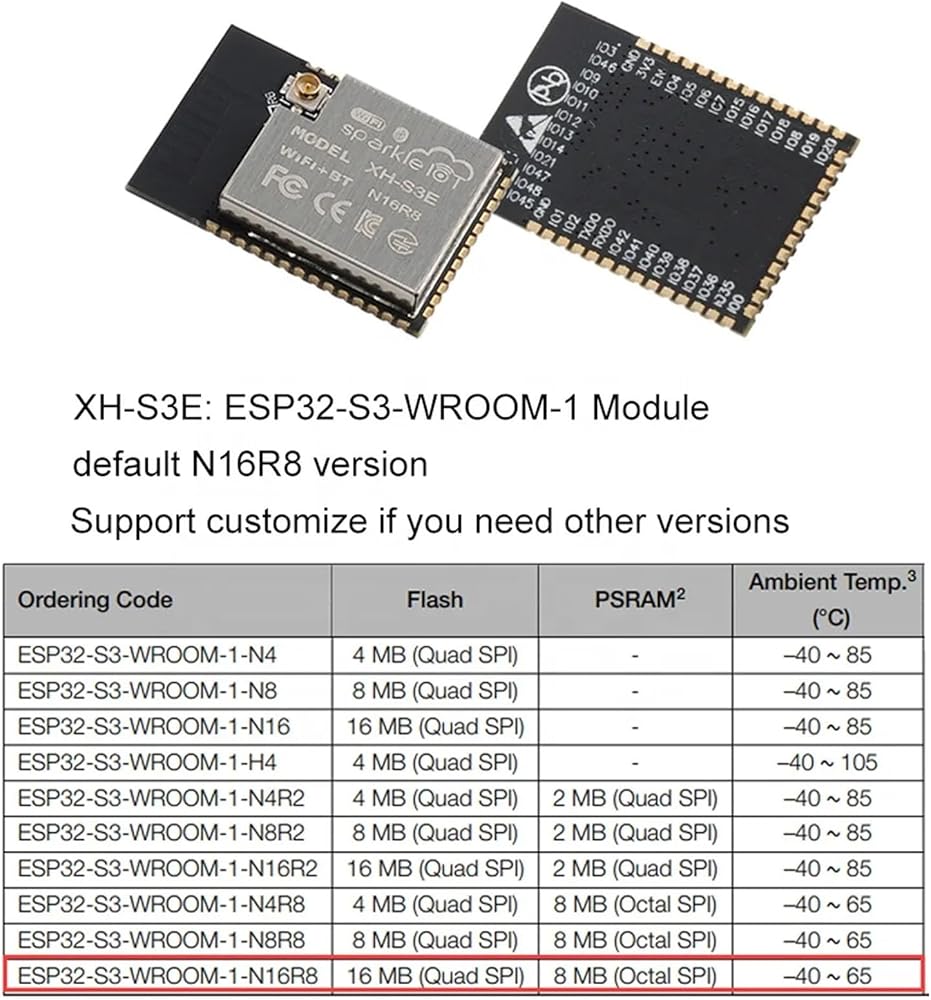

XH-S3E

XH-S3E N16R8

Feature:
CPU and On-Chip Memory
ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz
Operating voltage: 3.0V ~ 3.6V
384 KB ROM
512 KB SRAM
16 KB SRAM in RTC
SPI Flash: 16 MB
PSRAM: 8 MB
Peripherals: PWM/ I2C/ UART/SPI/SDIO / IrDA

Wi-Fi
802.11 b/g/n
Bit rate: 802.11n up to 150 Mbps
Support A-MPDU and A-MSDU aggregation
Support max 18dBm output power in 802.11b mode
Support STA/APO/STA+AP working mode
Center frequency range of operating channel: 2412 MHz ~ 2484 MHz

BT
Low power BLE: BLE 5, BLE mesh
Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
Advertising extensions
Multiple advertisement sets
Channel selection algorithm #2

Peripherals
GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature sensor, timers and watchdogs

Operating temeprature: -40°C ~ 105°C
Module size: 18x25.5x3mm
Module power supply:3.3V
Wi-Fi module IO max output current: 12mA

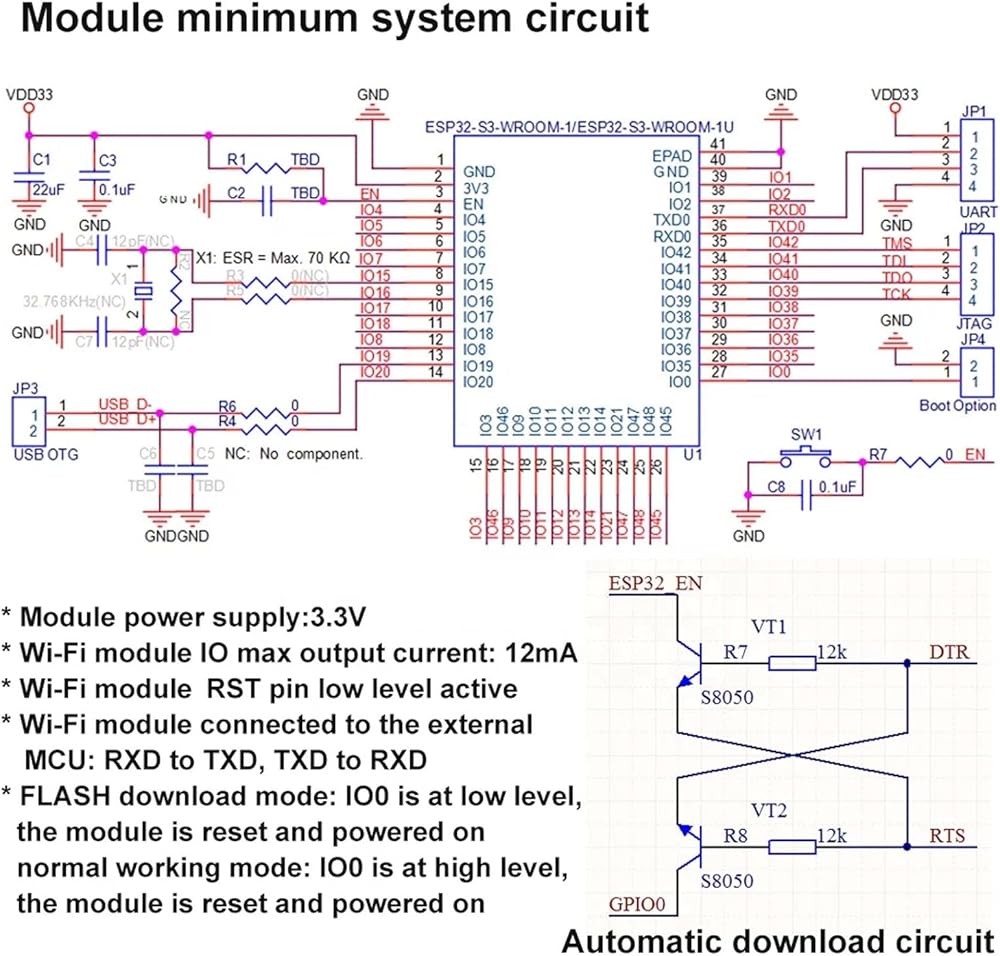

Wi-Fi module RST pin low level active
Wi-Fi module connected to the external MCU: RXD to TXD, TXD to RXD
FLASH download mode: IO0 is at low level, the module is reset and powered on; normal working mode: IO0 is at high level, the module is reset and powered on

Application:
Smart Home
Smart Building
Webcams
Wearable Electronics
Wireless Location System Beacons
Industrial Wireless Control
Generic Low-power IoT Sensor Hub
Smart Agriculture
Smart Bus
Wi-Fi-enabled Toys
