Product Description

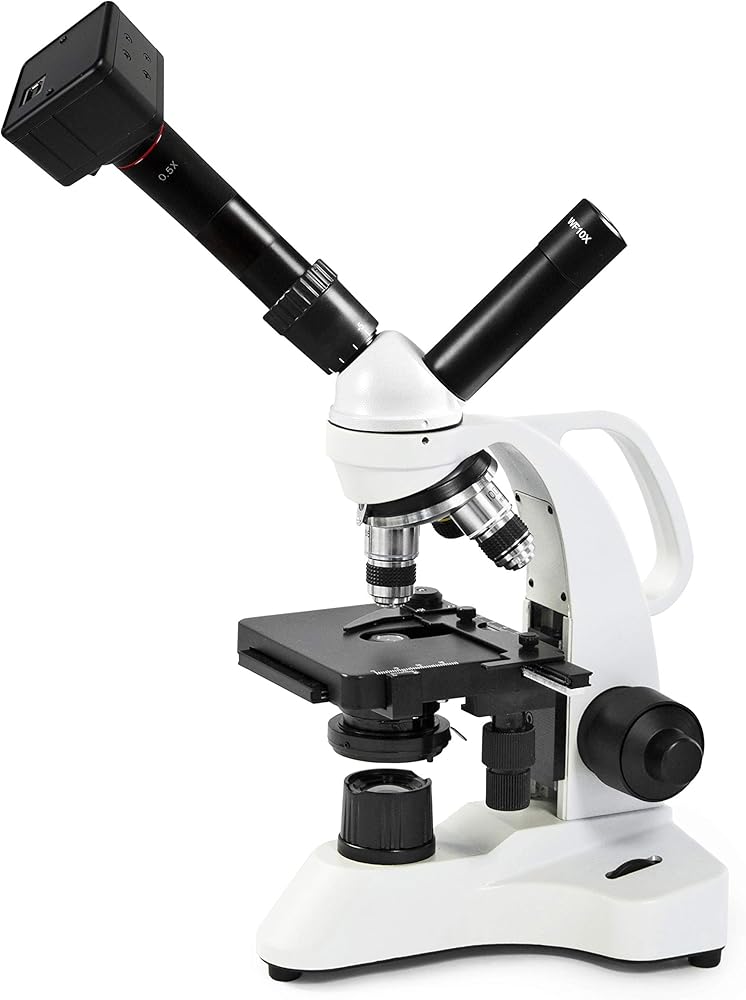

This 45° dual view compound microscope has two 10x widefield eyepiece one with a pointer. The 45° inclined dual viewing head reduces eye and neck strain and rotates 360° to provide trouble-free observation for two people. An eyepiece pointer ensures that definite points on the slide can be easily designated and quickly identified.
Specifications
Head: 45° Inclined Dual View, rotates 360°
Eyepiece: Two WF 10x one with pointer
Magnification: 40x-1000x
Nosepiece: 4 hole objective turret; reverse position with click stops
Objective Lens: 4x, 10x, 40xR, 100xR oil achromatic objectives
Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)
Focusing: Coaxial coarse and fine focusing
Condenser: 1.25 NA Abbe condenser
Diaphragm: Iris diaphragm with swing out filter holder
Light Source: LED illumination with intensity control
Power: 110V Corded
Warranty：5 year limited warranty excluding bulbs & digital camera

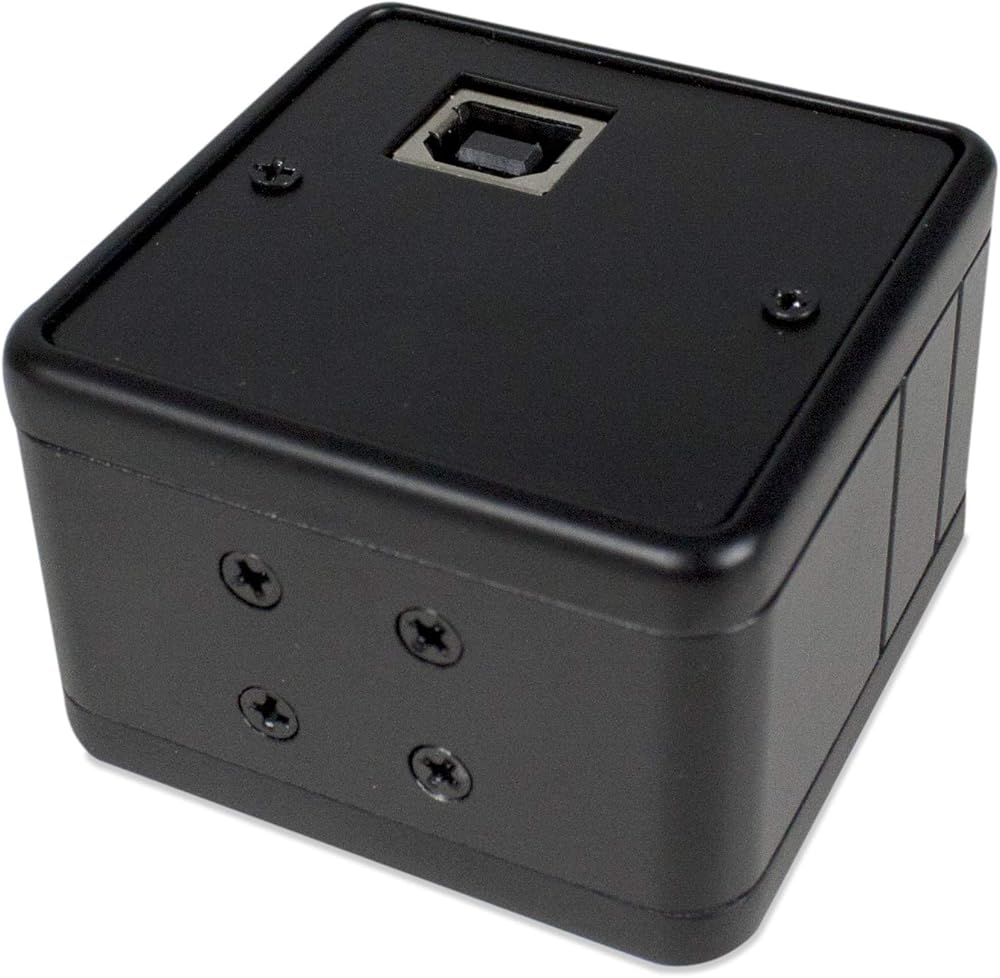

Camera Specifications:
2 megapixel camera, Output: USB2.0
View, Capture and Edit Images with included software; measure and quantify images
Free download app available from Apple and Google Play store
Includes CD for PC (Windows 2000 / XP2 / Vista / Win7/ Win10)
Packing List
45° inclined dual view biological microscope with LED illumination
Two 10x widefield eyepiece one with pointer
4x, 10x, 40xR, 100xR objectives
Double layer, built-in mechanical stage with 2 Stage clips
2 MP digital eyepiece camera, USB 2.0 cable and Imaging software CD
One dust cover and User manual
Shipping info
14” x 7” x 8” - 7 lbs
