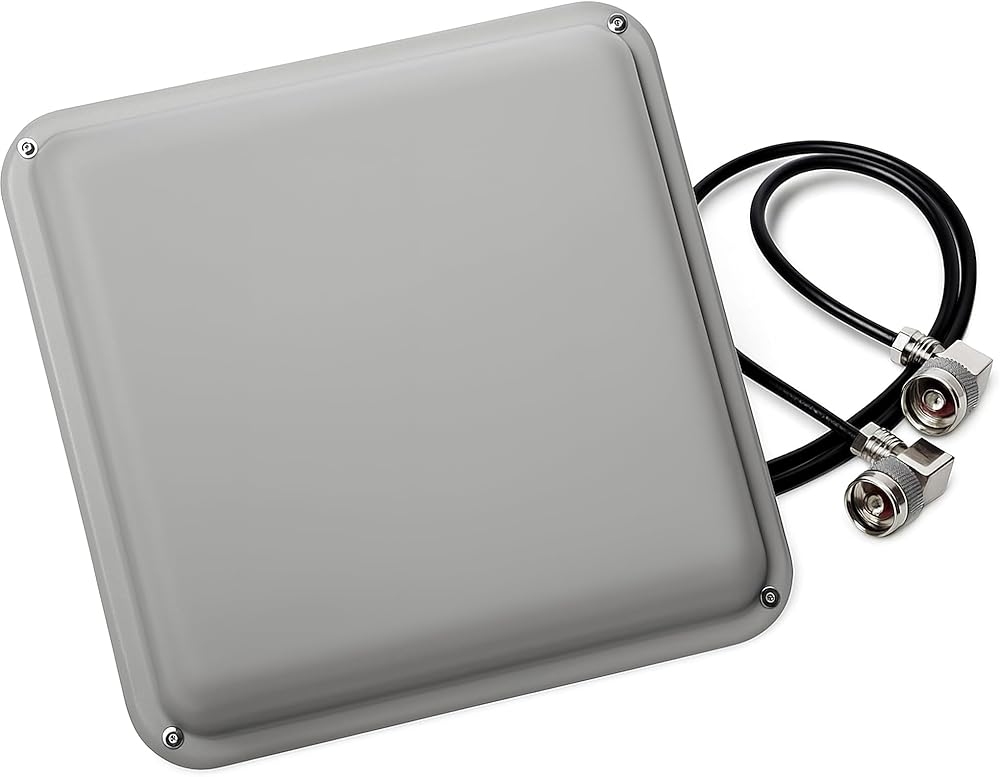

AIR-ANT5114P2M-N=, 5-GHz 14-dBi 2-Port Directional Patch Antenna Designed for Outdoor Use With Cisco Aironet Access Points and Bridges
The AIR-ANT5114P2M-N is a high-performance 5GHz directional patch antenna designed for outdoor use, and compatible with Cisco Aironet access points and bridges. Delivering 14dBi of gain, dual linear polarization, and robust weather-resistant construction, it ensures strong, focused wireless coverage for point-to-point and sector applications.
Key Features:5GHz 14dBi dual-port directional patch antenna
Dual linear polarization supports vertical and horizontal transmission
30° azimuth and elevation beamwidth for precise directional control
Front-to-back ratio greater than 25 dB for superior signal isolation
Sidelobe levels below -15 dBc reduce interference and signal distortion
Rugged outdoor housing
Two integrated 30-inch outdoor-rated coaxial leads with N-Male connectors
Compact design measures 7.8 x 7.8 x 1.2 inches
Includes adjustable pole and wall mount bracket kit for flexible installation
Compatible with Cisco Aironet access points and bridges

Specifications:Peak gain: 14 dBi
Input impedance: 50 Ohms
Connector type: N Male (2 ports)
Cable length: 30 Inches
Azimuth beamwidth: 30 Degrees
Elevation beamwidth: 30 Degrees
Polarization: Linear Dual
Mounting: Adjustable pole or wall mount with included bracket kit
Unit dimensions: 7.8 x 7.8 x 1.2 Inches
Unit weight: 21.6 ounces
Package dimensions: 16.73 x 8.90 x 6.57 Inches
Package weight: 4.135 Pounds
