HDD Cooling Fans
NF-A6X25 5V

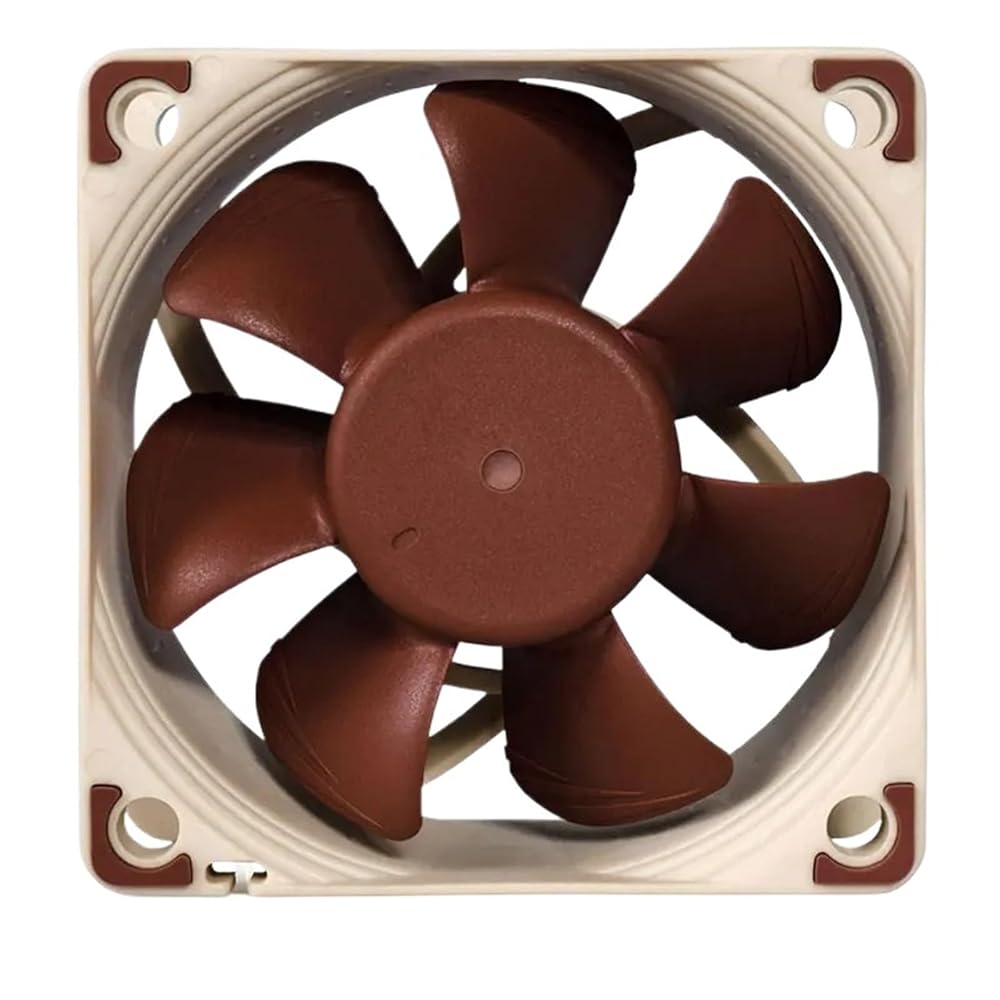

Reduced motor hub size
Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.
NF-A6X25 5V PWM
Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

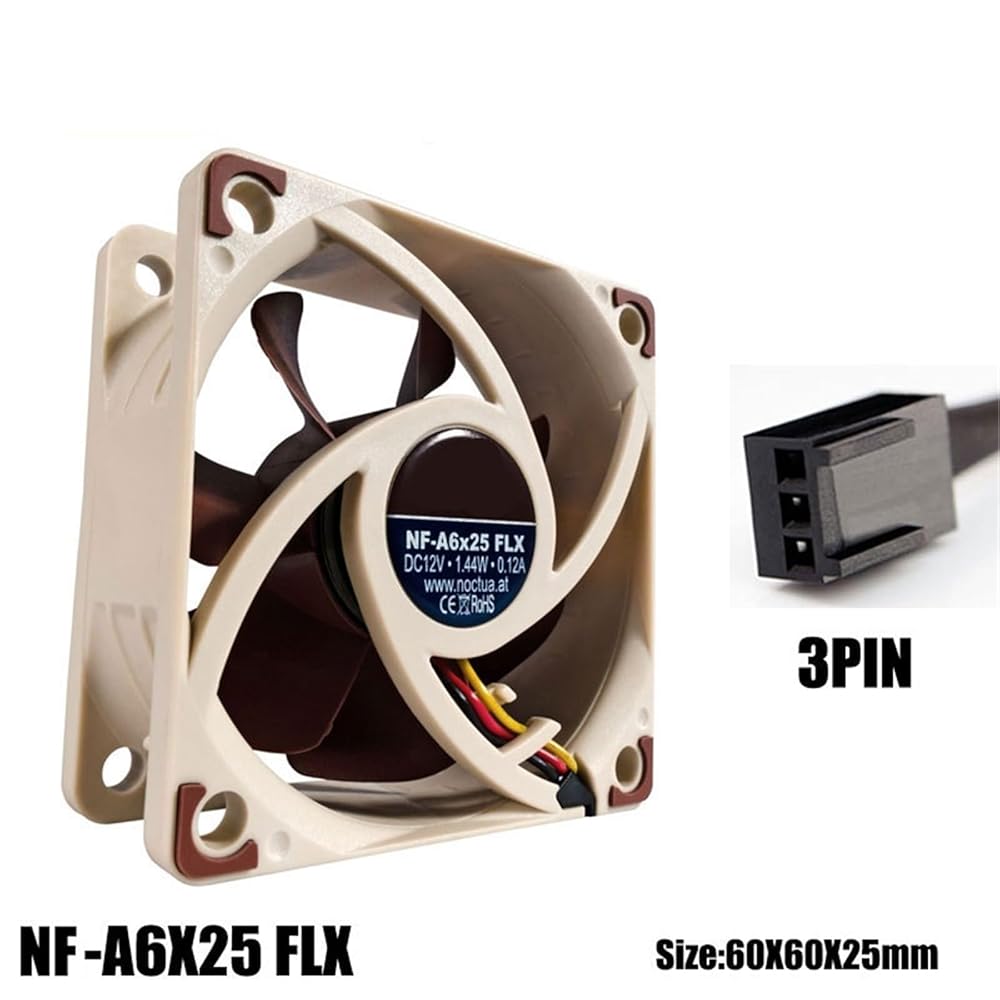

NF-A6X25 FLX
AAO frame
AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

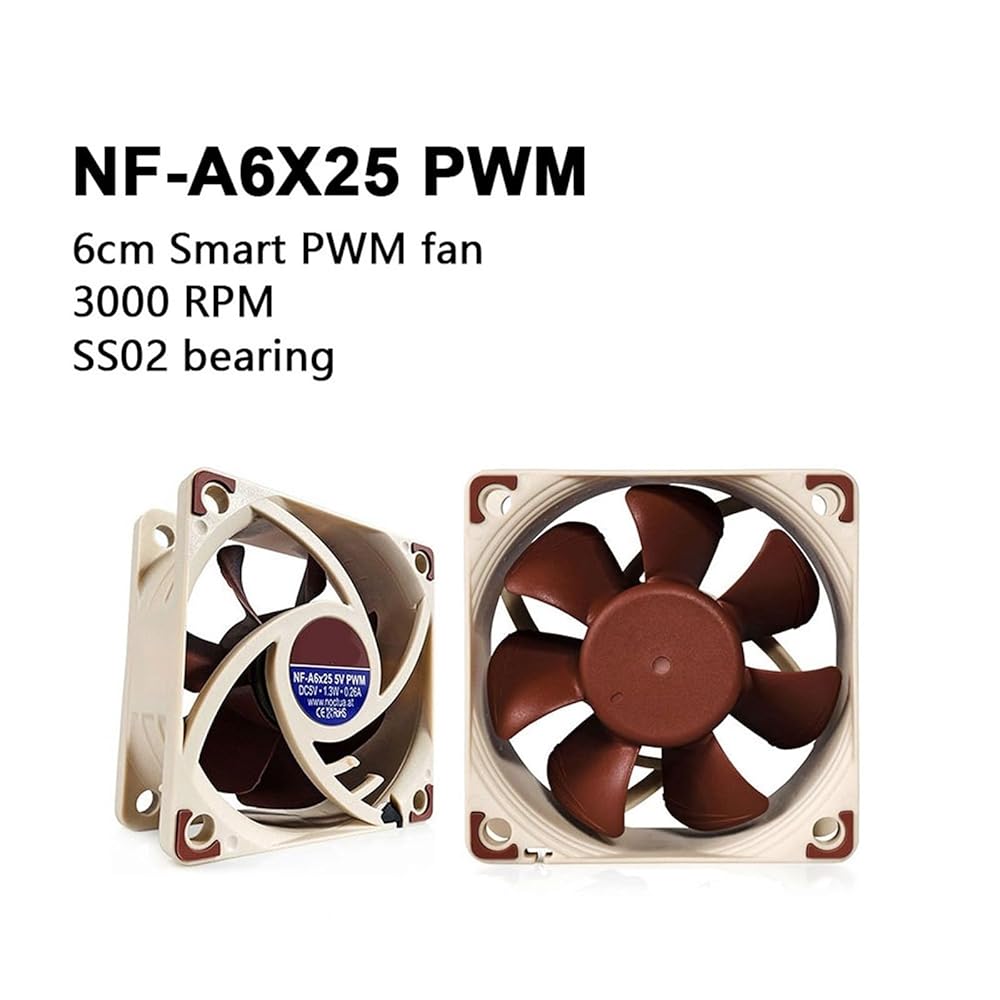

NF-A6X25 PWM
SSO2 bearing
The NF-A6x25 features the further optimised second generation of renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
==========
Model Number : NF-A6X25
Voltage : 12V
Fan Speed : 650 - 3000rpm
Used For : Case
Power Interface : 3PIN,4PIN
Noise : 19dBA
Fan Life : 50000 hrs
Blade Quantity : 7
Bearing : Two Ball Bearing
Power (W) : 1.2W
