●Processor: Pentium Gold 8505 5-core 6-threads, up to 4.4GHz, 8MB Cache
●Memory: 2*SO-DIMM DDR4 3200 (compatible with 2400/2666MHz)
●Storage: 1*M.2 NVMe x4, 2*SATA3.0 (non-standarde)
●Display:
HDMI1.4 supports 4096x2304@30Hz
DP1.4a supports 7680x4320@60Hz
Type-C supports 4090x2304@30Hz
●Network Card: 6* i226-V 2.5G network card
●USB: 2*USB3.0, 2*USB3.2(10Gbps)
●Heat Dissipation: Two copper tubes heat conductive aluminum enclosure passive heat dissipation
●BIOS: support Auto power-on , Wake On LAN, PXE, GPIO
●Power Supply: DC 12V-19V wide voltage (55*25 connector)
●Chassis: Aluminum alloy material
●Extension PINs: 1*4Pin CPU Fan, 1*Serial Pin, 1*USB Pin
●Size: 158mm (L) X 145.4mm (W) X 60.2mm (H)
●Installation Method: Default desktop, if you need wall mounting bracket, please leave message.
●Working Environment: -0°C ~+60°C, relative humidity 5%-85%

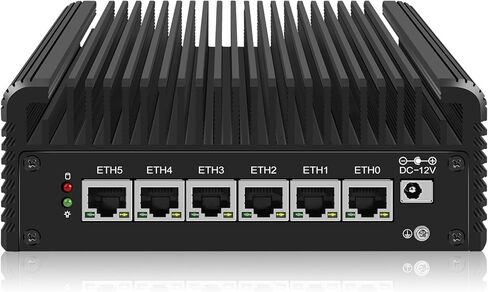

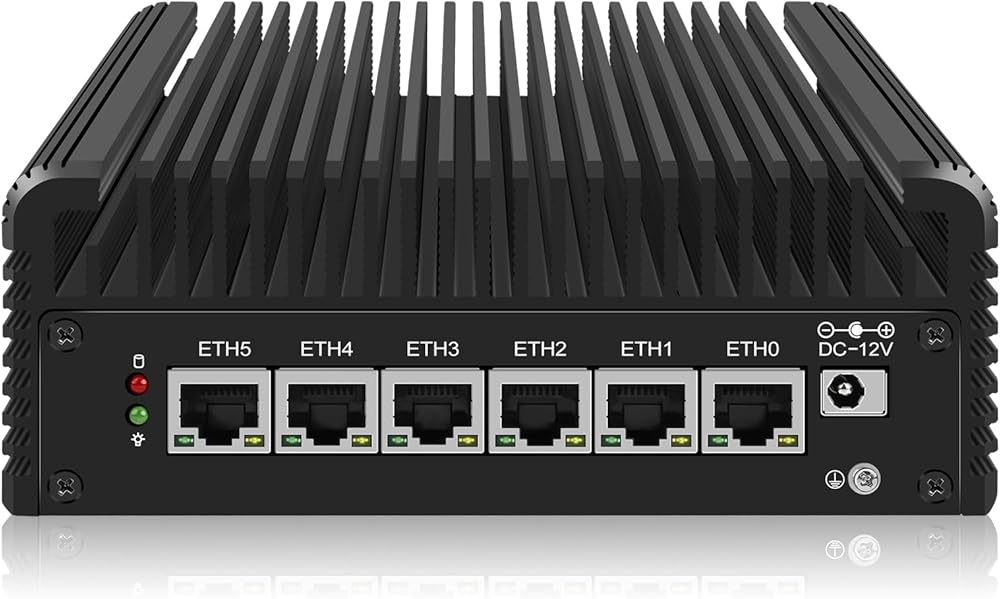

●This Pentium Gold 8505 6 LAN ports firewall pc is ideal for computer enthusiasts DIY devices, office working, virtualization, soft routing, edge computing and small NAS, etc.
