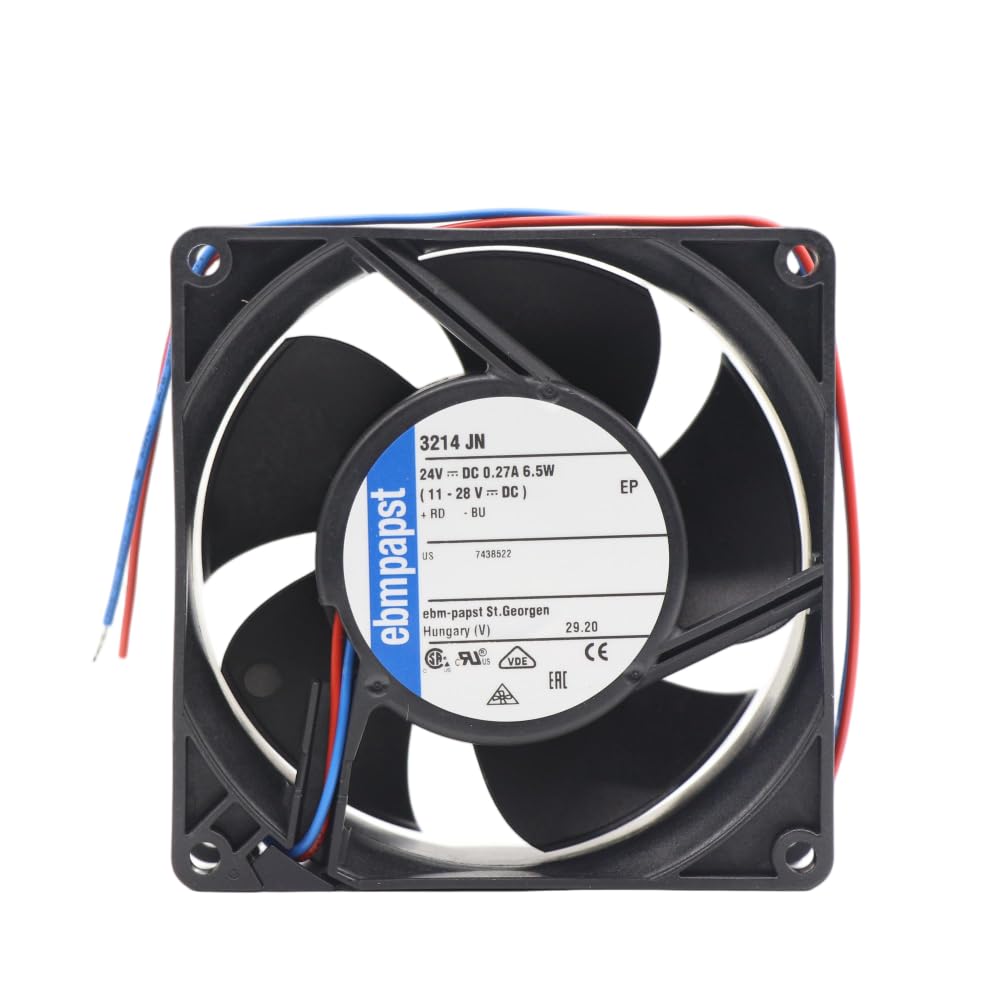

3214JN ebm-papst DC مروحة محورية مدمجة 3214 JN 24V 6000RPM مروحة تبريد لوحدة الطاقة، وحدة القيادة، إلكترونيات الطاقة، محول التردد، العبوات، الإلكترونيات العسكرية in Kuwait

3214JN ebm-papst DC مروحة محورية مدمجة 3214 JN 24V 6000RPM مروحة تبريد لوحدة الطاقة، وحدة القيادة، إلكترونيات الطاقة، محول التردد، العبوات، الإلكترونيات العسكرية

KWD 37
– 1 +

مميزات خاصة

  • Item Parameter: Voltage:24.0V DC（nominal）, 11~28V DC（range） | Frequency:Not applicable（DC type） | Current Draw:≈0.271A（calculated by P=UI, P=6.5W, U=24V, tolerance not specified） | Power Input:6.5W（wide open state, higher at operating point） | Speed:6000 RPM | Type:DC axial compact fan | Material:Impeller:Glass-fiber reinforced PA plastic; Housing:Glass-fiber reinforced PBT plastic| Direction of Rotation:Clockwise（viewed toward rotor） | Airflow direction:Exhaust over struts | Air flow:130.0m³/h | Sound Data:Sound power level=6.1B; Sound pressure level=51dB(A) | Protection:Reverse polarity protection; Locked rotor protection
  • Model:3214 JN fan for ebm papst; Type:DC axial compact fan; Temperature Range:-20℃ to+70℃ (operating); Bearing system:Ball bearing; Cable:Leads AWG 24, TR 64, stripped and tin-plated; Installation position:Any（shaft orientation, no restriction mentioned）
  • Fan Size:92.0mm × 92.0mm × 38.0mm（Length×Width×Depth）; Weight:0.240 kg; High-reliability 3214 JN fan built with German precision. A high-airflow DC axial cooling fan engineered for industrial ventilation and heat dissipation.
  • Applicance:3214 JN fan widely used in industrial electronic enclosures, medium-sized equipment and high-airflow cooling systems; note that power consumption is higher at the operating point than the wide-open state; our store is professional for providing ventilation and heat dissipation products and industry control accessories.
  • Condition:All items tested and brand-new states before sale, compliant with VDE; CSA; UL. Based on the correct installation（follow DC voltage range & wire connection rules）and use, we can provide 6-month warranty. More details, feel free to contact us.

وصف

Product Parameters |
Type ：3214 JN（DC axial compact fan）
Nominal voltage ：24.0 VDC
Nominal voltage range ：11~28 VDC
Power consumption ：6.5 W（wide open state; higher at operating point）
Current consumption ：≈0.271 A（calculated by P=UI, tolerance not specified）
Speed ：6000 RPM
Impeller material ：Glass-fiber reinforced PA plastic
Housing material ：Glass-fiber reinforced PBT plastic
Airflow direction ：Exhaust over struts
Direction of rotation ：Clockwise（viewed toward rotor）
Air flow ：130.0 m³/h
Sound Data ：Sound power level=6.1 B; Sound pressure level=51 dB(A)
Motor protection ：Reverse polarity protection; Locked rotor protection
Cable details ：Leads AWG 24, TR 64, stripped and tin-plated
Operating temperature ：-20℃ ~ 70℃
Service life ：L10 at 40℃=70000 h; L10 at maximum temperature=35000 h
Approval ：VDE、CSA、UL
Installation position ：Any
Weight ：0.240 kg
Dimensions ：92.0mm × 92.0mm × 38.0mm
