مميزات خاصة

Equipped with a customized USB Audio solution, it features an ARM Cortex-M7 core processor (IMXRT1011 chip). This delivers powerful processing capabilities and low-latency response for audio data processing, ensuring real-time and stable transmission of high-sample-rate signals
Full-Format High-Resolution Audio Support Ultra-Wide Range PCM/DSD Compatibility. PCM Support: Sample rates from 44.1kHz to 1536kHz. DSD compatible with both DoP mode (DSD64 to DSD512) and Native mode (DSD64 to DSD2048)
USB 2.0 High-Speed Interface (Class 2 Compliant): Offers plug-and-play compatibility without additional drivers. Windows (supports ASIO drivers). Suitable for both professional audio workstations and daily use
Driver-Free Design: Greatly simplifies setup. It seamlessly adapts to mainstream music playback software, whether leveraging native macos support or achieving low-latency transmission via ASIO drivers on Windows
Connection Guide: Connect the device to a computer, phone, or tablet using a USB cable (for phones/tablets, the cable must support OTG functionality). Then, use a digital audio cable to connect to a DAC, integrated amplifier, power amplifier with digital input, or active speakers
PCB Physical lsolation Design: Incorporates a 200M6ps fult-isotation chip to eliminate interference from the source, resulting in purer and cleaner audio reproduction

وصف

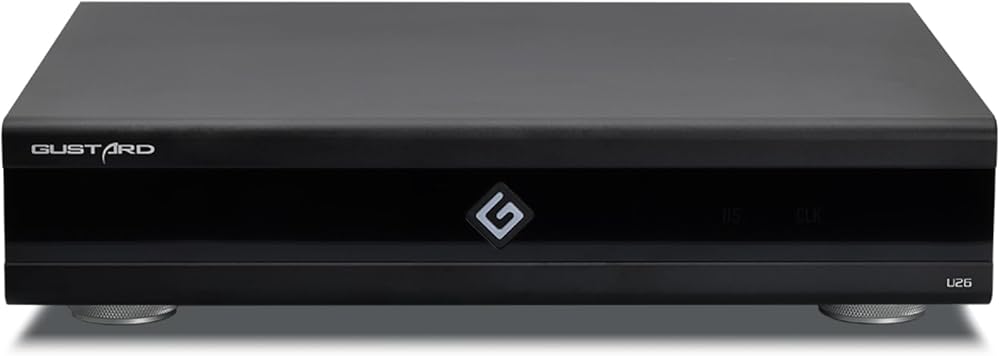

GUSTARD U26 USB Digital Interface DSD2048 PCM1.536MHz Full lisolation Technology lsolates Low Noise USB Audio Interfaces.
Gustard Professionally Customized Digital Interface DDC: The Precision Digital Bridge for High-End Audio Systems
Color: Black / Silver

Digital Outputs:

COAX (Coaxial): Output impedance 75 Ω, output level 500 mV P-P @ 75 Ω load
PCM:24-bit,44.1 kHz-384 kHz/DoP64-128
AES (XLR): Output impedance 110 Ω, output level 2.1 V p-P @ 110 Ω load
PCM:24-bit,44.1kHz-384 kHz/DoP64-128
OPTICAL (TOSLINK):
PCM:24-bit,44.1 kHz-192 kHz/ DoP64
llS over HDMl (not standard HDMl interface):
LVDS output level
PCM:32-bit,44.1 kHz-1536 kHZ
DSD:2.82 MHz-90.3 MHz(DSD64-DSD2048)

Other Parameters:
AC Power Supply: AC 115 V / 230 V, 50/60 Hz
Power Consumption:Unit Dimensions: W 330 mm x H 65 mm x D 260 mm (excluding protrusions)
Packaging Dimensions: W 420 mm x H 175 mm x D 360 mm
Machine weight: 4.8KG
Pacakge Weight: 6.3 kg (including packaging)

Pakage list:
1 x U26
1 x AC cable
1 x USB cable
1 x Gustard Card
The accessories do not include a paper manual; You can contact the seller for an electronic version Or download it from GUSTARD
