Cables
Description

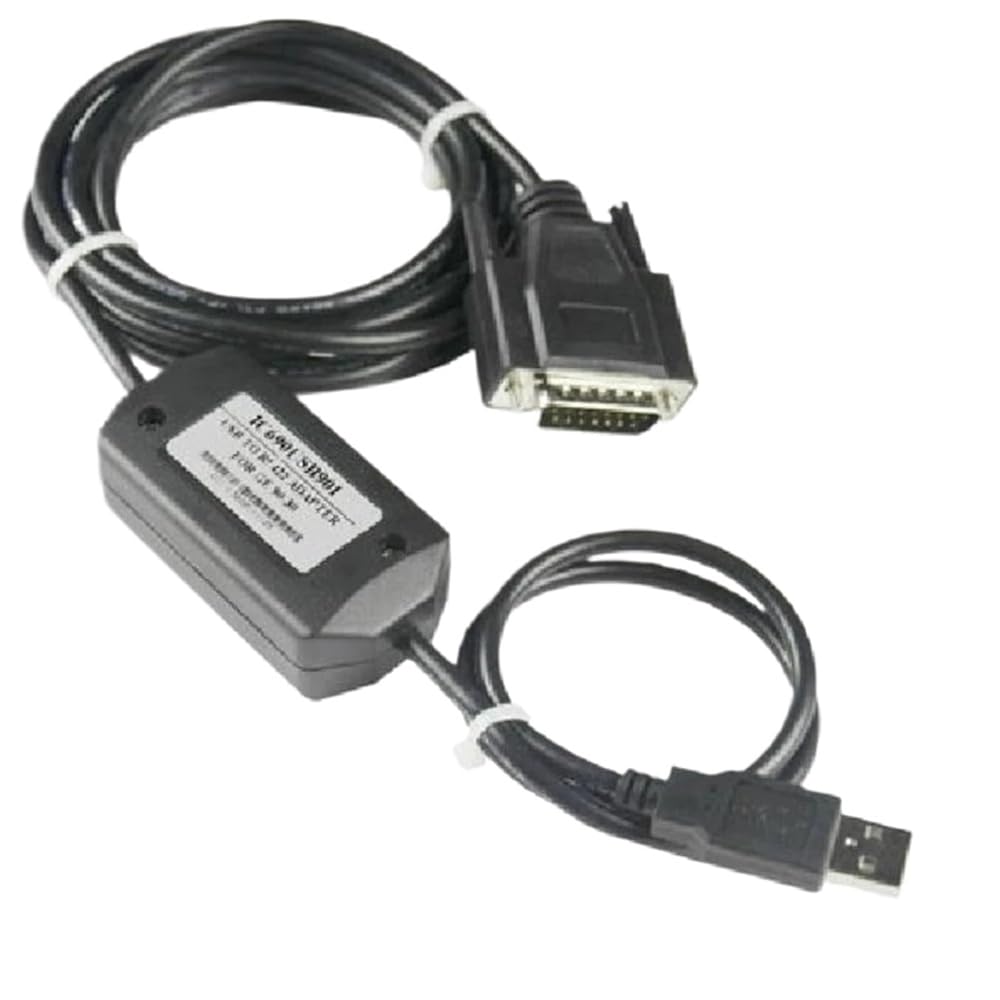

USB/SNP interface 90 series programming cable,3 meters,with communication indicator,the largest communication distance of up to 1.5 kilometers.
Introduction
IC690USB901 programming cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software to communicate through simulated traditional port and devices. In this product, the power supply is provided by USB port, not by the programming port, two-color LED on the adapter indicating the status of sending and receiving data, IC690USB901 cable programming applies to 90 Series , the largest communications support to 1.5 kilometers away.
Characteristic and technical specification:
The operating system that supports IC690USB90 : Windows2000/XP (WinNT4/95/98/Me/DOS support)
The programming software release that supports IC690USB901: CIMPLICITY ME V5.0 and above
The standard that completely compatible USB V1.1 and USB CDC V1.1
USB main line supply power and current sinking approximately 50mA
Baud rate: the 300bps~1Mbps standard baud rate adapts automatically
Supports the UART data format: Data position: 7th, 8, stop the position: 1st, 2, verification position: odd/even/no parity
Support long distance correspondence, biggest signal distance 1.5 kilometers (when 19200bps)
Each PC only supports a USB programming electric cable
Operating temperature: - 20~+75°c
Cable length: 3 meters, color: Black
Remote communication:
==========
Model Number : IC690USB901
DIY Supplies : ELECTRICAL
