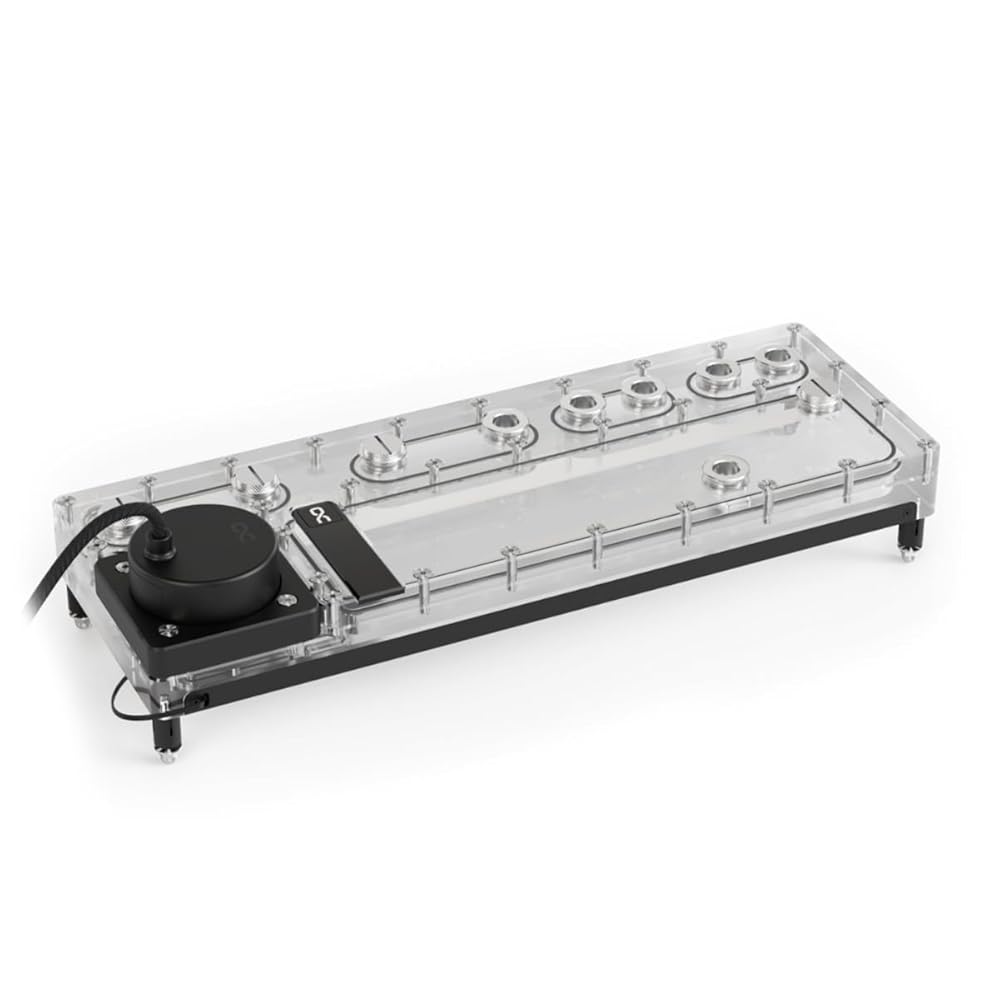

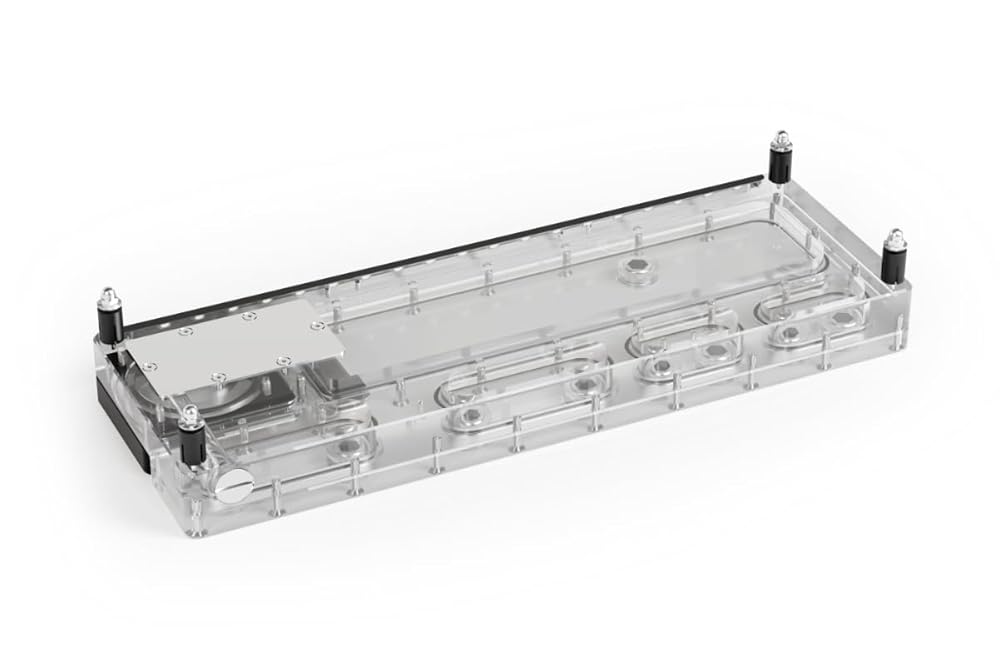

The Core Distro Plate from Alphacool with VPP Apex pump is a must have for any costum water cooling system. It greatly simplifies the construction, planning and maintenance of complex water loops and due to the already pre-installed VPP Apex, no additional pump installation is necessary. Core Design A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" connectors. With the Core Distro Plate, the ports are recessed instead of screwed into a thread as is usually the case. This allows Alphacool to overcome the problem of potential leakage due to cracking by screwing the connectors directly into the acrylic. The connectors are made of two parts, have an O-ring and counter each other when mounted in the acrylic. Technical data Distro Plate Dimensions (L x W x H): 360 x 125,00 x 34,50 mm Dimensions (L x W x H) with pump: 360 x 125,00 x 62,20 mm Dimensions (L x W x H) with push mounting: 360 x 125,00 x 62,30 mm Dimensions (L x W x H) with pump + push mounting: 360 x 125,00 x 88,80 mm Material: Acrylic Volume: 190ml Pump compatibility: VPP/D5 Threads: 10x G1/4" inner thread / 1x drain port Quantity digital aRGB LEDs: 19 Power digital aRGB LEDs: 5V Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V Technical data Pump Dimensions (Distro Plate with pump) (L x W x H): 240 x 125 x 93,32mm Material pump: synthetic material Material pump cover: aluminium Material axle: ceramics Connections: 4-Pin PWM | SATA Rotational speed: 2500 - 4500 RPM Cable lengths: 4-Pin PWM - 48cm | SATA - 48cm Operating voltage: 8-13V DC / 14W IP32 Starting voltage: 12V DC Maximum pumping head: 4.25m Maximum flow rate: 340L/h Model: 13875
