SP901E LED Pixel WS2812B WS2811 SPI مكرر إشارة مكبر للصوت لـ WS2813 SK6812 WS2815 WS2801 SK9822 وما إلى ذلك جميع شريط LED القابل للتحكم RGB ولوحة مصفوفة LED قابلة للبرمجة بلون الحلم (4) in Kuwait

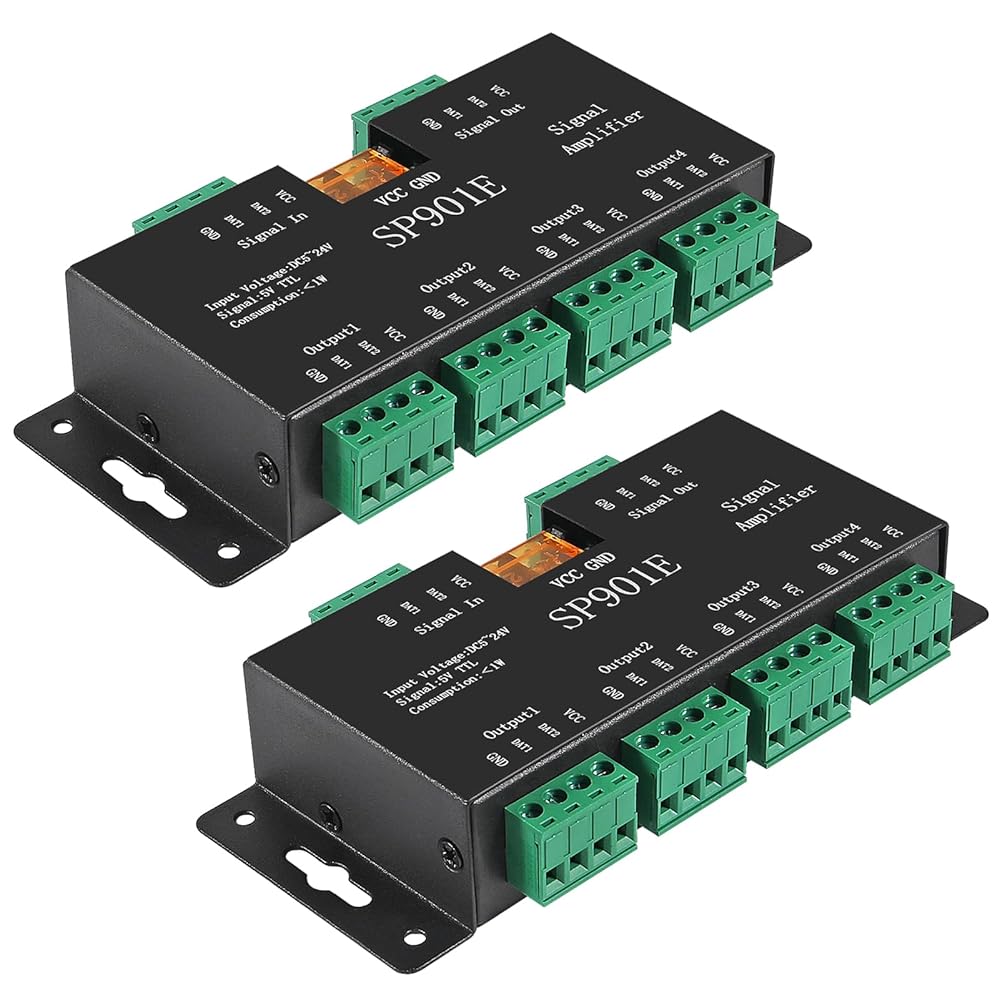

ACEIRMC 2 قطعة SP901E مكرر مكبر صوت أحادي لشرائط وألواح LED قابلة للعنونة RGB

KWD 8.500
ماركة
ACEIRMC
وزن
0.9 kg
عدد العناصر2
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Suit for addressable LED strips with single data wire, such as WS2812B, WS2811,WS2813, WS2815, SK6812, SK6812-RGBW, SM16703 and more.
  • This data repeater signal amplifier is compatible with all kinds of 5V-TTL signals. You can use only one controller to control 4~8 channels of signals simultaneously.
  • DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current consumed is high, you need to add the power supply of the corresponding voltage.
  • Use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 / FCOB RGB WS2811 IC ,DC12V WS2815, DC12V 1903, DC12V 6803 Or DC24V FCOB RGB WS2811 IC at the same time via this singal amplifier since they have the same singal.
  • Multiple signal amplifiers can be cascaded together synchronously. Particularly suitable for small and medium dream color lighting projects. It can work with K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry pi, Arduino X2 music controller.

وصف

Parameter:
Working voltage: DC5V~24V
Working temperature: -20-60℃
Output:8 channels / 4 channels
Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703,
WS2813, WS2815, CS8812, AL2815, WS2801, APA102,
SK9822,UCS1903, LPD6803, LPD8806, APA102
Static power consumption:
Size: 140mm×56mm×28mm
Weight:240g/pcs
Precautions:The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your LED lights. If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply
The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.
Package:
2 x SP901E Signal Amplifier
