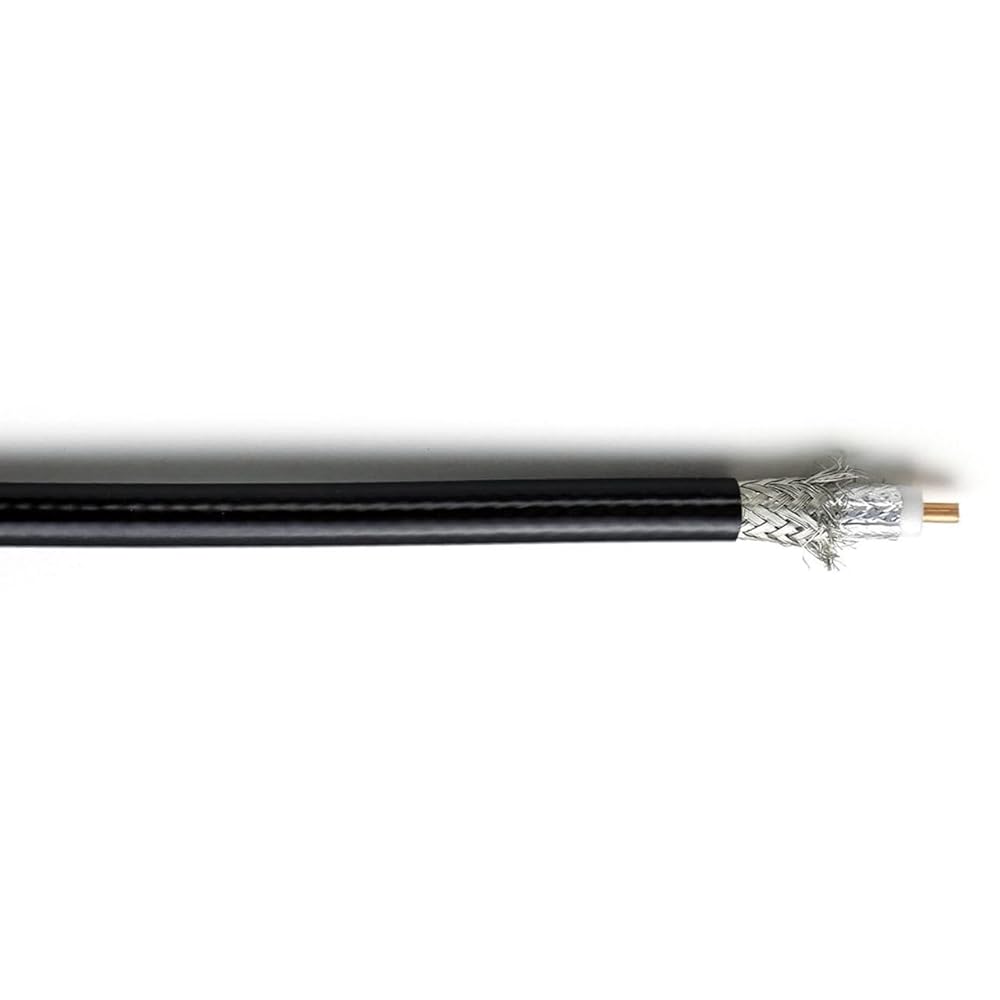

The West Penn 807XBK1000 RG-8X Coaxial Cable is engineered to support a wide range of antenna installation needs. This premium-quality cable is specifically designed for environments requiring moderate coverage and low bandwidth, delivering dependable performance every time. With a 50 Ohm impedance and an impressive 1000-foot (304.8m) length, this coaxial cable offers excellent compatibility with various antennas. Upgrade your connectivity setup today with the West Penn coaxial cable and enjoy reliable, high-quality performance!
Key Features
Designed for versatile antenna installations
Ideal for environments with moderate coverage and low bandwidth requirements
Offers seamless compatibility with a range of antennas

CONDUCTOR PARAMETERS
Number Of Conductors: 1
AWG Size: 16
Conductor Stranding: 19x29
Conductor Type: Bare copper
Nominal DCR: 4.3 Ohm/1000ft

INSULATION PARAMETERS
Insulation Type: Foam Polyethylene
Insulation Thickness: 0.155 in

SHIELDING PARAMETERS
Shield Type: Overall 100% Aluminum Foil
Overall 100% Aluminum Foil: 90% Tinned Braid

ELECTRICAL CHARACTERISTICS
Nominal Impedance: 50 Ohm
Nominal Capacitance Between Conductors: 25 pF/ft

OVERALL CONSTRUCTION PARAMETERS
Jacket Type: PVC
Nominal Cable O.D.: 0.242 in
Plenum: No
NEC UL Rating: CM
RoHS Compliant: Yes
Bend Radius: 2.42 in
Cable Weight: 38 lbs

OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP): 82%
Delay Skew: 1.2 ns/ft
UL Flammability: UL1685
Operating Range: -20 to 60 Deg C
UL Voltage Rating: 300
