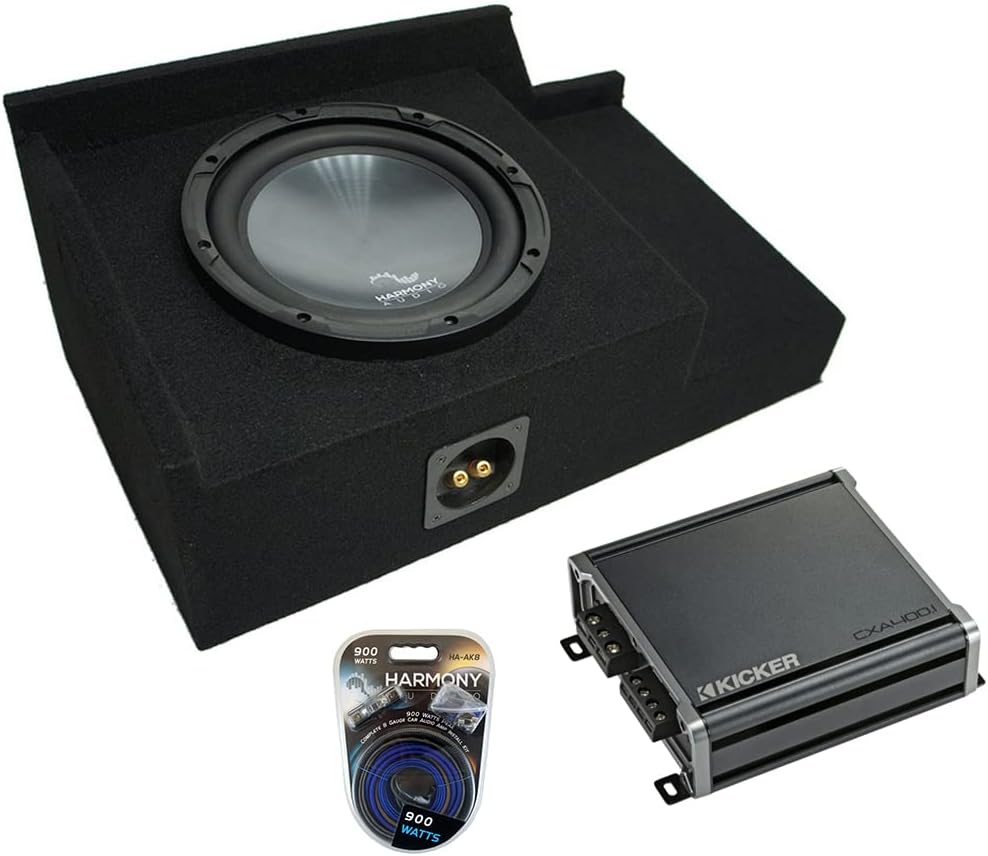

This Package Includes the Following Items:
1 x ASC 1X10GMNEW Custom 10" Sub Box
1 x Harmony Audio HA-R104 Rhythm Series 10"
1 x Kicker 46CXA4001 Car Audio Class D Amp Mono 800W Peak Sub Amplifier

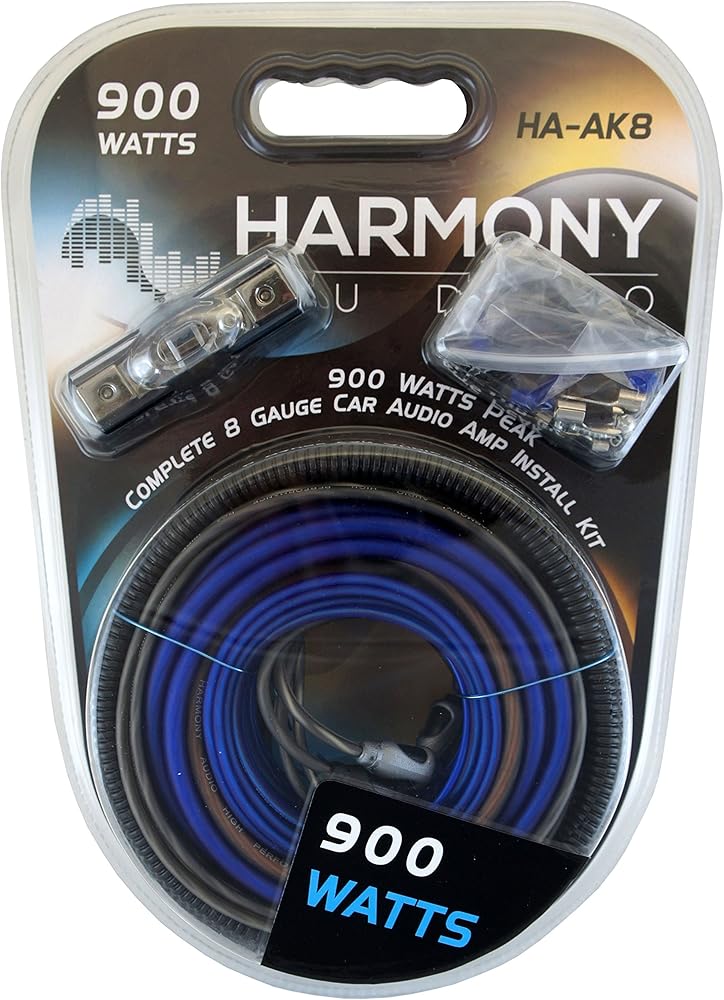

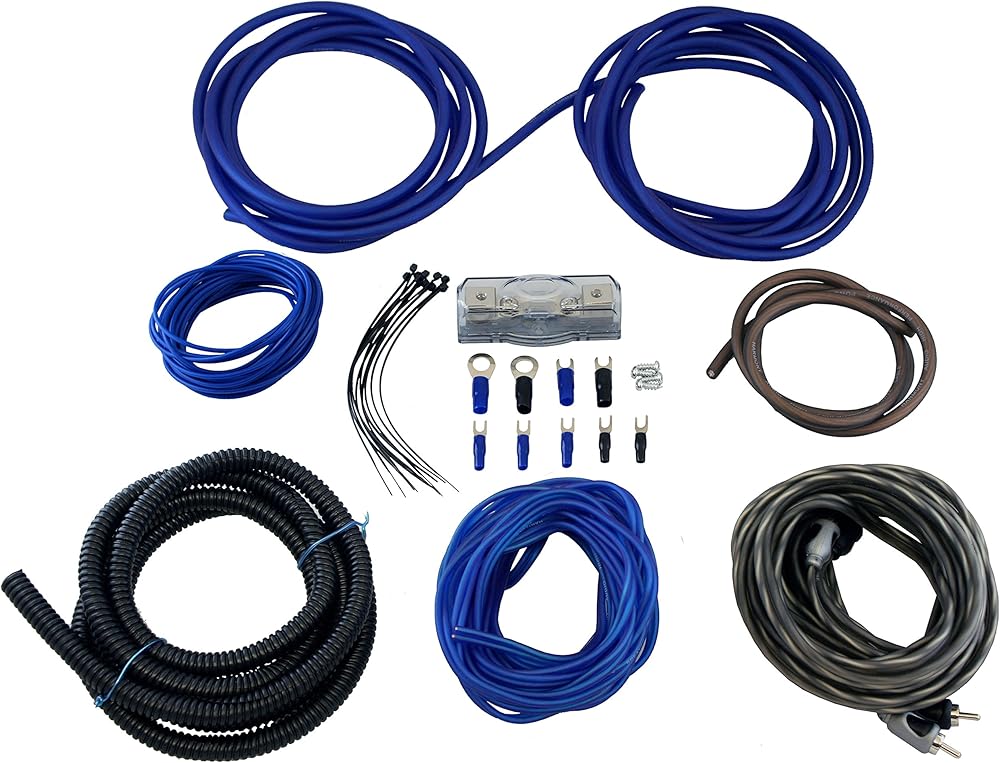

1 x Harmony Audio HA-AK8 Car Stereo Complete 8 Gauge 900W Amp Amplifier Install Kit - Nickel
ASC 1X10GMNEW Custom 10" Sub Box:
Air Space: 0.90 Cubic ft
Mounting Depth: 6"
Width 23-1/2" x Front Height 9-1/2" x Rear Height 7" x Depth 13-1/2"High Quality MDF and Black Carpet
High Binding Terminal Cup(Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')

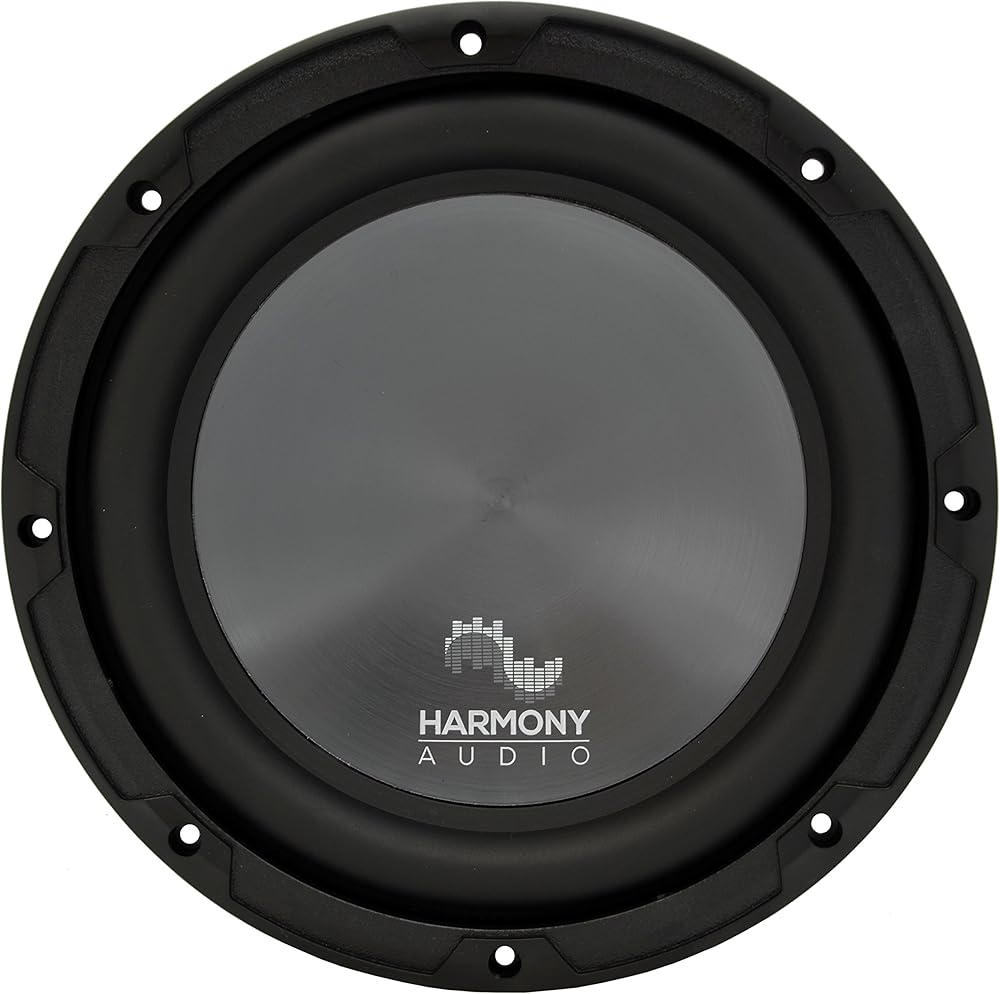

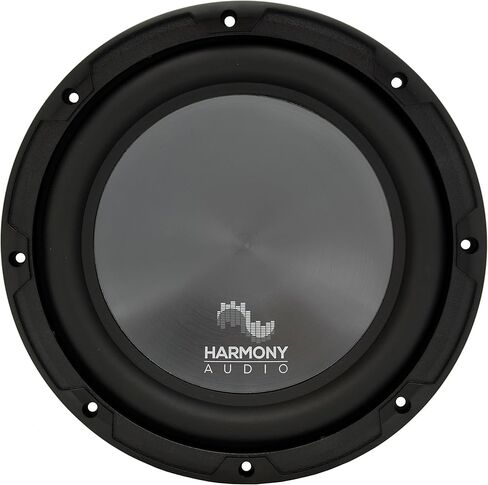

Harmony Audio HA-R104 Rhythm Series 10":
Peak: 500 watts/RMS: 250 watts
Sensitivity: 86.1dB
FreResponse: 30Hz-1.5kHz
Mounting Depth: 5 5/16"
Mounting Cutout Diameter: 9 1/4"
Sealed Box Volume(Cubic ft): 1.0-2.46
Vented Box Volume(Cubic ft): 1.18-1.97
Single 4 Ohm

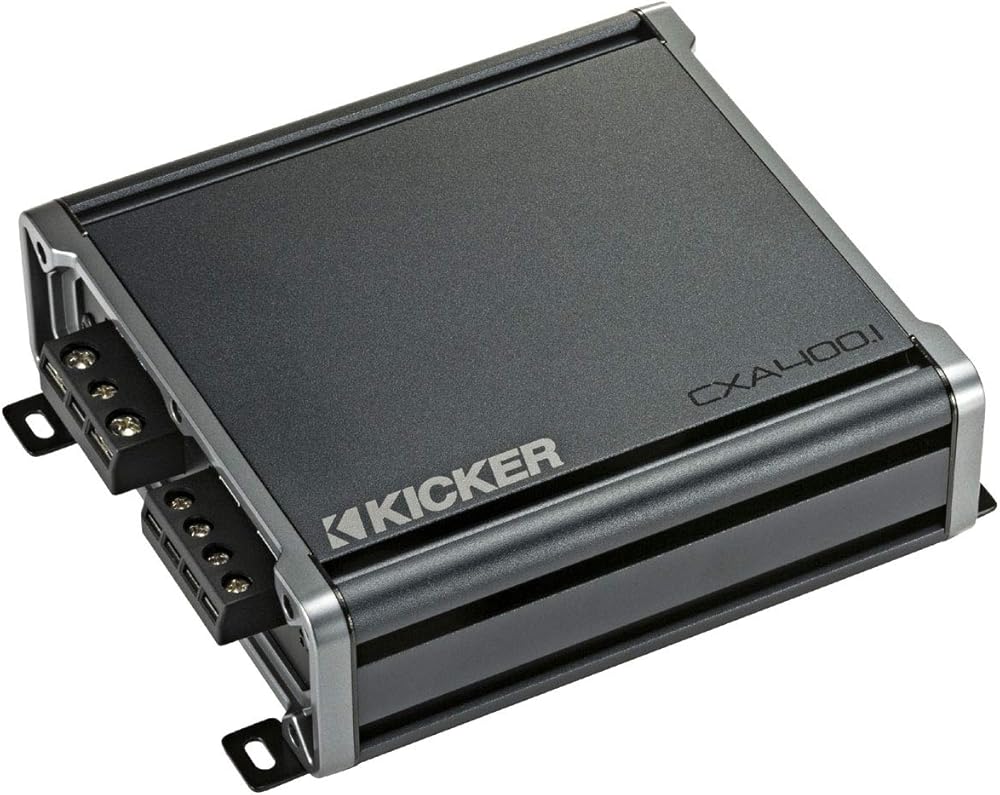

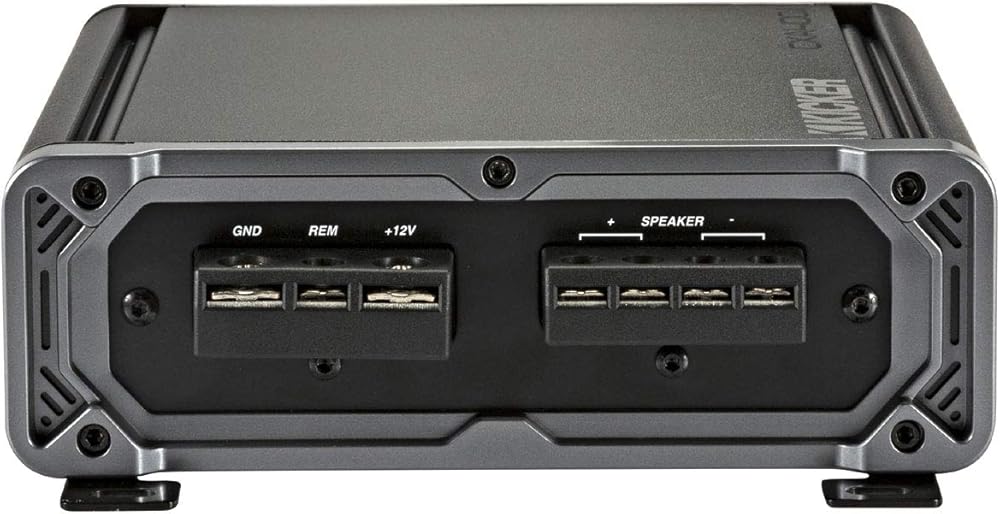

Kicker 46CXA4001 Car Audio Class D Amp Mono 800W Peak Sub Amplifier:
Three-second turn-on/off delay
Variable 12dB crossovers
24dB subsonic filter
FIT+(Fail-safe Integration Technology-PLUS)
Accepts up to 40-volt input signal
300 Watts x1 @ 2 Ohm RMS/600 Watts x1 @ 2 Ohm PEAK
400 Watts x1 @ 1 Ohm RMS/800 Watts x1 @ 1 Ohm PEAK
FreResponse: 25Hz - 200Hz
Signal to Noise Ratio: 95dB
High level 250mV-10V
Low level 125mV-5V
Subsonic Filter: 24dB/octave high-pass fixed @ 25Hz
