Product Description
Oil type, more suitable for industrial occasions with heavy oil pollution

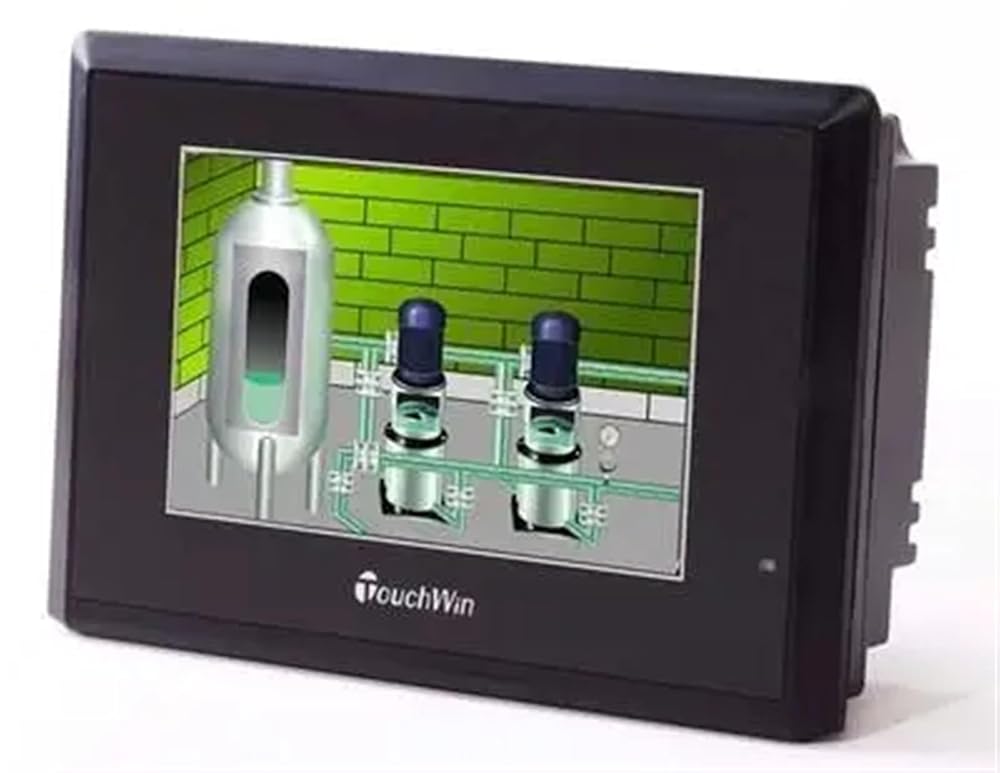

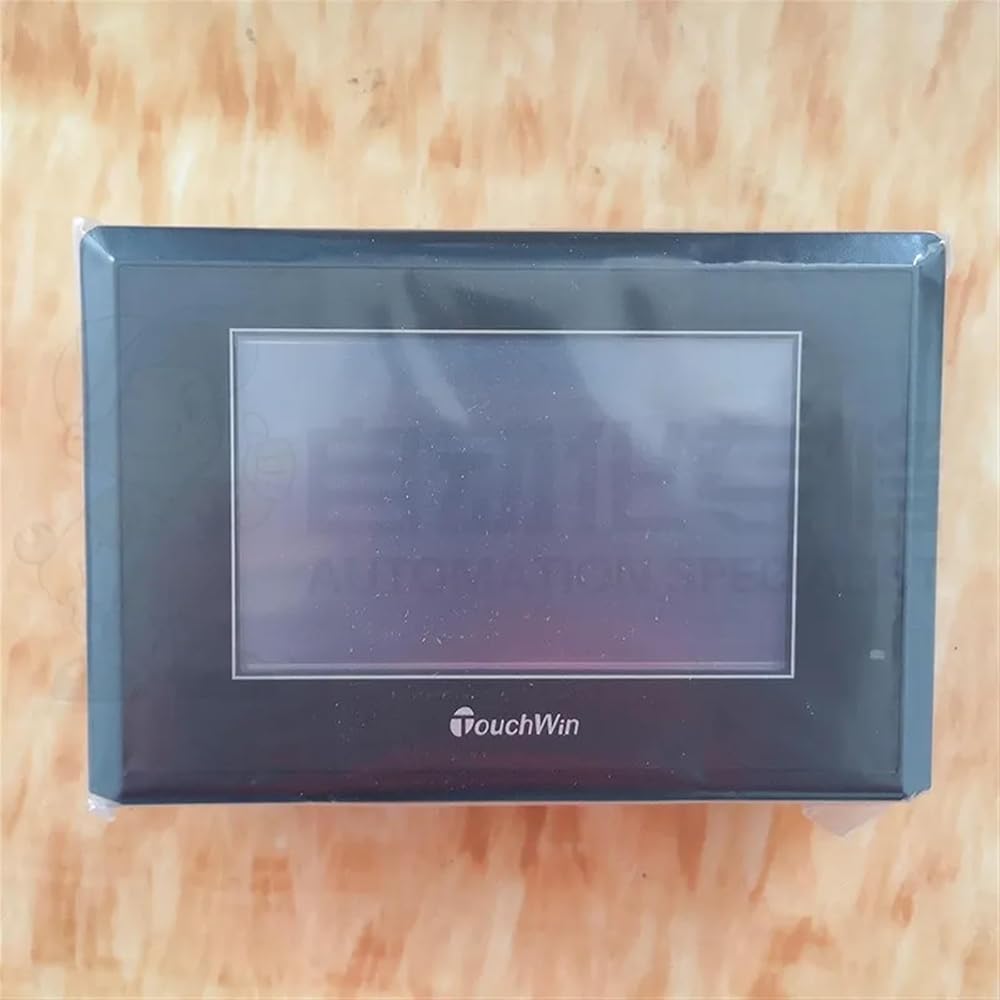

4.3-inch display screen, streamlined design
60000 TFT true colors, supporting BMP and JPEG image display
Rich 3D picture material library, more vivid pictures
Flexible component selection space, custom animation track design
Simple switch setting switching mode, accurate touch area calibration function
data collection and saving function, supporting time trend chart, XY trend chart and other forms of data management
Two USB interfaces are provided to realize fast data transmission and backup.
Model description
Mt (P): 60,000 color standard configuration; UT(P): with USB-A interface.
Product specifications
Item
TH465-MT(P)/UT(P)
electrical
features
Input voltage
DC24V (voltage range: DC22V~DC26V)
Current consumption
130mA
Allow instantaneous power failure
Less than 10ms (less than 1s actually)
Withstand voltage
AC1000V, 10mA, less than 1min (between signal and ground)
Insulation impedance
DC500V, above 10M (between signal and ground)
Interface
Download port
RS232, MT2/UT2 models support
port
RS232/RS485/RS422
USB interface 1
USB-B (conforming to USB2.0 specification), USB download port
USB interface 2
USB-A (in accordance with USB2.0 specification), U disk port, UT/UT2 model support
Environment
Operating temperature
0~50
Storage temperature
-20~60
ambient humidity
10% RH~90% RH (no condensation)
Vibration resistance
10 ~ 25 Hz (2G in x, y and z directions for 30 minutes)
anti-interference
Interference voltage: 1500Vp-p Pulse cycle: 1us Duration: 1 minute
Ambient air
Non-corrosive gas
Protect Structure
Front panel complies with IP65
frame
attribute
type
65536 colors
Screen size
4.3
service life
More than 50000 hours, ambient temperature 25 , 24-hour operation
Screen resolution
480*272
contrast ratio
Non adjustable
Text setting
Chinese Simplified/Traditional, English, , and other languages
Character size
Any font, any size
Touch panel
4-wire resistive touchpad
Memory
Memory
8MB
Structure
Cooling mode
Natural air cooling
External dimension (mm)
152.0*102.0*41.8
Panel opening size (mm)
144.0*94.0
