Product Description:

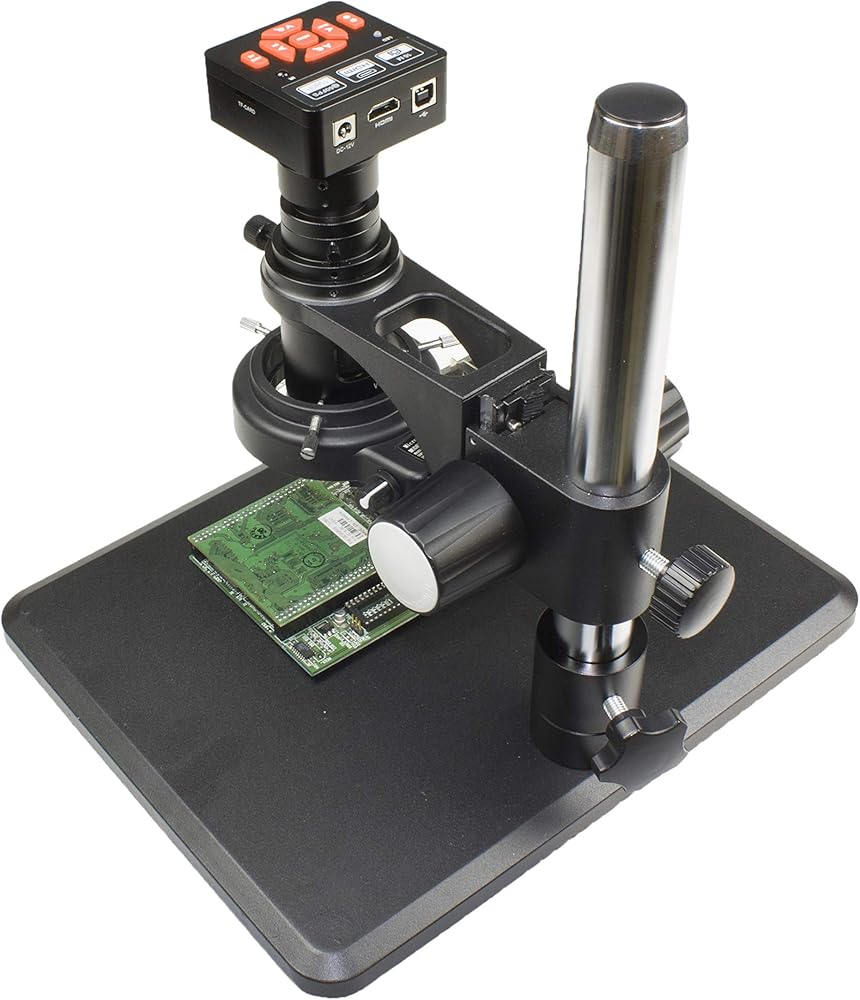

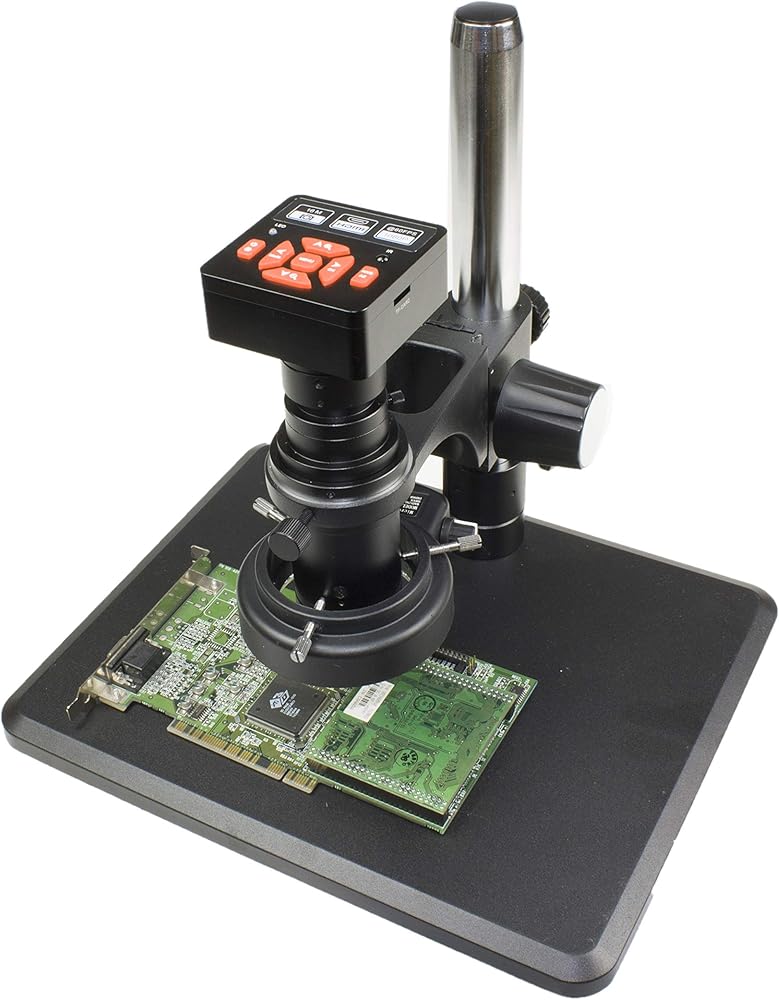

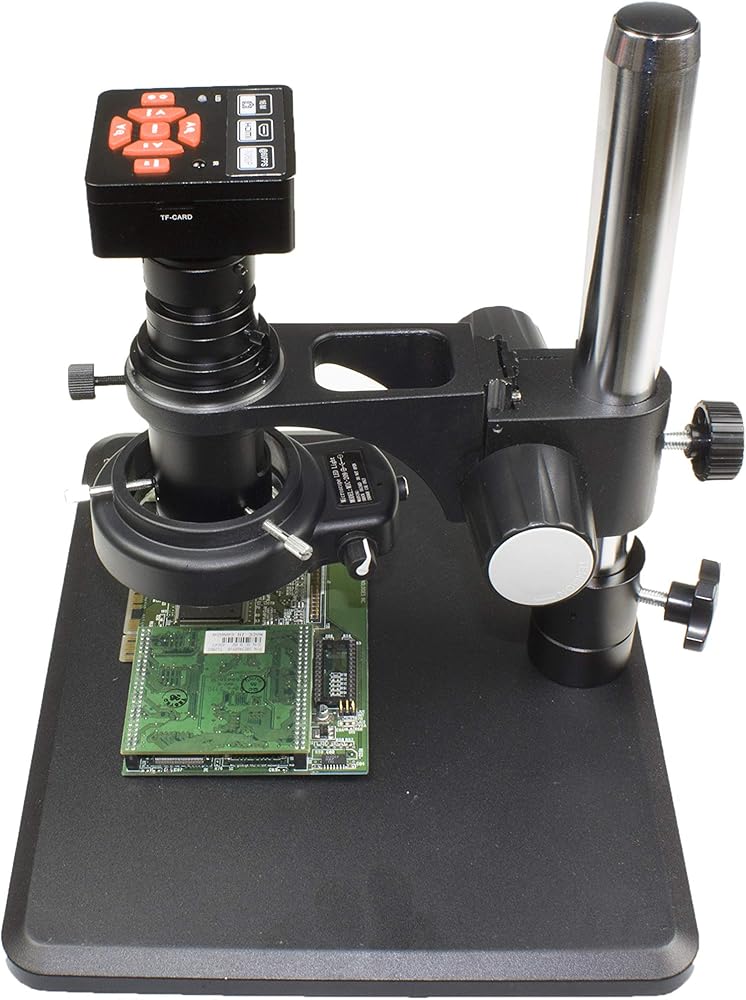

This monocular zoom inspection microscope has 0.7x-5.0x zoom objectives combined with a built in 0.4x C-mount lens.
Magnification will depend on your screen/monitor size.
Here is the formula to determine the min/max magnification:
Minimum Magnification: (0.7x0.4/6) x(screen size in inches) x25.4
Maximum Magnification: (5.0x0.4/6)x(screen size in inches) x25.4
Specification:
Zoom Range: 0.7x—5x
Working Distance: 100 mm standard
Field of View 1/2"x11/16" (12.9mm X 17.1mm) to 5/64"x3/32" (1.8mm X 2.4mm)
Stand: Pillar-style table stand Diameter: 32mmLength: 240mm
Base: 13”x10” (320X260mm)

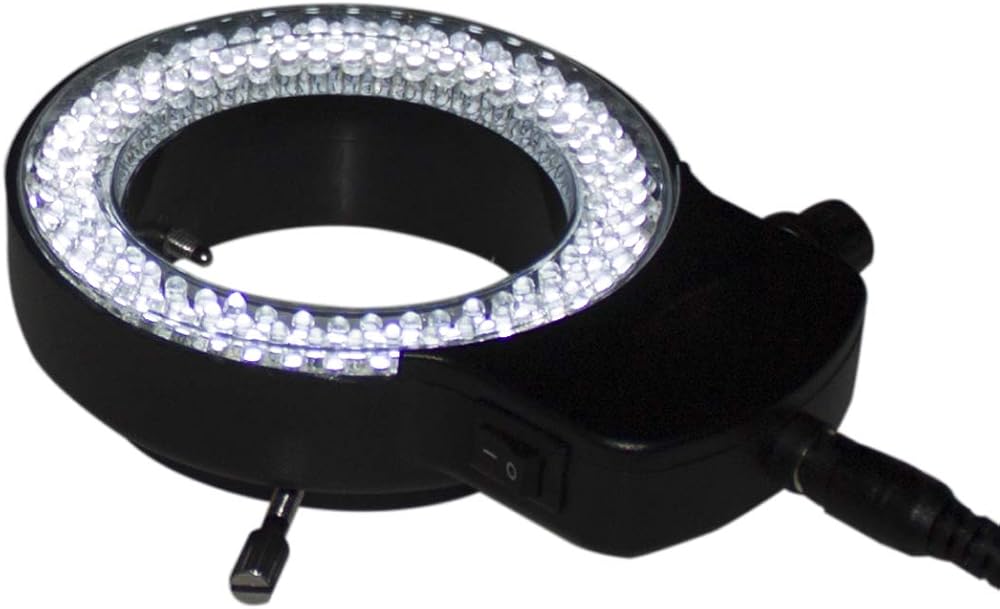

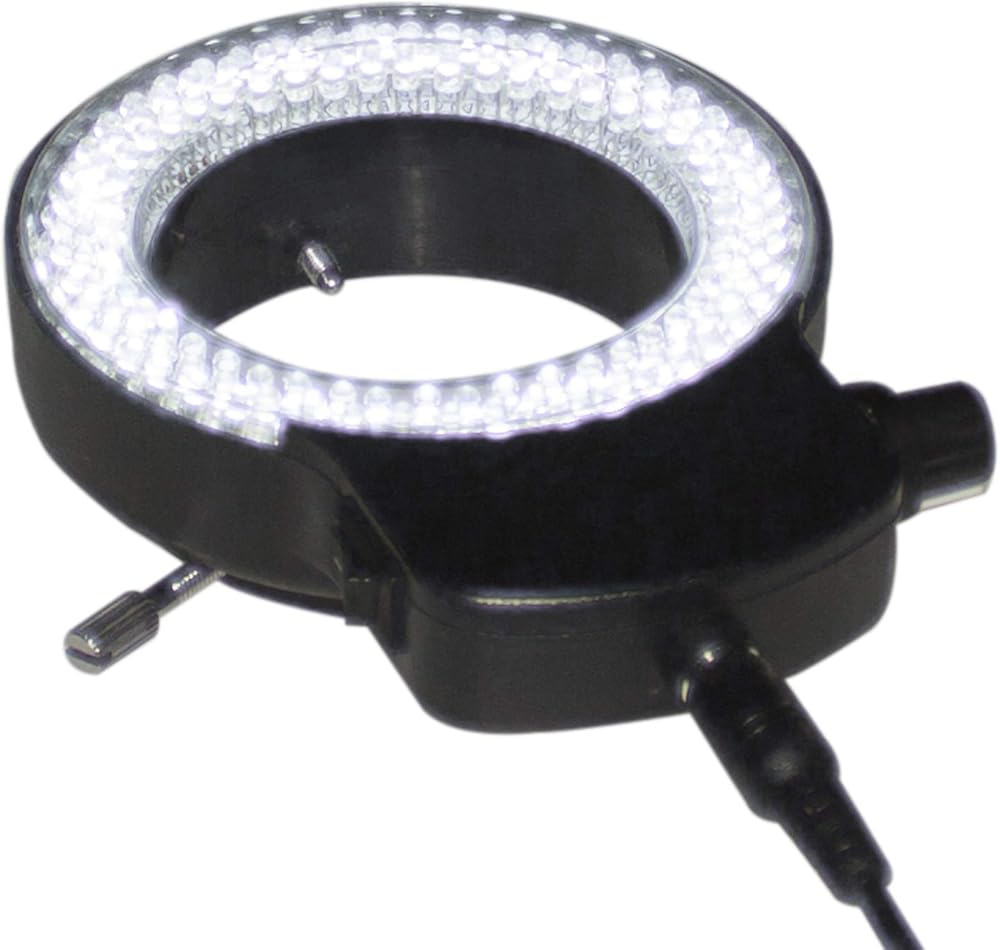

Light Source: 144-LED ring light with variable intensity control
C-Mount: 0.4x

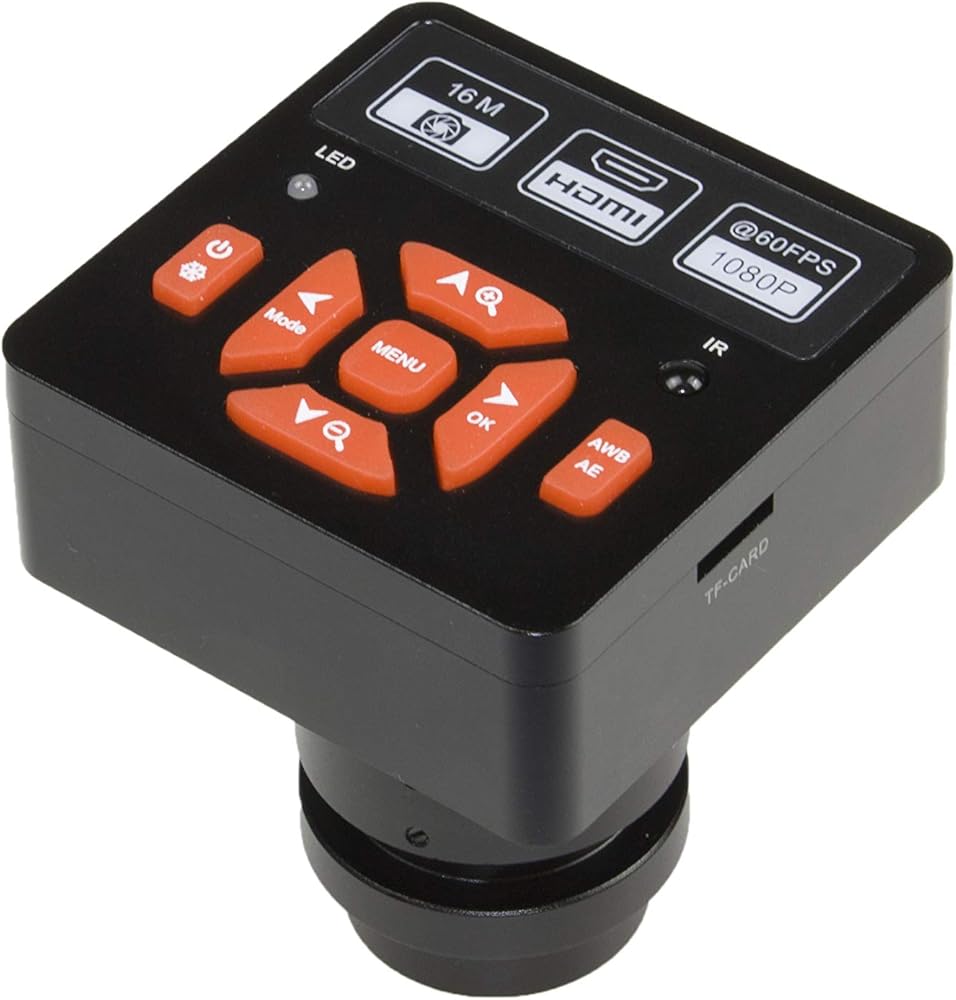

Camera Specification:
16 Mega Pixels, 1/2.5 inch progressive scan image sensor
Pixel size:1.335μm × 1.335μm
Can control with IR remote control
Brightness, contrast, saturation, sharpness and gamma software are adjustable
USB, HDMI Interface
Maximum resolution 1920*1080@60FPS for Video
Reticle- 4 types, able to adjust color,size,shift and hide
Support Windows 2000/XP2/Vista/Win7/Win10 operating system
Packing list:
Zoom microscope with 0.7-5.0x objective and 0.4x C-Mount
144-LED ring light and power adaptor
Focus Rack + Pillar plate stand
16MP Digital Camera, Power adaptor, USB Cable, HDMI Cable, Remote controller&CD with Software
