سلك ثلاثي الألوان 16-18-20-22-24-26-28-30 قياس سيليكون بني/برتقالي/أصفر مجموعة أسلاك ربط نحاسية معلبّة DIY (3M لكل لون_20 AWG) in Kuwait

1 متر لكل لون_26 AWG متعدد

KWD 9
ماركة
YANGQINGFEI
وزن
301 g
اللونمتعدد
مقاس1 متر لكل لون_26 AWG
– 1 +

مميزات خاصة

  • Versatile Usage: Whether it's for low voltage LED lighting, landscape lighting, marine wiring, or audio setups in automobiles, our flexible and weather-resistant wire is ideal for a wide range of applications.
  • Easy Installation: this wire is easy to strip, cut, and solder. It comes with 20 heat-shrink tubes for a secure and professional installation.
  • Convenient installation: soft structure, small bending radius, easy wiring in narrow, complex space, saving time and labor.
  • Complete specifications: a rich number of cores, wire diameter options, from small appliances remodeling to large-scale projects, suitable for all kinds of projects.
  • Superior quality: follow the international standard production, multi-stage testing process, strict quality control, rest assured procurement.

وصف

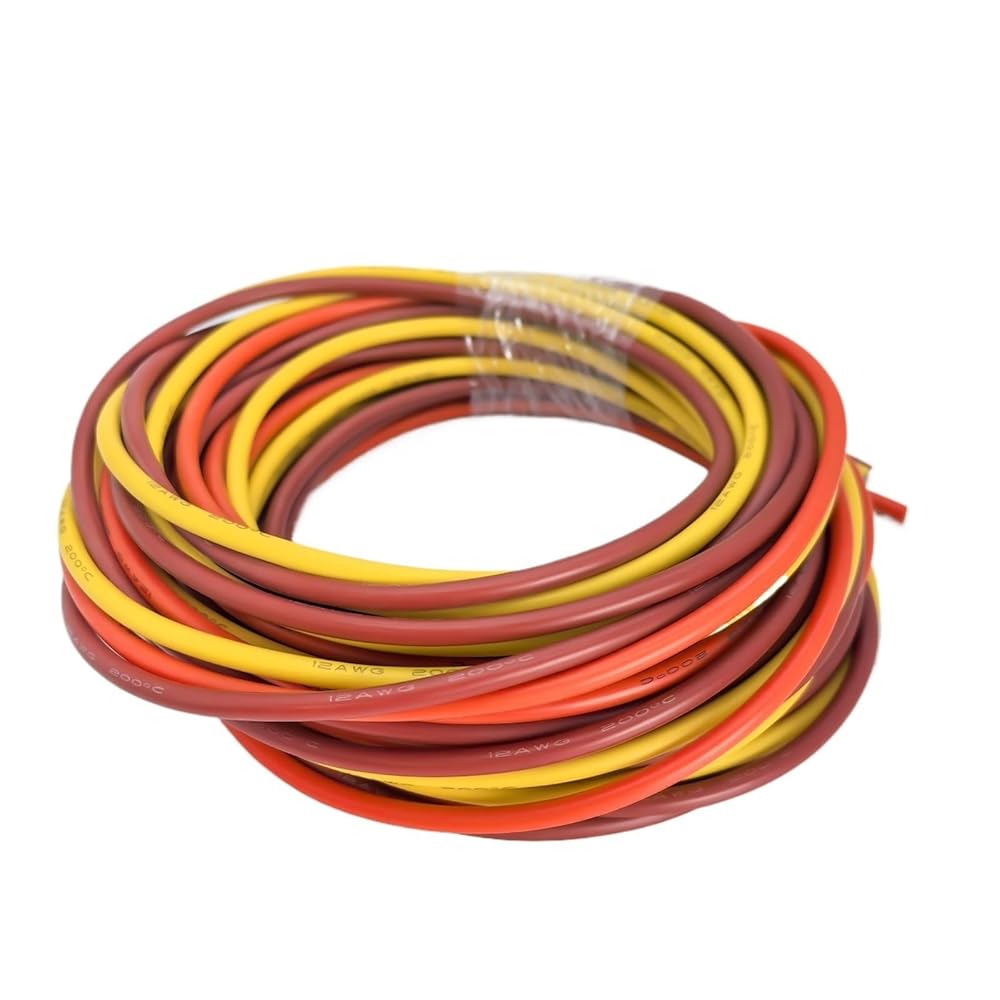

Tricolor Wire 16-18-20-22-24-26-28-30 Gauge Silicone Brown/Orange/Yellow Stranded Tinned Copper Hookup Wire Kit DIY
Super flexible 11-1650 strands of 0.08 mm tinned copper wire - protects against corrosion and is easy to solder.
8AWG: OD: 6.5 mm Core Diameter: 1650/ 0.08 mm, withstand current 60A
10AWG: OD: 5.4 mm Core diameter: 1050/ 0.08 mm, withstand current 43A
12AWG: OD: 4.5mm Core diameter: 680/0.08mm, withstand current 30A
14AWG: OD: 3.5mm Core diameter: 400/0.08mm, withstand current 20A
16AWG: OD: 3.0mm Core diameter: 252/0.08mm, withstand current 12A
18AWG: OD: 2.3mm Core diameter: 150/0.08mm, withstand current 7.5A
20AWG: OD: 1.8mm Core diameter: 100/0.08mm, withstand current 5A
22AWG: OD: 1.7mm Core diameter: 60/0.08mm, withstand current 3A
24AWG: OD: 1.6mm Core diameter: 40/0.08mm, withstand current 2A
26AWG: OD: 1.5mm Core diameter: 30/0.08mm, withstand current 1.5A
28AWG: OD: 1.2mm Core diameter: 16/0.08mm, withstand current 0.8A
30AWG: OD: 0.8mm Core diameter: 11/0.08mm, withstand current 0.5A
Hign-concerned Chemical : None
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : Rubber
Certification : CE,RoHS,UL
