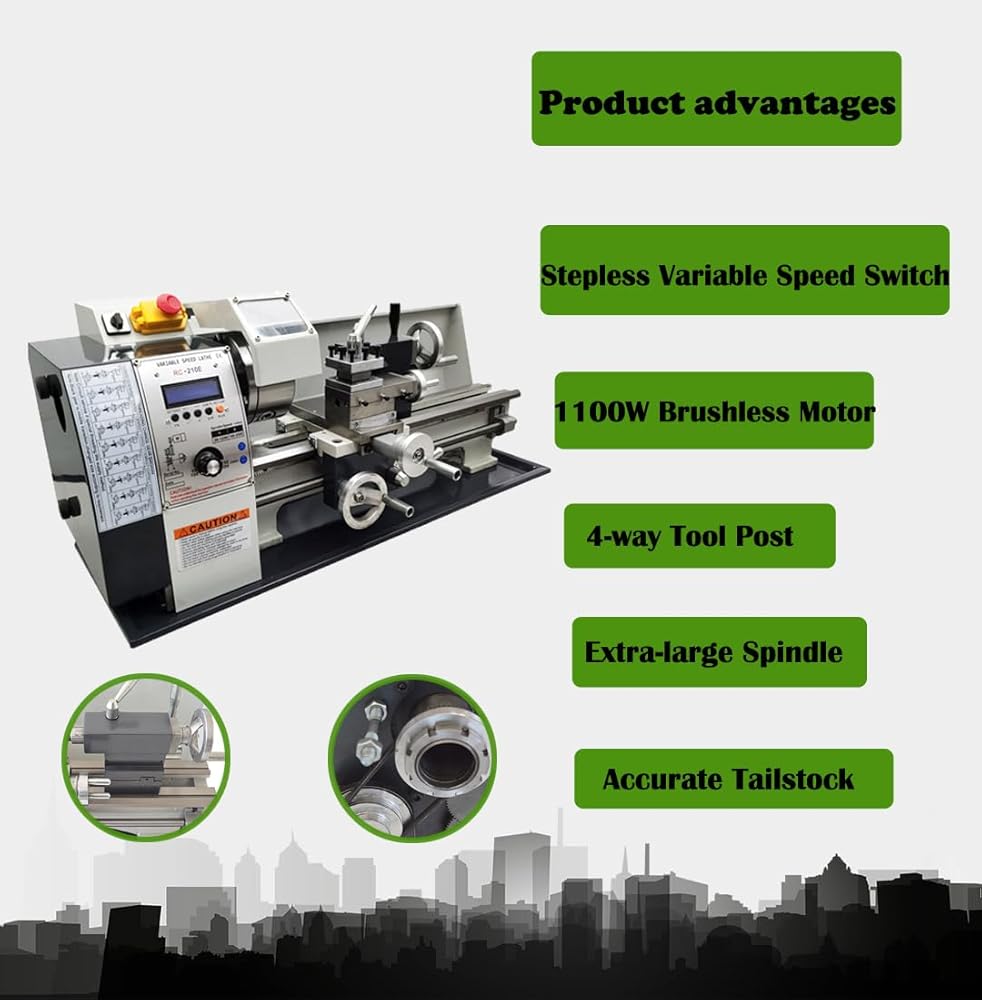

1100W Brushless Motor: 1100W brushless motor with stable performance. The machine tool guide rail adopts quenching technology and is integrally cast into shape. It has excellent wear resistance and accuracy.

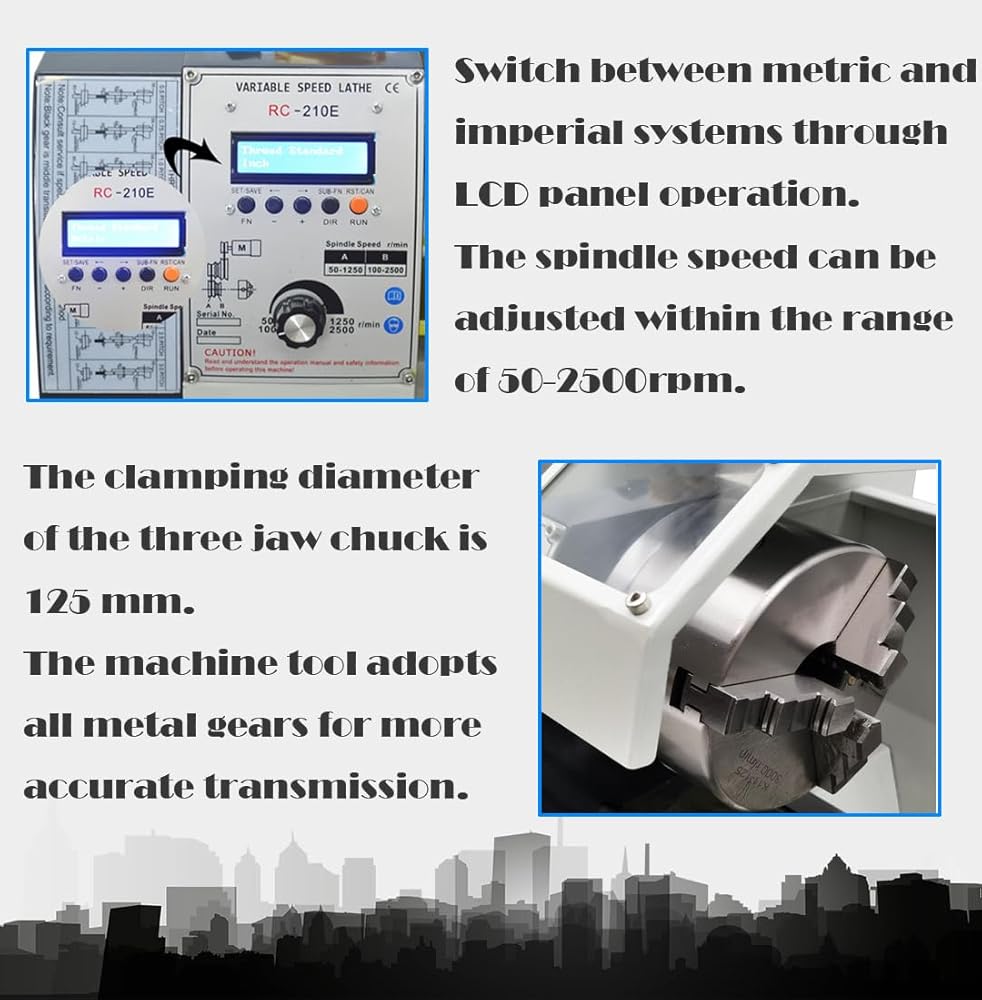

High Efficiency: Automatically switch between metric and imperial systems through the panel. No longer needs to shift gears to adjust machining threads, greatly improving machining efficiency!
Adjustable Spindle Speed: The LCD display screen displays the speed of the lathe, making operation more convenient. The spindle speed can be adjusted within the range of 50-2250RPM.
Automatic Feed: It can automatically feed in the X-axis direction and adjust the automatic feed speed. The automatic feed range is 0.01mm-0.4mm.
Gearless Design: Adopting a brand new belt drive, providing you with a quiet working environment! The clamping diameter of high-precision three jaw chuck is 125 mm, and we can also provide four jaw chuck.

وصف

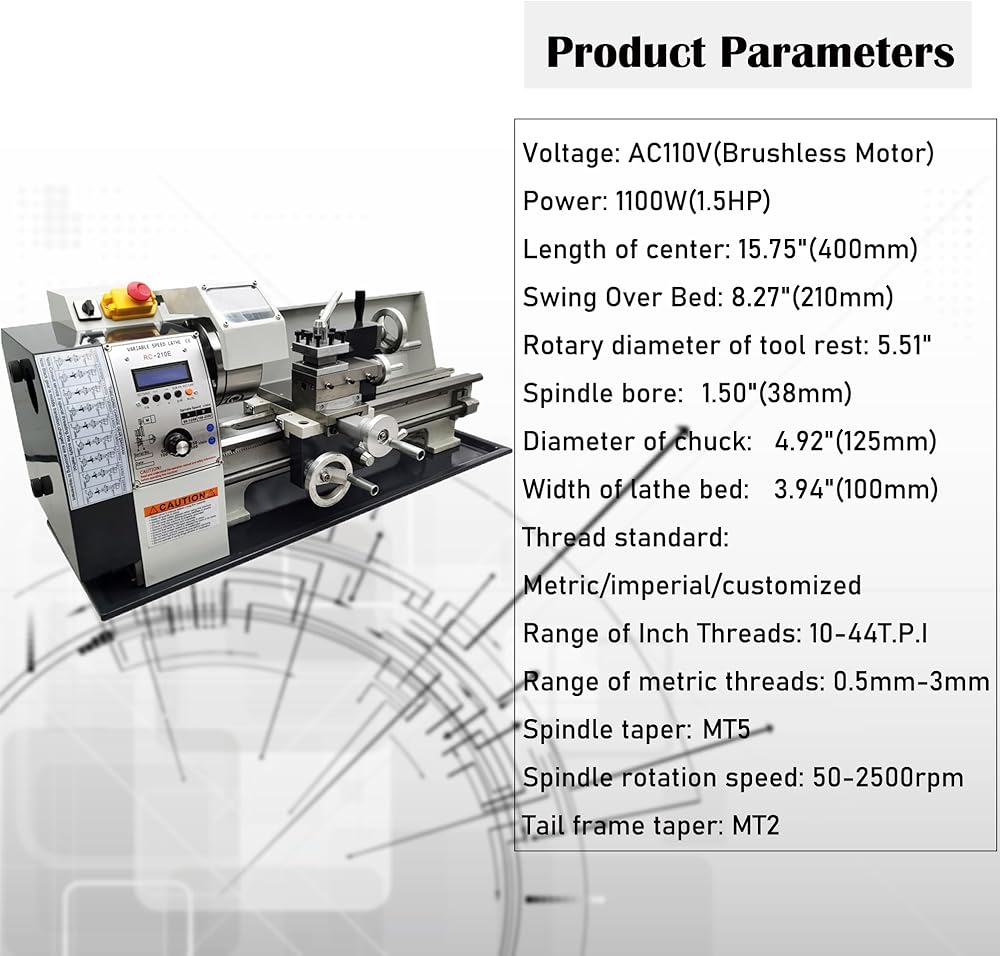

Product Parameters
Model: RC-210E
Voltage: AC110V (Brushless Motor)
Power: 1100W (1.5HP)
Length of center: 15.75"(400mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 19.68"(500mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

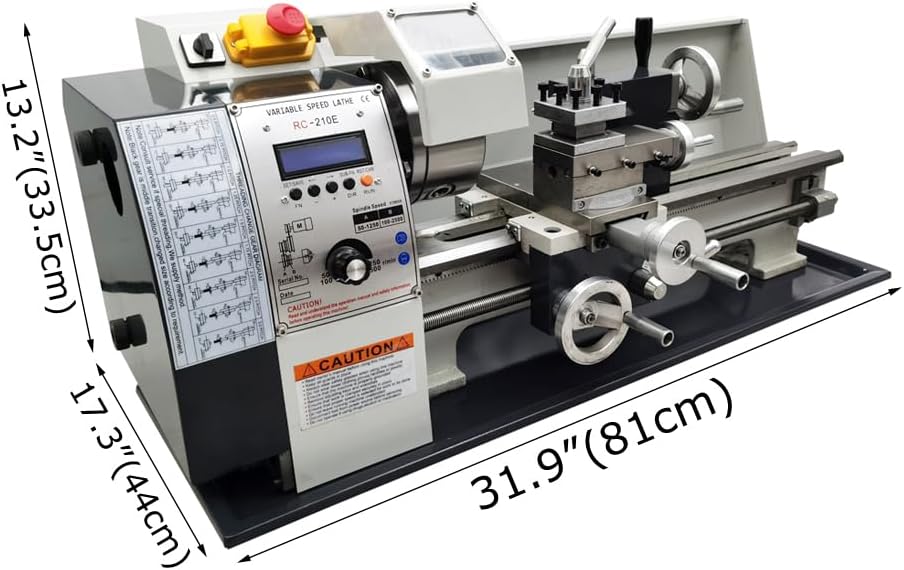

Package size: 35.8"*18.5"*17.3"(91cm*47cm*44cm)
Net weight/Gross weight: 125.7LB (57kg)/159.8LB (72.5kg)
