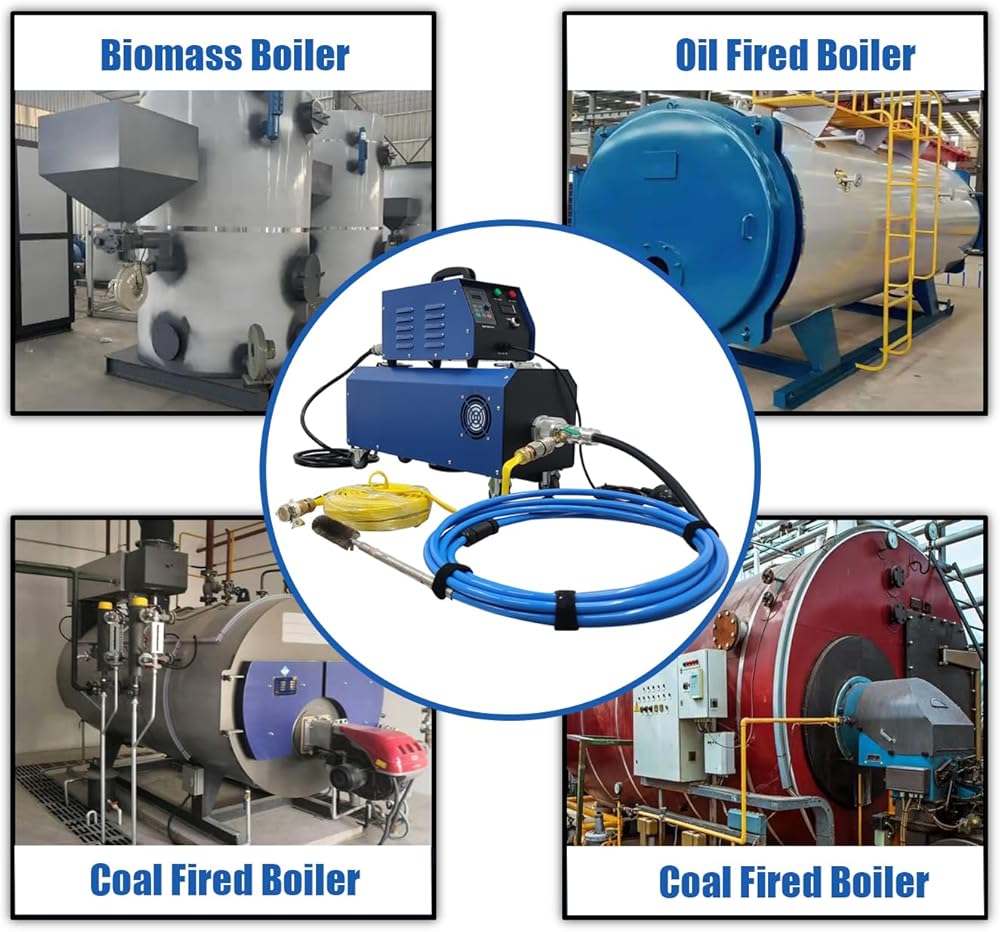

Wide Application: Powered by a robust 1500W motor, this industrial tube cleaner effectively removes tough silt, scale, and rust from condenser and heat exchanger tubes (12-36mm/0.47-1.42in). It is ideal for maintaining biomass, oil, gas, and coal-fired boilers, ensuring optimal heat exchange efficiency and preventing system pressure rise

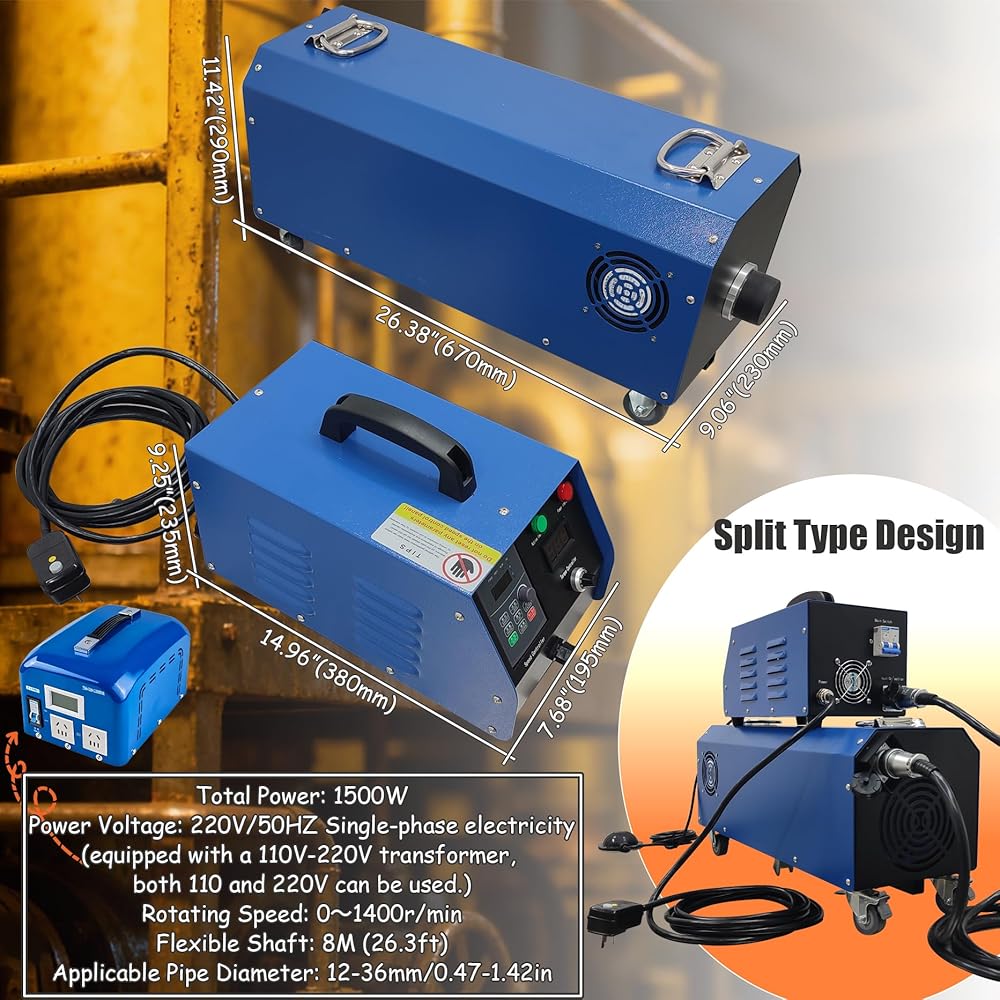

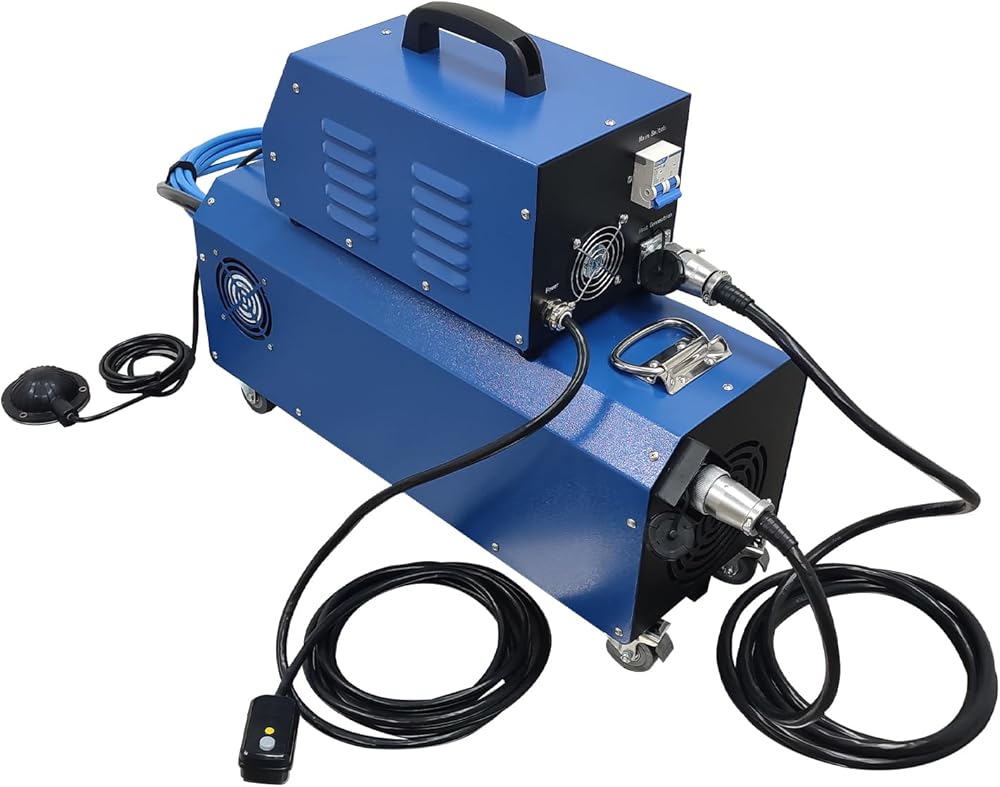

Split Type Design: 220V condenser tube cleaner, equipped with a 110V-220V transformer, both 110 and 220V can be used. It applies split design, so that the cleaning machine can enter manholes to conduct cleaning operation, and the universality can be higher
Dry-wet Separation: The wet/dry separation design ensures water flows only through the shaft, not the main unit, effectively flushing out debris while protecting the motor from water damage. Simple control panel and movable casters for more convenient use
Stepless Speed Control: The industrial boiler tube cleaner achieve precise control with stepless variable-speed adjustment (0-1400 RPM) and a dedicated torque control knob. The torque knob is also designed for torque control in the working process. It can adapt to different levels of pipeline sediment without damaging the pipe wall
26ft Flexible Shaft: Our pipeline descaling machine adopts extended 26ft (8M) flexible shaft easily navigates straight, U-shaped, and S-shaped pipes, even passing through elbows smoothly. It also includes 6x17.5mm nylon brushes, 4x34mm nylon brushes, and 1x12mm alloy drill bit

Parameters:

Total Power: 1500W

Power Voltage: 220V/50HZ Single-phase electricity

(equipped with a 110V-220V transformer, both 110 and 220V can be used.)

Rotating Speed: 0～1400r/min

Size of Main Unit: 67*23*29cm (26.4*9.1*11.4 inches)

Size of Control Cabinet: 38*19.5*23.5cm (15*7.7*9.3 inches)

Flexible Shaft: 8M (26.3ft)

Applicable Pipe Diameter: 12-36mm/0.47-1.42in

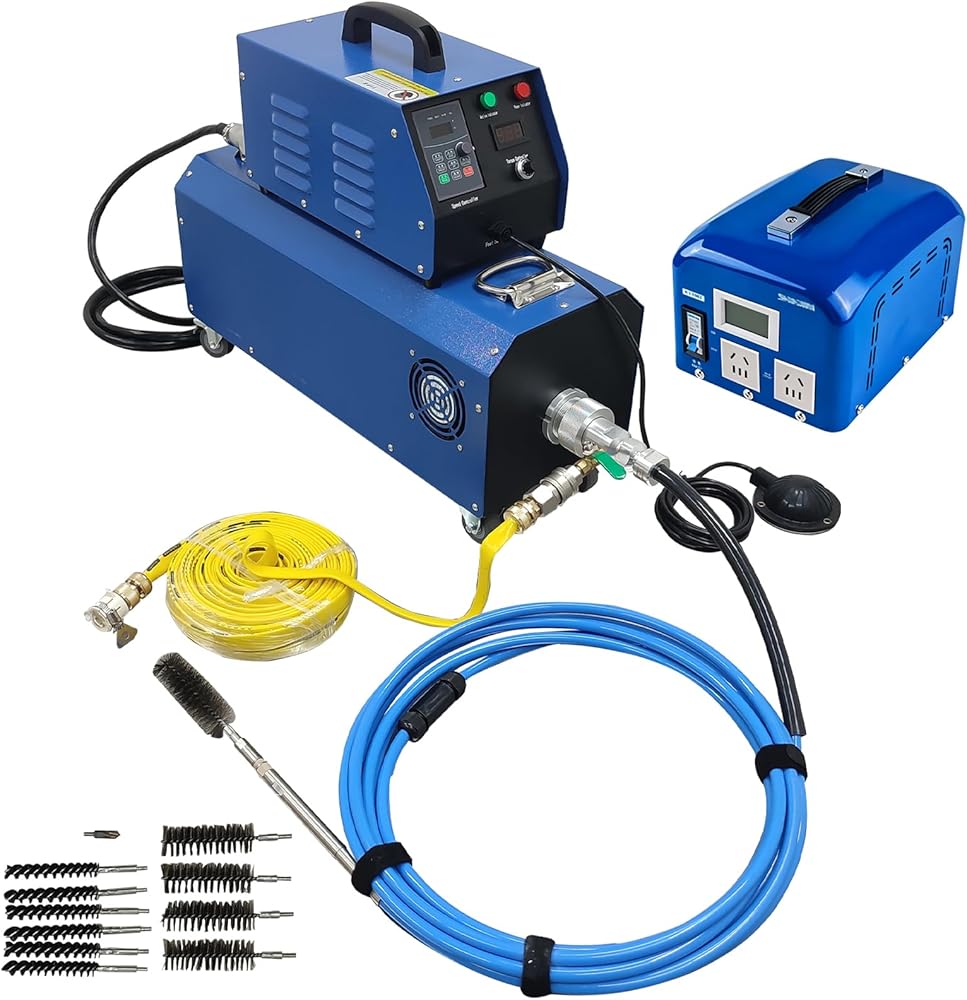

Cleaning Tools:

Nylon brush: 17.5mm×6 pcs

Nylon brush: 34mm×4 pcs

Alloy drill bit: 12mm×1 piece

Item included:

One set of 110V/220V 1500W Industrial Boiler Tube Cleaner Boiler Pipeline Cleaning Machine

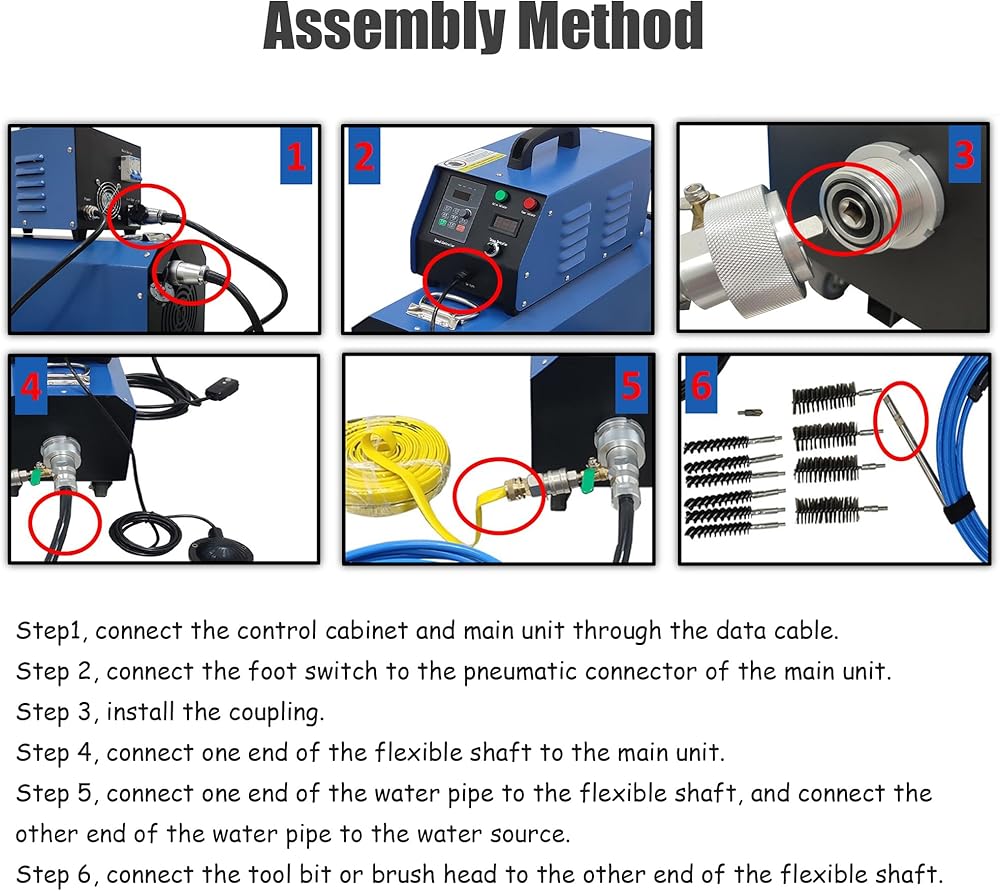

Assembly Method:

After receiving the product, the operator can assemble the main unit and accessories according to the following steps:

Step1, connect the control cabinet and main unit through the data cable.

Step 2, connect the foot switch to the pneumatic connector of the main unit.

Step 3, install the coupling.

Step 4, connect one end of the flexible shaft to the main unit.

Step 5, connect one end of the water pipe to the flexible shaft, and connect the other end of the water pipe to the water source.

Step 6, connect the tool bit or brush head to the other end of the flexible shaft.

Operation Method:

After assembling the product correctly, the operator can use the machine according to the following steps:

Step 1, connect the three live wires and one ground wire to the electric box.

Step 2, turn on the main switch of the machine.

Step 3, adjusting the rotating speed according to the working condition.

Step 4, adjust the torque according to the working condition.
