USB Logic Analyzer can simultaneously sample up to 16 digital signals (2 dedicated PWM channels included), and supports Windows XP/Vista/7/8/10 (32/64bit), Mac OS, and Linux, ideal for complex multi-signal projects MCU, ARM, FPGA, etc
Logic Analyzer captures detailed data with a max. sampling rate of 100MHz (variable by channel count); NOTE: For best results, set the sampling rate to at least 5-10 times the highest frequency of the signal you're testing
USB Logic Analyzer easily visualizes and decodes waveforms via advanced PC software, linked positioning allowing you to correlate waveform windows and analysis results for fast, convenient signal exploration
Logic Analyzer supports protocols, such as UART, RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, 12S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/0, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, to be updates from time to time
Logic Analyzer features a compact, sturdy plastic shell for portability and reliability on the workbench or in the field, suitable for debugging and analysis of microcontrollers, ARM processors, and FPGA hardware, developing and troubleshooting communication protocols, and monitoring, recording, and analyzing digital signals long-term

وصف

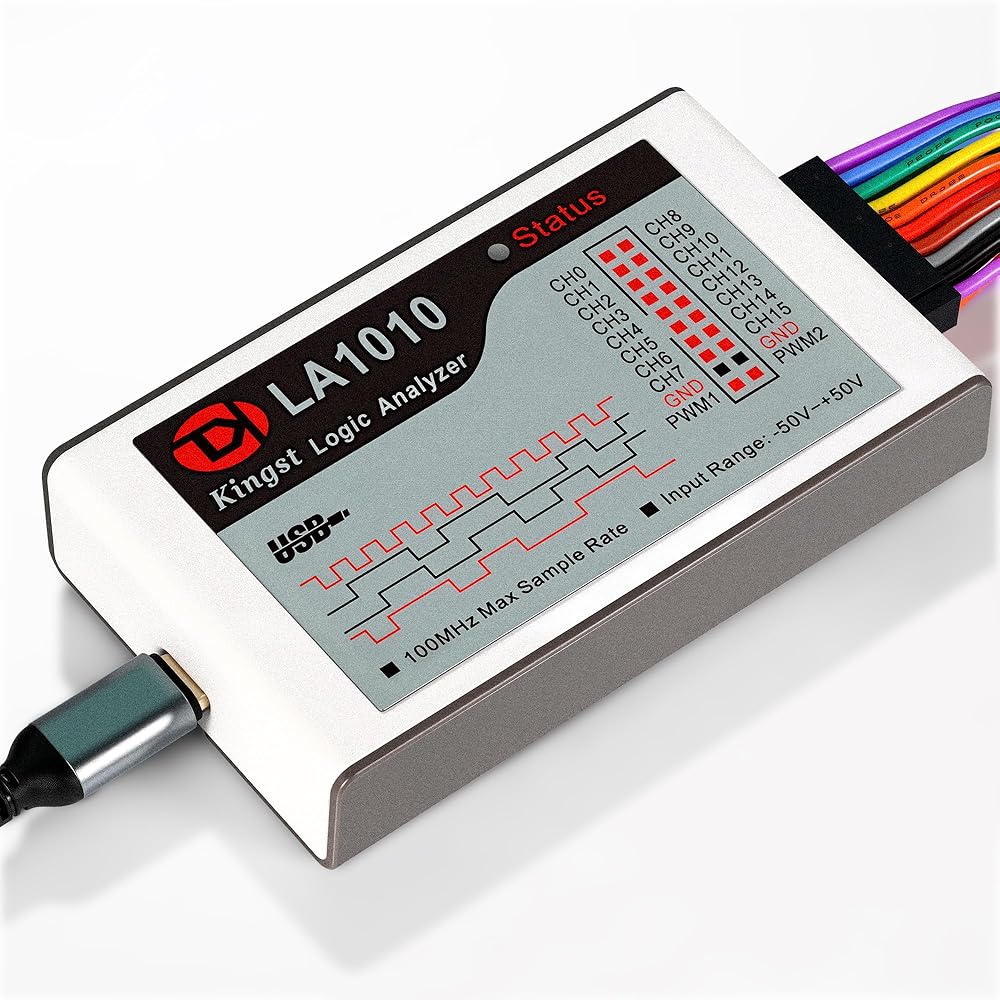

Unlock powerful digital signal analysis with the LA1010 USB Logic Analyzer. Perfect for engineers, hobbyists, and developers working on embedded systems, the LA1010 Logic Analyzer delivers accurate waveform observation and protocol decoding for a wide range of applications.
Supported OS:
Windows XP, Vista, Windows 7/8/10 (32bit/64bit), Mac OS, Linux
Supported Standard Protocols:

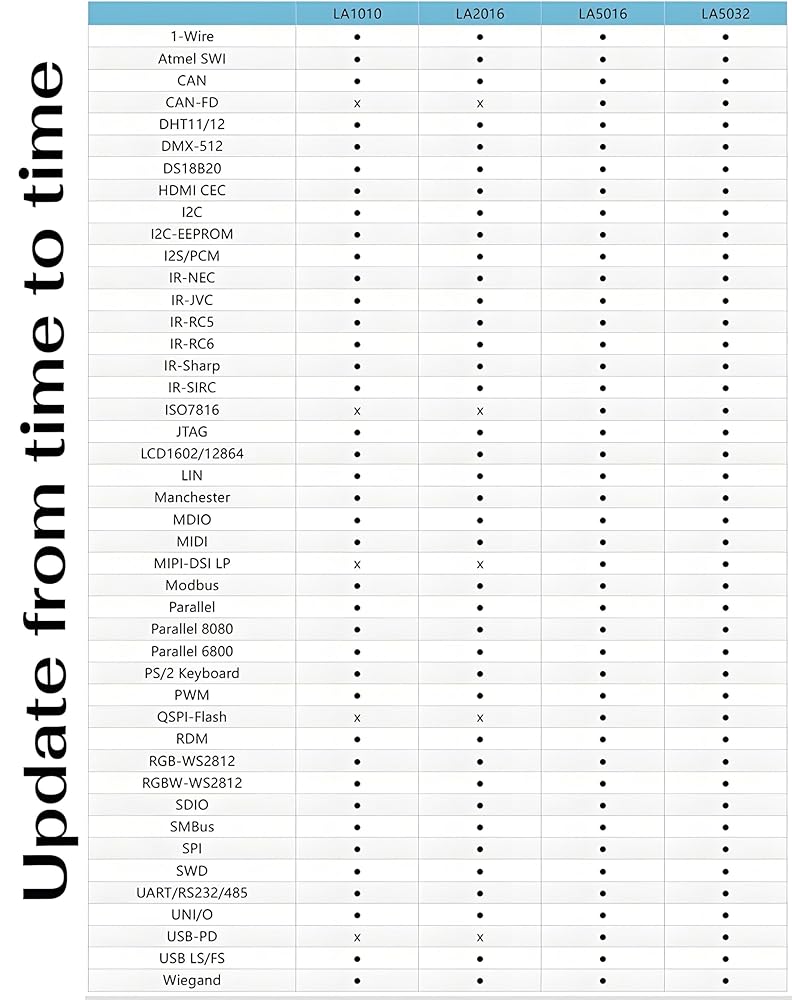

UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, 12S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/0, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, to be updated from time to time
SPECIFICATION
Model: LA1010
Channels: 16 input channels (Channel-0 to Channel-15) (2 PWM channels included)
Sampling Rate: 100M@3CH, 50M@6CH, 32M@9CH, 25M@12CH, 16M@16CH
Max. Sampling Depth: 10G, USB2.0 Interface (actual depth may be limited by the PC's memory capacity)
Adjustable Threshold: -4V to +4V, step: 0.01V
Withstand Voltage: -50V to +50V
Fastest Digital Signal: 20MHz
Min Pulse Width: 20ns
PWM Frequency Range: 0.1MHz to 10MHz, step: 10ns
PWM Output Voltage: +3.3V
PWM Output Impedance: 50Ω
Standby Current: 100mA
Max. Operating Current: 150mA
Dimensions: 3.74*2.17*0.71in / 95*55*18mm
PACKAGE

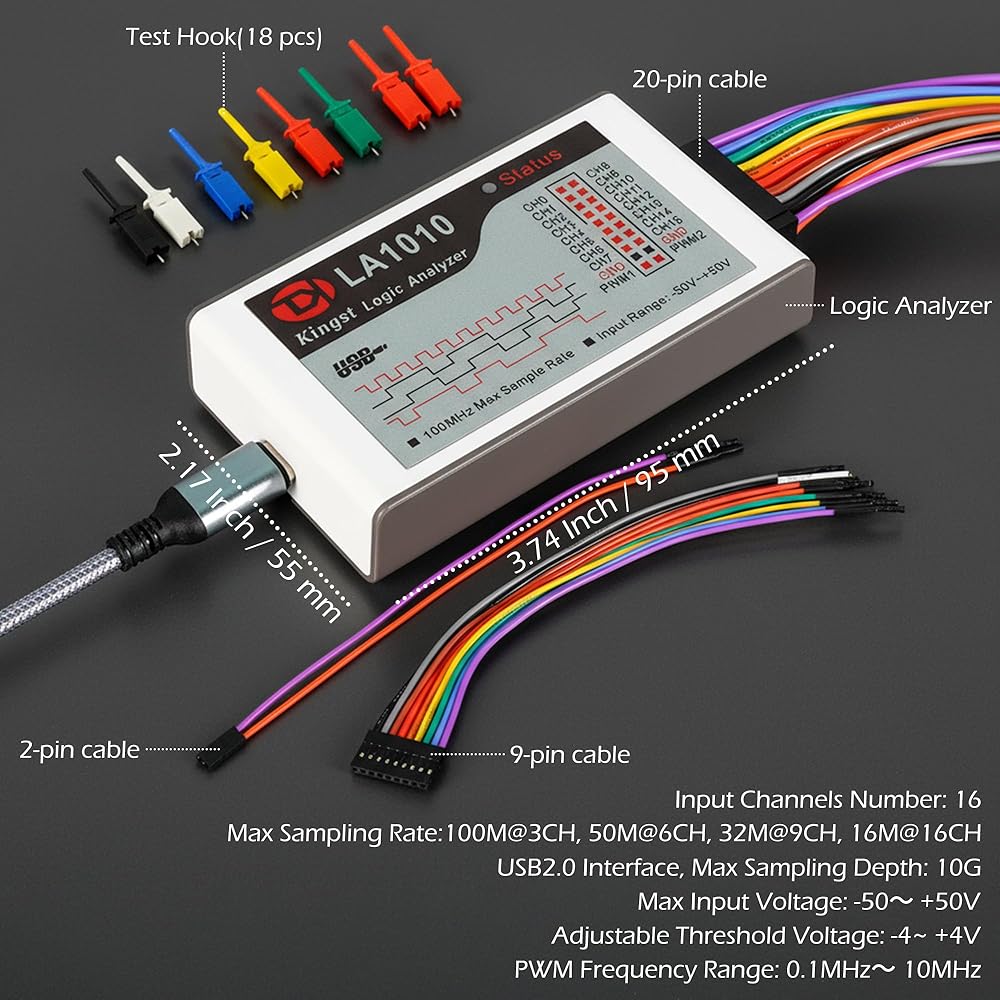

1 x LA1010 Logic Analyzer
3 x 9P Test Set
2 x 2P Test Set
20 x Test Hook Clip
1 x USB-C Cable with USB-A Adapter
1 x Storage Case
1 x Manual
