مميزات خاصة

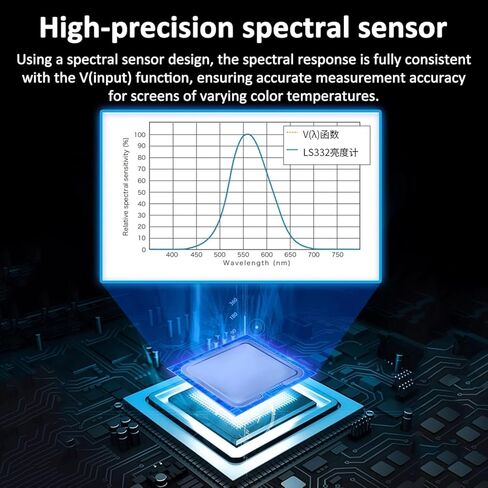

【Spectral Sensor Design】: The instrument employs a spectral sensor design, with a spectral response perfectly aligned with the V(λ) function, ensuring accurate measurement of various colors of light.

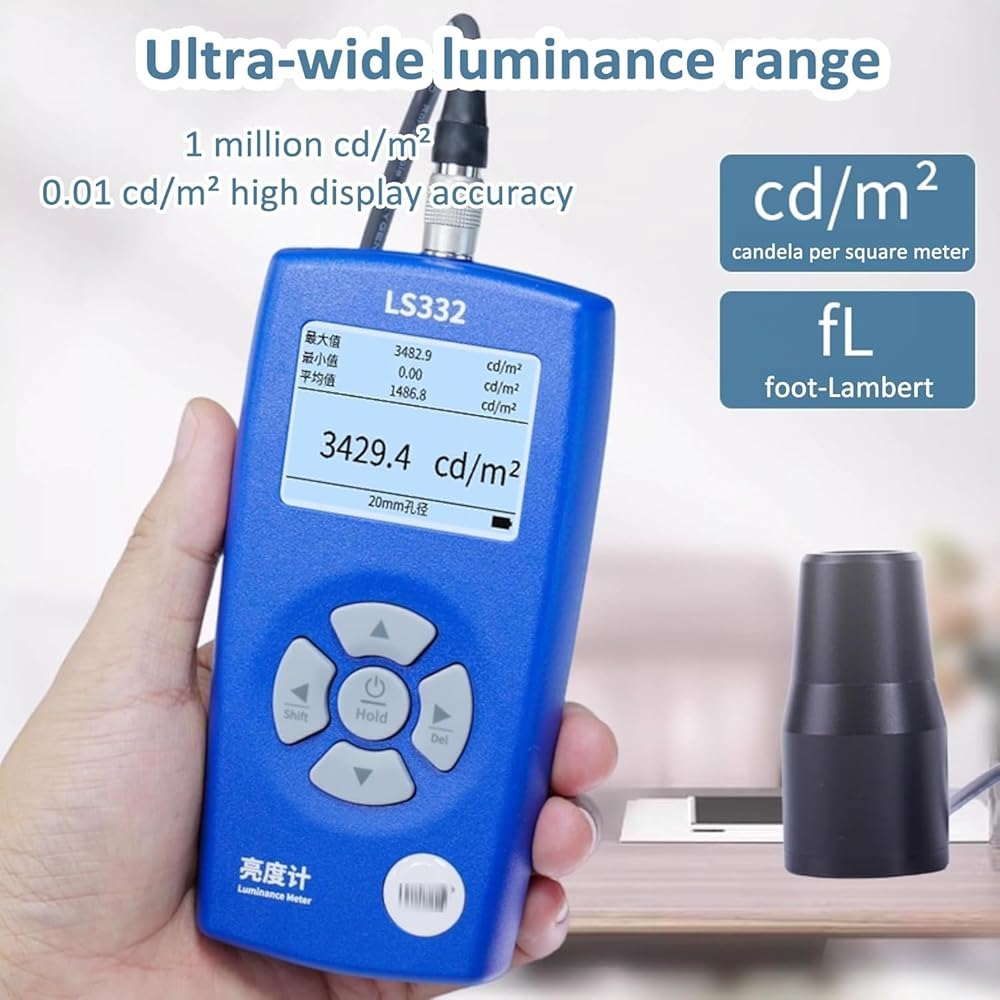

【Ultra-Wide Brightness Range】: With a brightness range up to 1 million cd/m² and a display accuracy down to 0.01 cd/m², it can easily measure in challenging high-brightness environments such as HDR screens and projectors.
【Flicker Measurement Function】: This luminance meter features flicker measurement capabilities, allowing you to assess potential flicker issues in screens and lighting, supporting intuitive display evaluation.

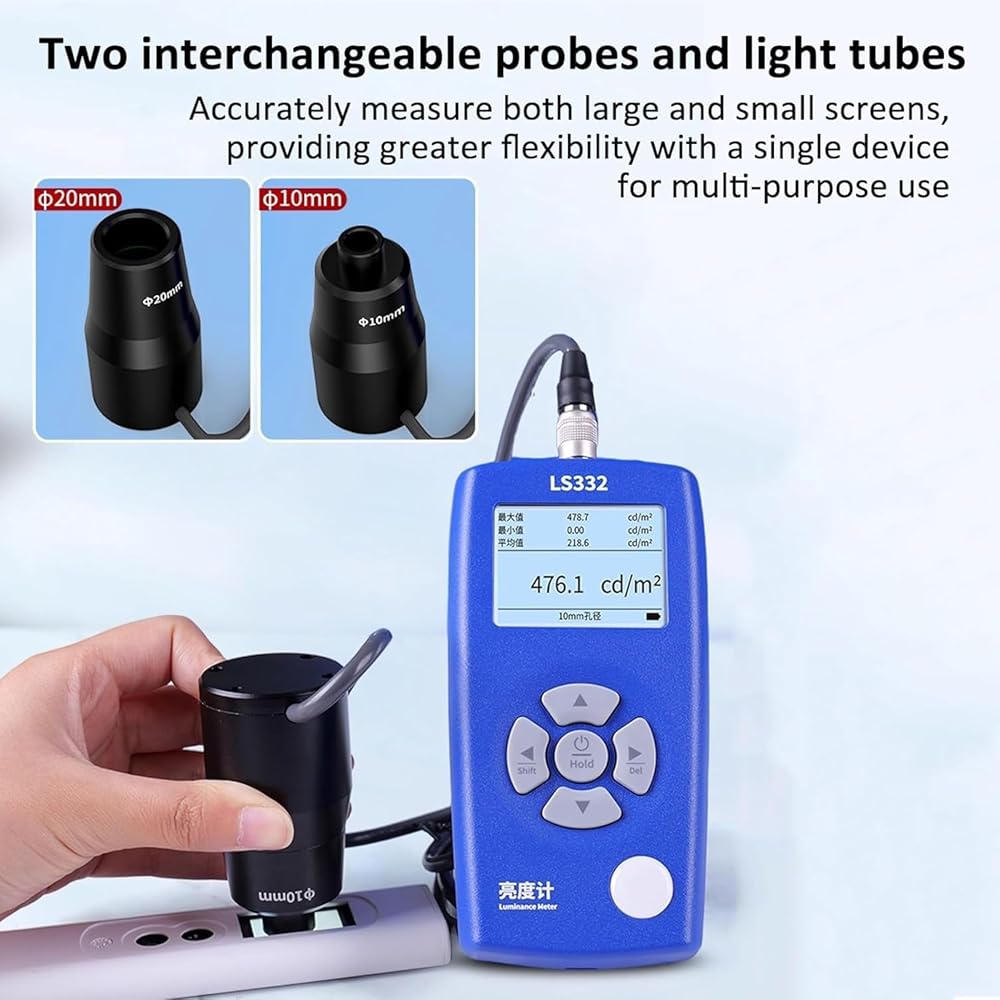

【Dual Measurement Aperture】: Equipped with interchangeable 10mm and 20mm probes, this versatile device easily adapts to any screen size, ensuring accurate measurements on displays of all sizes and providing instant results.

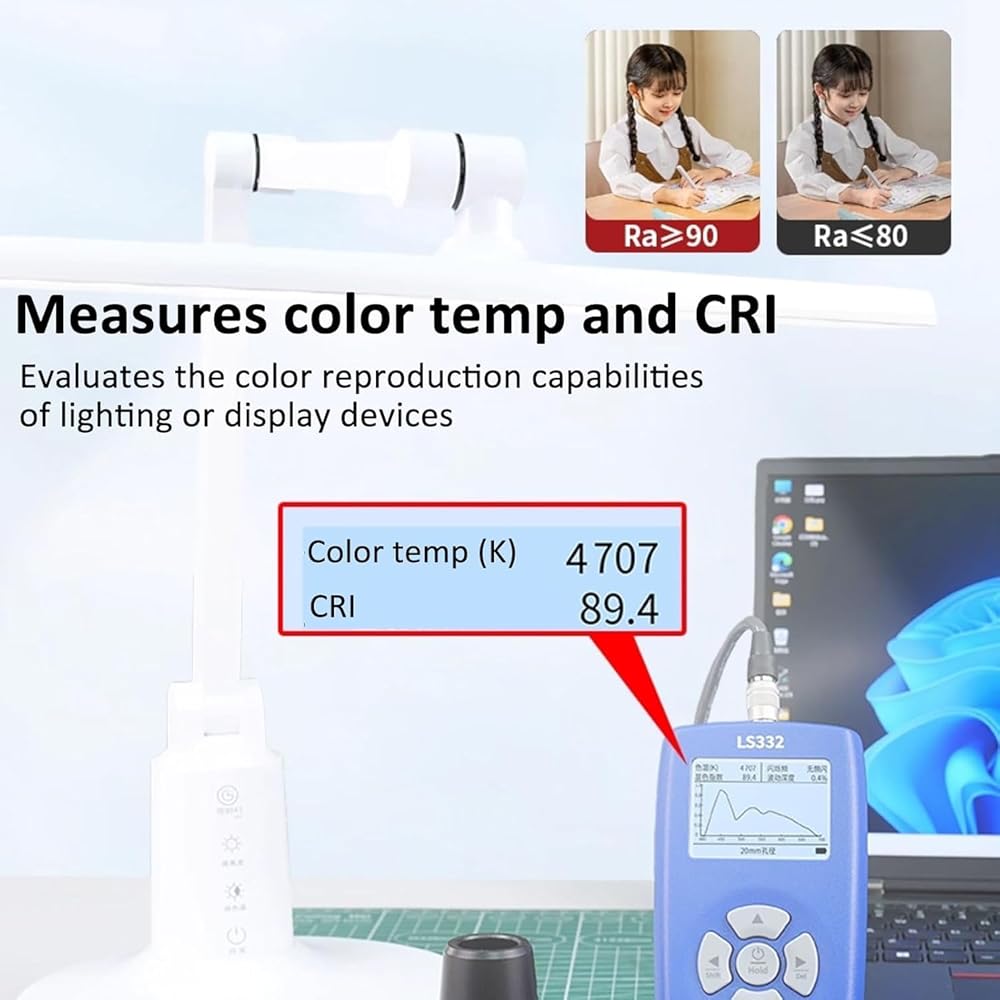

【Application Scenarios】: The instrument's spectral sensor design allows for the measurement of brightness, flicker frequency, color rendering index, and correlated color temperature in various applications, including displays, backlights, and lighting fixtures.

وصف

Specifications:
Name: Luminometer
Material: ABS
Emitting Wavelength Range: 400nm-700nm
Luminance Wavelength Interval: 10nm
Luminance Measurement Distance: ≤1m
Luminance Measurement Range: 1-100000cd/m²
Luminance Resolution: 0.01cd/m²
Luminance Measurement Accuracy: ≤±(5%H+2cd/m²) (H represents the standard value (calibrated under CIE standard A light source))
Luminance Unit: cd/m² (default), fL
Related Color temperature measurement range: 1000-100000K
Correlated color temperature measurement accuracy: ±5% (calibrated under CIE standard A light source)
Color rendering index (CRI) measurement range: 0-100
CRI measurement accuracy: ±2 (calibrated under CIE standard A light source)
Flicker frequency measurement range: 10-500Hz
Flicker frequency measurement distance: ≤0.1m
Flicker frequency measurement accuracy: ±5%
Test aperture: 10mm/0.39 inch, 20mm/0.79 inch
