مميزات خاصة

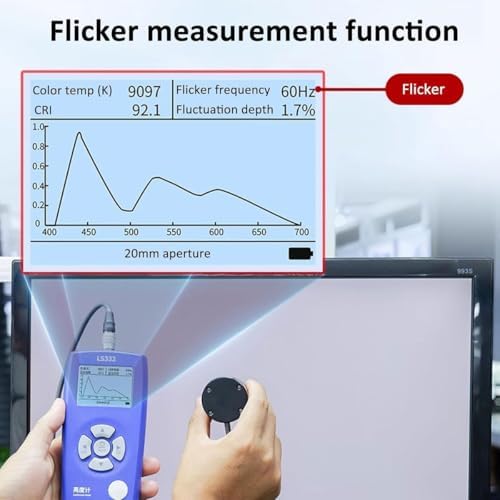

Flicker Measurement Capability:Equipped with flicker measurement, this luminance meter allows you to assess potential flicker issues in screens and lighting, supporting eye-friendly display evaluation.

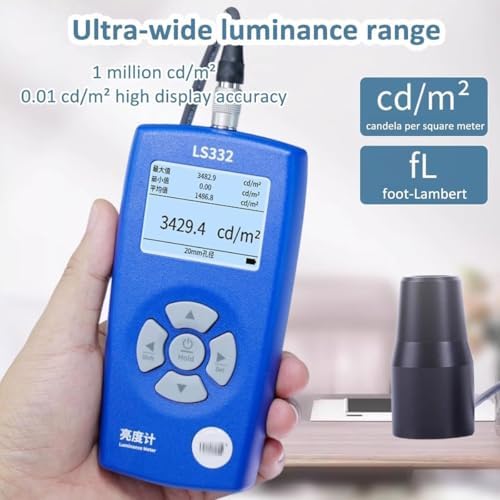

Wide Luminance Range:With a luminance range up to 1 million cd/m² and high display accuracy of 0.01 cd/m², it easily measures in a variety of challenging high-brightness environments, such as HDR screens and projectors.

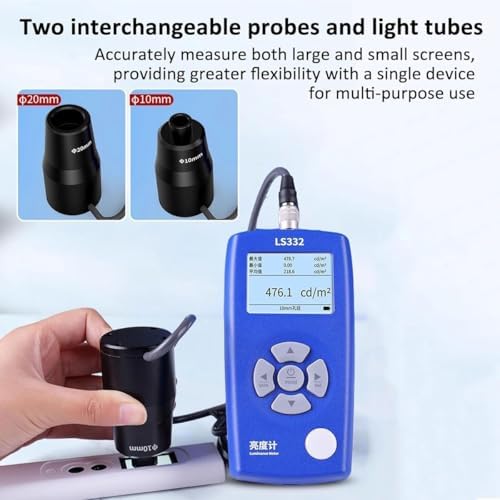

Dual Measurement Aperture:Equipped with interchangeable 10mm and 20mm probes, this versatile device easily adapts to any screen size, ensuring accurate measurements of both large and small displays.
Instant Measurement Speed:Fast measurements for instant results. From power-up to reading, there's no waiting, significantly improving your workflow efficiency. Display spectral curve--Spectral curve analysis enables identification of the display's light source type.

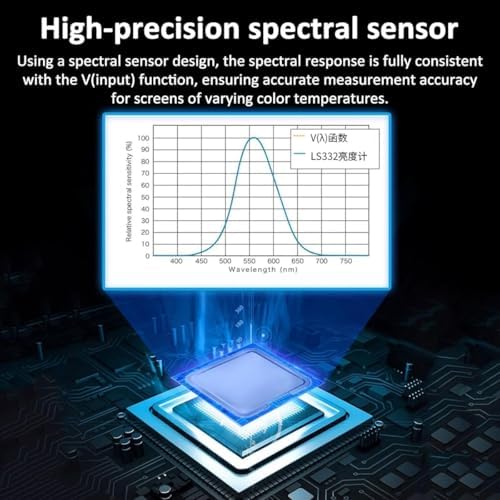

Spectral Sensor Design:Our spectral sensor design is consistent with the V(λ) function, ensuring accurate readings across a wide range of color temperatures and display types.

وصف

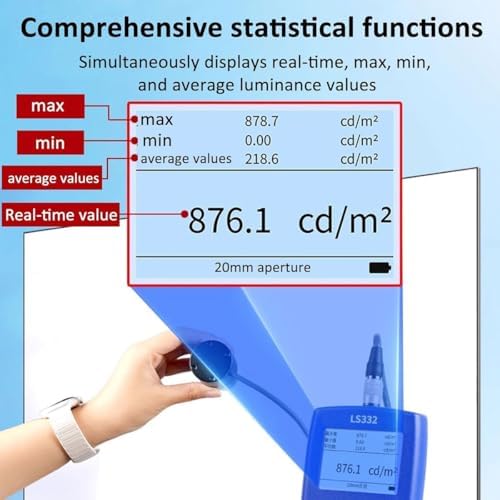

Simultaneously displays real-time brightness values, maximum values, minimum values, and average values
Specification:
Name:Name: Luminance Meter
Luminance Wavelength Range: 400nm-700nm
Luminance Wavelength Interval: 10nm
Luminance Measurement Distance: ≤1m
Luminance Measurement Range: 1 – 1,000,000cd/m²
Luminance Resolution: 0.01cd/m²
Luminance Measurement Accuracy: ≤±(5%H + 2cd/m²) (H represents the standard value (calibrated under CIE Standard A illuminant))
Luminance Units: cd/m² (default), fL

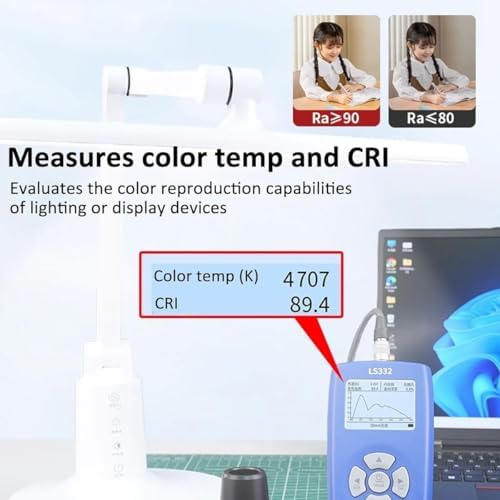

Correlated Color Temperature Measurement Range: 1,000 – 100,000K
Correlated Color Temperature Measurement Accuracy: ±5% (calibrated under CIE Standard A illuminant)
Color Rendering Index Measurement Range: 0 – 100
Color Rendering Index Measurement Accuracy: ±2 (calibrated under CIE Standard A illuminant)
Flicker Frequency Measurement Range: 10 – 500Hz
Flicker Frequency Measurement Distance: ≤0.1m
Flicker Frequency Measurement Accuracy: ±5%
Test Aperture: 10mm / 0.39in, 20mm / 0.79in
Probe Dimensions:
Approximately 40mm / 1.57in
Thickness: Approximately 76mm / 2.99in
Display: 240x160 dot matrix LCD
Notes:
1. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.
2. If you have any questions please contact me and I will reply you within 24 hours
