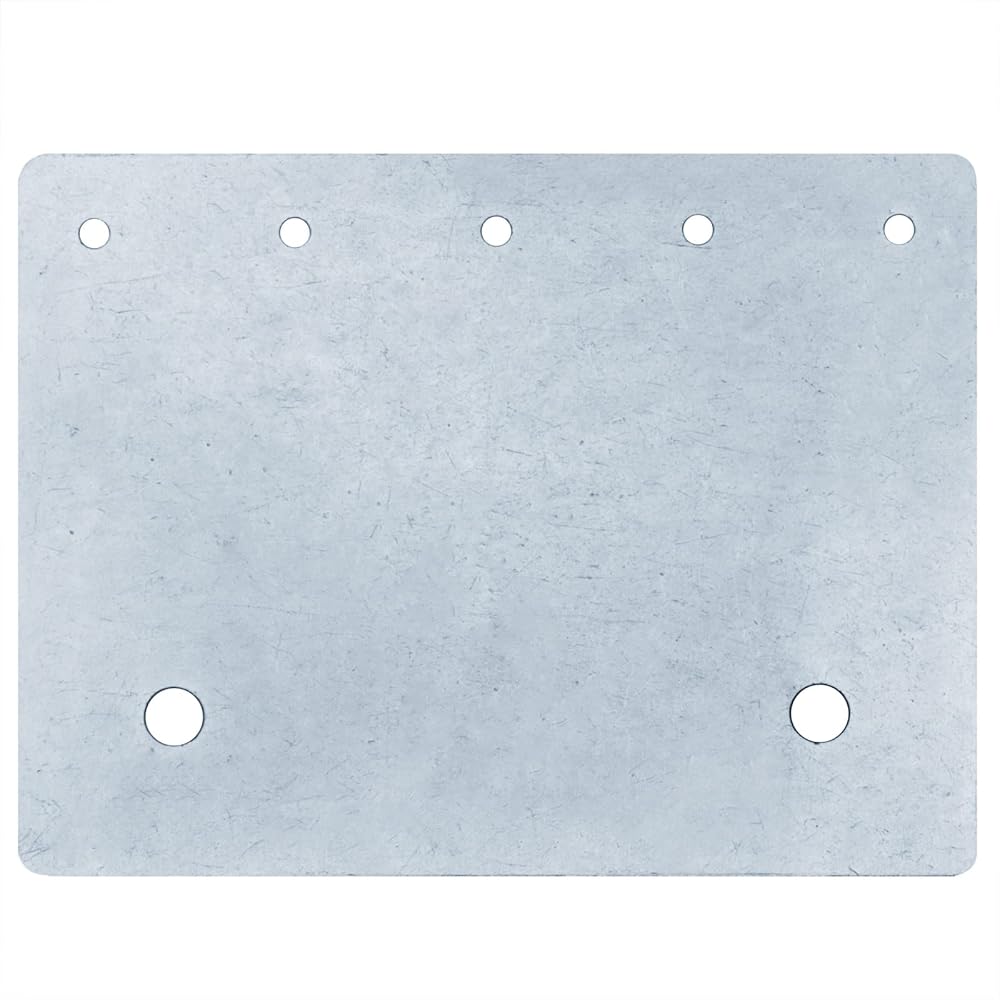

2 PCS 9" x 7" Heavy Duty Flat Retrofit Foundation Plate Bracket Support, 7 Gauge Steel Thick 3/16"(4.7mm), Wood Construction Concrete Connectors for Connect Mudsill to Foundation

Application:
Sill Retrofit Connector Plate is designed as a retrofit sill-to-foundation connection that can be installed where there is minimal space between the floor framing and top of the foundation wall.
The economical design is targeted for use in seismic regions and yet is also suitable for use as a supplementary connection in high wind areas.
The SRCP Sill Retrofit Connector Plate can be installed without shims anywhere the face of the sill plate is within 1/2" of the face of the foundation wall.

Specification:
Material: Carbon Steel Q235B
Surface Treatment: Electrogalvanized
Color: Silver

7 Gauge Steel Thick: 9/16"(14mm)
Length: 9"(228mm)
Width: 7"(178mm)
Holes Diameter: Ø9/16"(14mm), Install with 1/2" Anchor Bolt

Weight: 3.3 lb(1.5 kg)-1 piece, 6.7 lb(3.06kg)-2 pieces

Package Content:

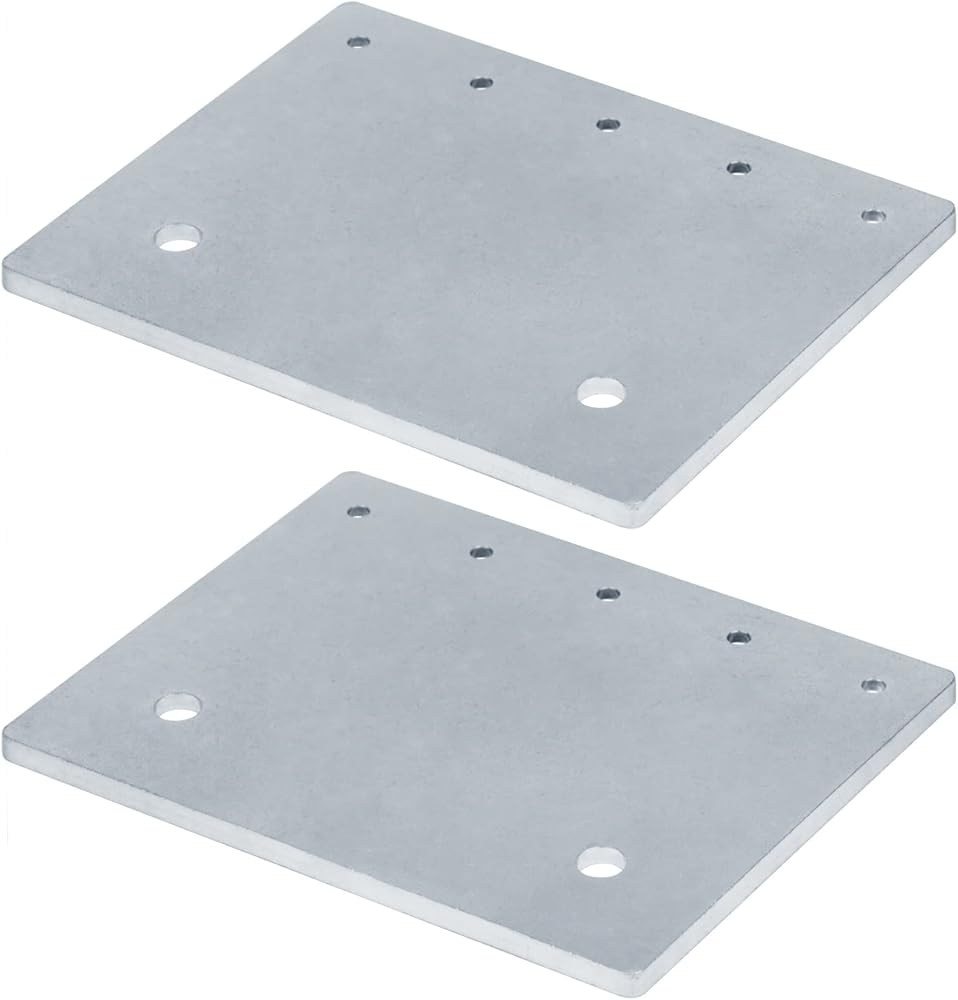

2 x Flat Retrofit Foundation Plate

Tips:
Length of screw = 2 1/2" + shim thickness
