مميزات خاصة

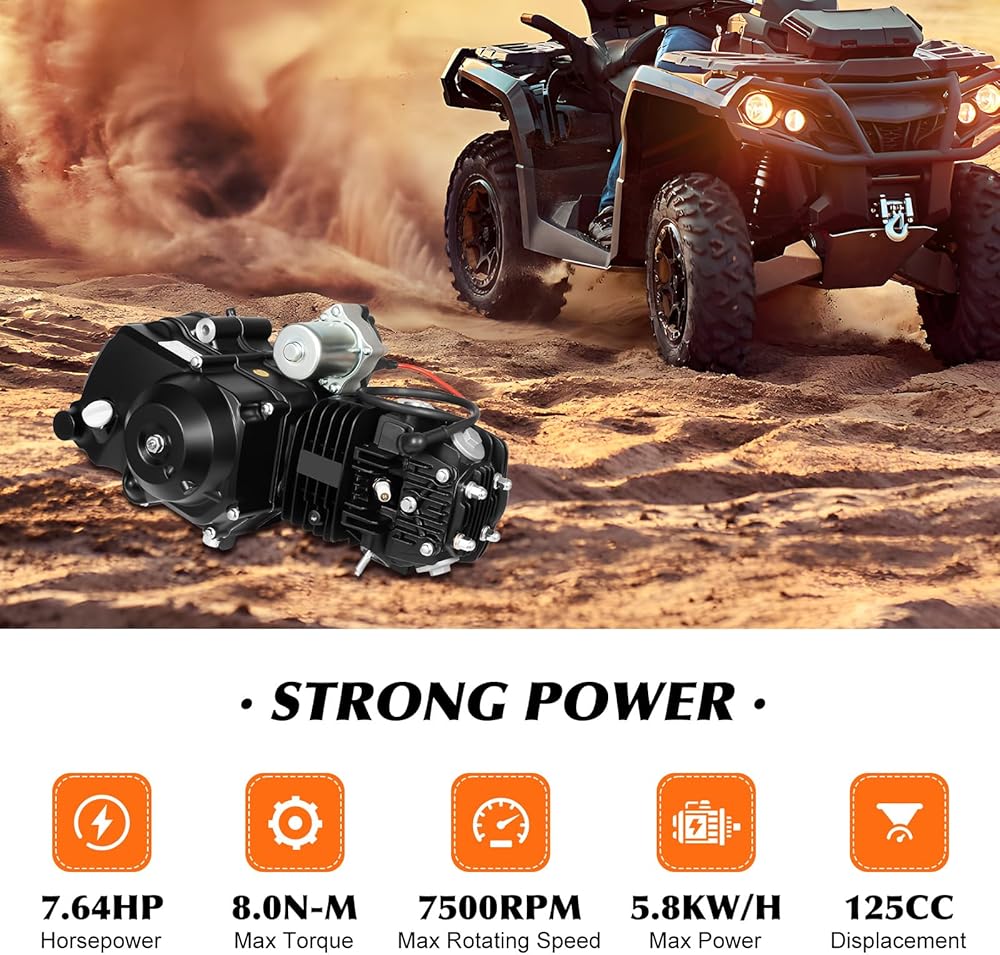

🚲【STRONG POWER & LOW NOISE】This ATV motor engine boasts a robust 7.64HP horsepower, a displacement of 125cc, and a max rotating speed of 7500RPM, which provides you with strong power and ensures that your drive will be very smooth and powerful.Other Features: 3 Forward Gears and 1 Reverse.

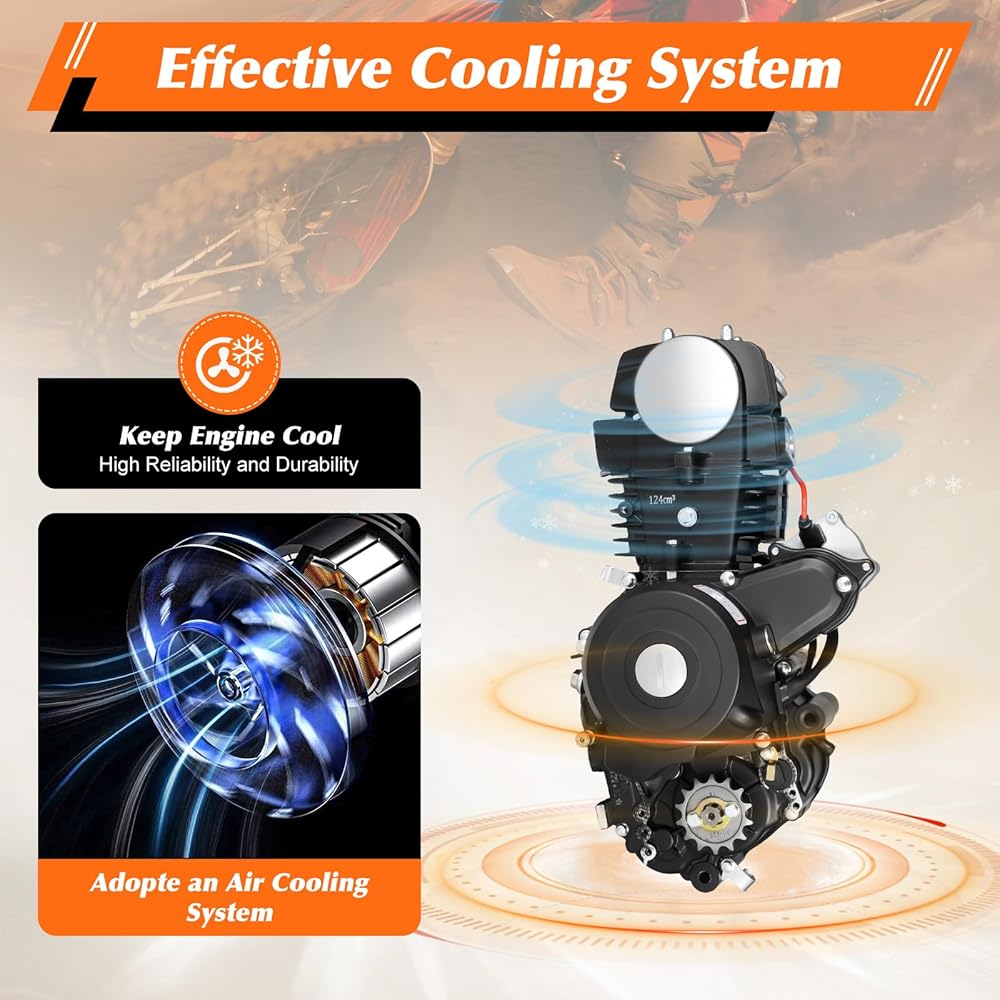

【EFFECTIVE COOLING SYSTEM ＆ADJUSTABLE SPEED】By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.Its 4-speed manual clutch transmission provides you with high-precision gear shifting control, so it allows you to easily adapt to various changes. It makes your driving experience more exciting under different road conditions.
🚲【DURABLE & STABLE】The 4 Stroke ATV motor engine mades of aluminum alloy and iron,Cast Iron,it is durable, not easy to rust, and has a long service life,The camshaft is made of steel, ensuring stable engine operation and effectively controlling the opening and closing of valves,The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. Air filter also improves air filtration performance and reduce wear.can reduce fuel consumption(≤367g/kw.h) and cost.
🚲【SECURITY】Lubricating Oil Filter can help filter solid stains from lubricating oil, largely reducing wear and prolonging the engine service life.Clutch Lever can transfer and cut off the power promptly, and prevent overloading of the transmission system, ensuring that the engine starts smoothly.Shockproof Installation Hole used to install shock absorbers to reduce the vibration of the motorcycle during driving, thereby improving its driving comfort.
🚲【Other Parameters】Other Features: 3 Forward Gears and 1 Reverse,Start Mode: Kick-starter; Electric,Transmission: 4-speed, Manual Gear Shift,Minimum No-load Stable Speed: 1400 (1 ± 10%) R / min,Compression Ratio: 8.7:1,Bore Stroke:54*54mm/2.12*2.12inch,Air Inlet and Exhaust Valve Clearance: 0.05 ~ 0.07 mm (Cold State),Spark Plug: A7TC,Carburetor Type: PZ19 (Not Included),Transmission Ratio of Each Gear: First Gear: 3.272; Second Gear: 1.938; Third Gear: 1.350; Fourth Gear: 1.043,Package Included:1*ATV Motor Engine1*Gearshift Lever1*Chain Cover1*Intake Manifold2*Intake Gaskets.

وصف

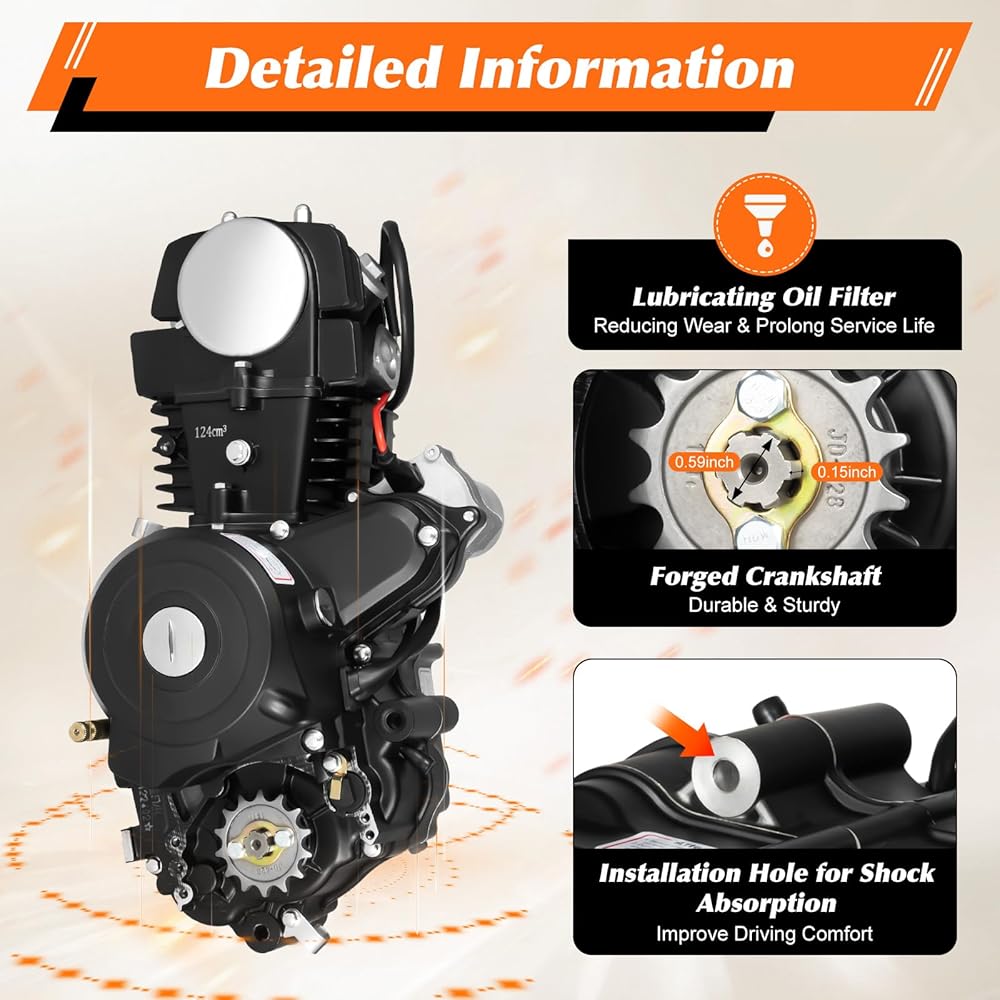

Details

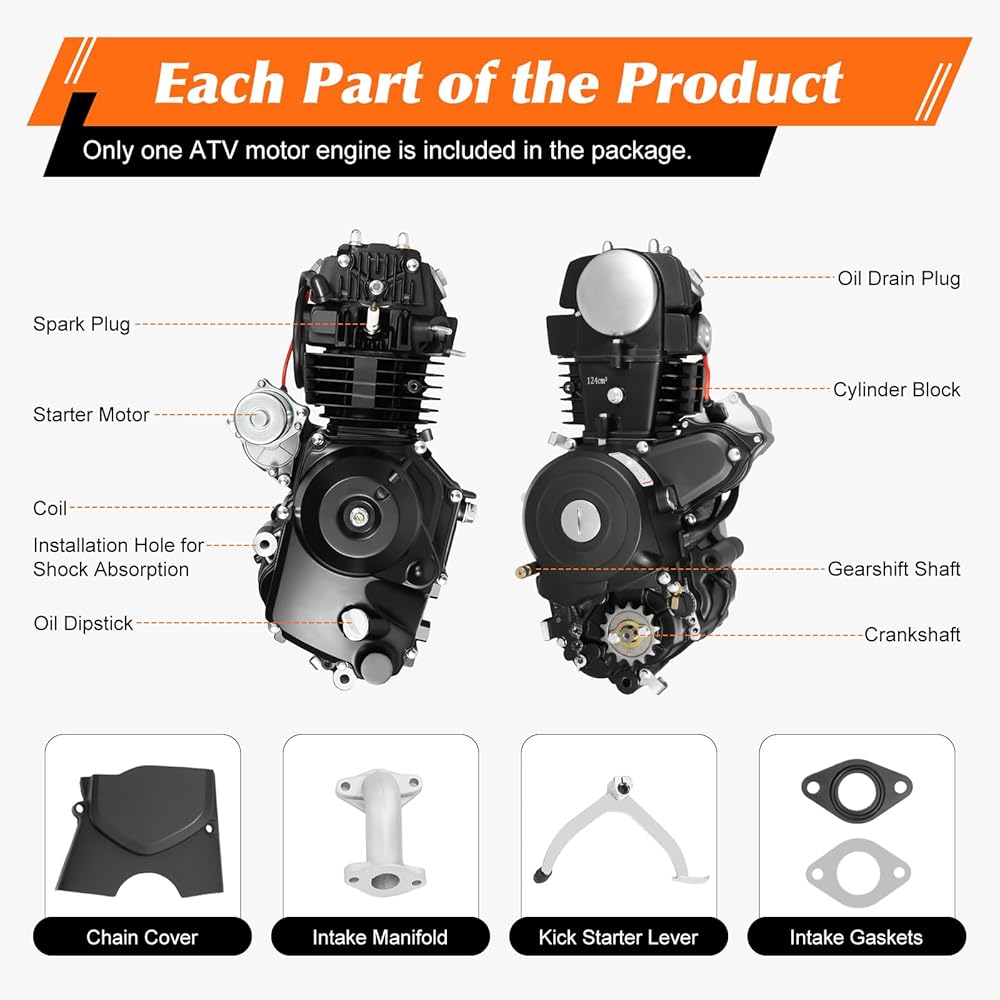

Lubricating Oil Filter: It can help filter solidstains from lubricating oil, largely reducing wear and prolonging the engineservice life.

Gearshift Shaft: It can control thevehicle's speed to suit different usage scenarios.

ShockproofInstallation Hole: It is used to installshock absorbers to reduce vibration during driving, thereby improving itsdriving comfort.

Forged Crankshaft: It adopts ahigh-quality metal design to ensure high safety and stability during operation.

Clear Wires: The different wireshave different colors, thus easily distinguishing and connecting them withoutconfusion.

Application
This product can be widely used in motorcycles, ATVs, go-karts,tricycles, etc, as long as the crankshaft matches.

Specification

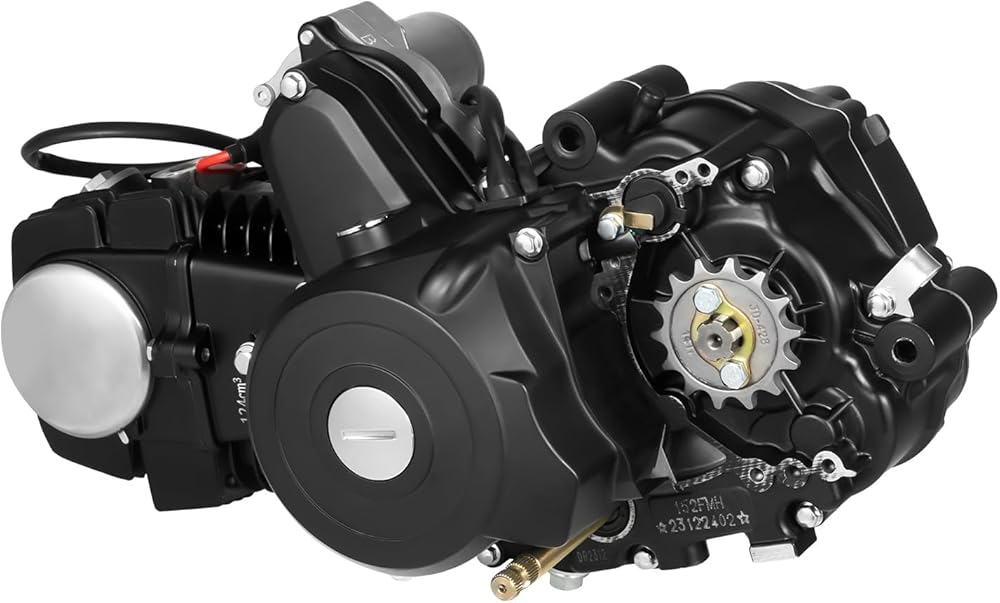

Engine Type: Single Cylinder, 4 Stroke, Horizontal, Two-stageTransmission
Other Features: 3 Forward Gears and 1 Reverse
Material: Aluminium, Cast Steel
Engine Cooling Type: Air Cooling
Ignition System: CDI (Not Included)
Start Mode: Kick-starter; Electric
Clutch Type: Manual Wet Multi-Disc
Transmission: 4-speed, Manual Gear Shift
Displacement: 125CC
Minimum No-load Stable Speed: 1400 (1 ± 10%) R / min
Compression Ratio: 8.7:1
Bore Stroke: 54*54mm/2.12*2.12inch
Max Power: 5.8Kw/h
Max Torque: 8.0N-m
Max Rotating Speed: 7500rpm
Horsepower: 7.64HP
Air Inlet and Exhaust Valve Clearance: 0.05 ~ 0.07 mm (Cold State)
Min Fuel Consumption: ≤367g/kW.h
Spark Plug: A7TC
Carburetor Type: PZ19 (NotIncluded)
Min Stable Idle Speed: 1500r/min±150r/min
Primary Reduction Ratio: 3.722

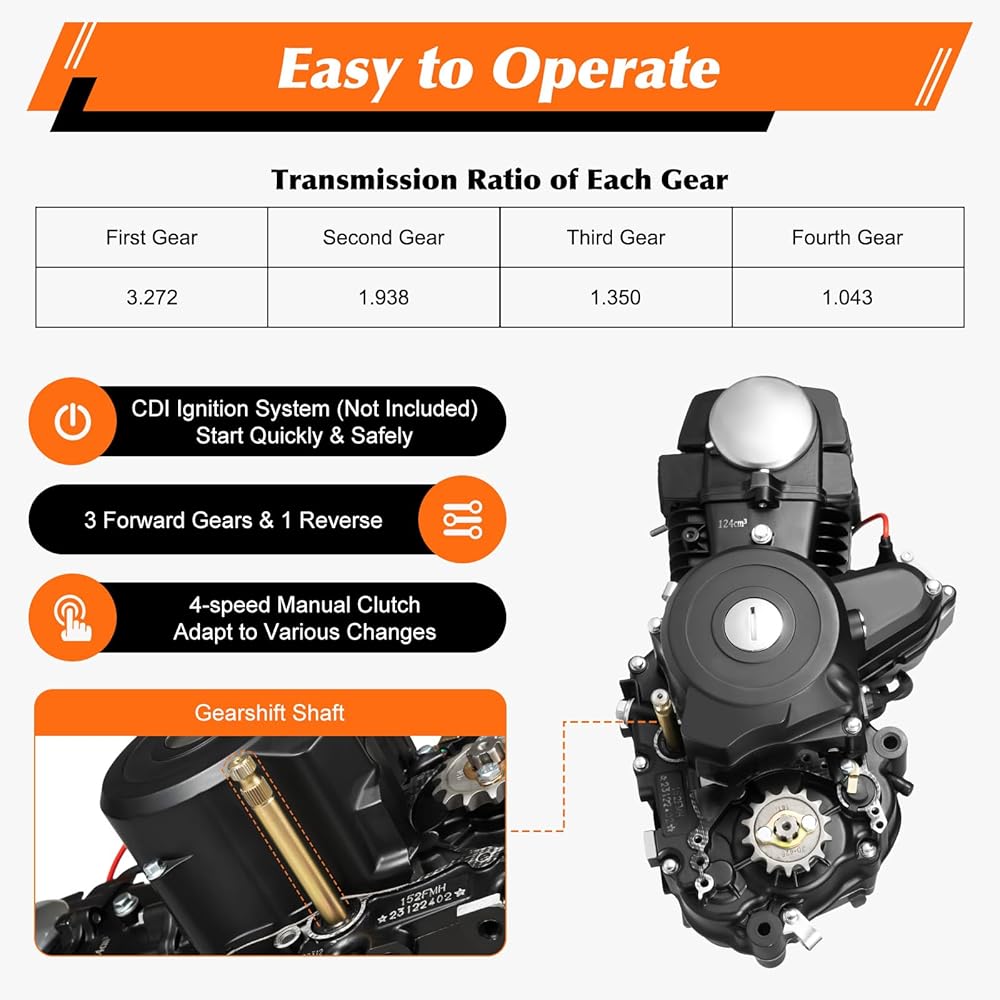

Transmission Ratio of Each Gear: First Gear: 3.272;Second Gear: 1.938; Third Gear: 1.350; Fourth Gear: 1.043
Lubricant Capacity: 900ml/0.23 Gallons
Lubricant Type: SL10W/40 (Not Included)
Crankshaft Diameter:1.5cm/0.59inch
Crankshaft Length: 0.4cm/0.15inch
Gasoline Type: ≥ 92 #
Gross Weight: 19.45kg/42.87lbs
Net Weight: 18.15kg/40.01lbs
Product Size:45*30*25cm/17.71*11.81*9.84inch
Package Size:51*39*33.5cm/20.07*15.35*13.18inch

Package Included
1*ATVMotor Engine
1*Gearshift Lever
1*Chain Cover
1*IntakeManifold
2*IntakeGaskets
All Accessories forAssembly
