Typical applications: Battery powered equipment or applications with “memory function”.
وصف

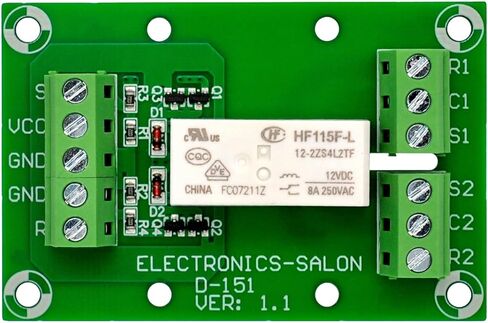

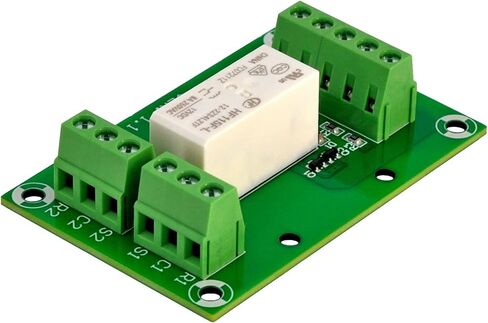

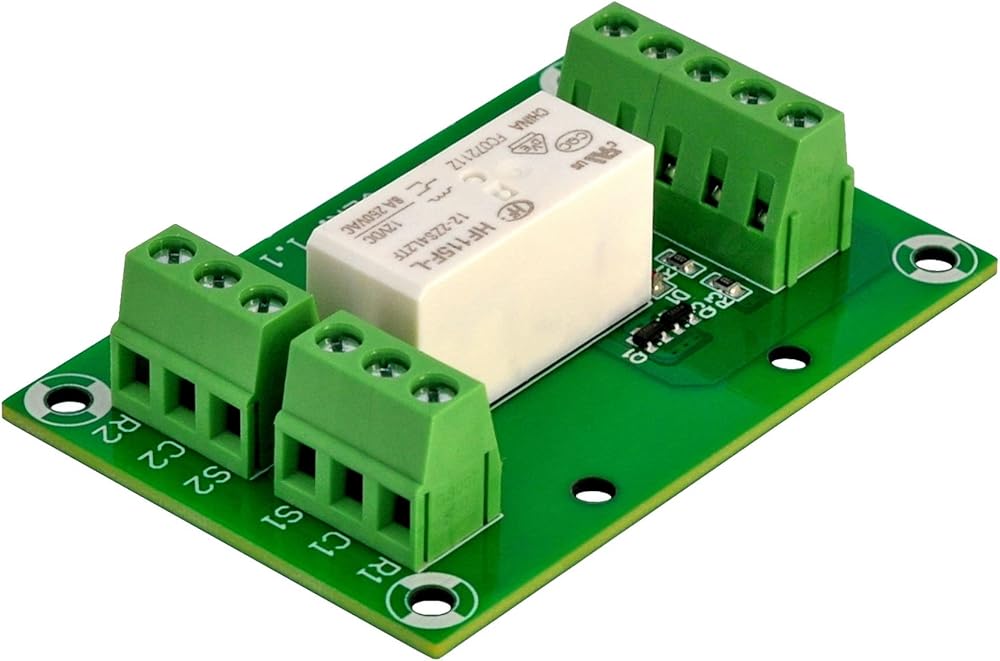

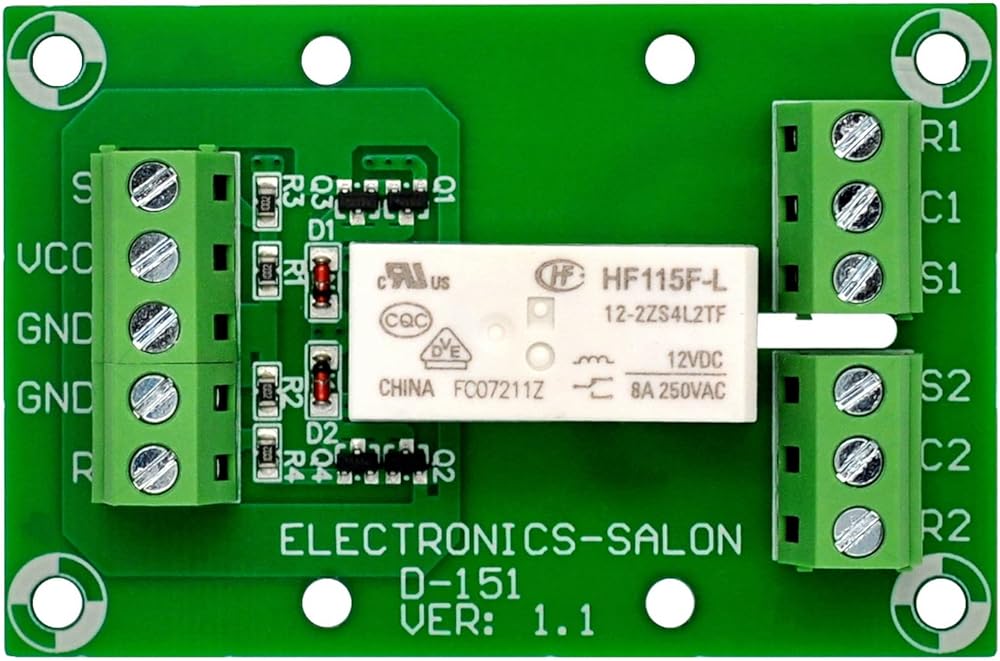

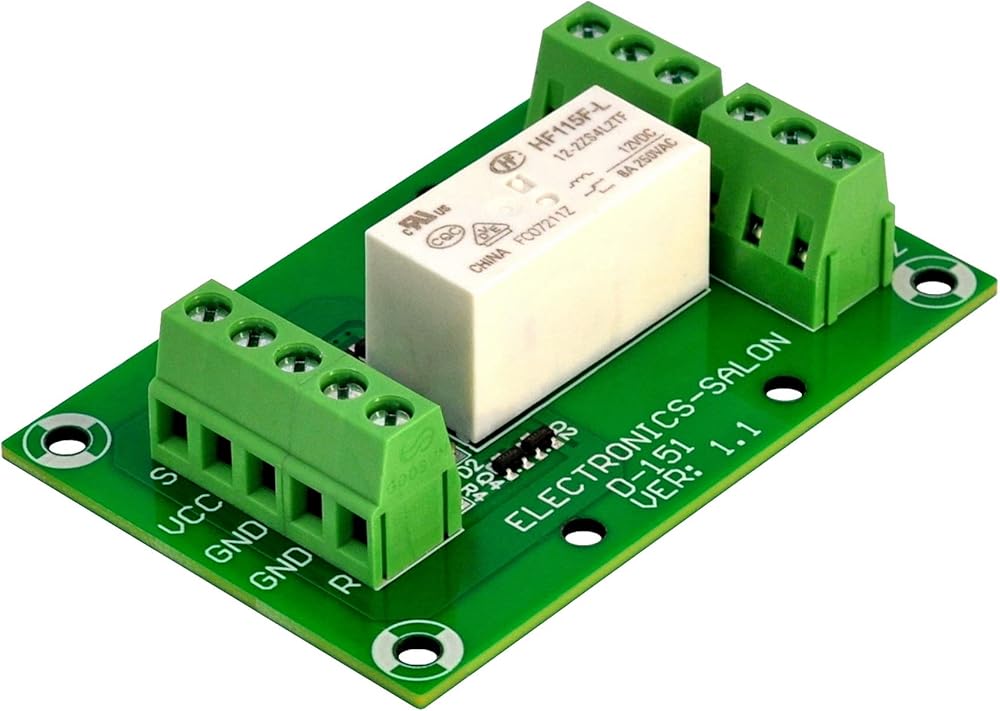

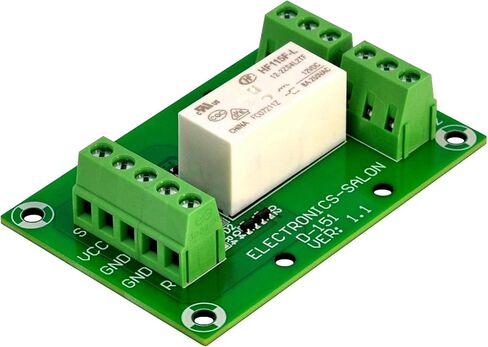

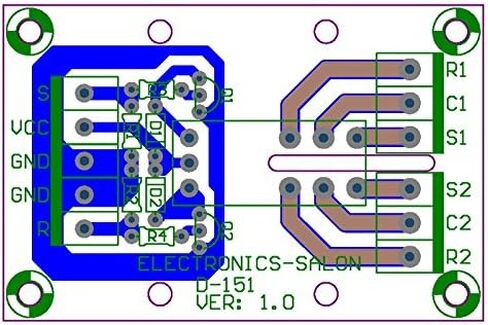

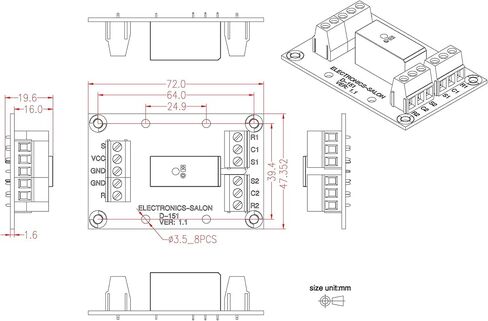

Latching DPDT 8 Amp Power Relay Module.
Model number: MD-D151/12V.
This item has been assembled, and electrical test passed.
HF115F-L high quality bistable relay.

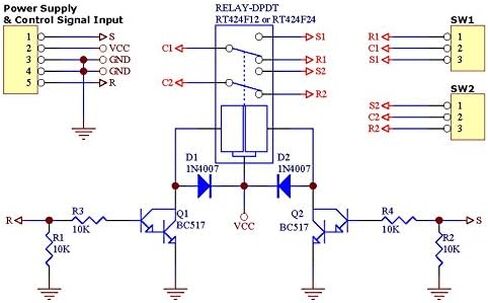

Darlington transistor driving relay, Improve the reliability of action.
High quantity terminal blocks, easy connection wires.
FR-4 Fiber glass PCB.
Typical applications: Battery powered equipment or applications with “memory function”.
Operating voltage: DC 12V.
Input control signal voltage:
Low level: 0 to 0.5V
High level: 2.5 to 24V
Relay contact rating:
Contact arrangement: DPDT (2 form C)
Rated voltage: 250VAC
Rated current: 8A, UL 10A
Breaking capacity max.: 2000VA
