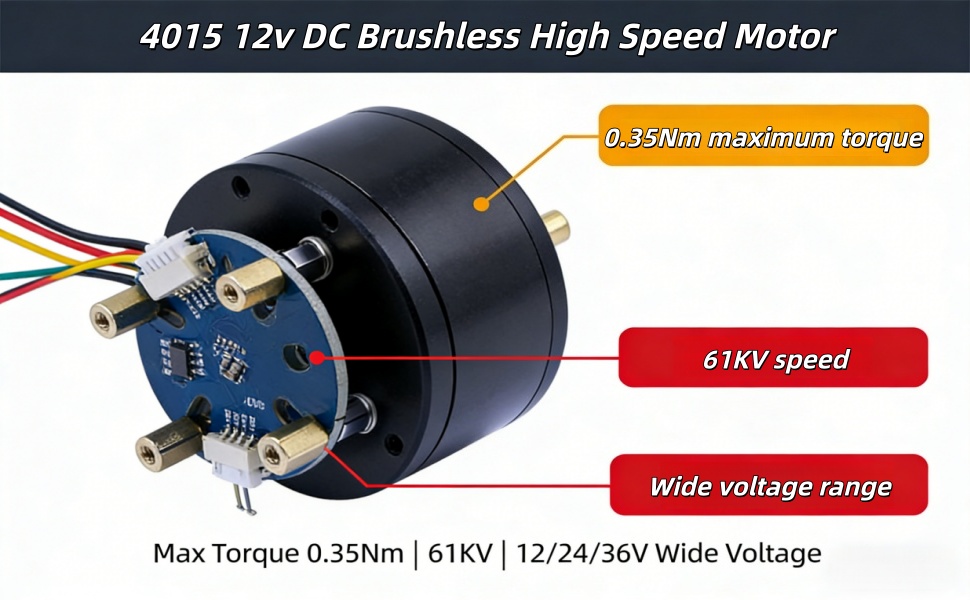

4015 Three-Phase Brushless DC Motor: High-Torque Precision Power Core
I. Full Core Specifications
Basic Dimensions: Motor outer size: Φ45mm × 26mm
Stator diameter & height: Φ40mm × 15mm
Hollow shaft diameter: 10mm (hollow hole diameter: 7.5mm

Voltage Parameters: Operating voltage: 12-36V
Rated voltage: 12V, 24V, 36V (all applicable)

Performance at 12V: Rated torque: 0.12Nm (1200g.cm)
Rated speed: 610RPM
Rated power: 8W
Max torque: 0.15Nm (1500g.cm)
Speed constant (KV): 61RPM/V
Rated current: 0.65A
Max current: 4A

Performance at 24V: Rated torque: 0.3Nm (3000g.cm)
Rated speed: 1100RPM
Rated power: 33W
Max torque: 0.35Nm (3500g.cm)
Speed constant (KV): 1.44
Rated current: 1.4A
Max current: 4A

Electrical Parameters: Back EMF constant (Ke): 0.1562V/(rad/s)
Winding phase resistance: 4.8Ω
Winding phase inductance: 2.6mH
Slot/pole count: 24 slots, 22 poles (pole pairs: 11)
Magnet type: NdFeB strong magnet steel sheet
Winding parameters: 55T, wire diameter 0.24mm, delta connection

Accessories & Others: Connector: PH2.0-3P connector (with male lead wire)
Bearing: 6800ZZ deep groove ball bearing

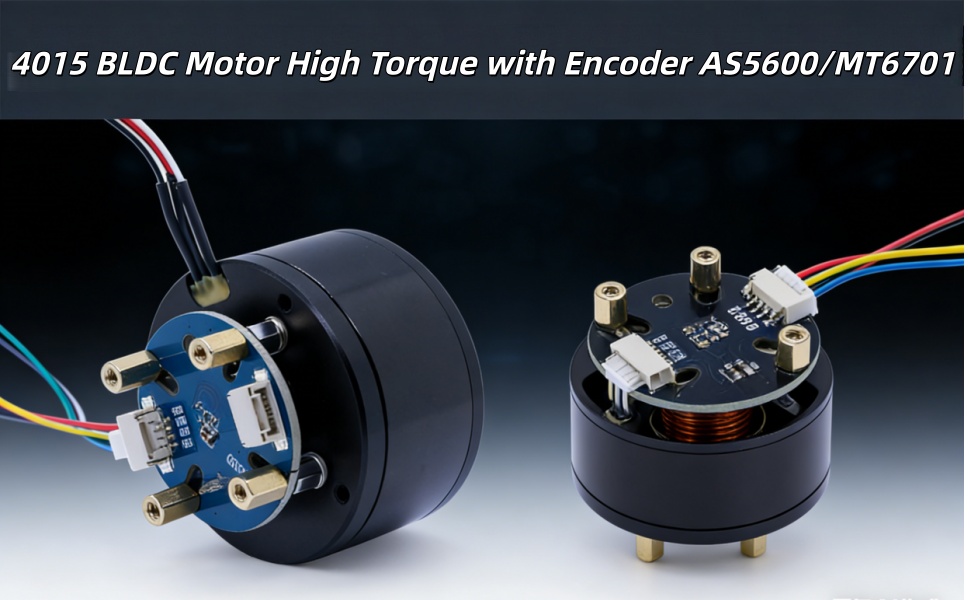

Optional parts: Self-contained radial magnet, magnetic encoder, FOC driver board, etc.

II. Key Highlights
1. High Torque + Wide Voltage: Low KV value adapts to low-speed precision control; max torque up to 0.35Nm, can replace motors like 4010/4008, covering multi-voltage application scenarios.
2. Structural Advantages: CNC alloy housing + hollow shaft design, balancing structural strength and installation flexibility; low cogging torque ensures smooth operation.
3. Strong Expandability: Supports optional magnetic encoders and FOC drivers, suitable for power demands of heavy-load and precision equipment.
