Data sheet for standard specification
Actuator material:ABS/die casting aluminum(Customization required)
Torque force:50 Nm

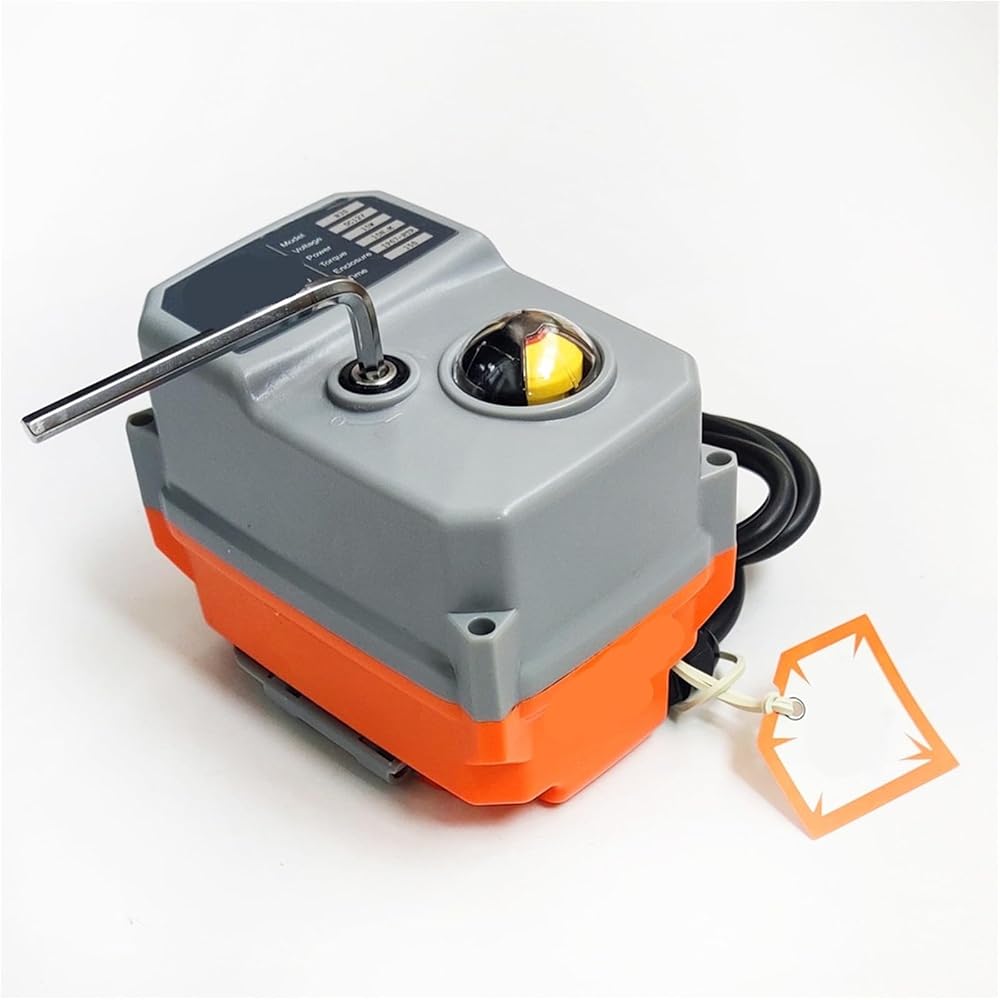

Manual operation:Yes

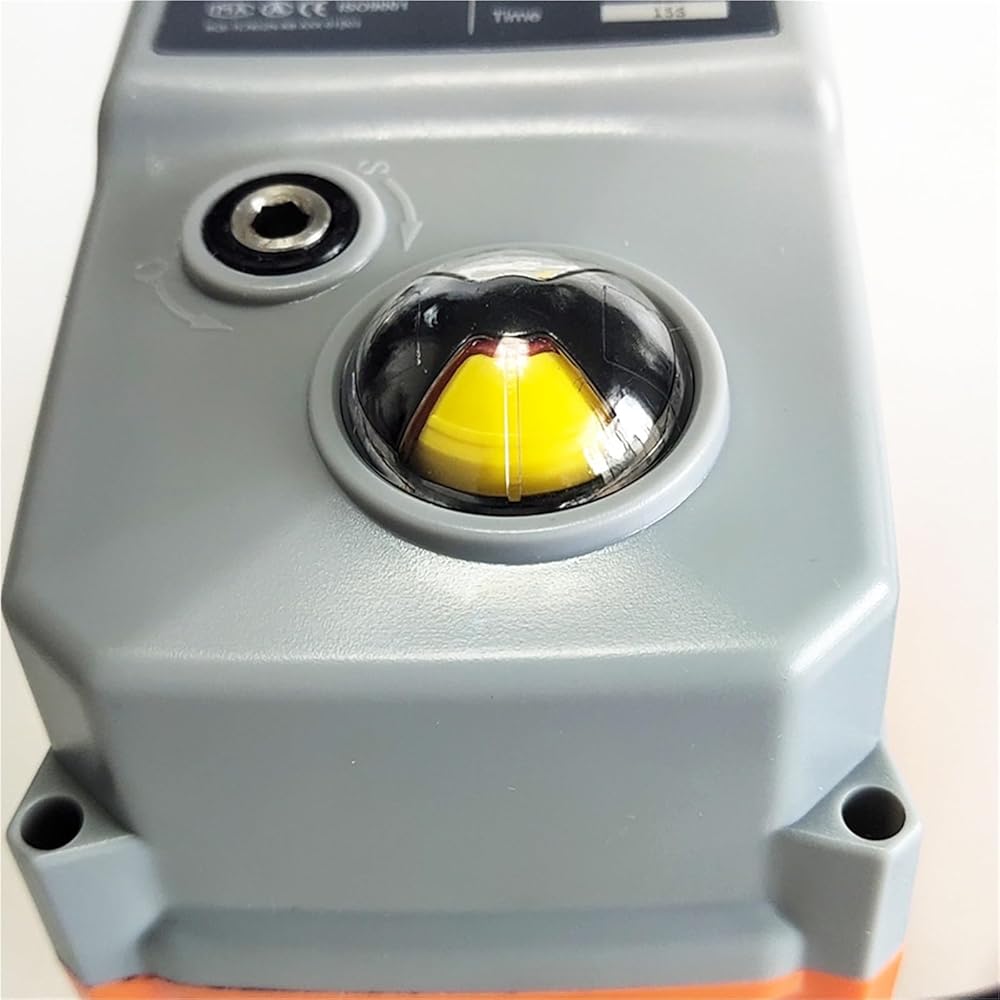

Open/close indicator:Yes
Protection class:IP67

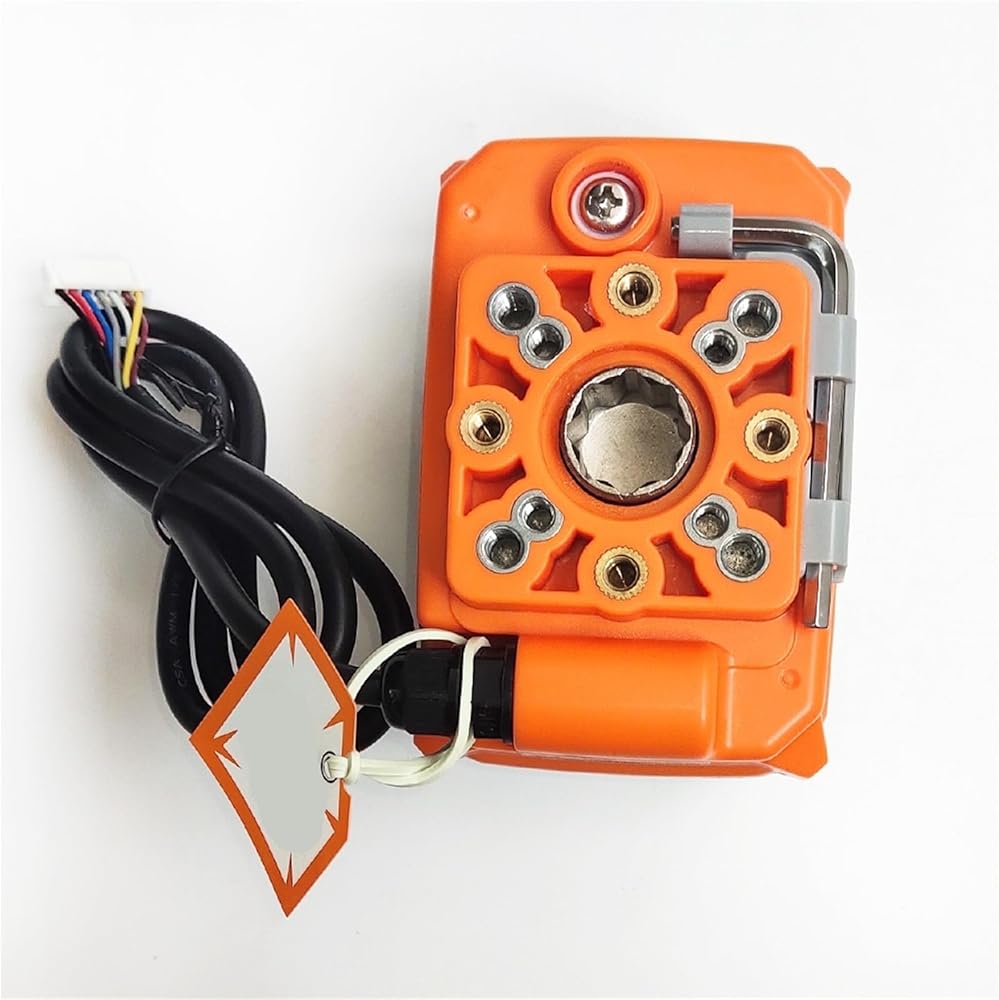

Connection standard:ISO5211 F05,F07
Stem sizes:11X11MM/9X9MM
Rated voltage:DC12V,AC24V,AC110V,AC230V,AC/DC24V,AC/DC95~265V
Control feedback mode:B3S,BD3S,KT32S(Power off return)

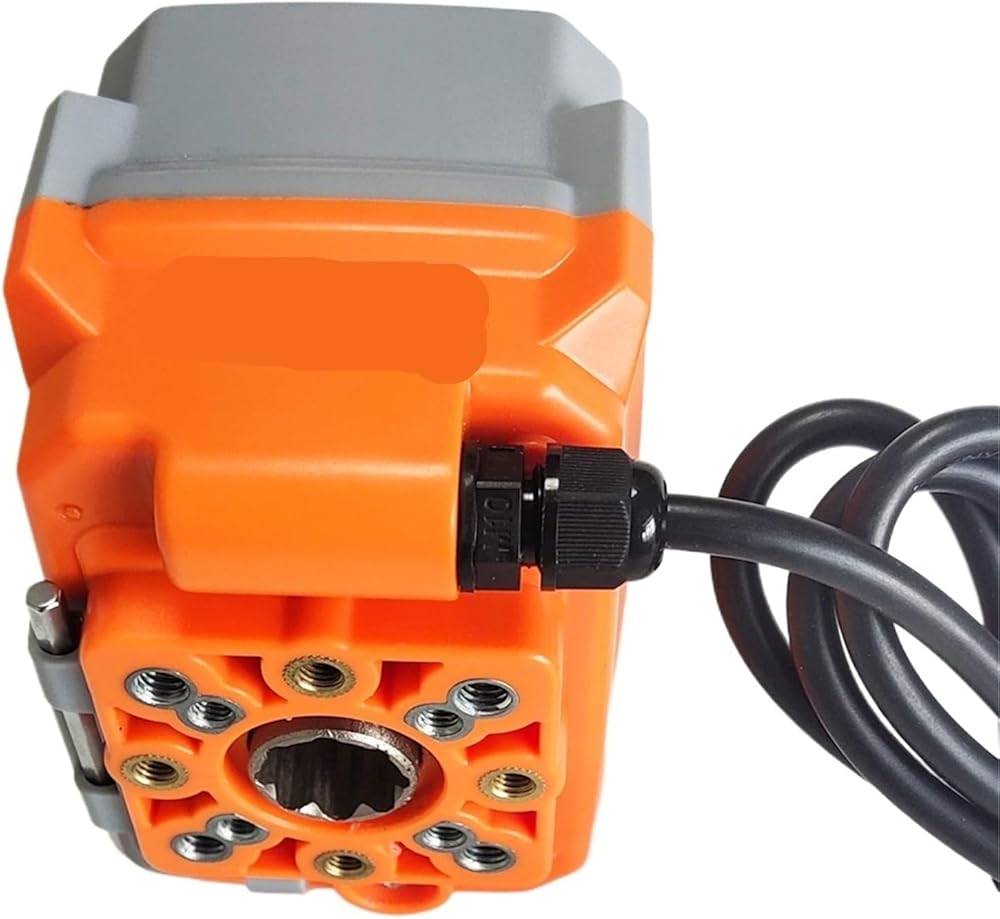

Cable Length:0.5m
High performance
brushless motor, overheat/overload protection
It can be used up to
20,000 times
For AC series, it is forbidden to use two or more actuators in parallel.

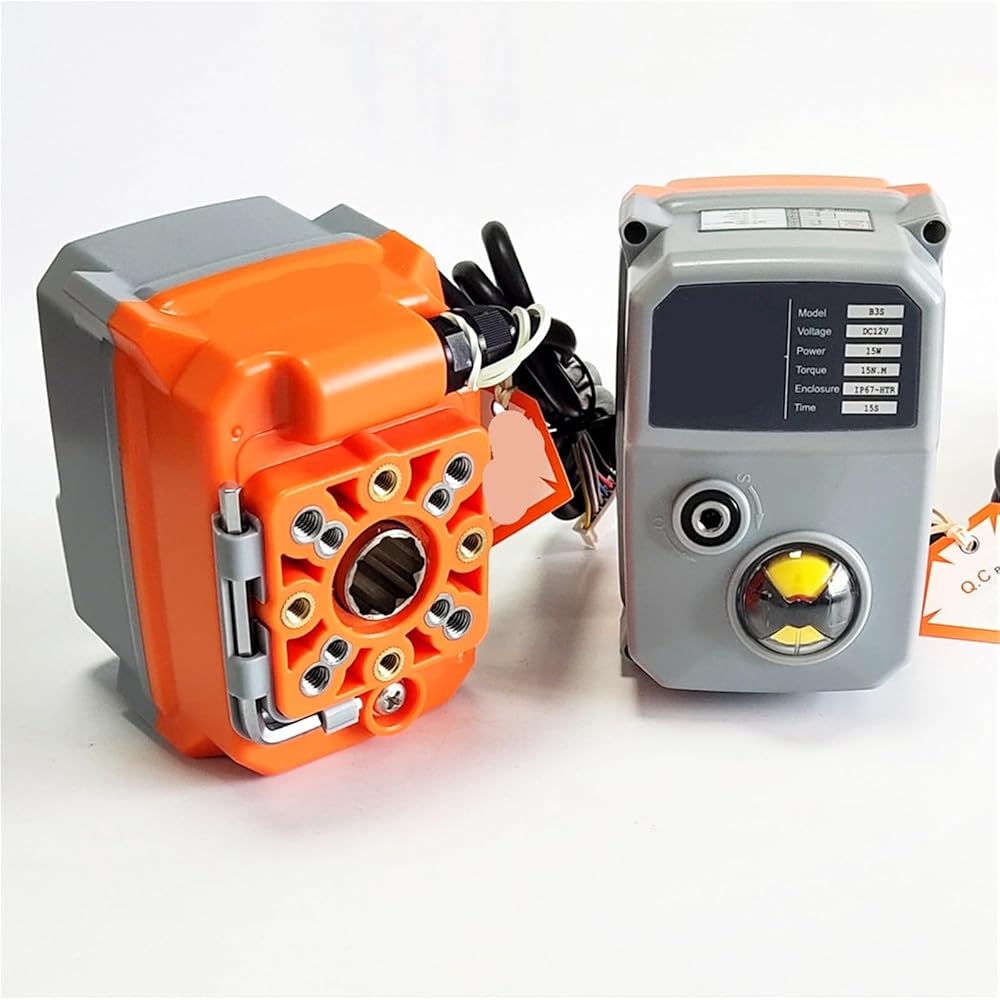

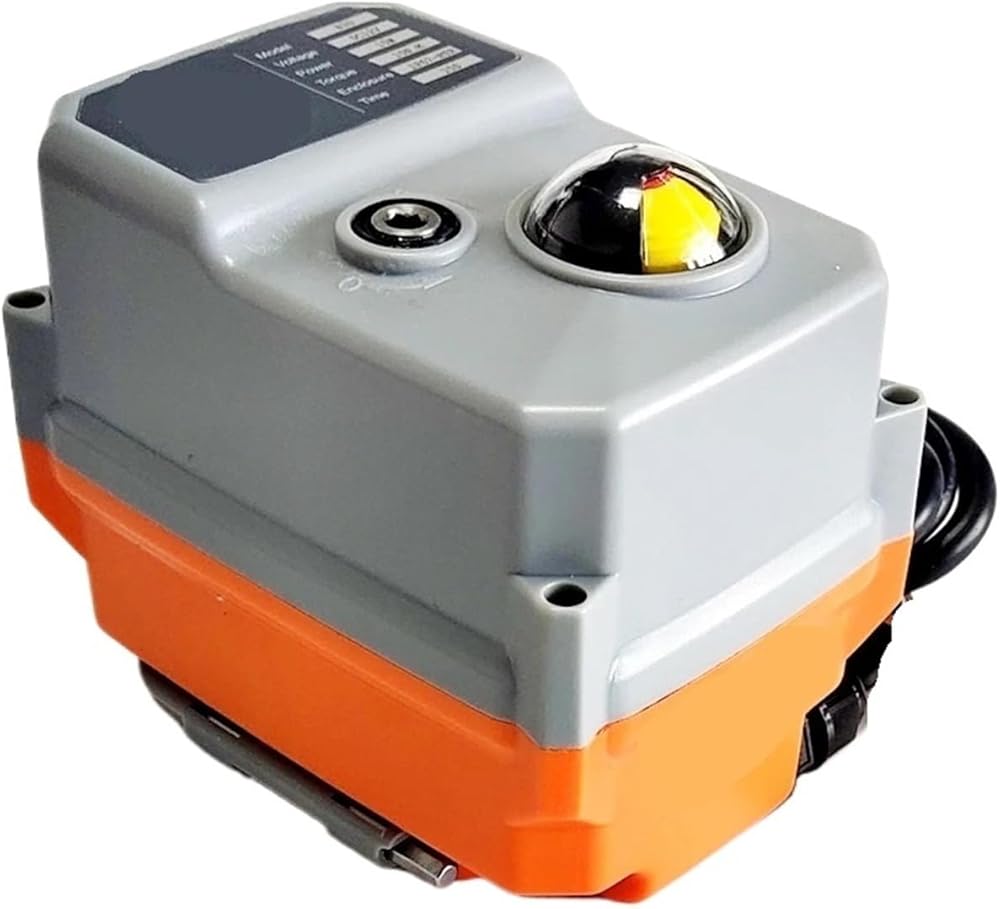

TFA02N(Normal On/Off Actuator)
Data sheet for available customized items
TFA02NH(Normal On/Off High-speed Actuator)
TFA02N-KT(Normal On/Off Power-off reset Actuator)
Wiring diagram
Actuator Mode : With Manual And Instruction
Structure : Ball
Port Size : DN15 to DN50
Media : Water
Material : Plastic
Temperature of Media : Normal Temperature
Power : Power
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : TFA02N
Power Source : DC
Is Smart Device : No
Torque force : 20Nm
Position indicator : Yes
Manual override : Yes
Signal Feed Back : Yes
Power off return : Optional
Stem Size : 11mm, 14mm
