Specification:
Item Type: Boat Gauge
Material: Stainless Steel 316L Bezel + Anti Fog Glass
Guard Rating: IP67, fully with excellent anti fog function

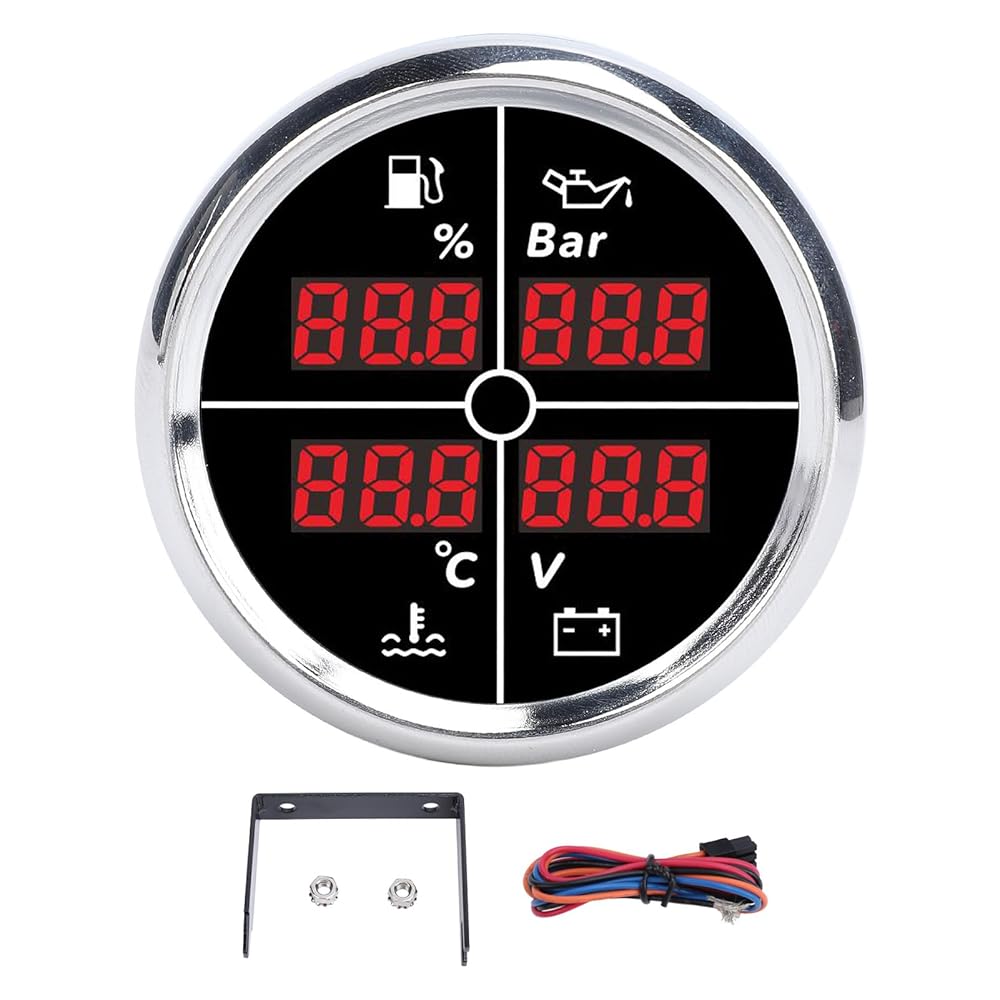

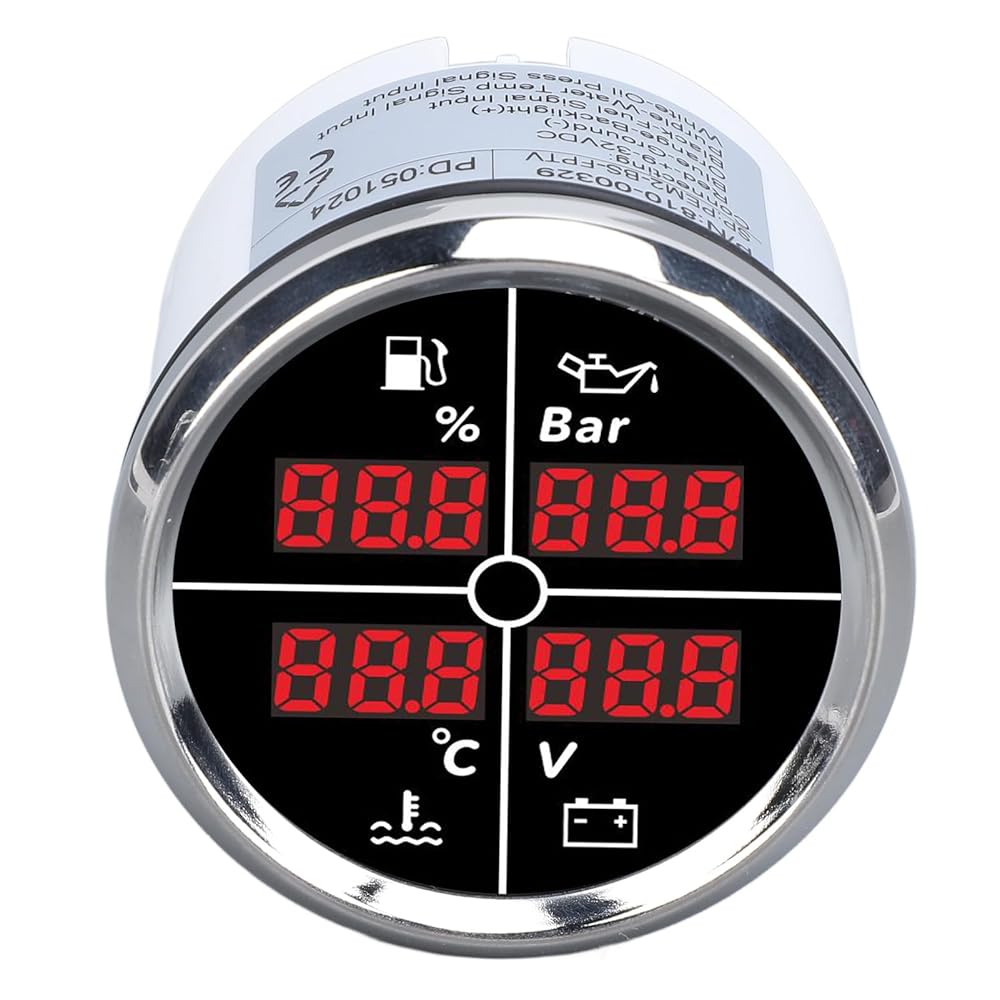

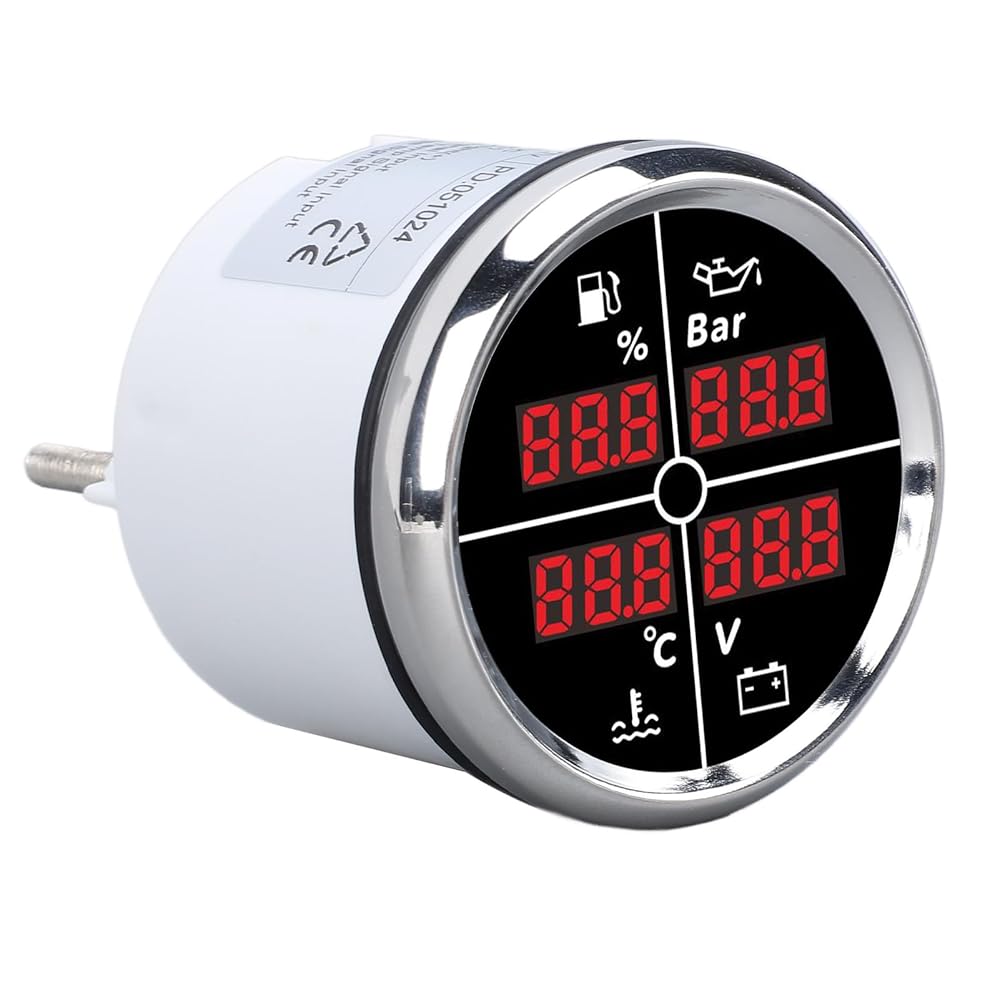

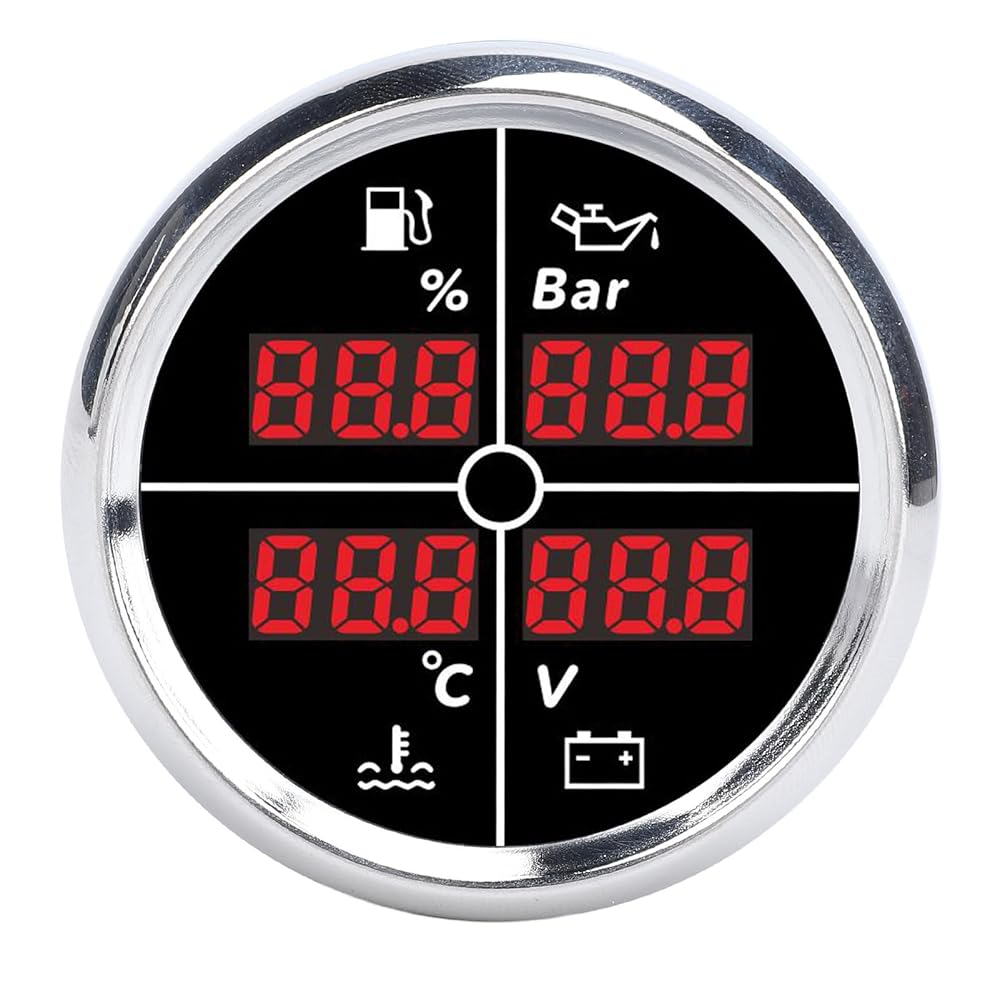

Display: Fuel Level + Oil Pressure + Water Temperature + Voltage
Backlight Color: Red (default), Green, Blue, White, Yellow, Yellow-Green, Orange, Purple (color changeable)
Operating Voltage: 9-32VDC
Operating Current: ≤60mA
Operating Temperature: -30°C to +70°C
Storage Temperature: -40°C to +85°C
IP Rating: IP67, can operate underwater at 1m
Fitment: For Boats, yachts, motorhomes, trucks, motorcycles

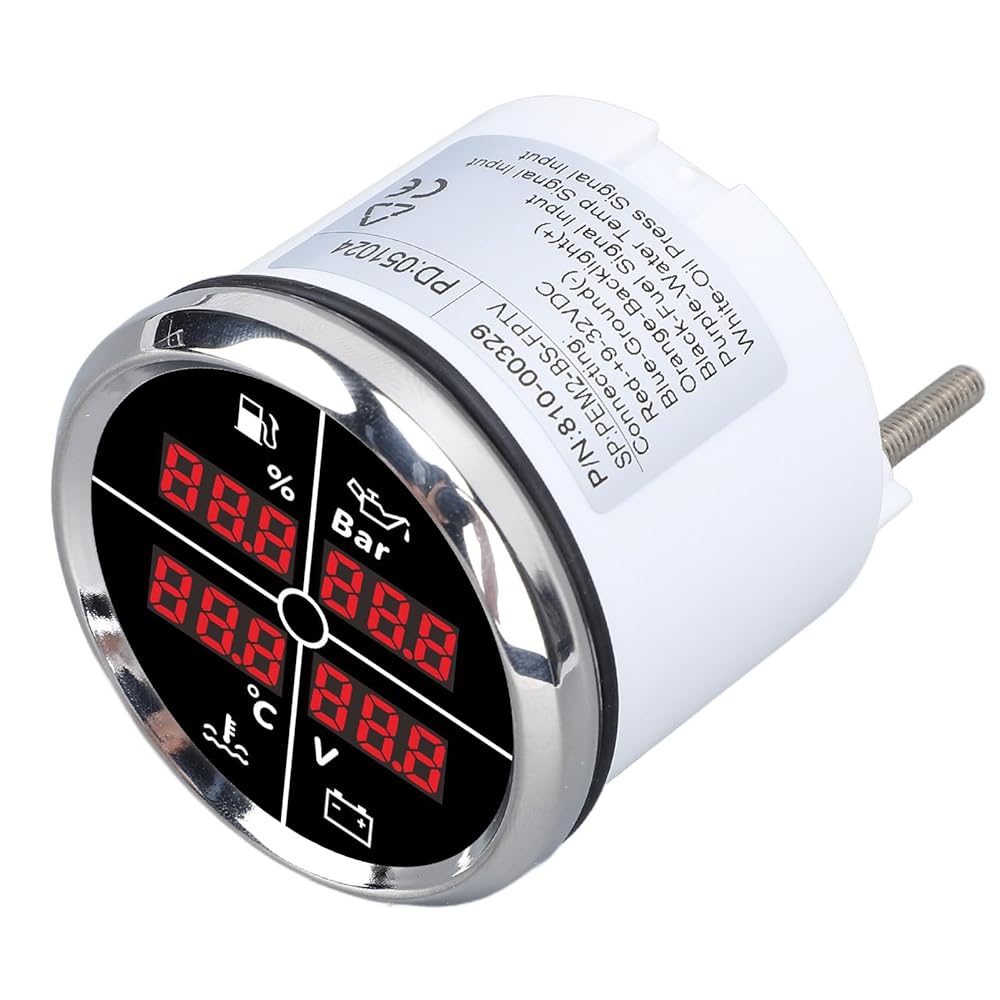

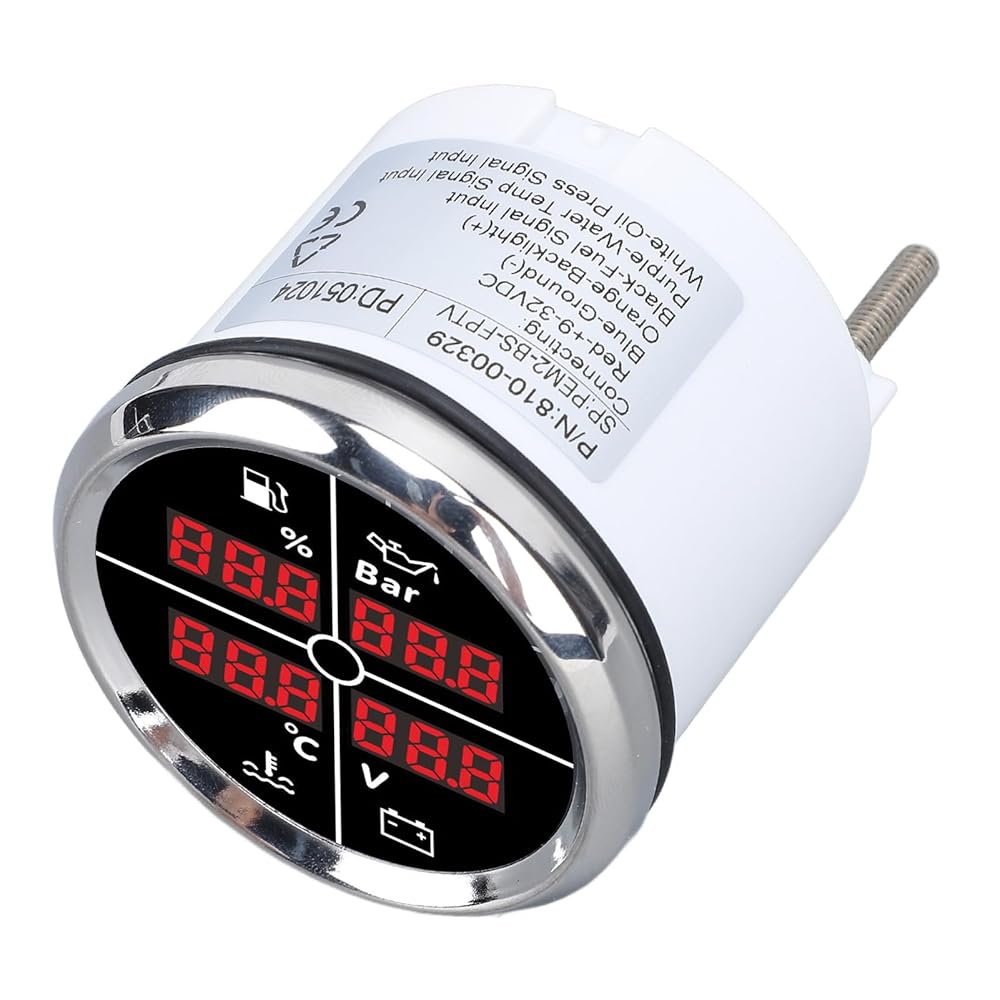

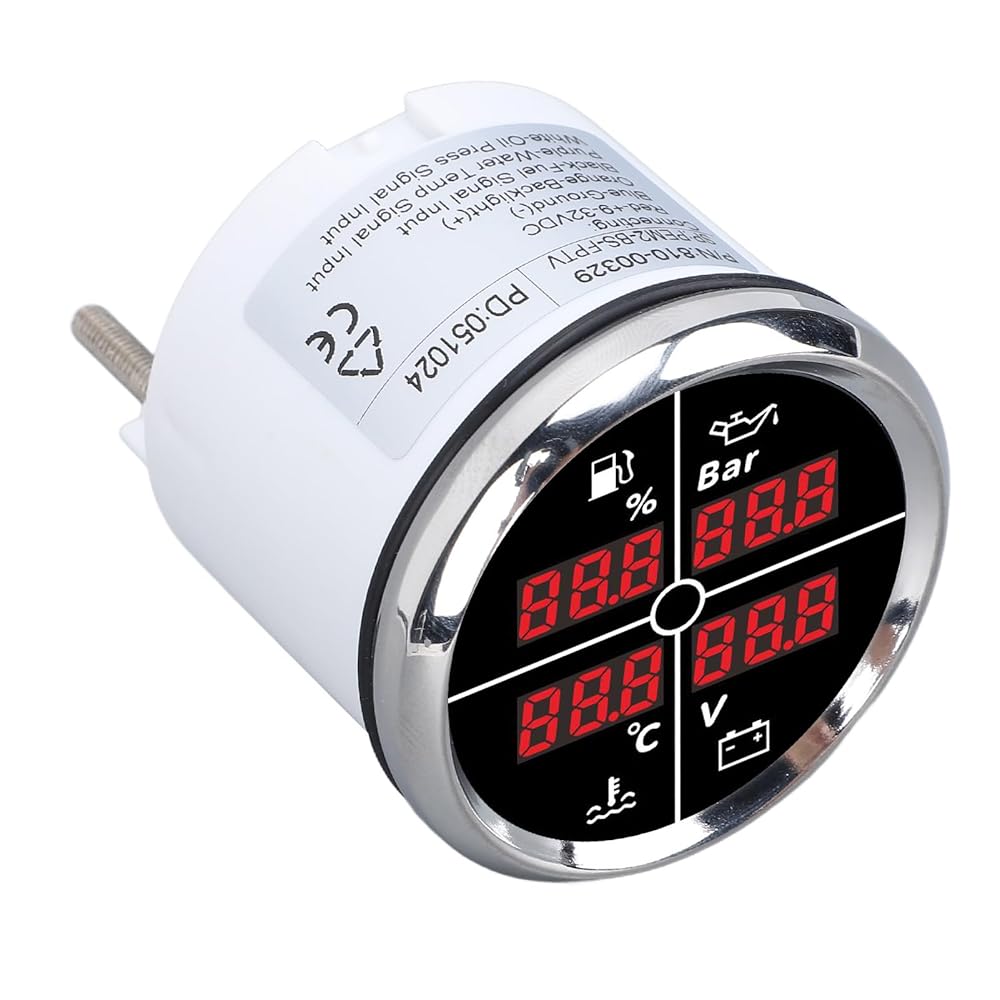

Wiring:
1. Red Wire: +9-32VDC
2. Black Wire: Oil Level Signal Input
3. Orange Wire: Backlight (+)
4. Blue Wire: Power Supply Negative (-)
5. White Wire: Oil Pressure Signal Input
6. Purple Wire: Water Temperature Signal Input

How to Use:
Installation Steps:

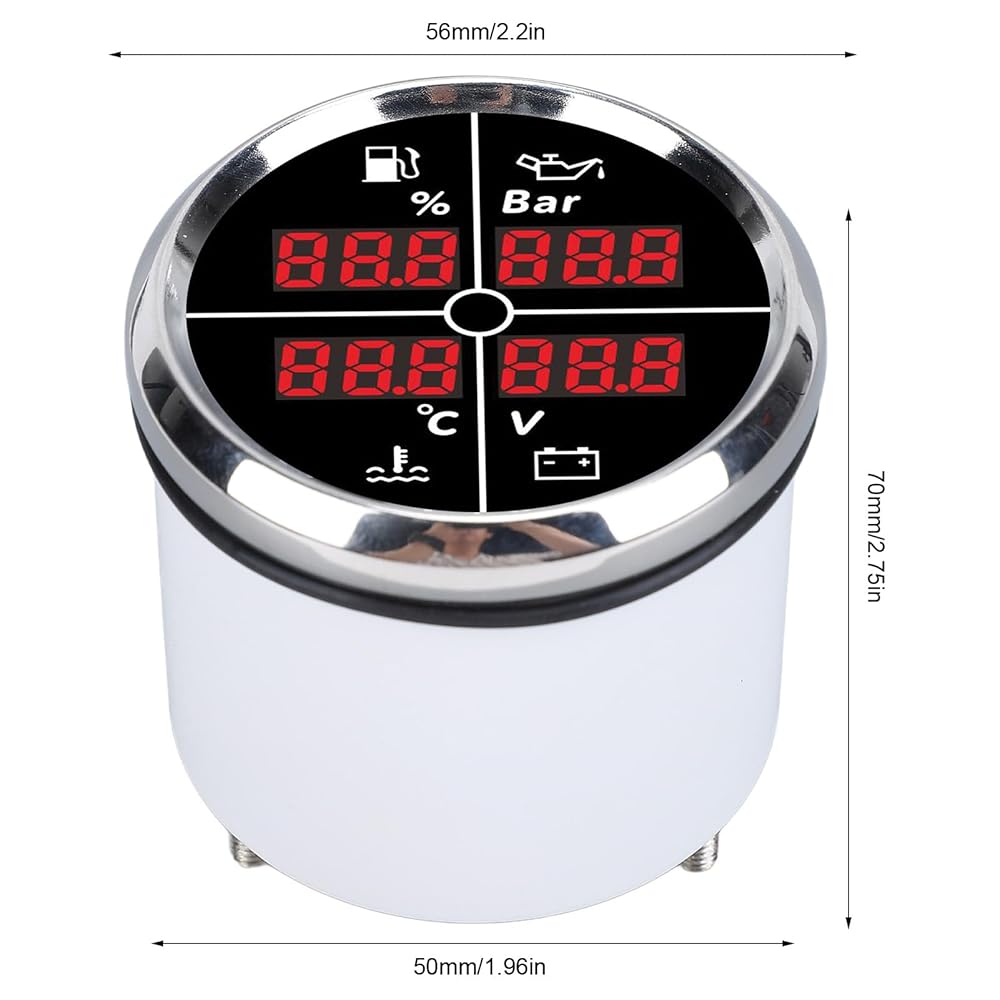

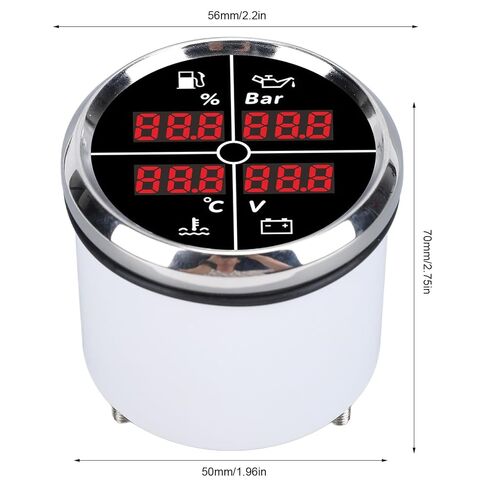

Step 1: Drill a 52‑53mm diameter hole in your center console or other pre installed location, leaving at least 70mm of space behind!
Step 2: Place the gauge into the drilled hole.

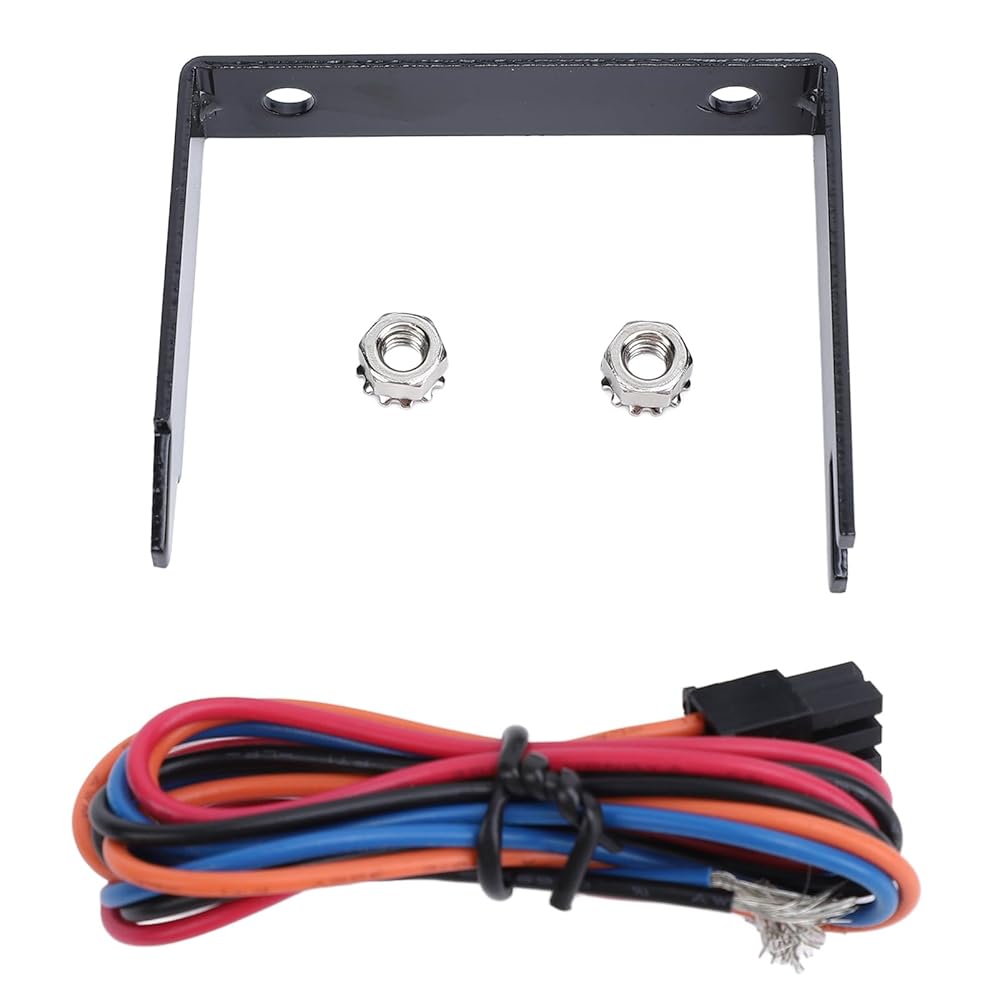

Step 3: Align the bracket screw holes with the screws on the back of the gauge, then tighten wi
