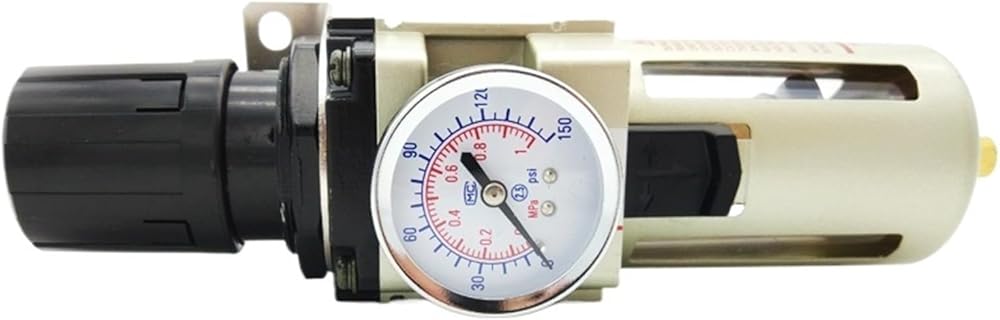

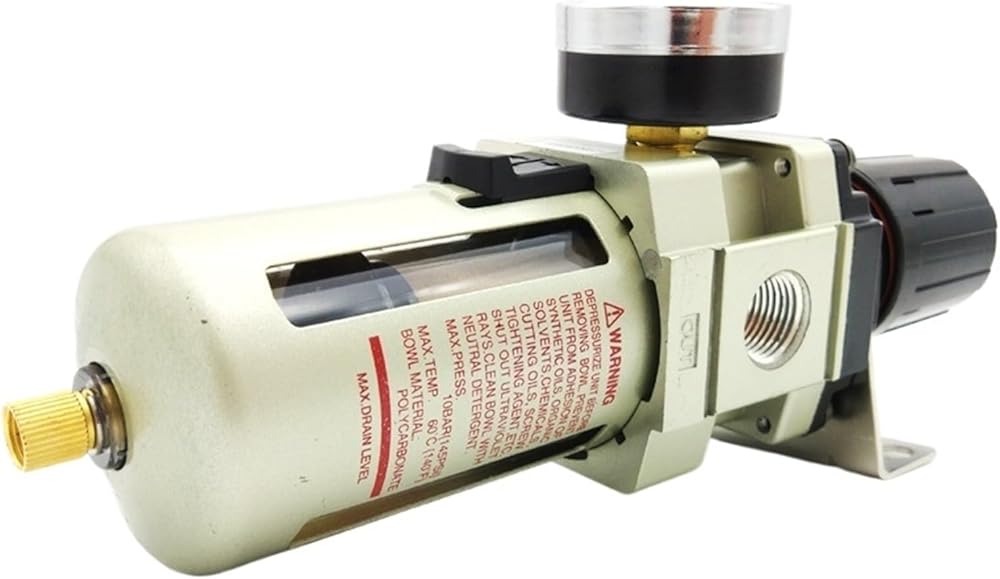

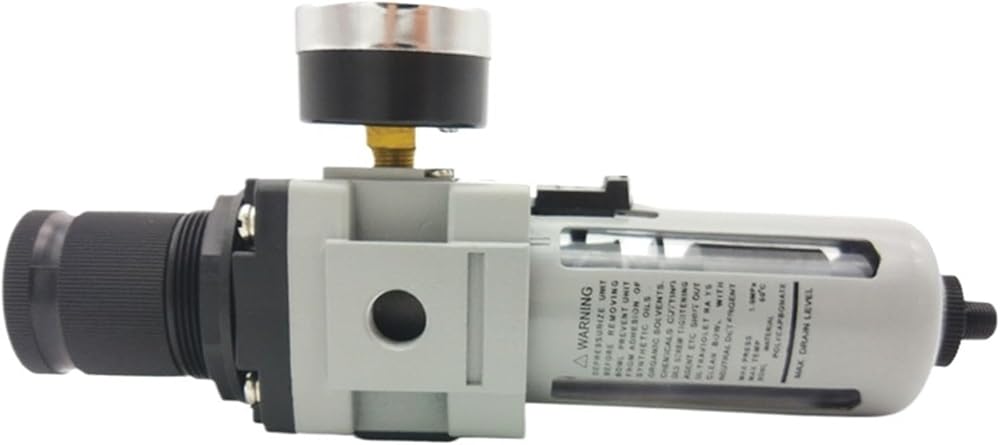

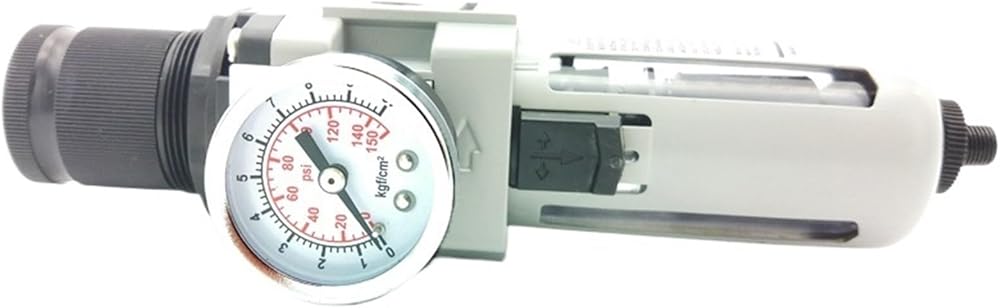

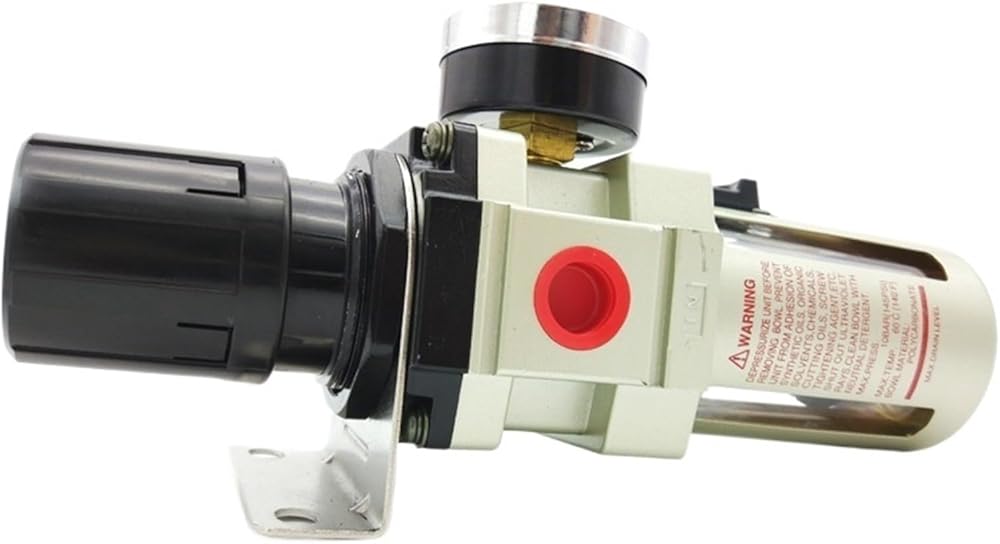

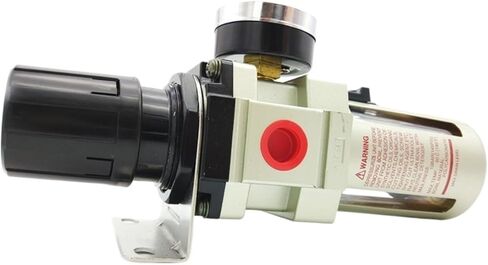

Air Preparation Unit AW2000 1/8 1/4 3/8 1/2 3/4 1 One Unit Air Treatment Unit Filter With Regulator Autodrain
AllFRLunitswillsendbyrandomlythecolorandfilter,Normallycolorisblack,orange,bluebotton.Normallyfilteriswhite(plastic)orBrass.
A Type FRLhave G thread and PTthread ,our warehouse send to you by Random.If you are care the thread,pls indicate to us about your thread request.
The images shown are not all the actual item and are for your reference only
Specification
Model
AW2000-01/02
AW3000-02/03
AW4000-03/04

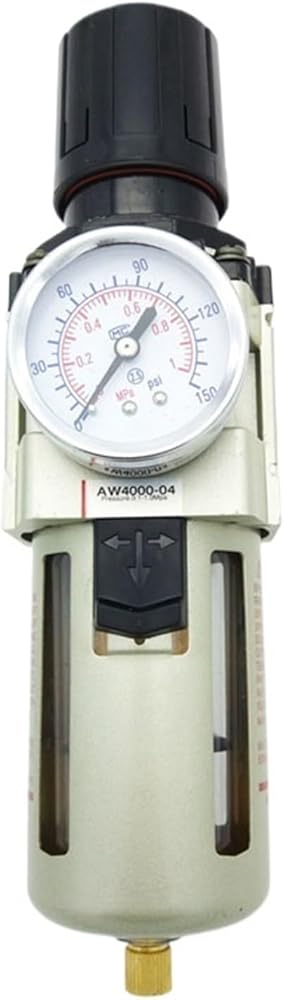

AW4000-06
AW5000-06/10
Port Size G
1/8" 1/4"
1/4" 3/8"
3/8" 1/2"
3/4"
3/4" 1"
Pressure Gauge Size G
G1/8"
G1/4"
Working Medium
Air
Pressure Range
0.05 ~ 0.85 Mpa
Rated Flow (L/min)
550
2000
4000
4000
5000
Applicable Temperature
-10 ~ 60 C
Filter precision
Standard : 5um
Type of valve
Overflow Type
Differential Pressure Type
Manual drain standard
Automatic drain option
Adopting Pressure Differential for automatic drain , drain automatically when the air depletion and make up produce differential
Also placed the left to be differential pressure type
Use float switch valve , drain automatically when water level over the float , close automatically after completely drain
Warning:
Confirm the air line and power in turned off before serving , prevent injury and damage while disassembly for maintenance.
Danger :
Pay attention to the direction of the air while installing, never used in reversed air direction .
==========
High-concerned chemical : None
Motivity Type : Other
Type : Treatment Unit
Model Number : AW2000 3000 4000 5000
Origin :
Model : 01 02 03 04 06 10
Port Size : 1/8 , 1/4 , 3/8 , 1/2 , 3/4 , 1
Temperature : -10 ~ 60 C
Medium : Air
Operating Pressure Range : 0.05 ~ 0.85 Mpa
Material : Aluminium Alloy
Thread : G / PT
