Product Name: Brass Carb Pilot Jet
Category: Slow Jet
Jet Size: #10 - #57.5
Material: Brass, Stainless Steel, Nylon
Thread Size: M5 x 0.8mm

Features:
- Complete Slow Jet Kit: The package includes 20 idle jet, 5 carburetor cleaning needles, and 5 cleaning brushes, all packaged in a small plastic box. Each jet is engraved with a number, and the model is: #10 / #12.5 / #15 / #17.5 / #20 / #22.5 / #25 / #27.5 / #30 / #32.5 / #35 / #37.5 / #40 / #42.5 / #45 / #47.5 / #50 / #52.5 / #55 / #57.5.
- Function: The slow jet is mainly used to control the idle fuel supply and maintain stable combustion. When your motorcycle experiences unstable idle, easy stalling, difficult cold start, excessive mixture (emitting black smoke), and increased fuel consumption, it is possible that the low speed jet is blocked or damaged and needs to be replaced in a timely manner.
- Superior Premium Material: The carburetor high precision jet kit is made of copper, tough and long-lasting, corrosion resistant. CNC lathe processing, smooth surface, accurate size. Total length 13.6mm, thread: 5mm x 0.8mm. 5 stainless steel bristles and cleaning needles are made of 304 stainless steel, wire winding, rust, flexible handle, no deformation. High density nylon, good elasticity, no shedding.
- Fitment: Aftermarket jets fit for Mikuni carburetor VM18 VM22 VM26-8074 VM26 - VM34 flange mounted, VM24 - VM44 spigot mounted, TM24- TM38 without accelerator pump, non OEM and early TMS / TMX series carburetor. For many other OEM 2-stroke, and 4 stroke models.
- Easy installation: Simply turn off the fuel switch, unplug the fuel pipe, remove the carburetor, and remove the float component. Then find the idle jet, carefully unscrew the damaged low speed nozzle with a precision screwdriver, and replace it.

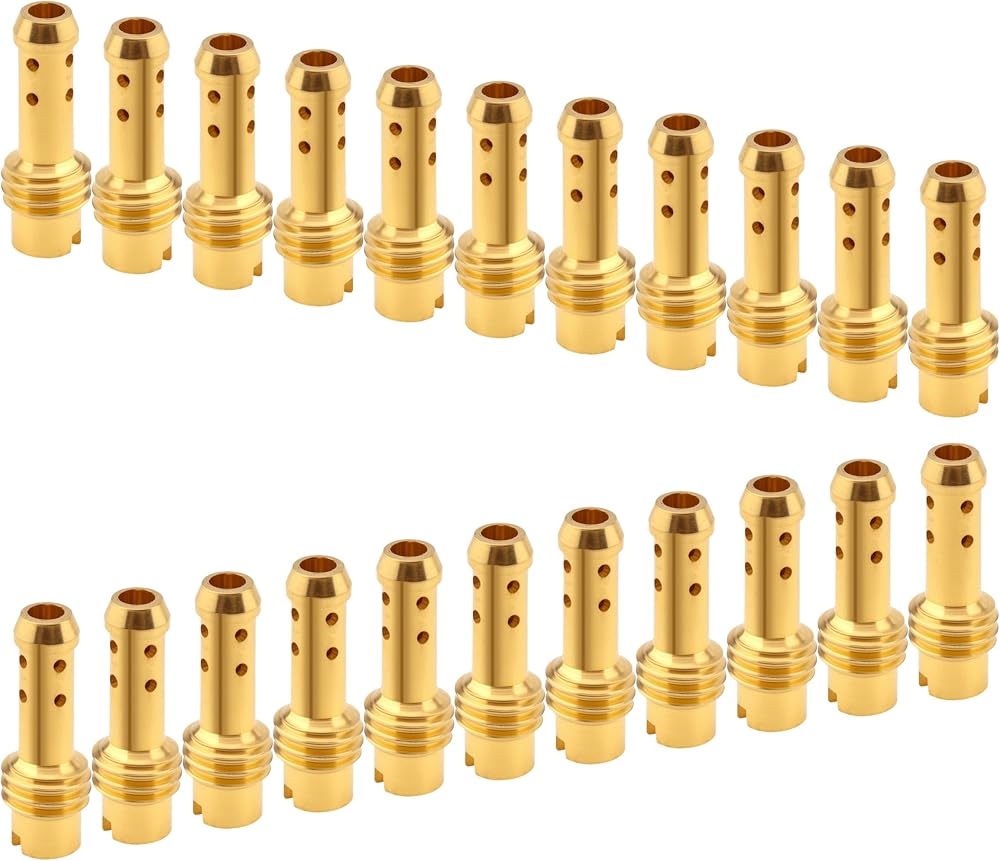

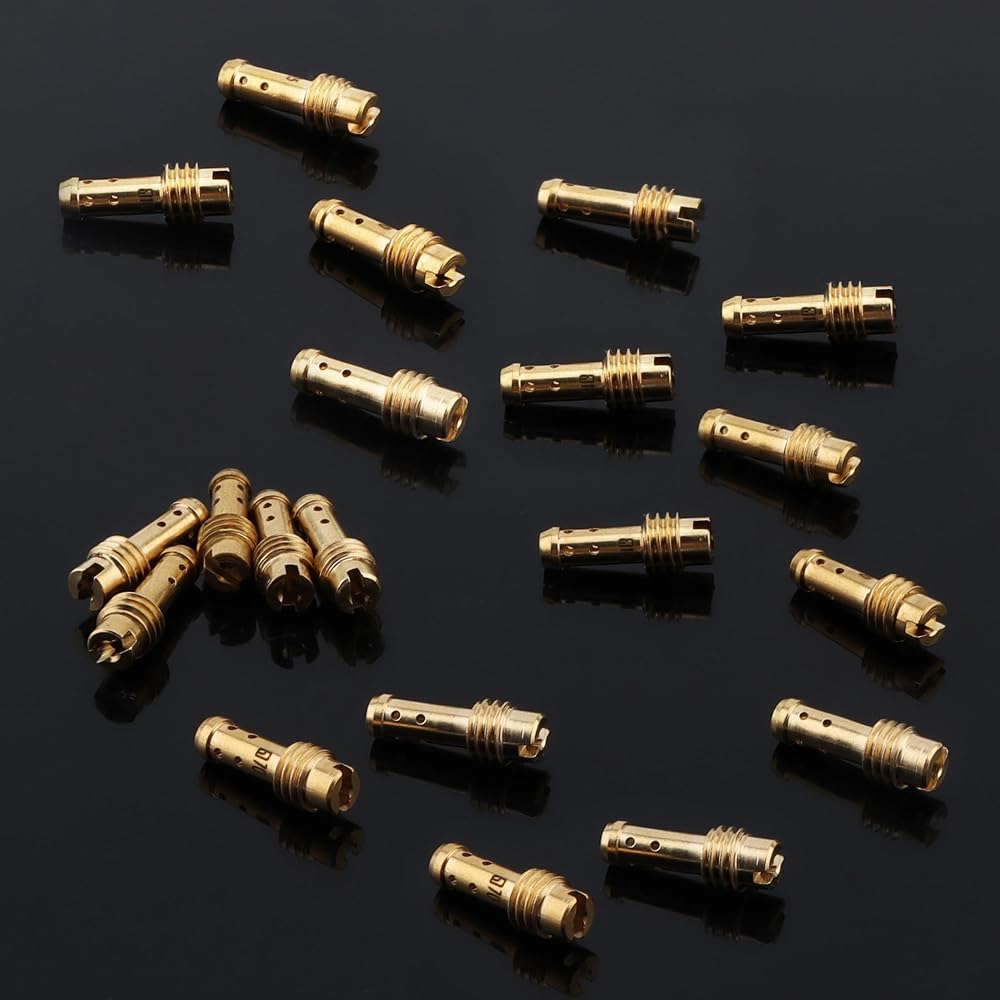

Pilot Jet:
- Length: 13.6mm
- Thread: M5 X 0.8mm
- Size: 10 / 12.5 / 15 / 17.5 / 20 / 22.5 / 25 / 27.5 / 30 / 32.5 / 35 / 37.5 / 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 / 57.5
Cleaning Brush
- Overall Length: 110mm
- Brush Length: 30mm
- Brush Diameter: 3mm / 4mm / 5mm / 6mm / 7mm
- Wire Diameter: 0.5mm / 0.6mm / 0.6mm / 0.7mm / 0.7mm
Cleaning Wire Torch Tip
- Overall Length: 110mm
- Wire Diameter: 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm Place of Application:
- The pilot jet fit for VM16-519 VM18-144 VM22-133 VM24-512 VM26 VM26-8074 VM28 round slide - flange mount. Fit for VM28-418 flat slide VM29 smoothbore race VM30 round slide - flange mount. Fit for VM30-164 VM30-83 VM32 round slide - flange mount. Fit for VM32-193 VM32-282 VM32-33 round slide, VM33 smoothbore rack VM34 round slide - flange mount. Fit for VM34-168 VM34-275 VM34-389 VM36-4 VM38-21 VM38-9 VM44-3 VM44-7 round slide.
- The slow running jet fit for TM24-8001 TM32-1 TM34-2 TM35-1 TMX TM36-2 TM38-101 TM38-102 TM38-18 TM38-27 TM38-85 TM38-86 flat slide.

Package Include:
19 x Carburetor Slow Jet (#10 - #57.5)
5 x Cleaning Needles
5 x Brushes
