Oil Pressure Gauges
HD 52mm Universal Digital 3 In 1 Multi Function Gauge 40-120 Water Temp Fuel Gauge Oil Pressure Voltmeter RPM With Alarm 9-32V
Specifications:
- Voltmeter: 9-32V
- Holding Tank: 0-100%
- Tachometer: 0-9990RPM
- Water Level: 0-100% (Level sensor: 0-190ohm/240-33ohm available)
- Fuel Level: 0-100% (Press the back button to adjust the level signal: 0-190ohm/240-33ohm available.)
- Oil Pressure: 0-10 bar (Pressure sensor: 10-184ohm)
* Sensor are not provided with this gauge.
- Voltmeter: 9-32V
- Alarm: Symbal flashing(When 2 or more faults occur, an item is reported every 3s.)
- Degree of Protection: IP67
- Backlight: TFT Screen
Alarm :
Oil Temp more than 108 ;
Water temp more than 95;
HTG more than 75%;
Oil pressure less than 0.8bar;
Fuel Level less than 13%;
Fresh Level less then 13%;
12v System less than 11.5V;
24v System less than 22V.

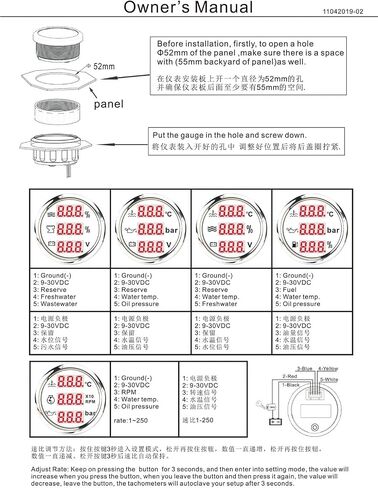

Connection:
1 Black:Ground(-)
2 Red:9~32VDC(+)
3.Blue:Reserve
4.Yellow:Temperature signal
5.White:Oil pressure signal

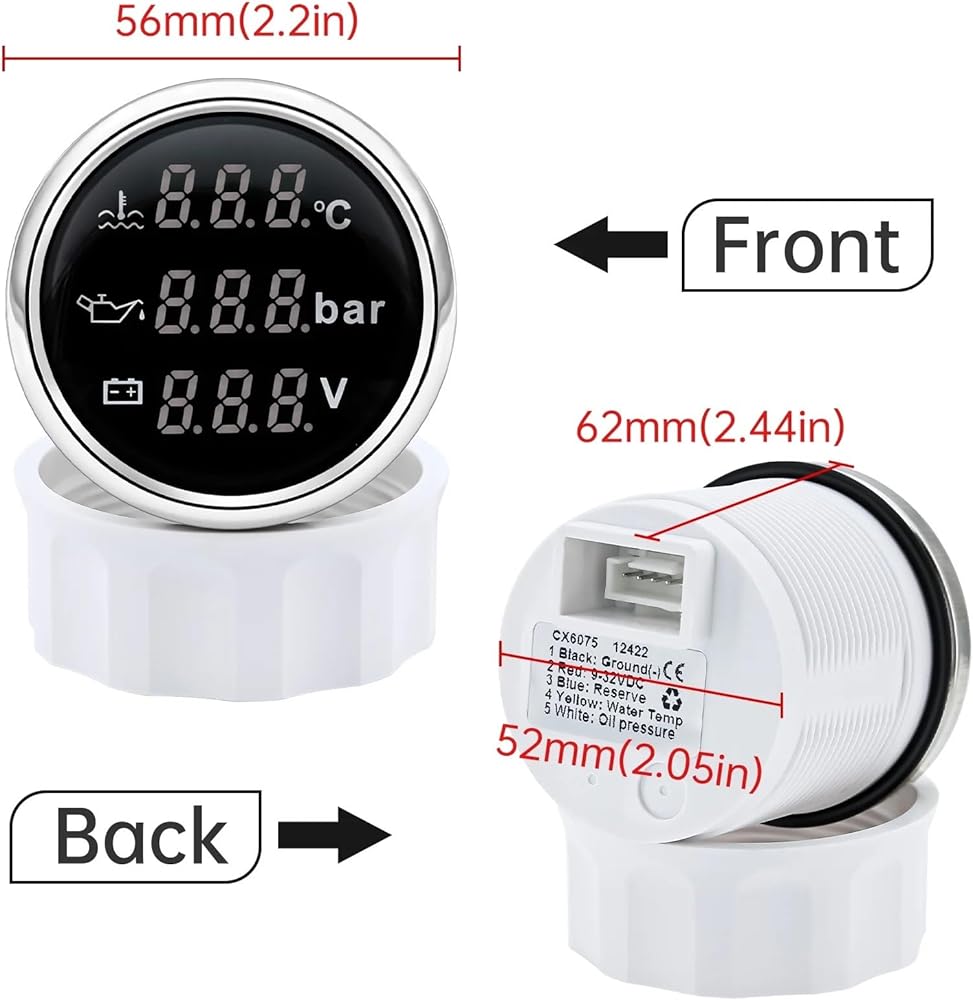

Dimensions:
- 52mm diameter (2")
- 55mm Depth (2-3/4")
Package Includes:
1X 3 in 1 Multifunction Gauge
1X Multi-plug socket
1x Installation Instruction
Water temp+ Oil press+Fuel gauge
Water temp+water level+voltmeter
==========
High-concerned chemical : None
Other Part Number : fuel level gauge sensor
Placement on Vehicle : Front
Part Number : fuel guge
Interchange Part Number : water temperature indicator
Special Features : 3 in 1 Multifunction Gauge Meter
Item Weight : 0.15kg
Item Height : 52mm
Item Width : 52mm
Item Length : 52mm
NO. : Oil Pressure gauge
Material : Stainless steel with plastic
Name : 52mm 3 in 1 multi-functionall Gauge
Degree of Protection : Waterproof IP67
Engine temperature : 40~120degrees
Engine Oil Pressure : 0-10Bar
Auto gauges : Car Auto Oil Press Gauge
Backlight : TFT Screen
Feature : Sensor fault alarm,Car Temperature Gauge Indicator
Feature2 : Car Temp Meter Gauge
Feature3 : Water level gauge
Water Temperature Gauge : Digital Car Gauge
Oil Pressure Gauges meter : 3 IN 1 Digital Gauge
Water level gauge sensor : 14mm/17mm/21mm
Water Level Indicator : water level sensor
3 in 1 Digital Multi-Function Gauge : with Alarm
Fuel Gauge Sensor : rpm meter
Tachometer : tacho sensor
RPM Sensor : M16/M18
alarm meter : holding tank meter gauge
