Transform your pit or dirt bike with this complete front and rear suspension and wheel assembly kit. The package includes everything from the 14" front / 12" rear knobby tires to the steel swingarm and hydraulic disc brakes. Designed for off-road performance, the knobby tires deliver exceptional grip, while the hydraulic brakes ensure reliable stopping power in all terrain conditions.
The front fork measures 28.94" (735mm) and fits wheels from 14" to 17", with triple clamp risers designed for 7/8" (22mm) handlebars. The rear swingarm features a 285mm (980 lbs spring) shock for stability and comfort, plus a 428 41T sprocket for smooth power transfer.
Specifications:

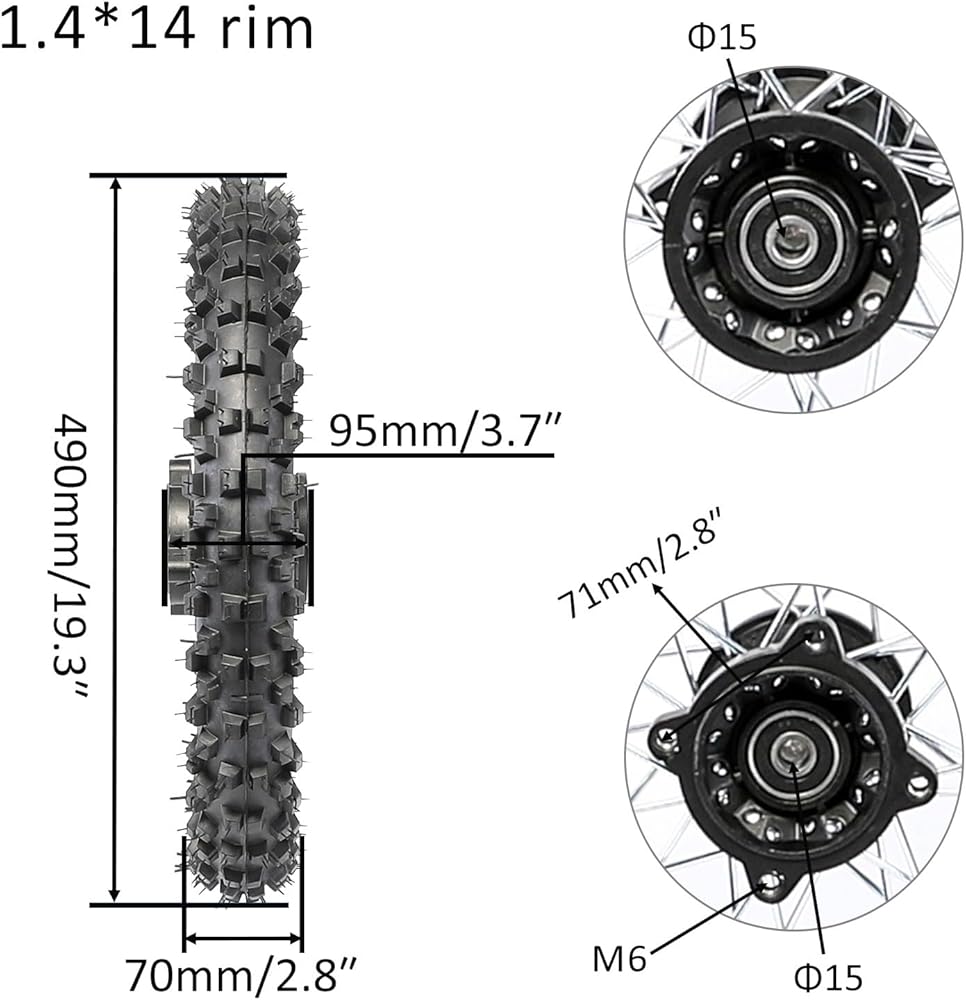

– Front Wheel: 60/100-14 tire on 1.40x14 rim

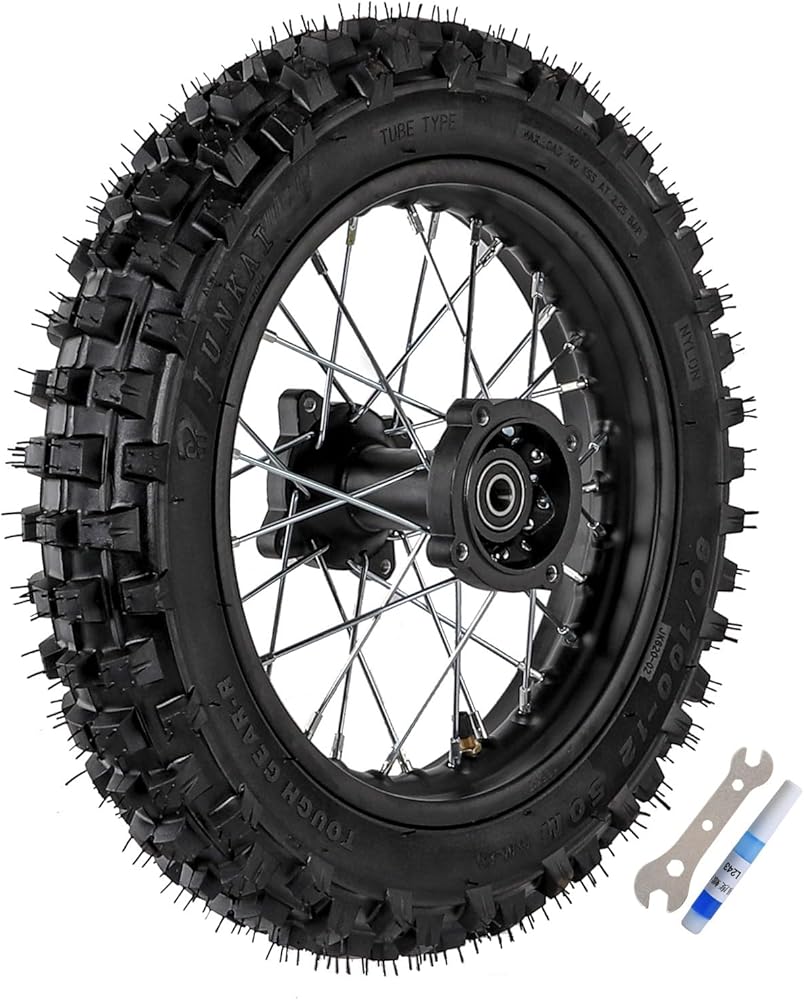

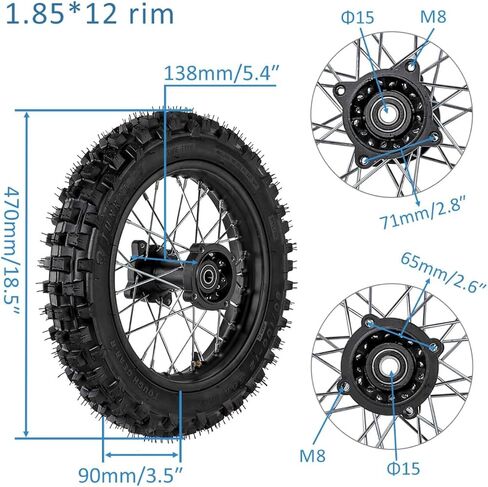

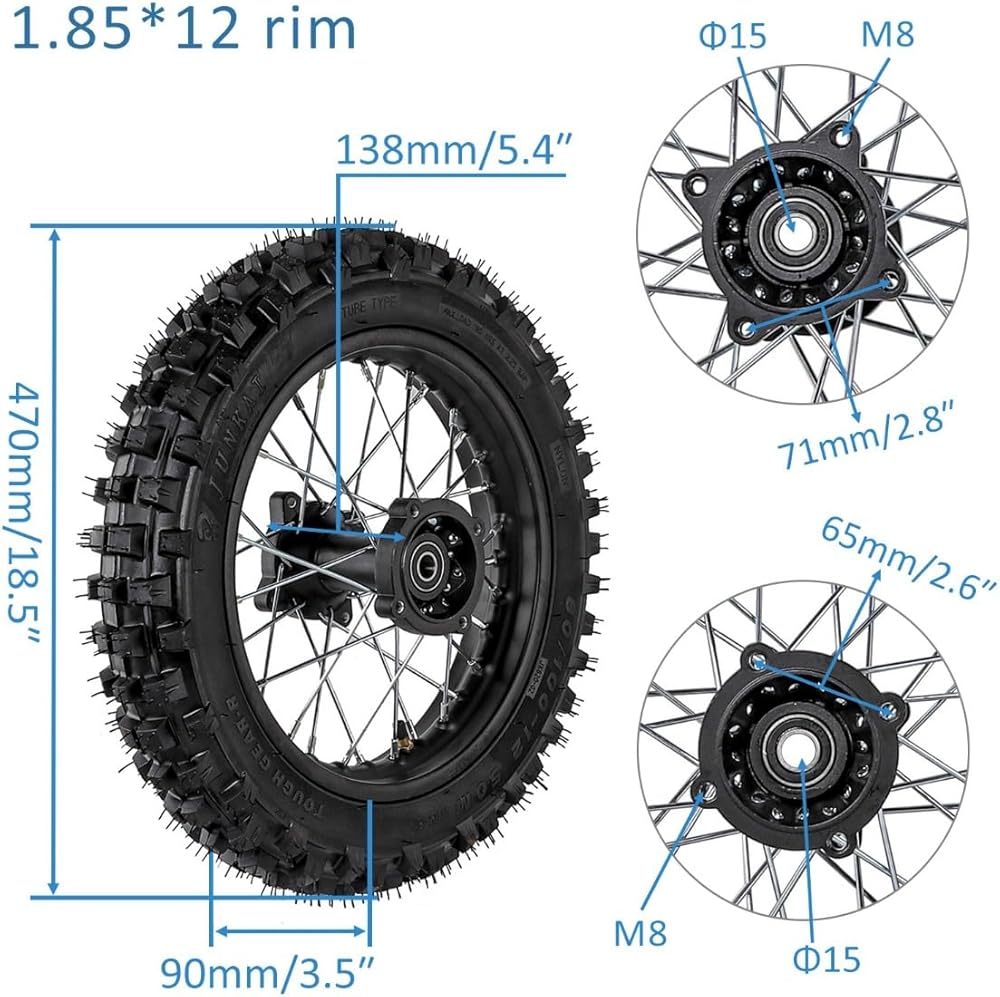

– Rear Wheel: 80/100-12 tire on 1.85x12 rim
– Axle Diameter: 15mm

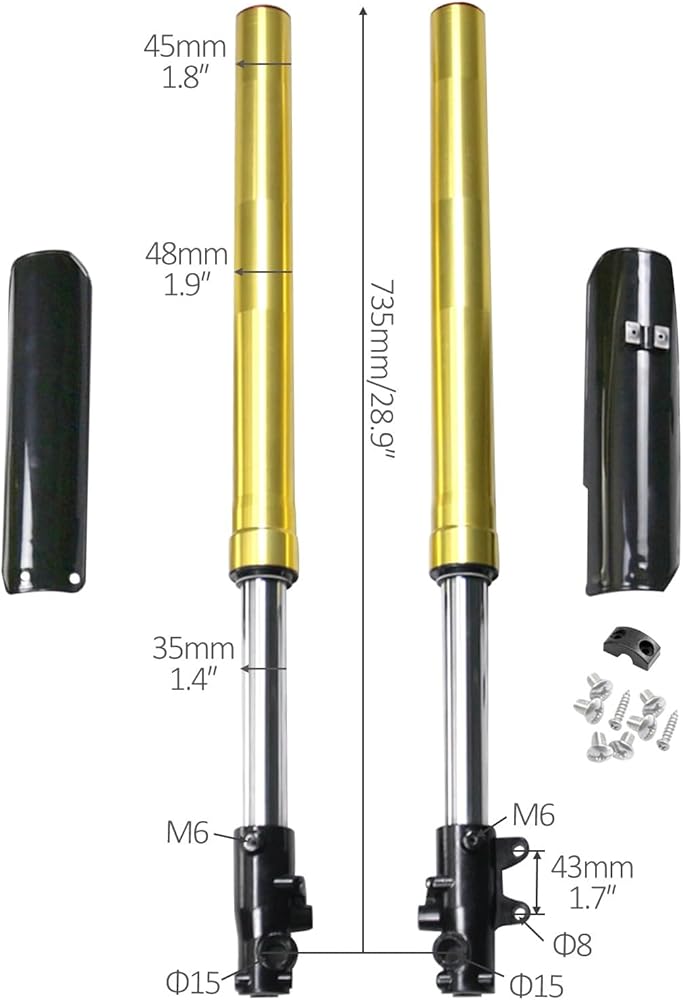

– Fork Length: 735mm (28.94")
– Clamp Size: 45mm (top), 48mm (bottom)
– Handlebar Fit: 7/8" (22mm)
– Brake Mounting Distance: 70mm
– Sprocket Mounting Distance: 65mm
– Rear Shock: 285mm, 980 lbs spring
– Material: Steel swingarm, alloy rims, rubber tires

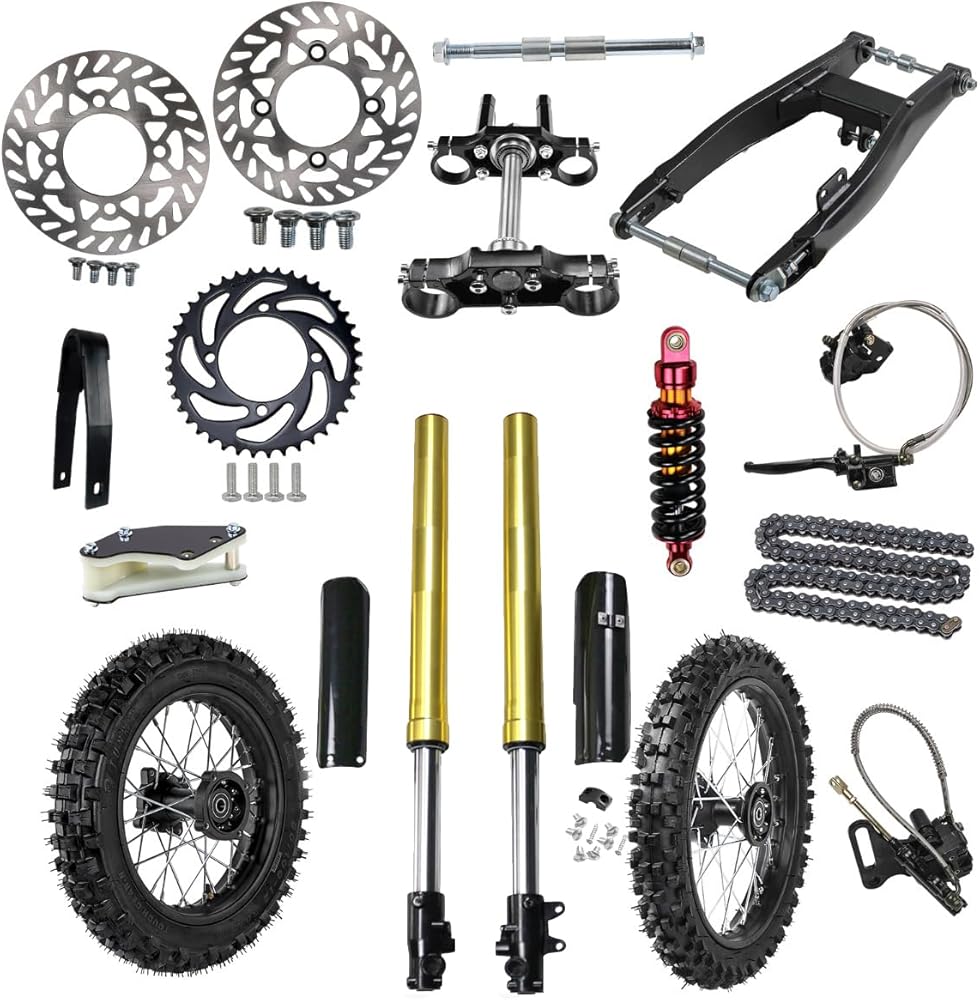

📦 Package Includes:
– 2 x Wheels & Tires (Front 60/100-14, Rear 80/100-12)

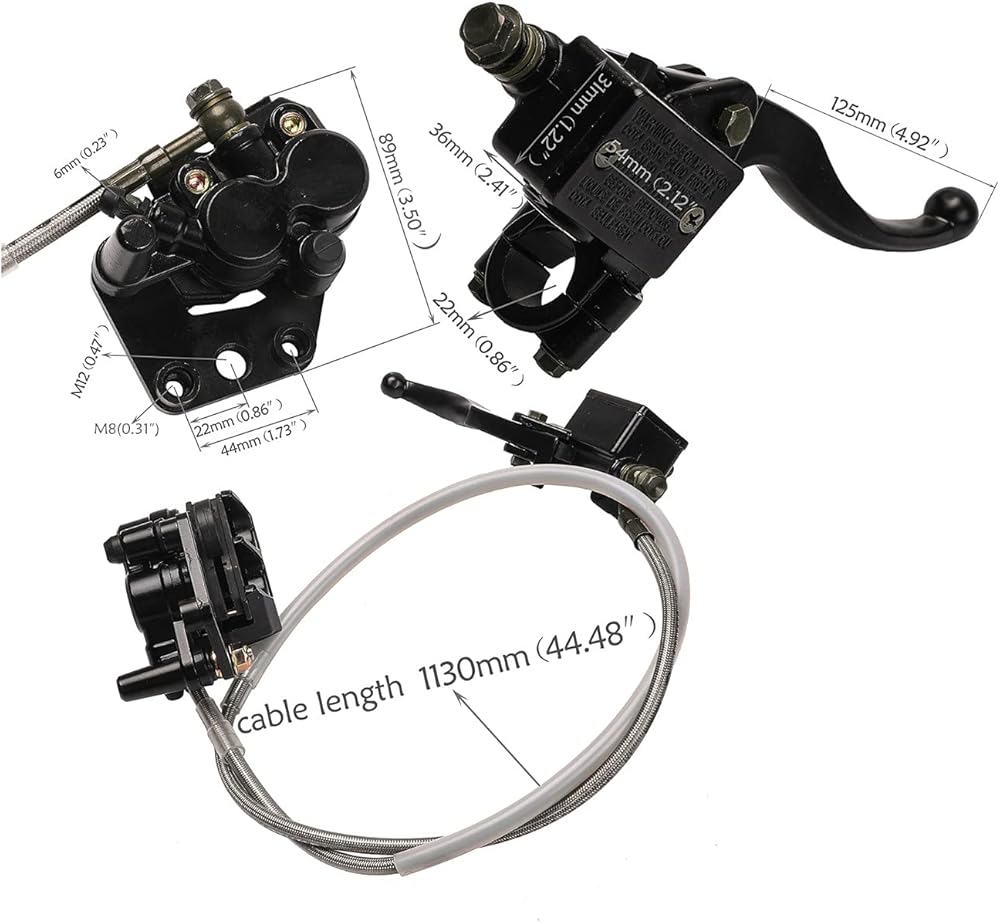

– 2 x Brake Discs & Hydraulic Master Cylinders
– 2 x Wheel Axles
– 1 x Complete Front Fork Assembly

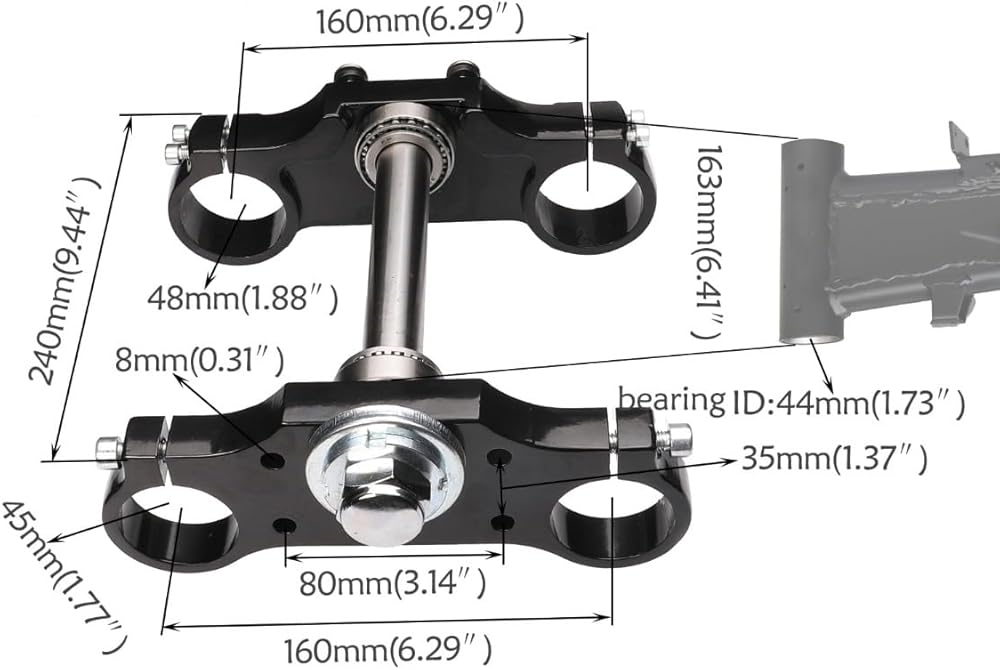

– 1 x Triple Clamp Handlebar Riser Set
– 1 x 428 41T Rear Sprocket

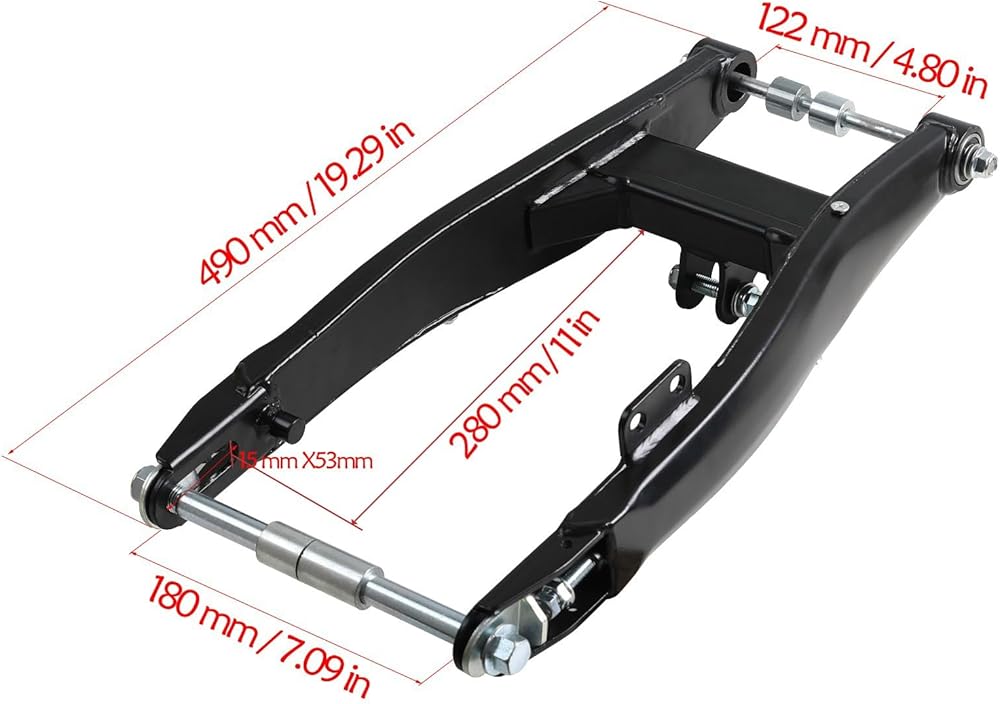

– 1 x Rear Swingarm
– 1 x 285mm Rear Shock (980 lbs spring)
