Specification:

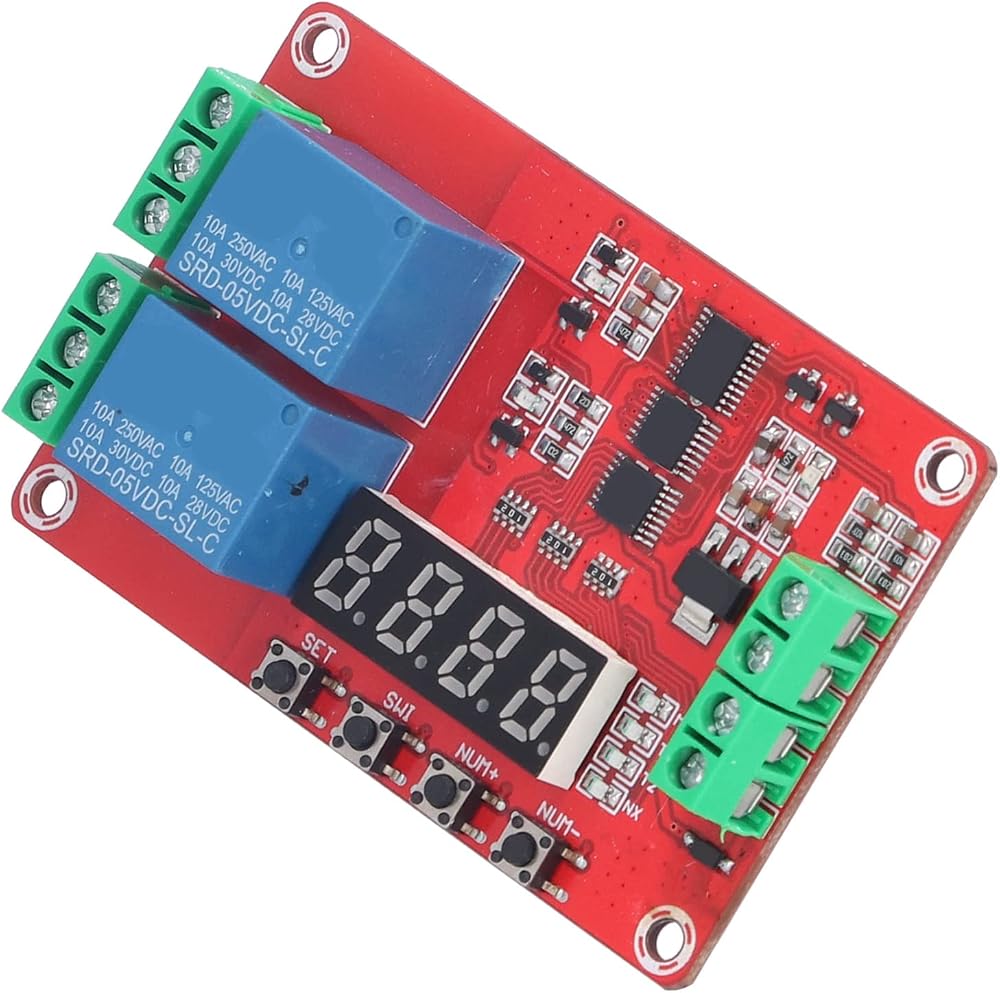

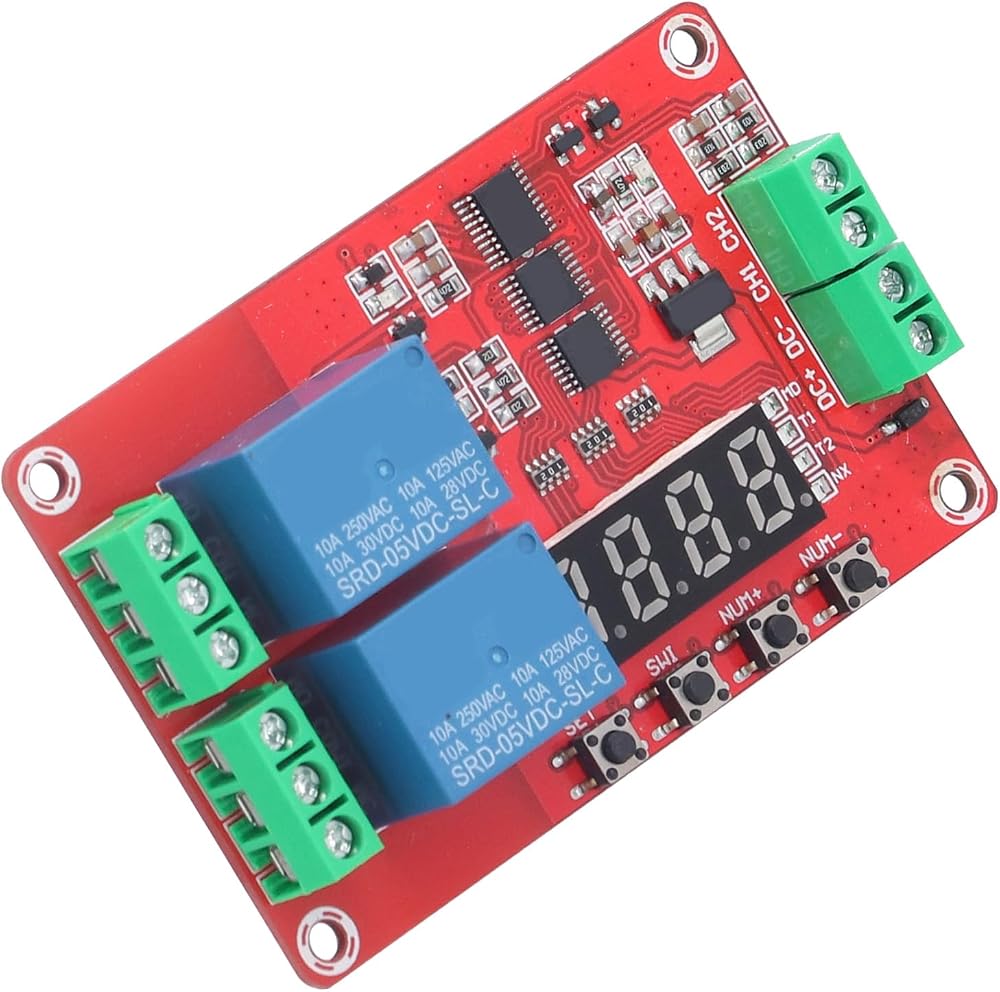

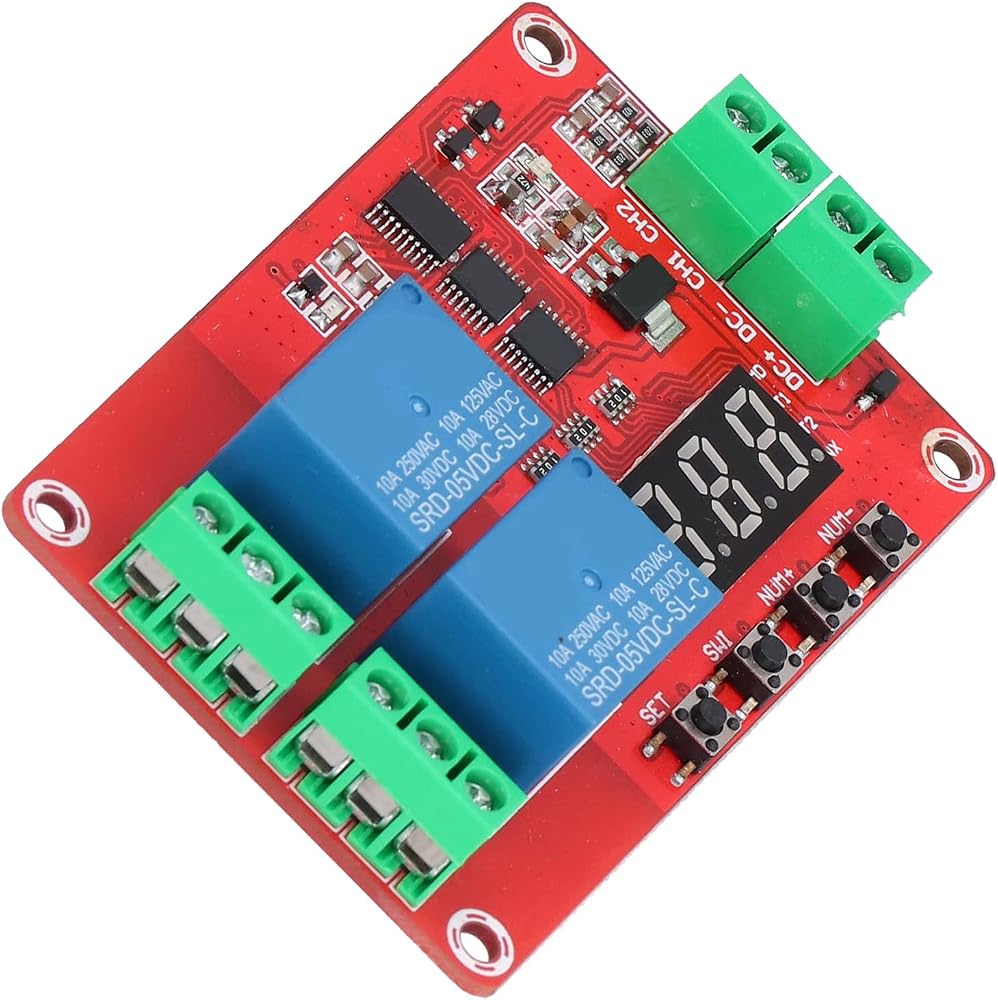

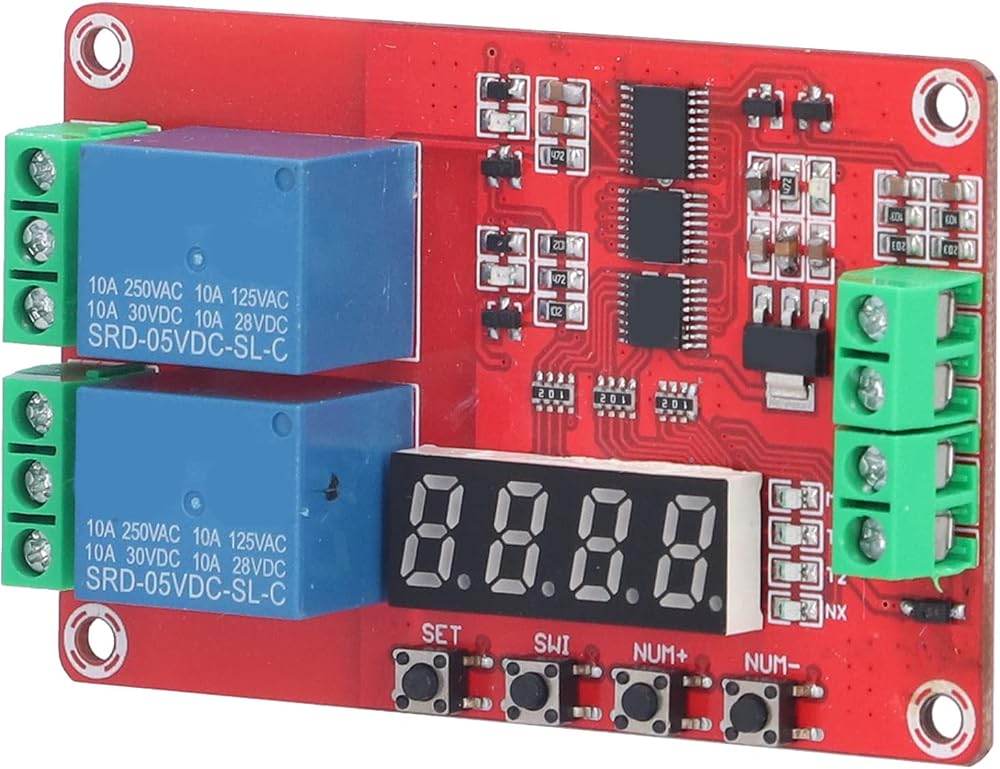

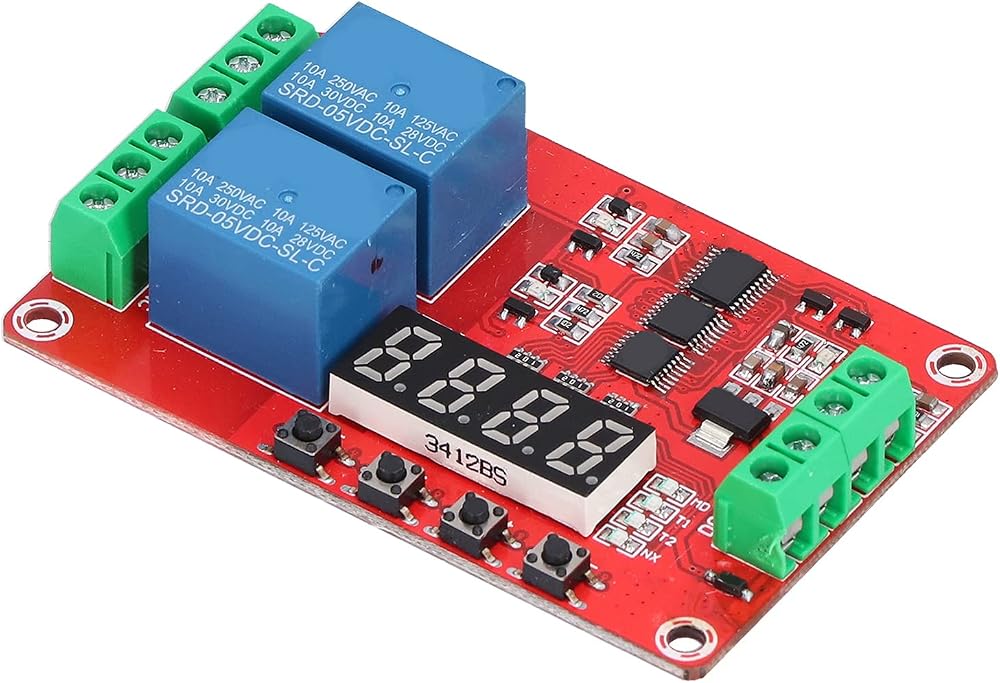

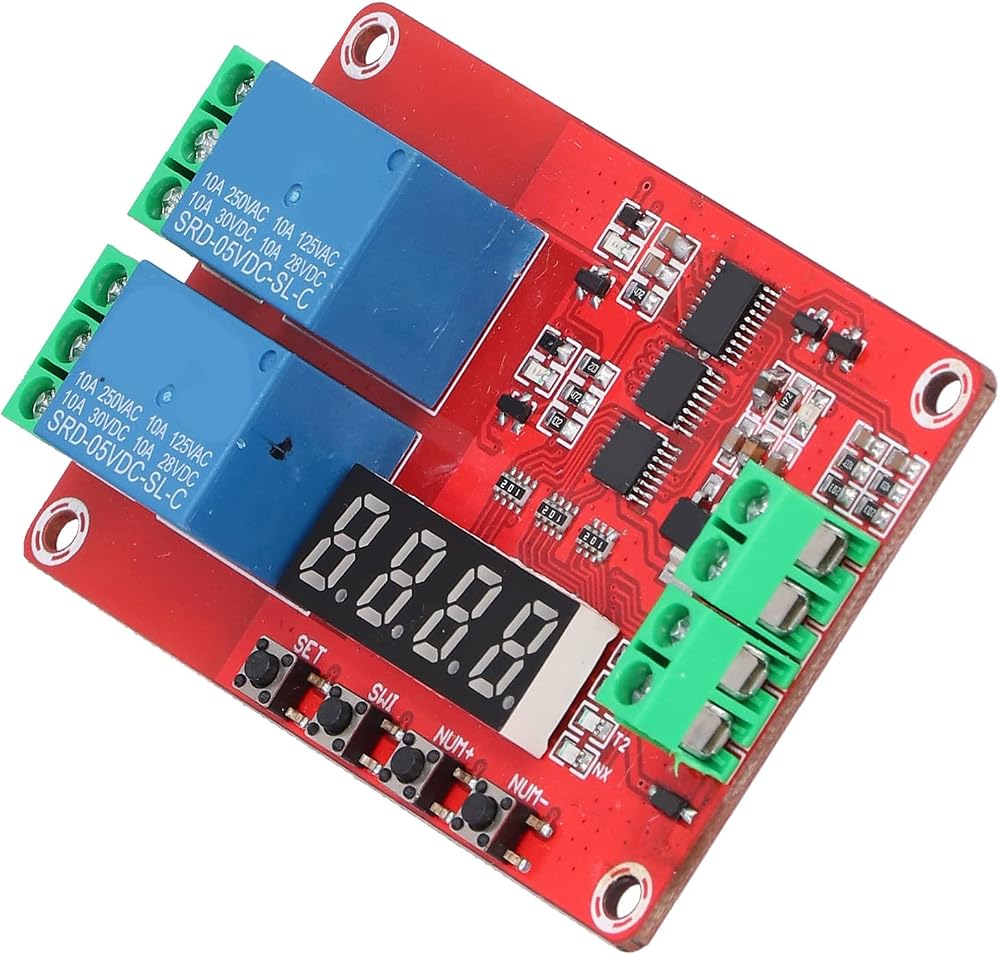

Item Type: Time Delay Relay

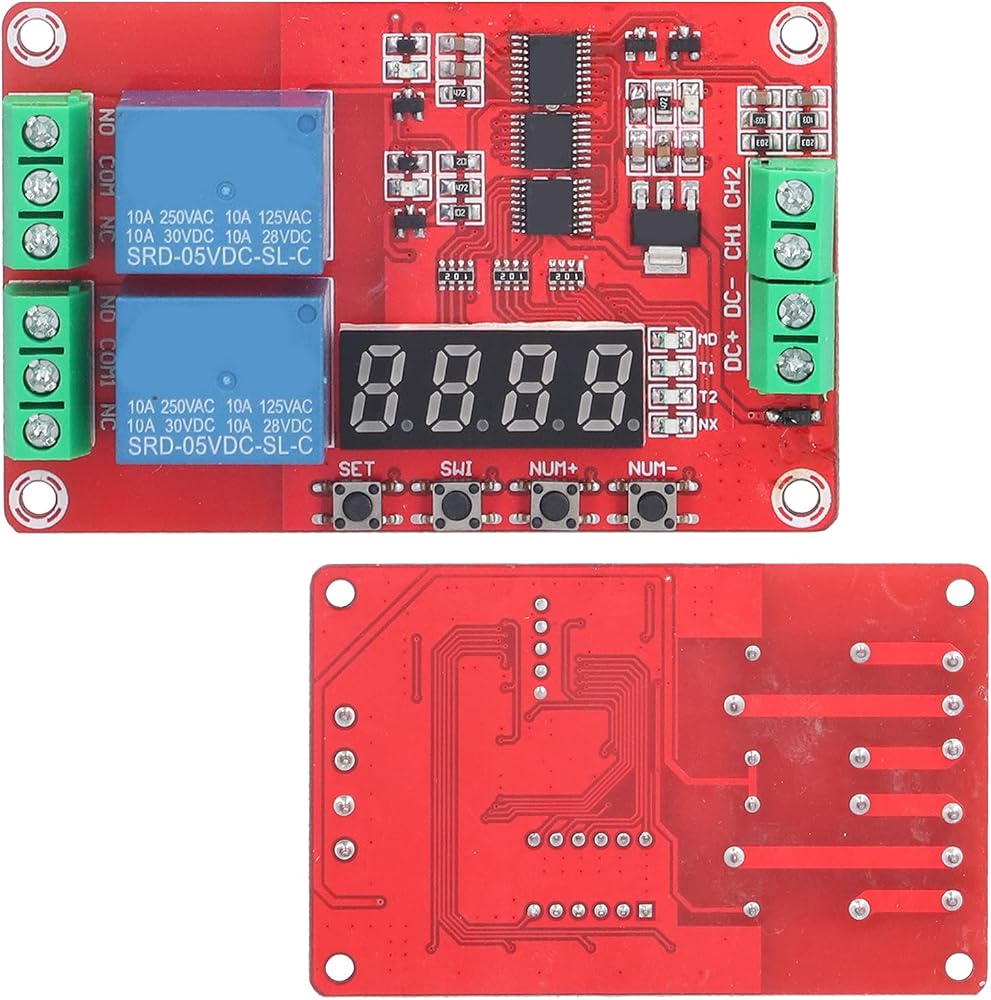

Module Control Terminal: There is a 3-wire interface, all interfaces have wiring terminals, which is convenient for users to use
1. DC+: DC power supply positive (5V, 12V and 24V modules are available)
2. DC-: negative pole of DC power supply
3. CH1: Input detection interface 1, active at high level
3. CH2: Input detection interface 2, active at high level
Relay Output Terminal: 6-wire interface, all interfaces have wiring terminals
1. NO1: Relay normally open interface 1, hang in the air before the relay is closed, and short-circuit with COM1 after it is closed
2. COM1: Relay common interface 1
3. NC1: Relay normally closed interface 1, short-circuit with COM1 before the relay is closed, and hang in the air after being closed
4. NO2: Relay normally open interface 2, hang in the air before the relay is closed, and short-circuit with COM2 after it is closed
5. COM2: Relay common interface 2
6. NC2: Relay normally closed interface 2, short-circuit with COM2 before the relay is closed, and hang in the air after being closed
Load Capacity: Maxim
