Specs & cross references: 12 VDC coil, SPDT (1 Form C) contacts, 16 A resistive rating, max switching 380 VAC / 125 VDC, coil resistance ≈275 Ω (≈43.6 mA), operate/release 15 ms / 5 ms, dielectric 5 kV (coil-to-contacts), surge 10 kV, operating temp −40 to 70 °C, size 29 × 13 × 25.5 mm. Compatible with Omron G2R-1-E DC12 aliases such as G2R-1E-DC12 / G2R1EDC12 part codes.
Install & location: PCB through-hole mounting; SPDT pin layout for G2R-1-E footprint. Typical board locations: fan/blower output, compressor/contactor drive, pump/motor interposing relay, heater/aux output. Observe creepage/clearance, use a diode or TVS across the coil for DC drive, and an RC snubber or MOV on inductive loads. Note: socket bases like P2RF-xx are for G2R-1-S plug-in versions; this -E model does not fit sockets.
Application compatibility (equipment categories): Compatible with control boards that specify “G2R-1-E DC12” for the relay position—HVAC air handlers/furnaces/boilers/condensing units, dehumidifiers, vending/coffee machines, refrigeration, PLC I/O panels, CNC/3D-printer controllers, alarm/automation panels, lab and test gear. Use as a fan relay / heat relay / cool relay / pump relay / general interposer where an SPDT 16 A PCB relay is required.
Fixes common faults: Designed to replace failed on-board SPDT relays causing no-start fans or pumps, compressor not engaging, intermittent outputs, audible chattering/clicking, welded NO/NC contacts, or overheated relay pads. Match coil voltage, footprint and contact rating before installation; reflow with proper solder technique to avoid pad lift on aged boards.
Complementary parts for a complete repair: Pair with a flyback diode on the coil (e.g., 1N400x class) and an RC snubber/MOV on inductive loads to extend relay life. If your system uses a socket-mount relay, select a Compatible with Omron G2R-1-S plug-in versionand the matching Compatible with Omron P2RF socket instead; the PCB G2R-1-E is for direct soldering; the PCB G2R-1-E is for direct soldering. Add fuses/terminal blocks as required by your panel design.
وصف

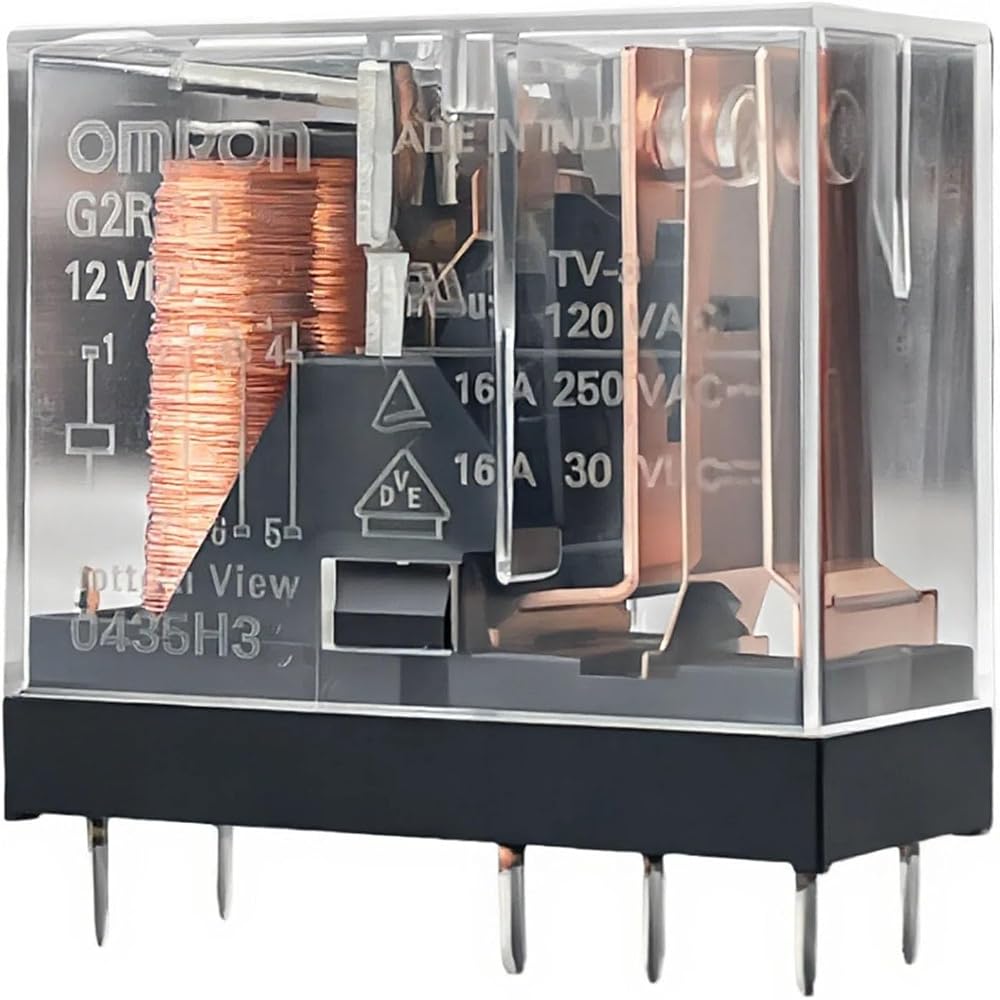

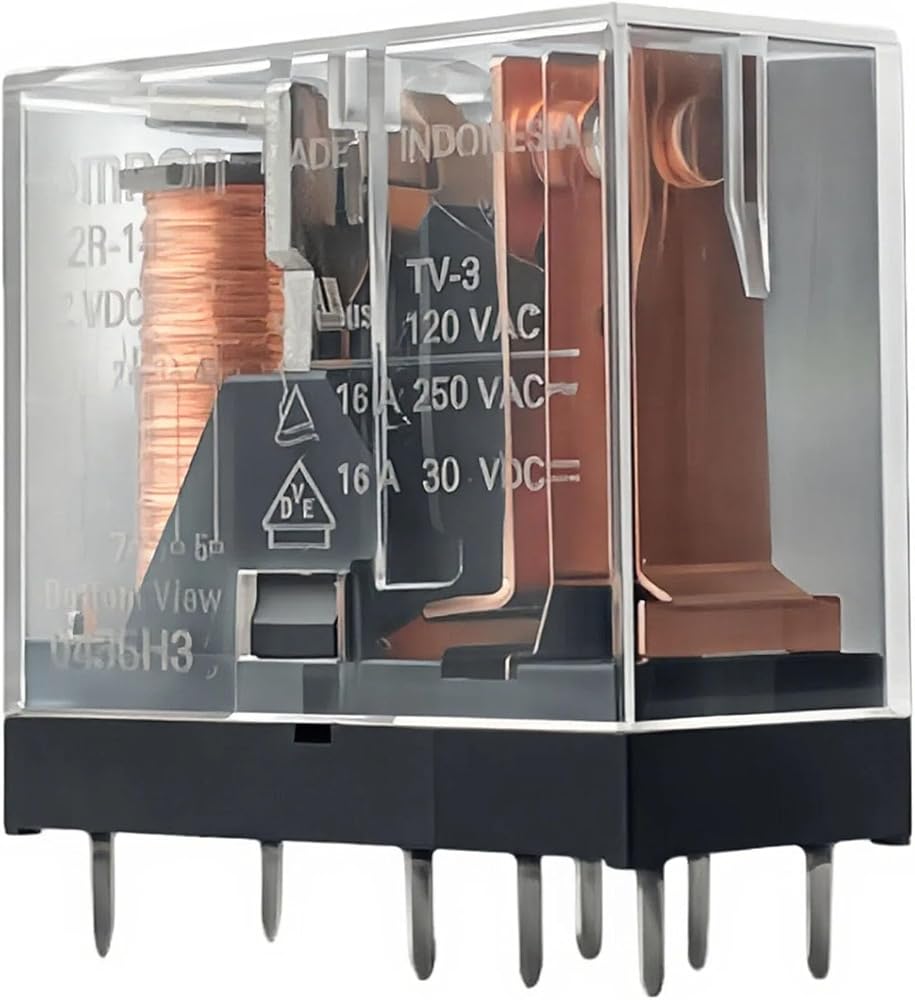

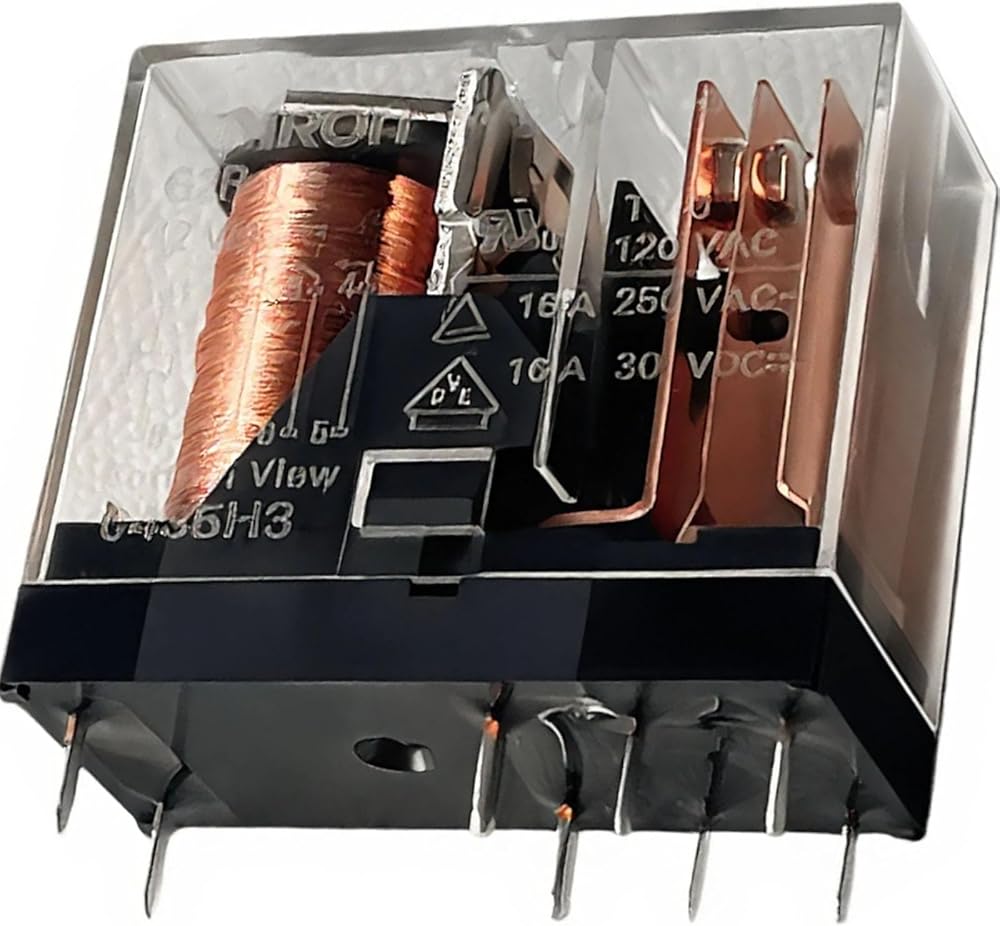

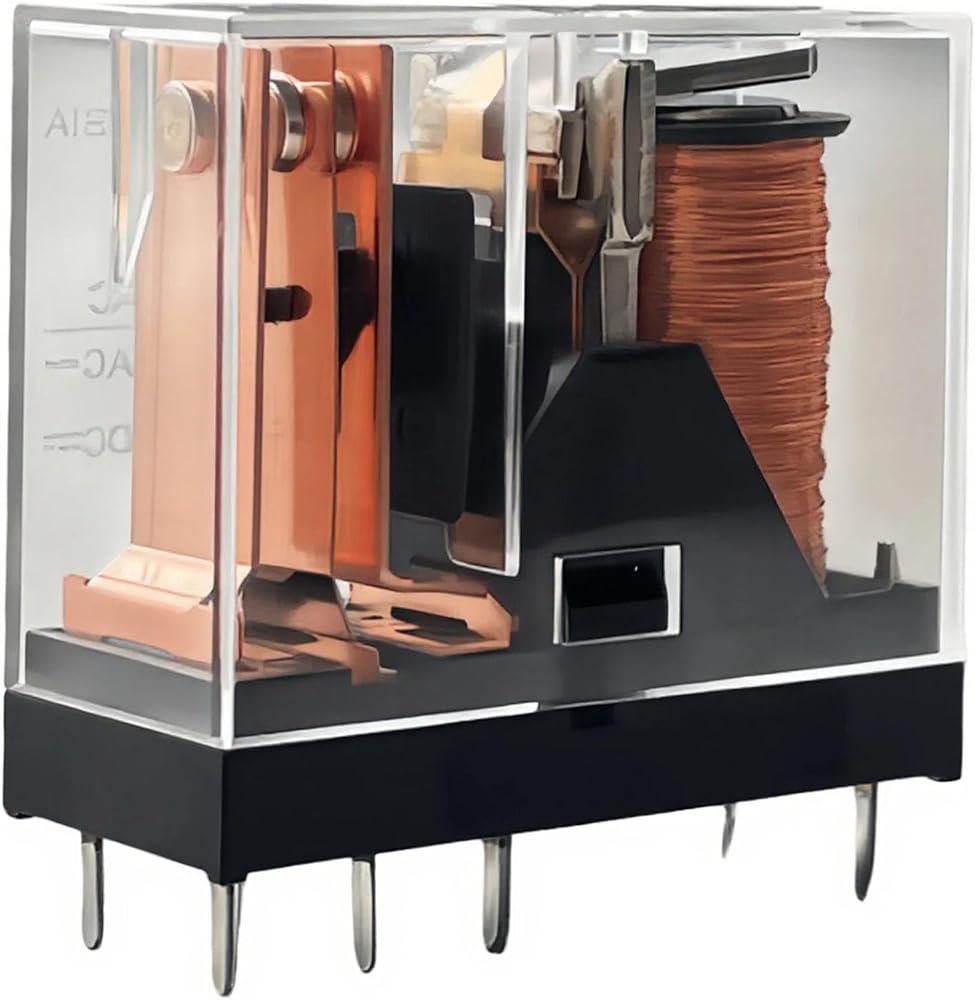

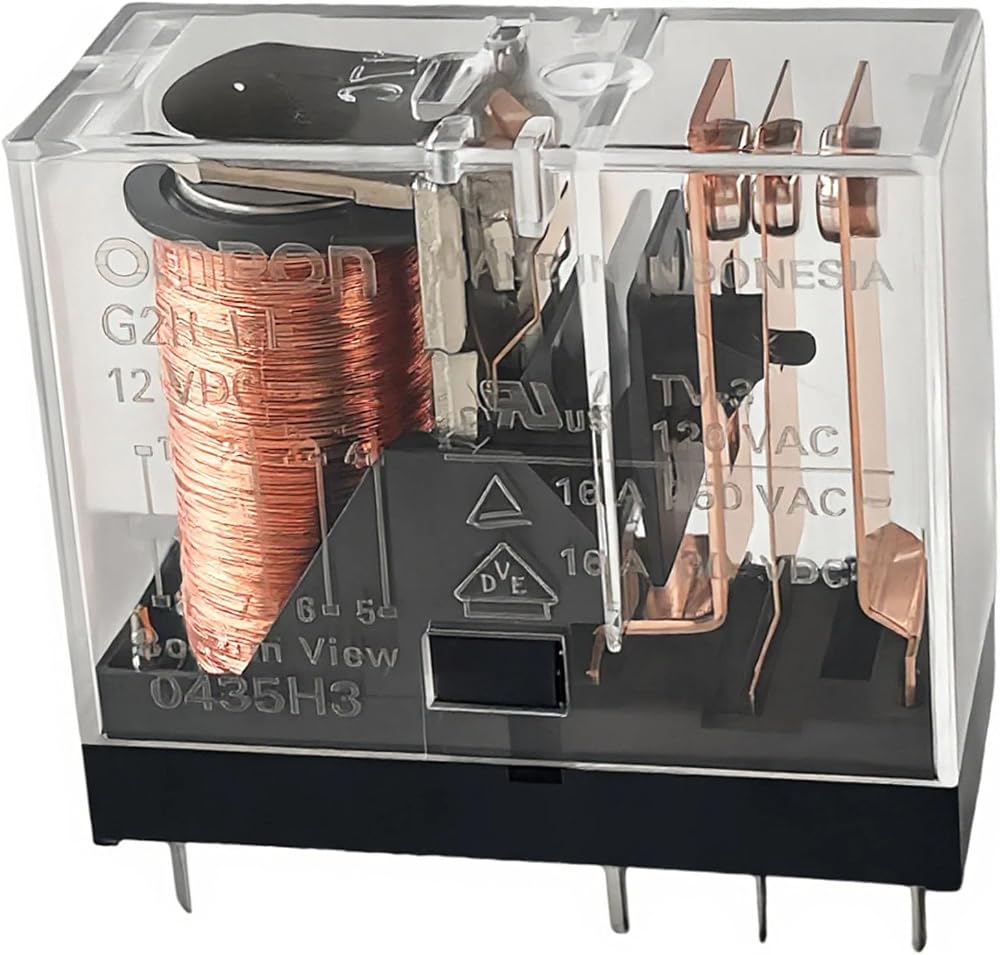

This high-capacity, general-purpose power relay is compatible with Omron G2R-1-E DC12 specifications and is ideal for HVAC controls, appliances, and industrial automation panels that require a 12VDC coil and SPDT contacts on a PCB footprint.
Key SpecificationsContact Form: SPDT (1 Form C), high-capacity design
Contact Rating (Resistive): up to 16 A @ 250 VAC / 30 VDC
Max Switching Voltage: 380 VAC / 125 VDC
Coil: 12 VDC, approx. 275 Ω (~43.6 mA), non-latching
Operate / Release Time: ~15 ms / ~5 ms
Dielectric Strength: 5,000 VAC (coil–contacts); Surge: 10,000 V
Operating Temperature: −40 to 70 °C
Package Size: 29 × 13 × 25.5 mm; transparent case; through-hole
Approvals: UL / CSA / TÜV / VDE (series)
Typical Uses & Install LocationsControl boards labeled for “G2R-1-E DC12” footprint
Fan/Blower relay, Cool/Heat output, compressor or contactor drive
Pumps, motors, solenoids as an interposing relay in PLC/automation

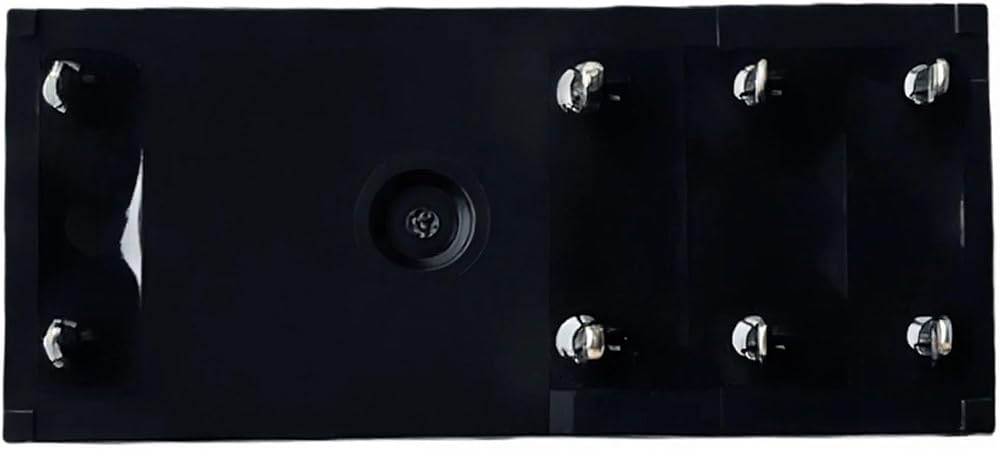

Installation NotesDirect PCB soldering (through-hole). Verify pad layout and spacing.
Use a flyback diode/TVS across the coil and an RC snubber or MOV across inductive loads.
Socket bases (P2RF series) fit plug-in G2R-1-S models; this G2R-1-E does not use a socket.
Trademarks are the property of their respective owners. This item is compatible with Omron G2R-1-E DC12 specifications and is not manufactured or sponsored by that brand.
