مميزات خاصة

Industrial‑grade design, complete communication isolation, and rate up to 115.2Kbps.
Built‑in DC/DC isolated power supply module to achieve electrical isolation between ports.
Support multi‑machine communication, each channel can connect up to 128 nodes, and the longest distance is 2500 meters.
Data automatic control technology, automatically distinguish and control the data direction.
Multiple measures, plus or minus 15KV ESD , 600W dual‑channel TVS 2.5KV communication isolation.

وصف

Specification:

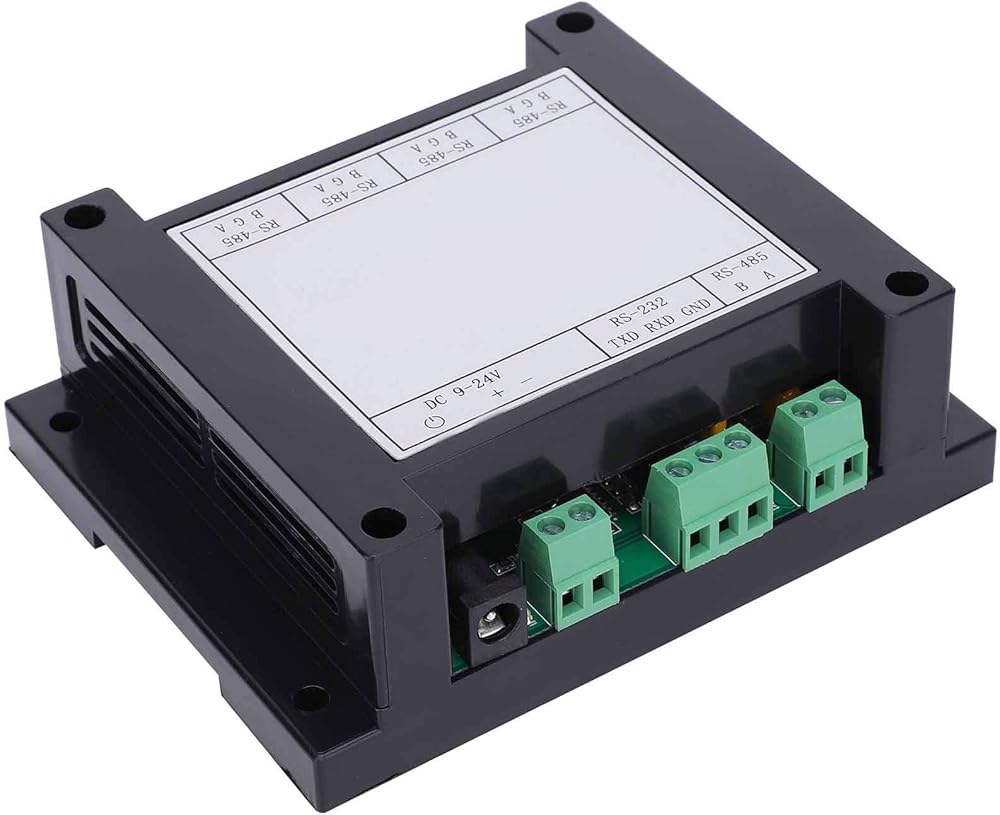

Item Type: Repeater
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5-1.2W

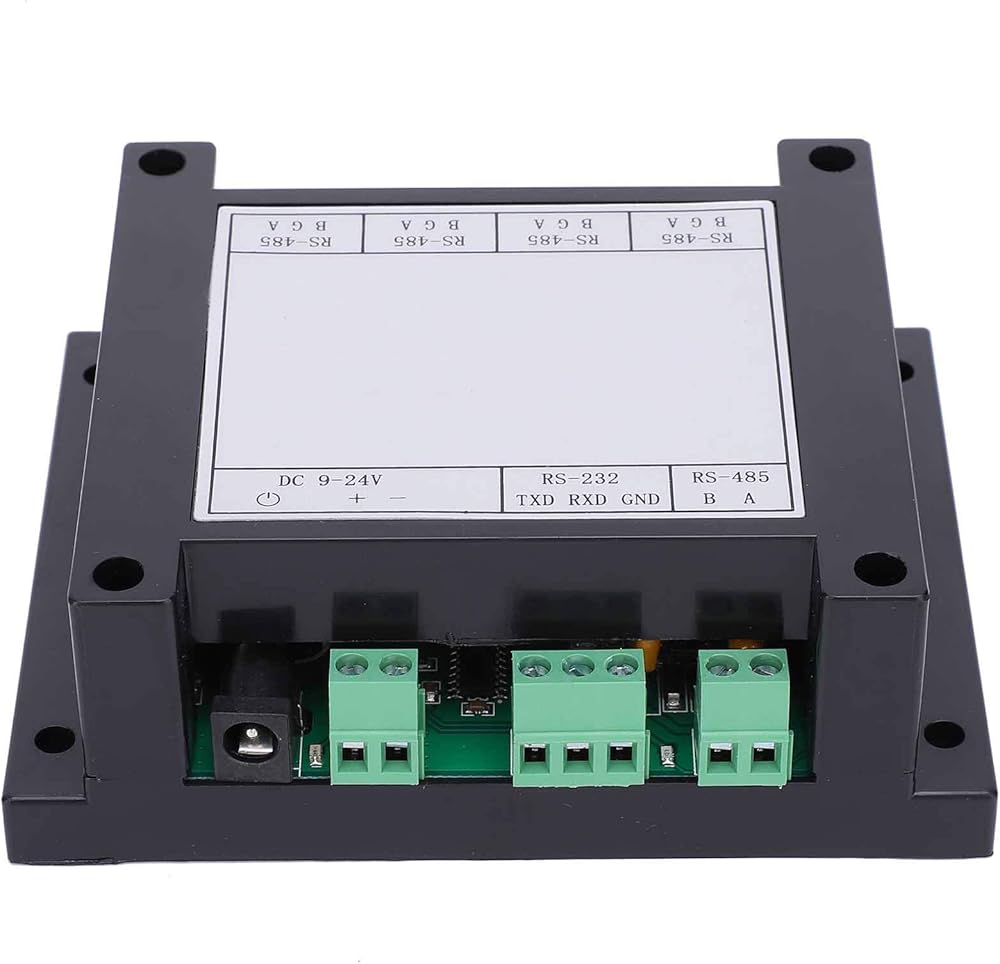

Input Interface: 1 RS-232/1 RS-485

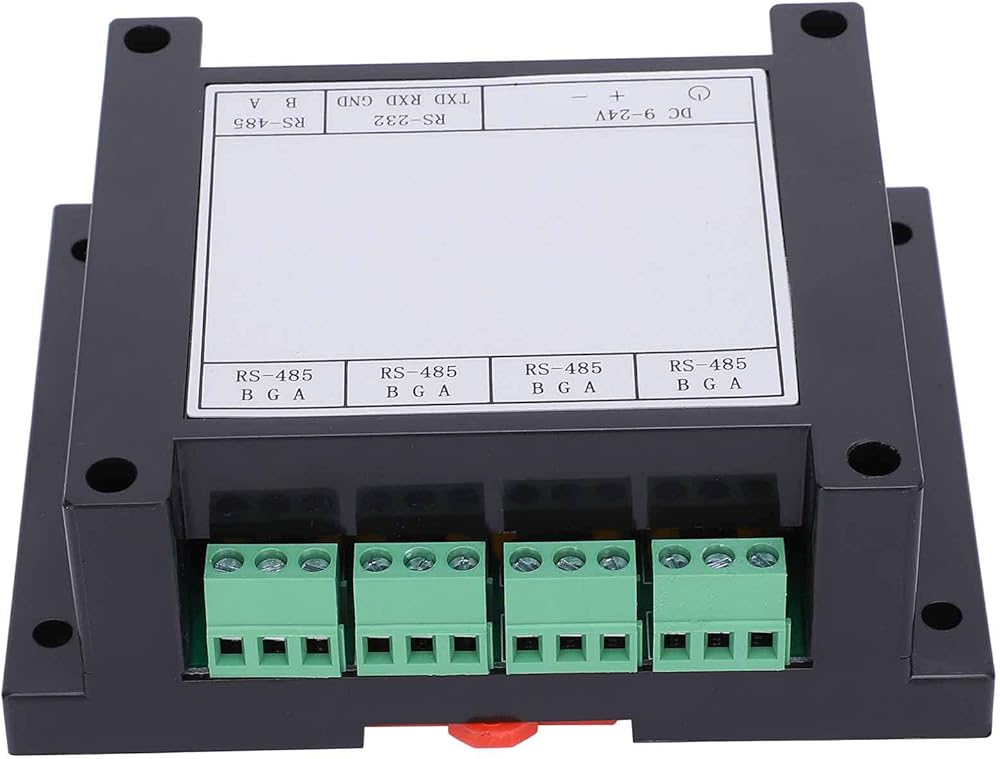

Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps-115.2Kbps

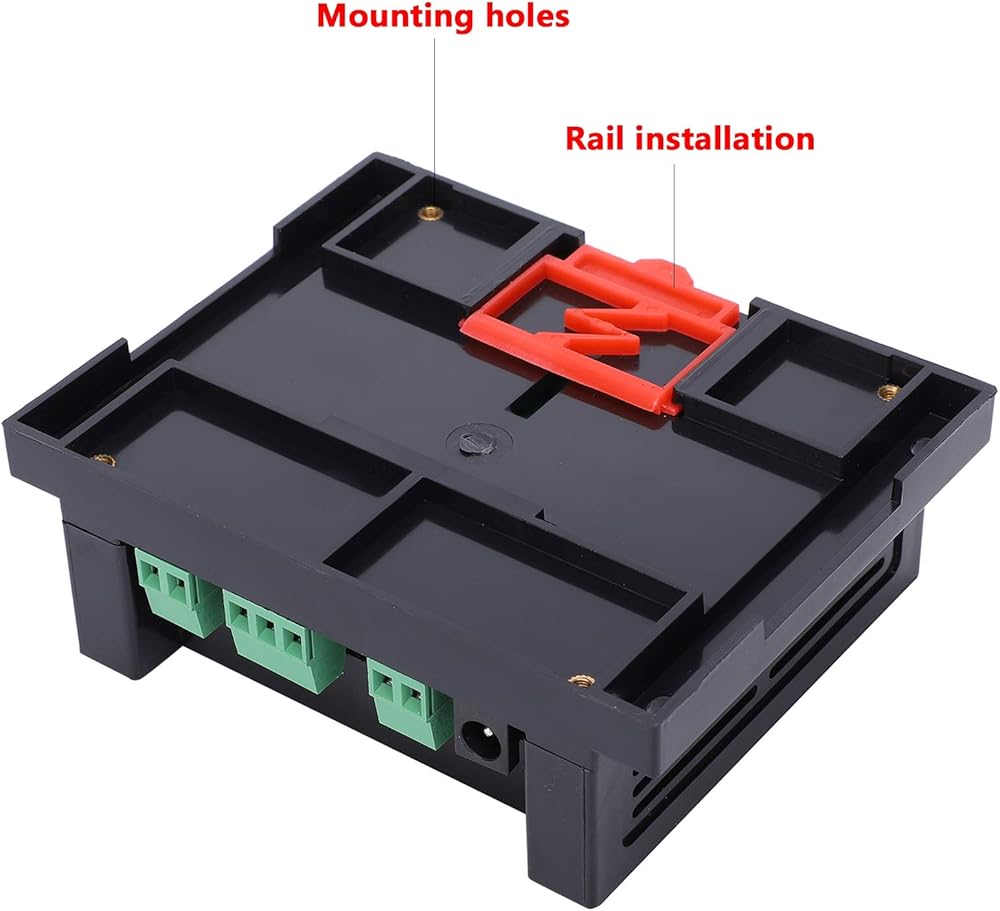

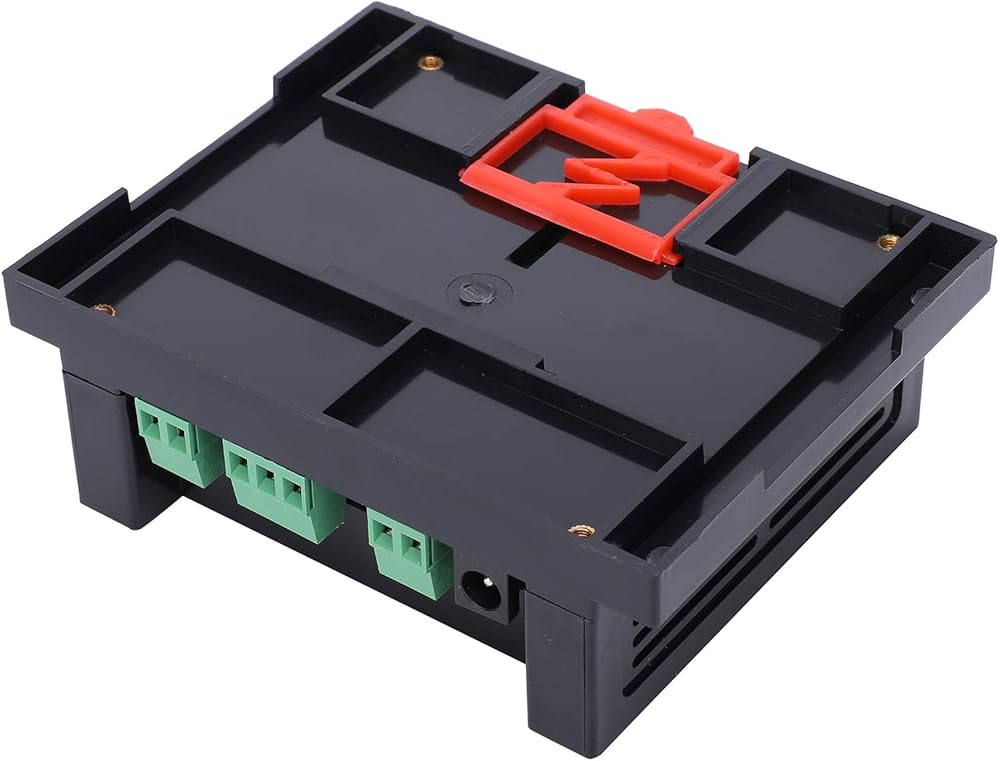

Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in
Working Environment: -30℃ to 70℃ relative humidity>95%RH

Package List:
1 x Repeater

Note:
The device is suitable for long‑term stable under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
