مميزات خاصة

1.Supports Multi-Constellation, Dual-Band GNSS Equipped with a high-sensitivity GNSS receiver, this module supports simultaneous positioning using GPS, Beidou, Galileo, and NavIC constellations. It operates on both L1 (1576 MHz) and L5 (1176 MHz) frequency bands, enabling faster satellite acquisition and improved positioning stability, especially in complex environments.
2.Integrated Active Quad Helix Antenna Features a built-in active Quad Helix Antenna for enhanced signal reception, ensuring reliable GNSS performance in mobile robotics, drones, and embedded applications.
3.Ready for Ardupilot and PX4 Fully compatible with Ardupilot (v4.4.0 and above) and PX4 (v1.14.0 and above) flight control firmware. Once connected following the recommended wiring, the module is automatically recognized by the flight controller. No need to manually configure baud rate or other serial parameters—true plug-and-play experience.
4.Built-in IST8310 Magnetic Sensor Includes the IST8310 magnetometer for heading detection and better electromagnetic resistance.
5.Compact Design, Lightweight, and Easy to Integrate The module measures only 22 × 34 × 13.4 mm and uses a standard 6-pin SH1.0 interface, It requires no soldering for integration. The complete unit (including antenna) weighs just 21g, while the GNSS module itself weighs only 6g—suitable for weight-sensitive UAV and robotics applications.

وصف

SpecificationsGNSS Receiver: NEO-F10N
Compass: IST8310
GNSS Band Support: L1 (1575.42MHz) / L5 (1176.450MHz)
GNSS System Support: GPS/QZSS L1C/A, L5; Galileo E1-B/C, E5a; BeiDou B1C, B2a; NavIC SPS-L5
Concurrent: 4 (GPS/QZSS; BeiDou; Galileo; NavIC)
Max Navigation rate: 10Hz
Input Voltage: 5V
Working Current: 30mA (without antenna); 55mA (with antenna)
Interface (GNSS): UART (3.3V LVTTL)
Interface (Compass): I2C
UART Baudrate: 38400 (Chip Default); 115200 (Factory Default)
Output Protocol: NMEA (Chip Default); UBX-PVT (Factory Default)
PPS LED: Blue (Solid ON after powering on, blinking (1Hz) when GNSS gets 3D fix)
Quad Helix AntennaFull Band Support: GPS/QZSS L1/L2/L5, Galileo L1/E5/E5a/E5b, GLONASS G1/G2/G3, BeiDou B1/B2a/B2b
LNA Gain: 38dB
Input Voltage: 3.0 – 5.5V
Dimensions: Ø28mm * 59.3mm
Connector: SMA
Flight Controller Firmware RequiredArdupilot: >= 4.4.0
PX4: >= 1.14.0
Note: This module is only compatible with Ardupilot (v4.4.0 and above) and PX4 (v1.14.0 and above). Other firmware versions or flight controllers have not been tested.
More Product Information
PhysicalMounting: 28 x 16mm, Φ2mm
Dimensions: 34 x 22 x 13.4 mm
Weight: 6g (without antenna); 21g (with antenna)
PackageMG-F10 Dual Band GNSS Module * 1
Quad Helix Antenna * 1
SH1.0-6P Cable 20cm * 1

مرحبًا،

بحث

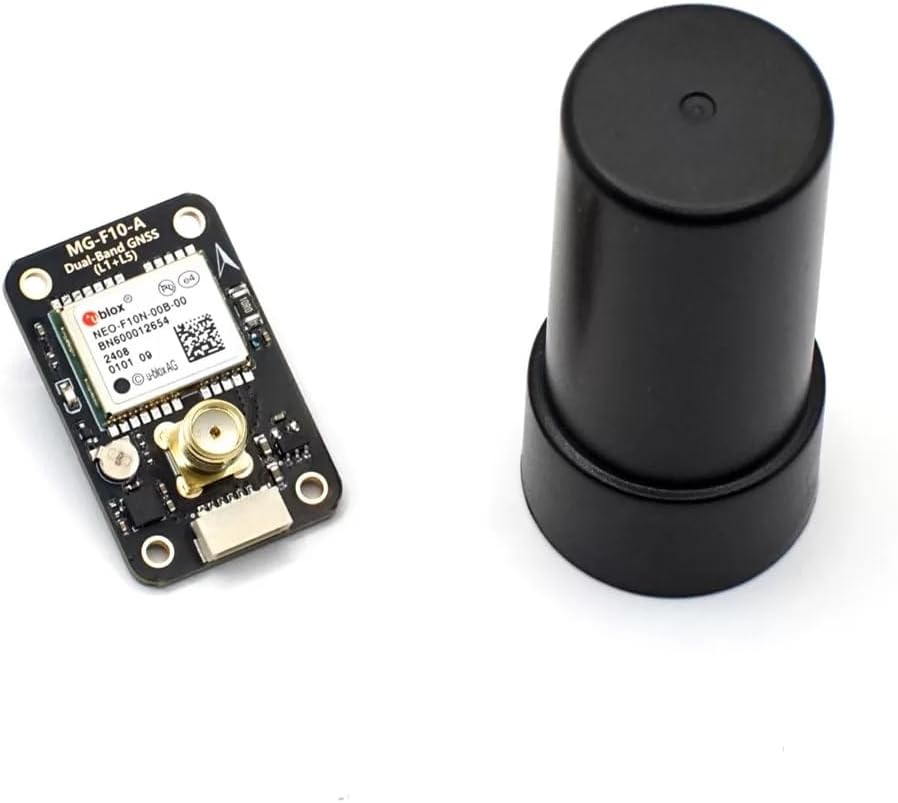

وحدة Micoair MG-F10 مزدوجة النطاق GNSS (L1+L5) مع بوصلة IST8310 وهوائي رباعي الحلزون، متوافق مع PX4 وArdupilot، كوكبة متعددة للطائرات بدون طيار والروبوتات
