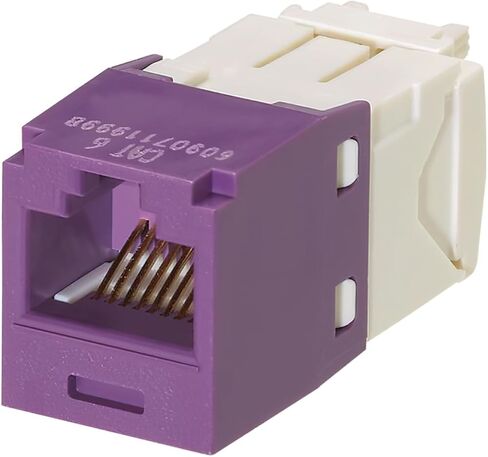

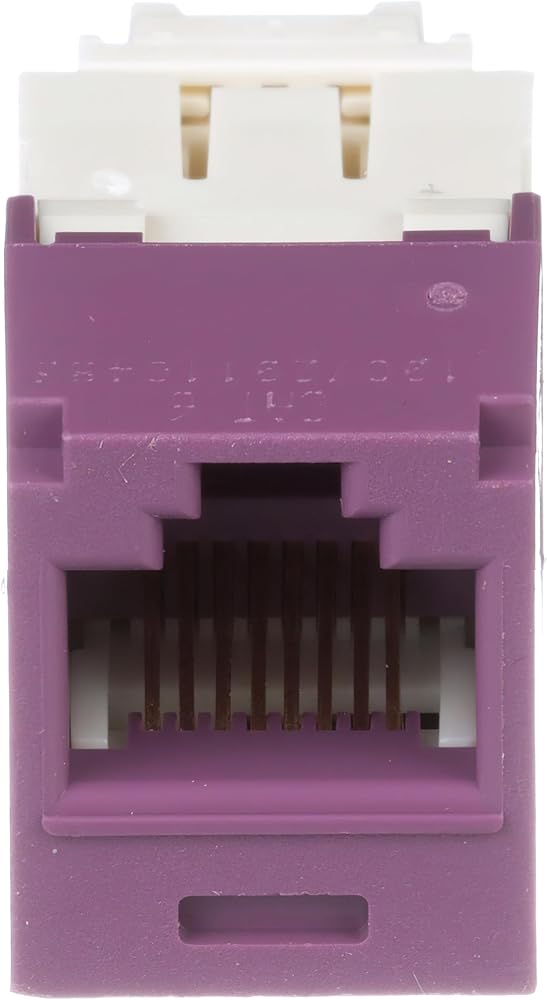

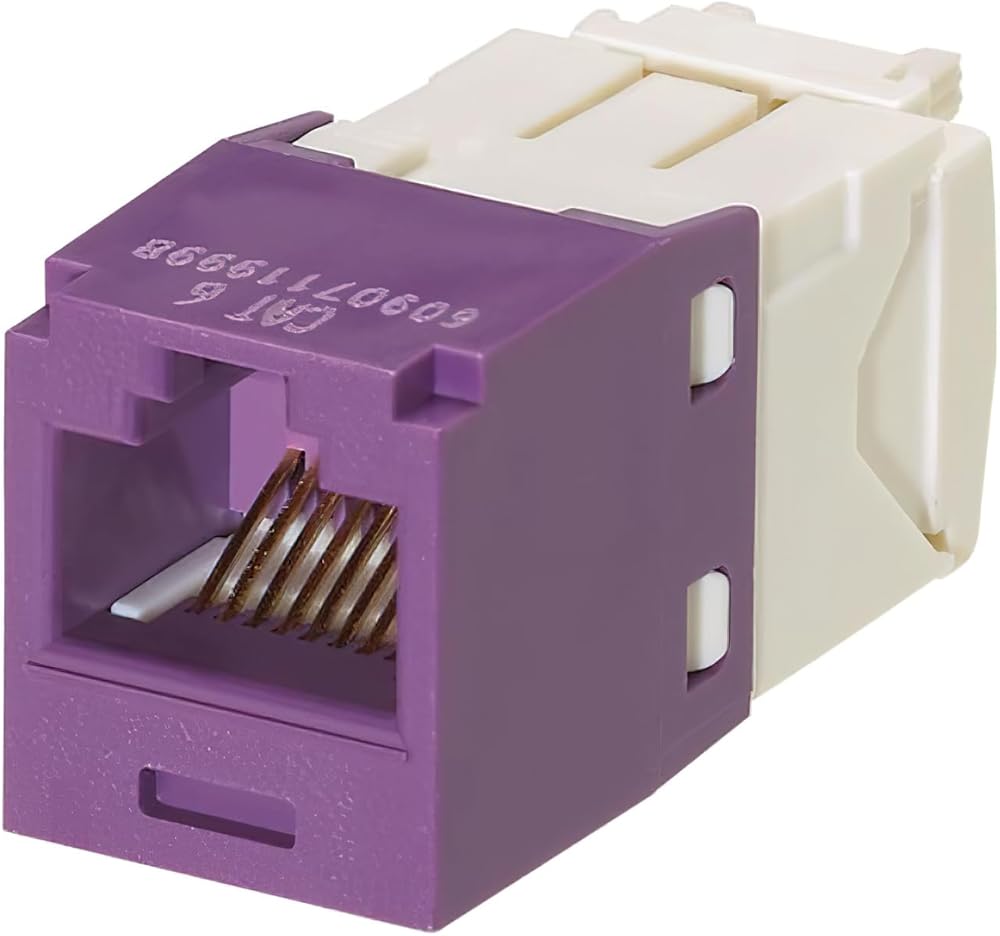

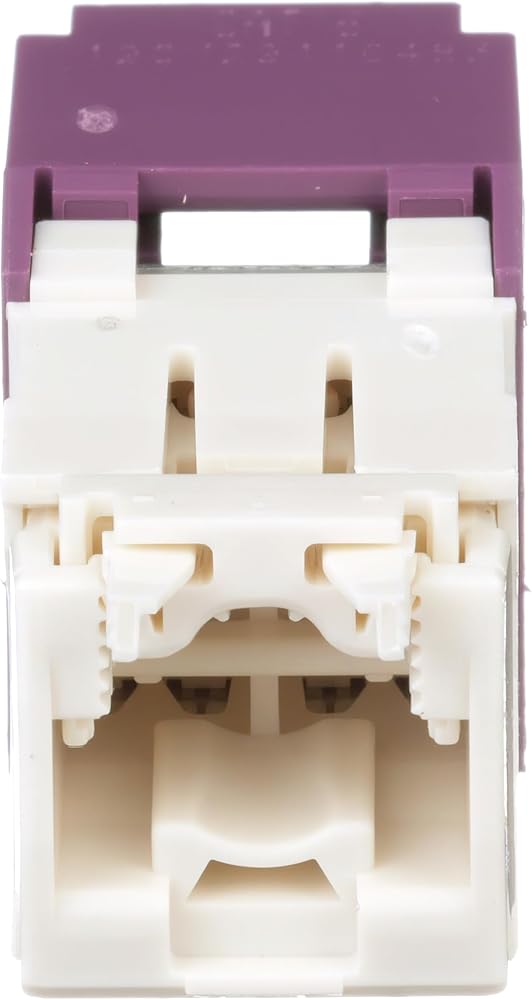

CJ688TGVL Pack of 5 Category 6 TX6 PLUS Mini-Com UTP Jack Modules, Violet, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring
The CJ688TGVL Mini-Com TX6 PLUS UTP Jack Module delivers category 6 network performance in a toolless, easy-to-install form factor. With universal T568A/T568B compatibility, durable gold-plated contacts, and robust polycarbonate housing, it sets the standard for reliable, high-speed ethernet. Designed for effortless integration in commercial and enterprise networks.
Key Features:Cat6 performance for GbE applications
TG style toolless termination for fast setup
Universal T568A and T568B wiring compatibility
Gold-plated phosphor bronze contacts for signal clarity
8-position, 8-wire RJ45 modular jack design
High heat resistance from -10°C to 65°C
RoHS compliant for safety and sustainability
Configurable with Mini-Com patch panels and accessories
Accepts 22-26 AWG solid or stranded cable
Compact module size for versatile installations
Specifications:Color Code: Violet
Performance Level: Category 6
Connector Type: Jack Module - Standard
Termination Style: TG Style
Body Material: Polycarbonate
Contact Material: Plated phosphor bronze
Shield Type: Unshielded (UTP)
Maximum Operating Temperature (°F): 167
Minimum Operating Temperature (°F): 14
Maximum Storage Temperature (°F): 167
Minimum Storage Temperature (°F): -40
Resistance Properties: Heat resistant
Overall Dimensions (HxWxL): 0.71 x 0.62 x 1.5 inches
