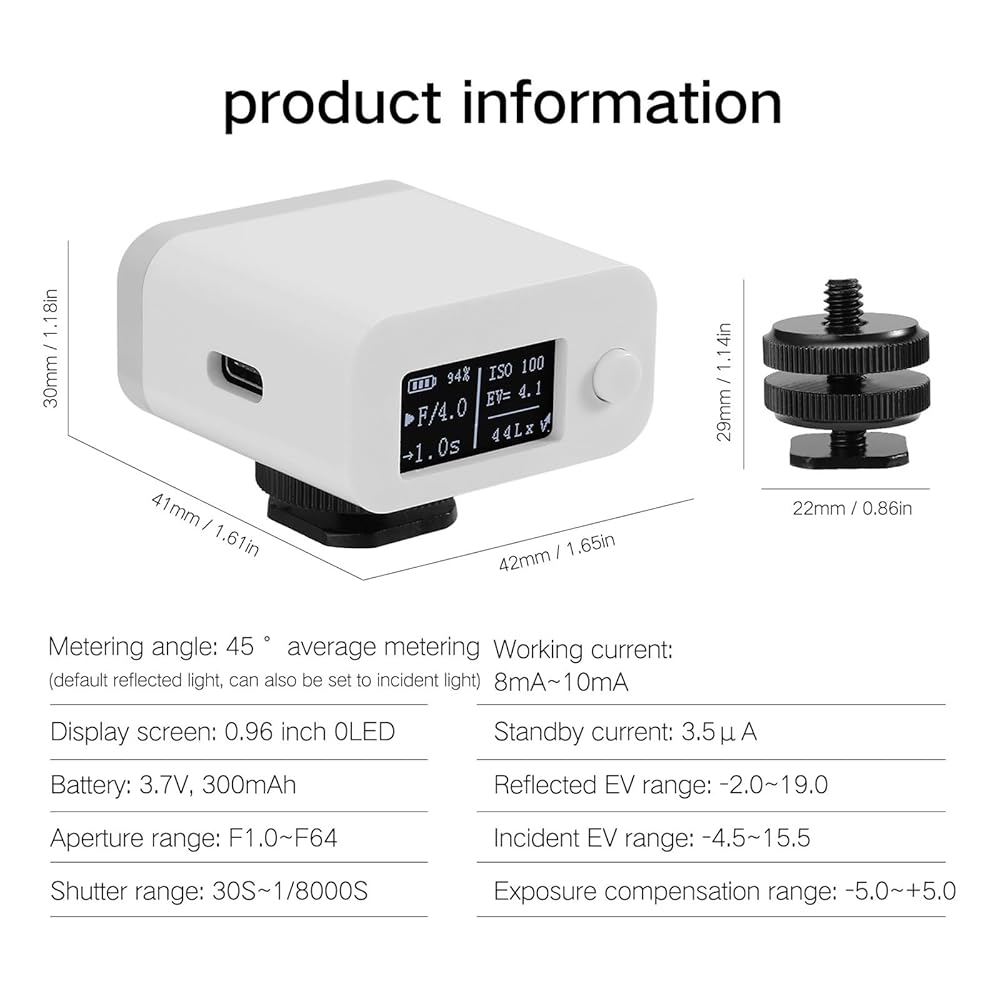

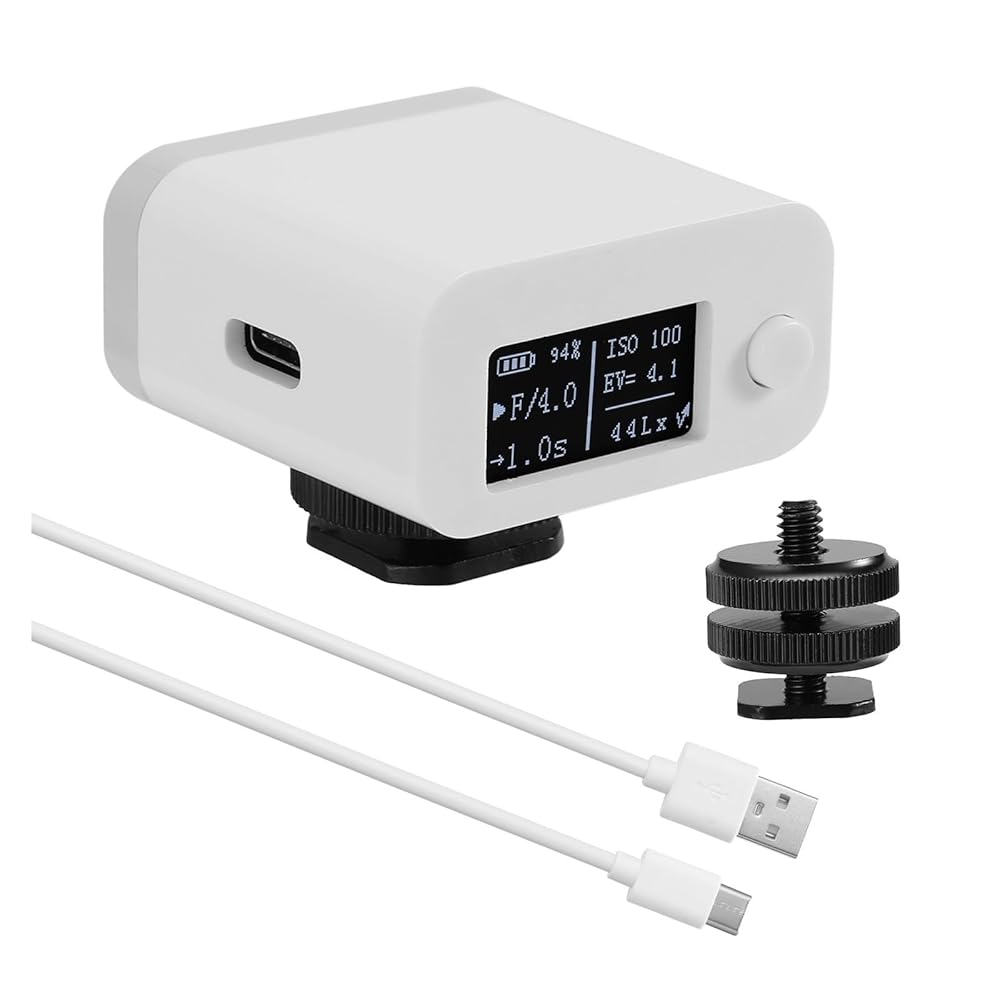

Features

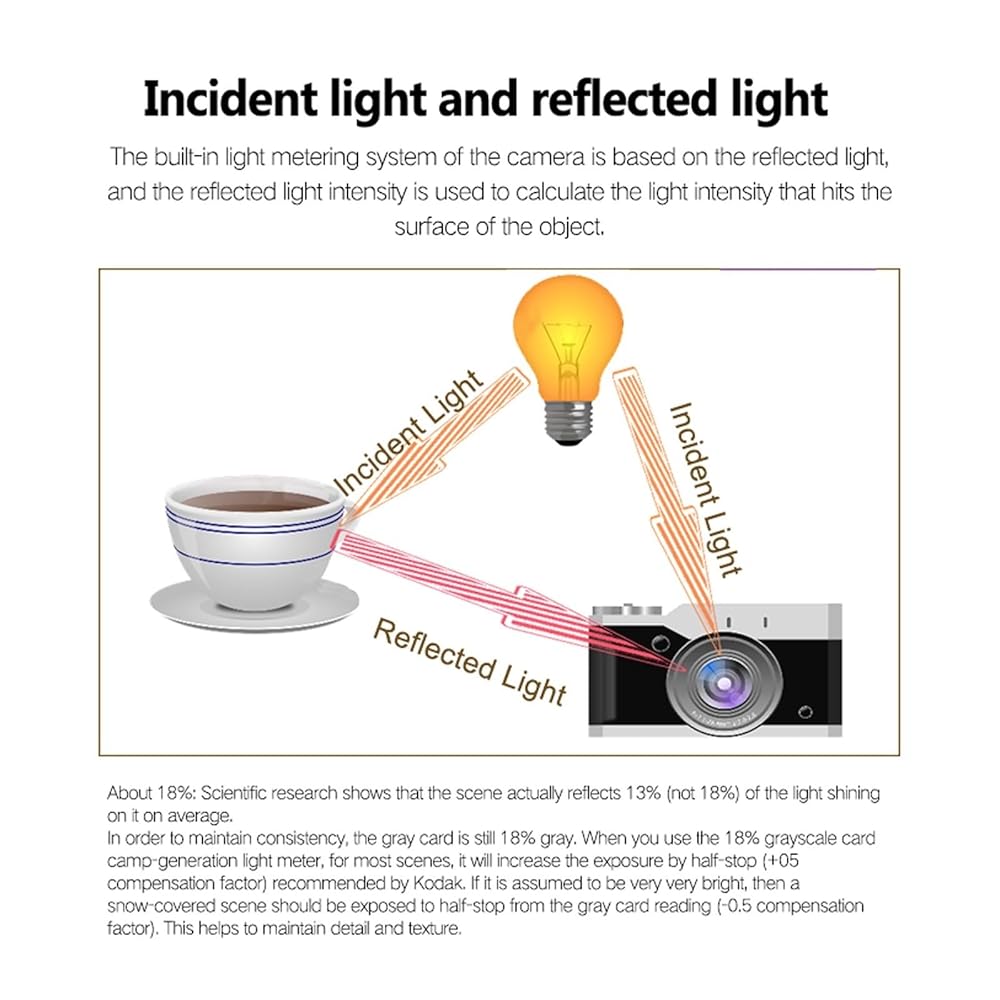

Measuring angle: average measurement of 45° (reflected light by default, can also be set to the incident light).
Display Screen: 0.96 inch 0LED
Battery: 3.7 V, 300 mAh.
Aperture Range: F1.0~F64
Shutter range: 30S~1/8000S
Operating current: 8mA ~ 10mA
Standby current: 3.5A.
Reflected EV Range: -2.0~19.0
Incident EV Range: -4.5~15.5
Exposure compensation range: -5.0~+5.0

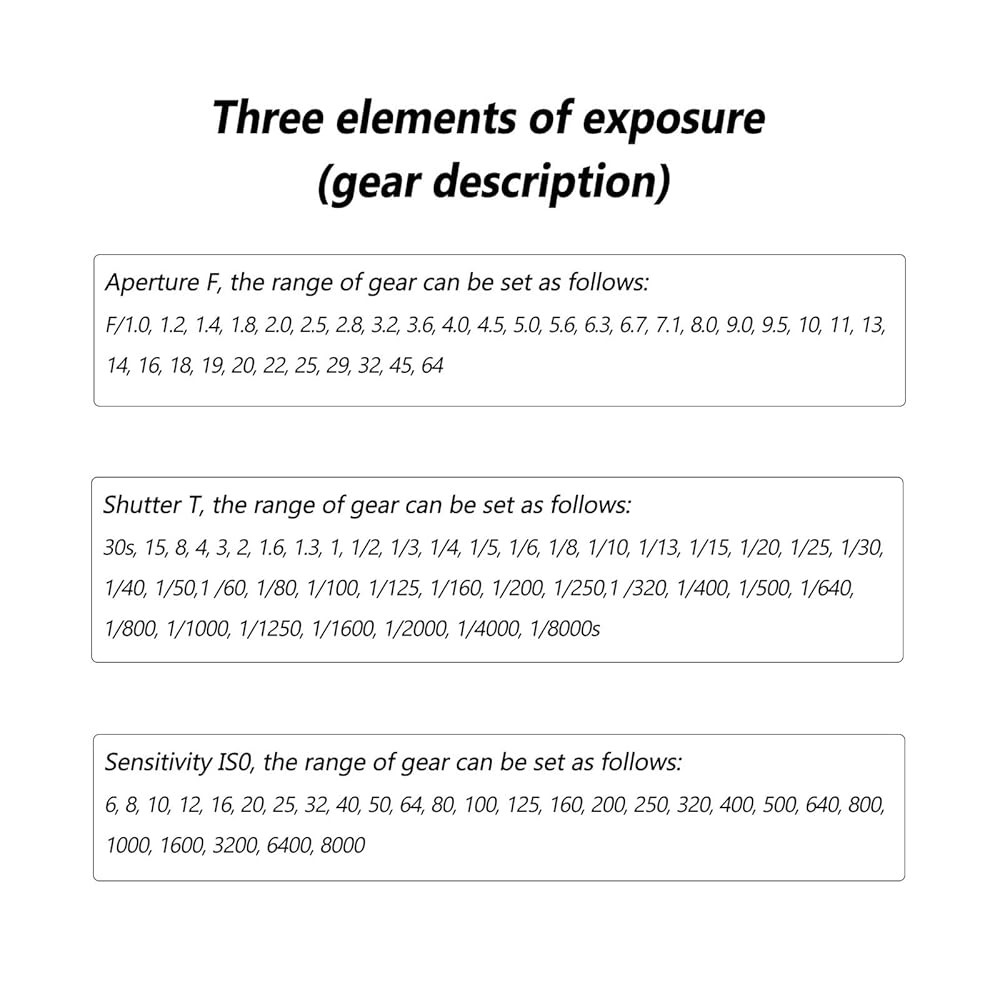

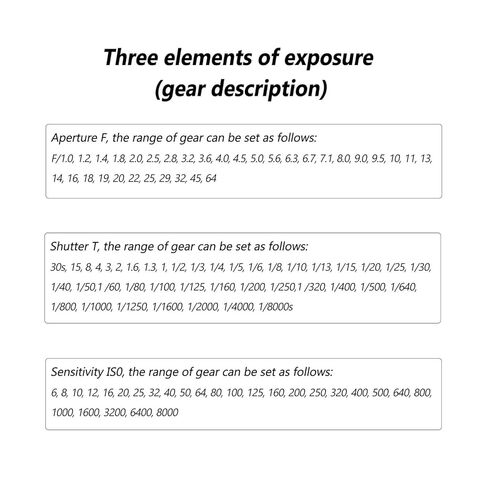

Three exposure elements (description of equipment):
Aperture F, the speed range can be set as follows:
F/1.0, 1.2, 1.4, 1.8, 2.0, 2.5, 2.8, 3.2, 3.6, 4.0, 4.5, 5.0, 5.6, 6.3, 6.7, 7.1, 8.0, 9.0, 9.5, 10, 11, 13, 14, 16, 18, 19, 20 , 22, 25, 29, 32, 45, 64
T shutter, the speed range can be set as follows:
30s, 15, 8, 4, 3, 2, 1.6, 1.3, 1, 1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/10, 1/13, 1/15, 1/20, 1/25, 1/30, 1/40, 1/50,1/60, 1/20, 1/25, 1/30, 1/40, 1/50,1/60, 1/20, 80, 1/2 100, 1/125, 1/160, 1/200, 1/ 250.1 /320, 1/400, 1/500, 1/640, 1/800, 1/1000, 1/1250, 1/1600, 1/2000, 1/4000, 1/4000, 1/4000, 1/4000, 1/4000, 1000, 1/80000 Small
Sensitivity IS0, the speed range can be set as follows:
6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1600, 3200, 6400, 800 000
Package size: 180 x 130 x 60 mm/7.1 x 5.1 x 2.4 inches.
Package weight: 300 g / 10.6 ounces

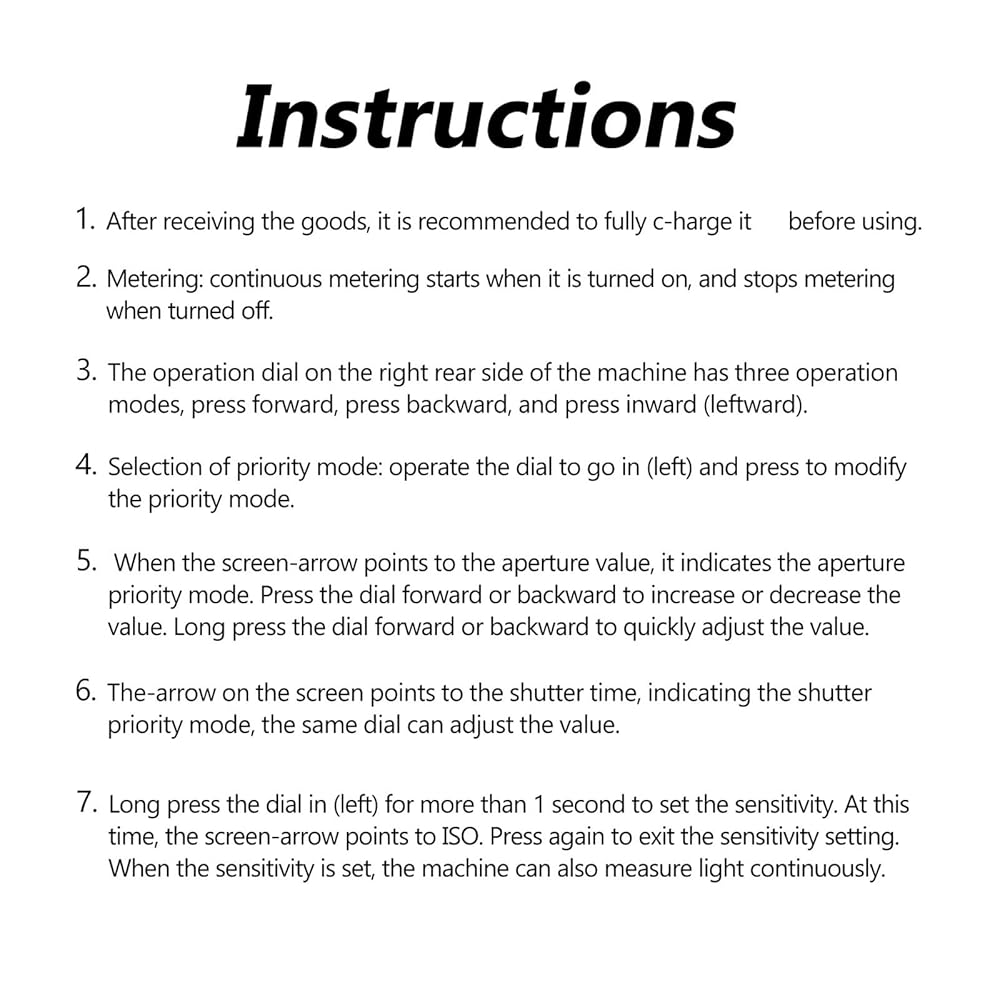

Instructions:
1. After receiving the goods, it is recommended to fully charge it before use.
2. Measurement: Continuous measurement starts when turned on and stops measurement when off.
3. The operating wheel located on the rear right side of the machine has three operating modes: press forward, press backward and press inward(left).
4. Select Priority Mode: Press the dial to enter (left) and press to change priority mode.
5. When the screen arrow points
