Specification:
Model: 51102
Bore Diameter (d): 15 mm
Outer Diameter (D): 28 mm
Thickness (B): 9 mm
Dynamic Load Rating (Cr): 10.5kN
Static Load Rating (Cor): 16.8kN
Limiting Speed (Grease): 6100rpm
Limiting Speed (Oil): 9400rpm
Accuracy Class: P5
Cage Material: Stamping Steel
Bearing Ball Meterial: Chromium Steel (GCr15)
Shaft/Housing Washer Material: Chromium Steel (GCr15)

Feature:
The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.

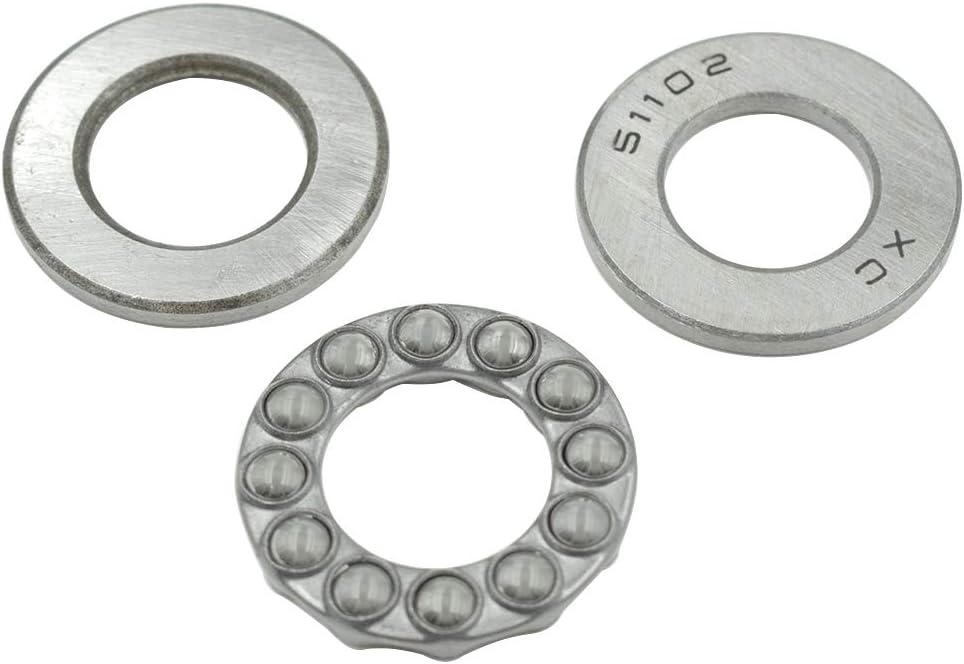

Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.

Package Includes:

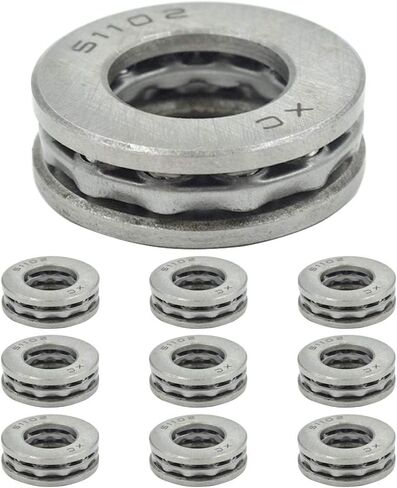

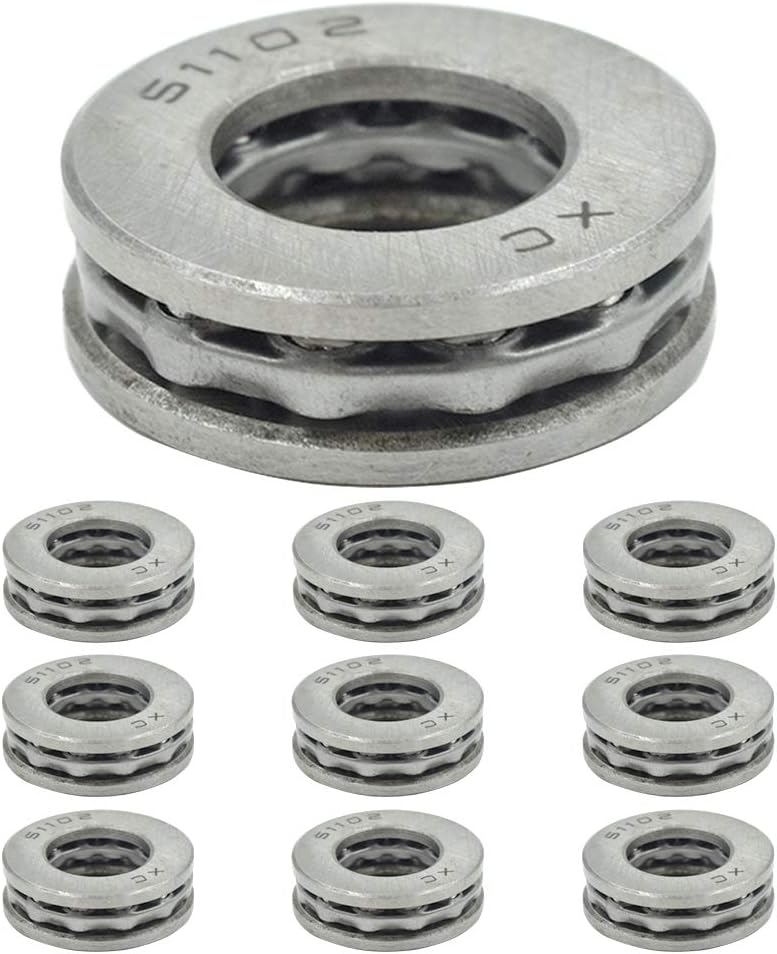

10 x 51102 bearing

Note:

1. Please allow 1-2mm error due to manual measurement.
2. The color of the product may vary slightly due to different displays.
